Digi Goes to Nuremberg for Embedded World 2016

Posted on:

At last week’s Embedded World, we made two exciting announcements. First off, this summer we’ll begin shipping the ConnectCore 6UL development kits. This tiny module, based on the NXP i.MX6UL processor, is just 29mm x 29mm. The CC6UL’s low-power consumption combined with high performance and easy wireless integration will make the module a true game-changer in the Industrial IoT space. More info on the ConnectCore 6UL module is available here.

cc6ul-dimensionsWe also announced a new XBee module in order to support the emerging wireless protocol, Thread. The module will be made available this spring and allow our customers to start designing and testing Thread networks. Thread is an exciting new wireless standard created to improve network reliability, security and power efficiency. We are extremely excited about this new member to the XBee family. Click here to read more about Thread.

Customer Demos
In our booth, we shared the numerous ways our customers are using Digi embedded technology today. Featuring the ConnectCore 6 module, we had our customers Fraser Nash and Furuno on display. Fraser Nash builds zero-emissions taxi cabs for the city of London, while Furuno provides a next-generation platform for commercial marine navigation. Watch the video below to see the Furuno demo in action.

Another fun demo we had was the Parallax ELEV-8 Quadcopter. The quadcopter is equipped with an XBee based telemetry system. Along with the quadcopter, Parallax provides free software to graphically view data from the device such as battery voltage, pitch, orientation, throttle position, and much more. Attendees could power up the quadcopter, pick it up, adjust the throttle, and see all of the telemetry data streaming live on a laptop.


Digi Partners

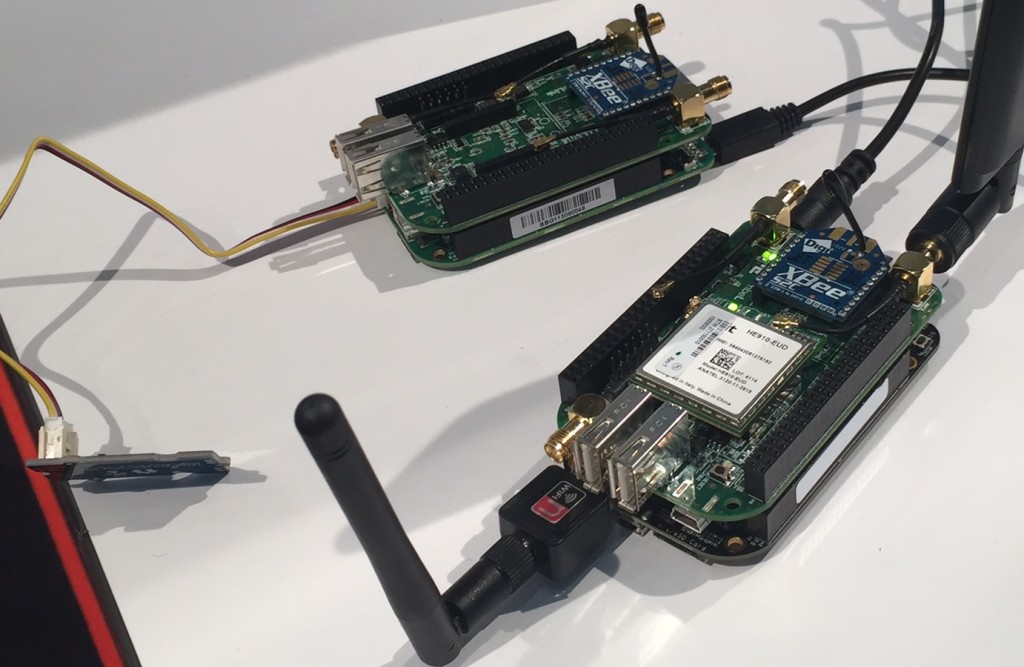

As we explored the show floor we found an awesome IoT demo in the Digi-Key Electronics booth. It was a wireless sensor network application featuring XBee, Nimbelink cellular module, BeagleBone board, and the Exosite cloud platform. This was truly an end-to-end IoT solution from sensor to cloud.

And just 5 steps away from that end-to-end IoT demo was a wireless charging demo which used XBee to send display information and charging status data between the two devices.

IMG_1647 (2)

Our partner, Mouser, held a development tool giveaway at their booth and one of the prizes was an XBee Wireless Connectivity Kit. Klaus Peitzch was one of the XBee kit winners and he has already started putting it to use! Check out his blog post where he shows how to get started with XBee enabled wireless communications.

img_0370Thanks to everyone that stopped by at Embedded World. It was a valuable show for us and we enjoyed connecting with our partners and customers from around the world!

Here are more links sharing the Digi happenings at Embedded World:

Prototype XBee and Other Wireless Projects with Tinylab

Posted on:

You might remember our post about the XBee product turned Indiegogo superstar last year–Plexidrone. Well, there’s another XBee related Indiegogo campaign making headlines. Tinylab is a prototyping platform, developed by Bosphorus Mechatronics, simplifying IoT development with an all-in-one Arduino-based solution.

Tinylab reduces the need to stack multiple Arduino shields, pull out the breadboard and jumper wires, or hunt down that spare LTH sensor in your drawer. This flexible and extensive development board supports Arduino and other development environments, hosts 20 Digital I/O, and additional sensors come pre-attached. And, perhaps most exciting, is the support for a number of wireless technologies like XBee, Bluetooth, or Wi-Fi with the ESP8266 chip as seen in the graphic below.



The Indiegogo campaign got off to a great start and Bosphorus Mechatronics quickly exceeded their goal of $25,000. The crew is shipping development kits to their campaign supporters in May and one level of support will even earn contributors a development kit that includes XBee RF modules.

Also, to demonstrate the board’s capabilities, the team at Tinylab created an wireless lighting demo. The video is showing wireless control of a lightbulb with commands sent over XBee. Check out the video below.

If you are interested in learning more about the Tinylab prototyping platform, click here to visit the Indiegogo campaign and support! You can follow their updates on Twitter or visit the Bosphorus Mechatronics website here.

Introducing XCTU 6.3

Posted on:

A new version of everyone’s favorite XBee configuration software, XCTU, is here! Among a few small updates like a refreshed look and feel, UI enhancements, and minor bug fixes, the XBee team has introduced three brand new features to the software. Here’s a look at what you’ll find in XCTU 6.3.

Command Line Interface Support
New to XCTU is Command Line Interface (CLI) Support. Now, users can execute the application in CLI mode without the graphic interface. This is primarily useful for scripting and automation purposes when managing large scale XBee deployments. The following features are supported within CLI mode:

  • List ports – A list of serial and USB ports can be retrieved in
    command line mode.xctu_welcome
  • Update firmware – Firmware of any radio device can be updated in this
  • Load profile – Now it is possible to load profiles to connected
    devices through the CLI of XCTU.

Spectrum Analyzer
From within the XCTU interface, users can test and measure the spectrum of the radio’s band. The analysis displays average, maximum, and minimum values of each channel. This is helpful to determine which channel to set your XBee radios to and troubleshoot network issues.

Throughput Tool
With the Throughput Tool users can measure the maximum transfer ratio from one radio module to another within the same network. The tool provides three session modes and several payload configuration options to test different combinations and understand the performance of your wireless network.

If you haven’t already updated from within XCTU, just click here to download the software to your computer. Have fun and if you have questions feel free to tweet us at @XBeeWireless.

XBee Tech Tip: Using the XCTU Spectrum Analyzer Tool

Posted on:

XCTU 6.3 features a brand new Spectrum Analyzer tool. This makes it possible to measure and test the spectrum using only an XBee radio. The tool generates a report of the noise level for each channel within the radio’s frequency band. With these data points, XBee users can select the optimal channel for their XBee network and troubleshoot network issues.

In this XBee Tech Tip, we’ll take a look at how to run the Spectrum Analyzer tool. Below is a quick screencast that takes you through adding the XBee device to XCTU to running a spectrum analysis and sorting through the data points collected. The video is followed with more information on the tool such as configuring the test and analyzing the network noise levels.

To get started, first access the tool by selecting it from the Tools drop down menu.

Device selection
The first section of the tool contains the device selection control populated with the devices that you have added to XCTU. Select the radio module you want to use to perform the analysis.

Analysis Configuration
The analysis configuration panel is located next to the device selection control. This section allows you to configure the spectrum analysis process:
This is the list of available settings:Screen Shot 2015-12-10 at 8.57.25 AM

  • Sampling interval (ms): Determines the time to wait in milliseconds before reading a new noise level sample of the RF channels.
  • Number of samples: Check this option to configure the number of samples to read in the spectrum analysis session.
  • Loop infinitely: Check this option to read samples infinitely until the spectrum analysis session is stopped manually.

When you have configured all the options, click Start Spectrum Analysis button to start reading samples and measure the noise level of each RF channel. You can manually stop the analysis at any time by pressing the same button, now displaying the text Stop Spectrum Analysis.

Data Presentation
When an analysis is started, the chart and channels list are filled with all the RF channels supported by the selected device. Note: the list of supported channels may vary depending on the device type and device region.

Channel Chart
This chart represents the noise level of all the RF channels. Each channel displays 1 bar with the current noise level and two tick marks representing the maximum noise level (green) and the minimum one (red).

Screen Shot 2015-12-09 at 4.20.16 PM

A blue line is also added to the chart indicating the average noise level of all channels. The spectrum analysis refreshes the noise levels of each channel continuously until the analysis ends or it is stopped.

Along the bottom of the chart, users can filter to hide or display the bars, the max and min noise values and the average noise level line.

Screen Shot 2015-12-09 at 4.20.32 PM

Once the spectrum analysis reaches the specified number of samples or is stopped, you can click on each channel to get specific values (seen above). This control displays the current noise level of a channel as well as its average, maximum and minimum noise level.

The Spectrum Analyzer feature supports Digi radios with the following protocols:

  • ZigBee (S2C Modules)
  • 802.15.4
  • DigiMesh
  • XTend Legacy
  • XTend DigiMesh
  • Digi Point

What do you want to learn next?
We hope you found this tutorial helpful! Let us know what you’d like to learn in the next XBee Tech Tip: http://bit.ly/xbeetechtip

IoT Greenhouse

Posted on:


Managing a widely distributed network of greenhouses can be a costly endeavor with the constant monitoring and adjusting required to maintain optimum growing conditions. That’s why greenhouse farmers and plant growers are turning to technology to monitor and automate their crops.

As proof of this evolution, a fully internet-connected greenhouse was on display at this year’s Intel Developer Forum (IDF15).

Using an Intel IoT Gateway, the wireless systems turns daily farming data into a more meaningful decision-making. Sensors for temperature, humidity, pH, and luminosity in the greenhouse pass the data to the local Galileo gateway. Galileo transmits data using XBee to an Atom processor-based gateway, and then uploads all the information to the cloud system.

The UI for this sensor network visualizes the data collected and provides a menu to configure the greenhouse’s settings.

Farmer Safety Device

Posted on:

xbee-farmer-safetyBy Jon Noh

Jon Noh had been working on a wearable device to make work around the farm safer. After hearing about an accident involving a fellow farmer, he sped up development and finished the project. The device is essentially a kill-switch so if a farmer is caught he can immediately turn off the sweep auger and avoid serious injury.

“The sweep auger motor plugs directly into an outlet on the receiving box. This receiving box and transmitter each have an XBee wireless transceiver inside. When the remote control is powered on, the first LED lights up. When the safety cord is connected, the second LED lights up. At this point, the sweep auger is off.

If the start/stop push button is pressed, the XBee radio in the transmitter signals the XBee in the receiving box to turn on the motor starter and power up the sweep auger. If the safety cord is pulled, the sweep auger shuts down. (The start/stop button needs to be pressed again to power it after the safety cord is put back on.) Pressing the start/stop button also stops the auger if it is running.

Read more info on the project here.

Connecting Grove Sensors with Digi XBee

Posted on:

Grove modules are quickly growing in popularity due to each sensor and actuator having the same standardized connector — making it fast and easy to prototype a sensor project.

In the words of Seeed Studio, “Grove is a modulated, ready-to-use tool set. Much like Lego, it takes a building block approach to assembling electronics. Compared with the traditional, complicated learning method of using a breadboard and various electronic components to assemble a project, Grove simplifies and condenses the learning process significantly. The Grove system consists of a base shield and various modules with standardized connectors.”im121027001_2_1

What makes Grove devices so simple is that the connectors eliminate the need to break out the breadboard, resistors, jumper wires, etc.. The connection is a 4-pin interface that supports digital, analog, I2C signal through four wires with different colors.

  • Red is for VCC
  • Black is for GND,
  • Yellow is for signal
  • White is for others.

Since Digi XBee is used frequently in wireless sensor networks, we included six Grove connectors on the new Digi XBee Grove Development Board. You can use it to quickly evaluate Digi XBee and Grove modules with a PC or micro-controller.

We have included two Digi XBee Grove Adapter Boards in the Wireless Connectivity Kit. If you’re interested in how this might help you build wireless sensor networks, we have this graphic that offers an overview of the board and its connections.




Visit Digi-Key to learn more about the Wireless Connectivity Kit. More information on the Digi XBee Grove Development Board can be found here.

XBees Soar into Space on NASA Rocket

Posted on: 2 Comments

Rob Faludi, Digi’s Chief Innovator, was onsite for the launch of the first XBee network into space. The successful test of the wireless sensor network took place at the Wallops Flight Facility in Virginia. The launch is part of NASA’s effort to determine the effectiveness of Exo-Brake technology and introduce wireless technology into their designs. As this was the first XBee network to reach space, we had to capture it on video.

Learn more about the experiment and see photos in these related posts:
