Digi TransPort® WR Familie

Leistungsstarker Wi-Fi-zu-Mobilfunk-Router

  • Hochgeschwindigkeits-Mobilfunkanschlüsse: GSM GPRS/EDGE/HSPA und CDMA EV-DO
  • Optional mit integriertem 802/11b/g Wi-Fi Access-Point und 4-port Ethernet Switch
  • Flexible serielle, GPS-, USB- und Telemetrie-Anschlüsse
  • Komponente der 'PCI DSS compliant solution'

Die Digi TransPort WR Familie bieten als erweiterbare Mobilfunk-Router sichere Hochgeschwindigkeitsverbindungen zu entfernten Standorten und Geräten für drahtlose Haupt- und Backup-Breitband-Anbindung. Die Router unterstützen ein flexibles Design mit zahlreichen Konfigurationsoptionen, einschließlich verschiedenen seriellen Ports (async oder sync), GPS-, Wi-Fi- oder Telemetrie-Modulen, zusätzlich zu den Standardanschlüssen wie USB, seriell und Ethernet. Erweiterte Routing-Optionen, eine Firewall und weitere Sicherheitsfeatures wie ‚stateful firewall inspection‘ und integriertem VPN machen die Digi TransPort Familie einzigartig.



Custom Build Your TransPort

Fill out the options below to create a Digi TransPort product that is specific to your application. Once all the options are selected, a sku will be created in the 'Part Number' section below, and you'll be ready to order.

Select options above to generate a part number and description.
AC Power Supplies Nordamerika: International:
AC Power Supply - 12VDC, extended temp. IEC320-C14 to 2.1mm locking barrel plug. Compatibility: Digi TransPort WR41 (locking power cord models), Digi TransPort WR21.
Mehr 		 Keine Angabe
 76000788
Kontakt
AC Power Supply - 12VDC, extended temp. IEC320-C14 to 4-pin connector. Compatibility: Digi TransPort WR44 (all versions), Digi TransPort WR41 (4-pin power cord models).
Mehr 		 Keine Angabe
 76000789
Kontakt
AC Power Supply - 12VDC, extended temp. NEMA 5-15P (US) to 2.1mm locking barrel plug. Compatibility: Digi TransPort WR41 (locking power cord models), Digi Connect WAN, Digi Connect WAN 3G, ConnectPort WAN, Digi TransPort WR21.
Mehr 		 76000752
 Keine Angabe
Kontakt
AC Power Supply - 12VDC, extended temp. NEMA 5-15P (US) to 4-pin connector. Compatibility: Digi TransPort WR44 (all versions), Digi TransPort WR41 (4-pin power cord models).
Mehr 		 76000790
 Keine Angabe
Kontakt
AC Power Supply - 12VDC. Universal plugs (US, EU, UK, AU) to 2.1mm locking barrel plug. Compatibility: Digi TransPort WR41 (locking power cord models), Digi TransPort WR44 (locking power cord models), Digi TransPort WR21.
Mehr 		 76000823
 76000823
Kontakt
AC Power Supply - 12VDC. Universal plugs (US, EU, UK, AU) to EIAJ non-locking barrel plug. Compatibility: Digi TransPort WR41 (12V non-locking power cord models), Digi TransPort WR44 (non-locking power cord models), Digi TransPort DR64.
Mehr 		 76000824
 76000824
Kontakt
AC Power Supply - 5VDC. Universal plugs (US, EU, UK, AU) to EIAJ non-locking barrel plug. Compatibility: Digi TransPort WR41 (5V models).
Mehr 		 WS-PS-UN03
 WS-PS-UN03
Kontakt
AC Power Supply - 12VDC, extended temp. NEMA 5-15P (US) to bare wire. Compatibility: Digi Connect WAN IA, ConnecPort X4, Digi TransPort WR21.
Mehr 		 76000736
 76000736
Kontakt
DC Power Cords Nordamerika: International:
DC Power Cord - 4-pin connector to bare wire, 4m. Compatibility: Digi TransPort WR44.
Mehr 		 76000774
 76000774
Kontakt
DC Power Cord - 2.1mm locking barrel plug to bare wire, 4m. Compatibility: Digi TransPort WR41 (locking power cord models), Digi TransPort WR21.
Mehr 		 76000821
 76000821
Kontakt
DC Power Cord - 2.1mm locking barrel plug to bare wire, 4m. Compatibility: Digi TransPort WR44 (locking power cord models)
Mehr 		 76000854
 76000854
Kontakt
DC Power Cord - EIAJ-04 non-locking barrel plug to bare wire, 4m. Compatibility: Digi TransPort WR41 (5V power cord models), Digi TransPort WR44 (non-locking power cord models).
Mehr 		 76000822
 76000822
Kontakt
DC Power Cord - 2.1mm locking barrel plug to 12V auto power outlet, 2m. Compatibility: Digi TransPort WR41 (locking power cord models).
Mehr 		 76000860
 76000860
Kontakt
DC Power Cord - EIAJ-04 non-locking barrel plug to 12V auto power outlet, 2m. Compatibility: Digi TransPort WR44 (non-locking power cord models).
Mehr 		 76000862
 76000862
Kontakt
DC Power Cord - 4-pin connector to 12V auto power outlet, 2m. Compatibility: Digi TransPort WR44.
Mehr 		 76000863
 76000863
Kontakt
DC Power Cord - 2.1 mm locking barrel plug to 12V auto power outlet, 2m. Compatibility: Digi TransPort WR44 (locking power cord models), Digi Connect WAN 3G.
Mehr 		 76000861
 76000861
Kontakt
DC Power Cord - 4-pin connector to bare wire, 4m. Compatibility: Digi TransPort WR41 (models with 4-pin power connector).
Mehr 		 76002053
 76002053
Kontakt
Antennas Nordamerika: International:
Antenna - Cellular, Magnet Mount, Penta Band, 2.5 dBi
Mehr 		 76002051
 76002051
Kontakt
Antenna - Cellular, Direct Mount, Quad Band, 2 dBi
Mehr 		 76002050
 76002050
Kontakt
Antenna - GPS, Surface/Through-Hole Mount, 1575 MHz, 25 db
Mehr 		 76000841
 76000841
Kontakt
Antenna - GPS, Magnet Mount, 1575 MHz, 28 dB
Mehr 		 76000842
 76000842
Kontakt
Antenna - Cellular/Wi-Fi Combo, Surface/Through-Hole Mount, Penta Band / 2450 Band, 0-2 dBi
Mehr 		 76000843
 76000843
Kontakt
Antenna - Cellular, Glass Mount, Quad Band, 1.5 dBi
Mehr 		 76000844
 76000844
Kontakt
Antenna - Cellular, Glass Mount, Penta Band, 0 dBd
Mehr 		 76000845
 76000845
Kontakt
Antenna - Cellular, Surface/Through-Hole Mount, Quad Band, 0 dBd
Mehr 		 76000846
 76000846
Kontakt
Antenna - Cellular, Surface/Through-Hole Mount, Quad Band, 3.15 dBi
Mehr 		 76000847
 76000847
Kontakt
Antenna - Cellular, Surface/Marine Mount, Quad Band, 0 dBd - 2.15 dBi
Mehr 		 76000864
 76000864
Kontakt
Antenna - WiFi, Direct Mount, 2450/5800Mhz
Mehr 		 CPTS-ANT-HG
 CPTS-ANT-HG
Kontakt
Antenna - Cellular, Direct Mount, Dual Band, 3 dBi
Mehr 		 DC-ANT-DBDP3
 DC-ANT-DBDP3
Kontakt
Antenna - Cellular, Magnet Mount, Dual Band, 4.0 dBi
Mehr 		 DC-ANT-DBHG
 DC-ANT-DBHG
Kontakt
Antenna - Cellular, Direct Mount, Penta Band, 2 dBi
Mehr 		 76002052
 76002052
Kontakt
Antenna - WiFi, Table-top Mount, 2450Mhz, 0.5m cable.
Mehr 		 DC-ANT-24DT
 DC-ANT-24DT
Kontakt
Antenna - Wi-Fi, Direct Mount, 2450 MHz, 1.8 dBi
Mehr 		 DC-ANT-24DP
 DC-ANT-24DP
Kontakt
Antenna Mounting Brackets Nordamerika: International:
Antenna Mounting Bracket – L-shaped wall-mount. 16.5mm hole. Compatibility: 76000846
Mehr 		 76000850
 76000850
Kontakt
Antenna Mounting Bracket - L-shaped wall mount. 12 mm hole. Compatibility: 76000843, 76000841
Mehr 		 76000851
 76000851
Kontakt
Antenna Mounting Bracket - L-shaped wall mount. 20 mm hole. Compatibility: 76000847
Mehr 		 76000852
 76000852
Kontakt
Antenna Adapters Nordamerika: International:
Adapter - TNC Female to TNC Male
Mehr 		 76000836
 76000836
Kontakt
Adapter - SMA Female to SMA Male
Mehr 		 76000837
 76000837
Kontakt
Adapter - SMA Male to TNC Female
Mehr 		 76000838
 76000838
Kontakt
Adapter - SMA Female to TNC Male
Mehr 		 76000839
 76000839
Kontakt
Mounting Brackets Nordamerika: International:
Mounting Bracket - DIN Rail. Compatibility: WR21.
Mehr 		 76000879
 76000879
Kontakt
Mounting Bracket - DIN rail. Compatibility: WR41
Mehr 		 76002043
 76002043
Kontakt
Mounting Bracket - DIN rail. Compatibility: WR44
Mehr 		 76000777
 76000777
Kontakt
Mounting Bracket - Wall-mount. Compatibility: WR41, WR21
Mehr 		 76000775
 76000775
Kontakt
Mounting Bracket - Wall-mount. Compatibility: WR44
Mehr 		 76000778
 76000778
Kontakt
Mounting Bracket - 1U Rack-mount shelf
Mehr 		 76000840
 76000840
Kontakt
Adapters Nordamerika: International:
Adapter - RJ-45 to DB-9 Female, 6'
Mehr 		 76000855
 76000855
Kontakt
Adapter - RJ-45 to DB-25 Male, 6'
Mehr 		 76000856
 76000856
Kontakt
Adapter - RJ-45 to DB-25 Female, 6'
Mehr 		 76000857
 76000857
Kontakt
Cables Nordamerika: International:
Cable - RJ-45 to RJ-45, 0.5m
Mehr 		 76000825
 76000825
Kontakt
Cable - RJ-45 to RJ-45, 2m
Mehr 		 76000826
 76000826
Kontakt
Cable - RJ-45 to RJ-45, Cross-over, 2m
Mehr 		 76000827
 76000827
Kontakt
Cable - RJ-45 to RJ-45, 12'
Mehr 		 76000828
 76000828
Kontakt
Cable - RJ-45 to RJ-45, Cross-over, 12'
Mehr 		 76000829
 76000829
Kontakt
Cable - SMA Male to SMA Female, 5m
Mehr 		 76000830
 76000830
Kontakt
Cable - SMA Male to SMA Female, 10m
Mehr 		 76000831
 76000831
Kontakt
Cable - SMA Male to SMA Female, 15m
Mehr 		 76000832
 76000832
Kontakt
Cable - DB-9 Female to DB-9 Male, 6'. Compatibility: Digi TransPort WR44, Digi DialServ.
Mehr 		 76000858
 76000858
Kontakt
SIM Slot Cover Plates Nordamerika: International:
SIM Slot Cover Plate - 10pk. Compatibility: WR21, WR41, DR64.
Mehr 		 76000787
 76000787
Kontakt
SIM Slot Cover Plate - 10pk. Compatibility: WR44
Mehr 		 76000785
 76000785
Kontakt
SIM Slot Cover Plate - 10pk Starter Kit. Compatibility: WR21, WR41, DR64
Mehr 		 76000786
 76000786
Kontakt
SIM Slot Cover Plate - 10pk Starter Kit. Compatibility: WR44
Mehr 		 76000779
 76000779
Kontakt
Tool - Torx Driver Tool (T10)
Mehr 		 76000853
 76000853
Kontakt
Specifications Digi TransPort® WR44/WR44R Digi TransPort® WR41 Digi TransPort® WR21
Interfaces - Serial
Async Port Type 1 DB-9 RS-232 built-in; 3 RJ-45 RS-232 (option) 1 RJ-45 RS-232 built-in; 3 RJ-45 RS-232 (option) 1 DB-9 RS-232, RS-232/422/485 (option)
Sync Port Type 1 Sync/Async DB-25 RS-232/422/485 (option) N/A
Signal Support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI
(No DSR/RI for RJ-45 ports on WR41 amp; 3 port serial card;
RS-422/485 and sync signals available on request)
Flow Control Software (XON/XOFF), Hardware supported
COM Port Redirector Digi patented RealPort®
Interfaces - Ethernet
Ports (Auto MDI/MDX) 4-port auto switch
(configurable non-switch/mini-switch modes)		 1 Ethernet port 1 Ethernet or 2 Ethernet option
(configurable non-switch/switch mode)
Specifications IEEE 802.3 10/100 Base-T (auto-sensing) Full or Half duplex
Interfaces - Other
Wi-Fi (option)
802.11b/g access point and client mode (b/g/n option for WR41);
Open or shared key authentication; WEP (64 and 128 bit) encryption;
WPA/WPA2 with Radius (WPA Enterprise and pre-shared keys);
Support for multiple access point mode;
2 x 50 Ω RP-SMA (Center pin - on device: male; on antenna: female)
connector (external);
Transmit Power:
17 dBm ± 2 dBm (WR41), 20 dBm + 1.0/-1.5 dBm (WR44);
Receive Sensitivity:
54 Mbps / -70 dBm and 11 Mbps / -83.5 dBm (WR41)
54Mbps / <-72dBm and 11Mbps / -90 dBm (WR44)
 N/A
GPS (option) 50 channel GPS engine (-163 dB sens.); NMEA 0183 V2.3 sentence output; 50 Ω SMA (Center pin - on device: female; on antenna: male) connector with +3.3VDC active antenna drive; NMEA stream to local serial port or over TCP/IP; Galileo ready N/A
Telemetry (option) Telemetry 1: 4 x Opto-isolated digital output ports, 1 x Opto-isolated digital input port, 1 x Relay I/O port, 1x Voltage monitoring port, Internal temperature monitoring
Telemetry 2: 4 x Isolated analog I/O ports, 4x Non-isolated digital I/O ports		 N/A
USB Host Port 1 Type A connector for expansion; Support for full or low speed (high speed on WR21)

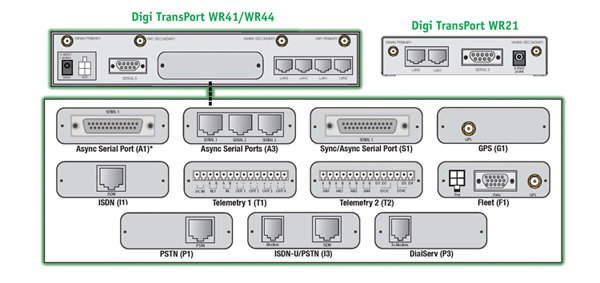

Miscellaneous (option) Fleet I/O (CAN Bus, GPS, telemetry); ISDN (BRI) - v.120, X.75, v.110; DialServer (dial tone simulator); PSTN N/A
General Features
Status LEDs DTE, Ethernet, Power on, Cellular link/activity, Signal strength, Wi-Fi
Mounting Bulkhead mount, Wall mount and DIN rail options available
Dimensions (L x W x H) 5.7 in x 8.3 in x 1.6 in (145 mm x 210 mm x 40 mm) 4.7 in x 6.8 in x 1.3 in (12 cm x 17.3 cm x 3.2 cm) 3.9 in x 5.2 in x 1.3 in (10 cm x 13.1 cm x 3.2 cm)
Weight 1.98 lb (0.9Kg) 1.27 lb (0.53 kg) 1.08 lb (0.49 kg)
Other Standard dual SIM (SIM protection cover option); Conformal coating (option) Standard dual SIM (SIM protection cover option)
RF Features - GSM Models
EDGE GPRS Class 10/EDGE class 10, Quadband 850/900/1800/1900 MHz
HSDPA/HSUPA/UMTS 850/1900/2100 or 900/2100 MHz with Rx Diversity
HSPA+ 850/900/1900/2100 MHz with Rx Diversity
Antenna HSPA/HSPA+/UMTS: 2 X 50 Ω SMA (Center pin - on device female; on antenna: male),
EDGE: 1 x 50 Ω SMA (Center pin - on device female; on antenna: male)
RF Features - CDMA Models
CDMA/EV-DO Rev A Dualband 800/1900 MHz with Rx Diversity; Optional multi-mode GSM/EV-DO Gobi support; 450 MHz, 3.1 Mbps down / 1.8 Mbps up, R-UIM support
Antenna 2 x 50 Ω SMA (Center pin - on device female; on antenna: male)
Power Requirements
Power Input 11-58 VDC 8-48 VDC 9-30 VDC
Power Supply 100-240 VAC 50/60 Hz with barrel connector, Optional Molex connector with bare wire leads 100-240 VAC 50/60 Hz with barrel connector, Optional barrel connector with bare wire leads 100-240 VAC 60 Hz with locking barrel connector or terminal block connector
Power Consumption 15W max, 8.5W typ 6W max, 4W typ
Environmental
Operating Temperature WR44: 0° C to +60° C
WR44 Extended Temp/WR44R: -40° C to +75° C
-20° C to +75° C (Wi-Fi models only)
Reduced cellular performance may occur above +60° C		 -20° C to +55° C; -25° C to +70° C with reduced cellular performance
Wi-Fi models: -5° C to +55° C; -10° C to +70° C with reduced performance		 -35° C to +75° C with reduced cellular performance;
Reduced cellular performance may occur above +60° C
Relative Humidity 20% to 95% (non-condensing)
Ethernet Isolation 1.5 kV
Serial Port Protection (ESD) 15 kV
Approvals
Mobile Certifications - GSM/UMTS PTCRB, NAPRD.03, GCF-CC, Ramp;TTE, EN 301 511
Mobile Certifications - CDMA/EV-DO CDG TIA/EIA-690, CDG TIA/EIA-98-E
Wireless Carrier Certifications Certified by most major carriers. See www.digi.com for current listing.
Safety UL 60950, CSA 22.2 No. 60950, EN60950
Emissions/Immunity CE, FCC Part 15 Class B (FCC identifier GGL-R1902G), AS/NZS CISPR 22, EN55024, EN55022 Class A, E-Mark
Vehicle Related Certifications E-Marking (72/245/EEC, 2009/19EC)
Automotive Non-Immunity (2004/104/EC, 2005/49/EC, 2005/83/EC, 2006/28/EC)		 N/A
Product Warranty Digi TransPort WR44 - 5 year
Digi TransPort WR44 R - 3 year		 5 year 5 year
Software Options Digi TransPort® WR21 Digi TransPort WR21,
Digi TransPort WR44/44 R
Features Standard Enterprise (includes Standard feature set)
Local Programming Python
Protocols HTTP, HTTPS, FTP, SFTP, SSL, SMTP, iDigi SNMP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via software tool (option); SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS Same as Standard plus iDigi;
Dynamic DNS client compatible with BIND9/No-IP/DynDNS
Security/Firewall/VPN IP Filtering RADIUS TACACS+, SSL, SSLv2, SSLv3, FIPS 197, L2TP, (5 tunnels included); IPSec with IKEv1, IKEv2, ISAKMP; DES, 3DES and AES up to 256-bit encryption; SCEP for X.509 certificates, Open VPN client and server, PPTP; IPSec/PPP/L2TP VPN Server support; Stateful inspection firewall with scripting; Content Filtering (via 3rd party)
Routing NAT, NATP Bridging, NAT/NAT-Traversal, NAPT forwarding; PPP, PPPoE, GRE; IP Routing Protocol: PPP, GRE, RIP (v1 amp; v2) OSPF, SRI, BGP; IP Failover: VRRP, VRRP+TM; VLAN support; STP (Spanning Tree Protocol); DHCP; Automatic failover/failback to second GSM network/Standby APN; Optional IPv6; iGMP routing (multicast); IP pass-through (advanced)
Specialty Protocol RealPort RealPort; Modbus UDP/TCP to serial; Legacy protocols (X.25 (including X0T), SNA/IP, TPAD and PAD); Protocol switch
Hardware Interface Population Options for Digi TransPort® WR41/44 Products
Interface Name Interface Type Technical Description
Sync/Async Serial Port (S1) 1 x DB-2 X.21/RS422/RS232 synchronous/asynchronous serial port
Async Serial Port (A1)* 1 x DB-25 Asynchronous serial port
Async Serial Ports (A3) 3 x RJ-45 Asynchronous serial ports
PSTN (P1) 1 x RJ-45 PSTN interface that can be used to dial out and receive calls.
A PPP session is created over which IP traffic can be sent and received.
Includes: • 1 x PSTN cable
DialServ (P3) 1 x RJ-11 (FXS) Dial tone simulator to emulate local telco.
ISDN (I1) 1 x RJ-45 ISDN Basic Rate Interface (BRI) which can be configured either as a TE (terminal endpoint) or as NT-1 (network termination). The option also includes an additional asynchronous serial port via a second RJ-45 port.
ISDN-U/PSTN (I3) 1 x RJ-11, 1 x RJ-45 ISDN-U interface suitable for the USA plus PSTN interface. Can be configured for Bell-103 modulation in leased line mode as well as a normal PSTN interface.
Telemetry 1 (T1) 1 x 14 pin terminal block
4 x Opto-isolated digital output ports, 1x Opto-isolated digital input port. It also provides a relay I/O port, a voltage monitoring port and internal temperature monitoring. Fully programmable via Python for embedded Digi TransPort applications. Includes: • 1 x mating connector
Telemetry 2 (T2) 1 x 14 pin terminal block 4 Analog/4 Digital I/O fully programmable via Python for embedded Digi TransPort applications.
Includes: • 1 x mating connector
GPS (G1) 1 x SMA Internal GPS capability
Includes: • 1 x magnetic-mount antenna
Fleet (F1) 1 x 15-pin, 1 x SMA, 1 x 4-pin Flexible transportation/fleet focused applications requiring CAN bus, J1708, GPS, Non-isolated digital I/O, Ignition Sense, 3-Axis accelerometer and power control of Digi TransPort interfaces.
Fully programmable via Python for embedded Digi TransPort applications.
Includes: • 1 x magnetic-mount antenna
• 1 x power cord

*A1 option for Digi TransPort WR41 only.





Site map | Impressum | Wegbeschreibung | Karriere bei Digi
Copyright © 1996-2012 Digi International. Alle Rechte vorbehalten.
