Digi Connect® WAN Family
Small cellular routers with integrated VPN
- Ethernet to high speed GSM/CDMA (2G/2.5G/3G) wireless gateways/routers
- Enterprise primary and backup wireless WAN connectivity
- Unique Digi SureLink™ "always-on" connection
- 10/100Base-T or serial connection to existing router
- Industrial and GSM-R options available
- Product datasheet
Digi Connect WAN cellular routers provide secure high-speed wireless connectivity to remote sites and devices. These products can be used for reliable primary wireless network connectivity to equipment at remote locations, as well as for a backup to existing landline communications. The Digi Connect WAN family is also ideal for use where wired networks are not feasible, or where alternative network connections are required. Applications include new construction locations, industrial automation, power utility substations, retail/POS sites, railroad, temporary facilities without primary wired connections, and many more.
Find the right Digi Connect WAN model for your application: Digi Connect WAN features comparison chart
| Digi Connect WAN 3G | North America: | International: | |
|
Digi Connect WAN 3G (Generic HSDPA module included)
View details | Related accessories |
DC-WAN-T301-A Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G HSDPA AT&T - Product ships with HSDPA module ready to be provisioned on AT&T network; antenna included
View details | Related accessories |
DC-WAN-T302-A Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G EV-DO Sprint - 3G router with EV-DO module ready to be provisioned on Sprint network; 2 antennas included
View details | Related accessories |
DC-WAN-T310-A Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G Verizon - 3G router with EV-DO Rev A module ready to be provisioned on Verizon network; 2 antennas included
View details | Related accessories |
DC-WAN-T311-A Service agreement |
Not applicable |
 Contact us |
|
Digi Connect WAN 3G with dual SIM - Cellular ready (module not included); antenna included
View details | Related accessories |
Not applicable |
DC-WAN-E300-W |
Contact us
|
|
Digi Connect WAN 3G HSDPA Generic European with Dual SIM - Product ships with Generic module; antenna included
View details | Related accessories |
Not applicable |
DC-WAN-E309-W |
Contact us
|
|
Digi Connect WAN 3G HSUPA - Product ships with embedded HSUPA module; antenna included
View details |
DC-WAN-U301-A |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G HSUPA - Product ships with embedded HSUPA module; no antenna
View details |
DC-WAN-U301 |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G HSUPA - Product ships with embedded International HSUPA module; antenna included
View details |
Not applicable |
DC-WAN-U301-W |
Contact us
|
|
New - Digi Connect WAN 3G HSDPA - Japan
View details |
Not applicable |
DC-WAN-T304-W |
Contact us
|
| Digi Connect WAN 3G IA | North America: | International: | |
|
Digi Connect WAN 3G IA (for modules) - Cellular ready Industrial VPN router and antenna (no power supply)
View details | Related accessories |
Not applicable |
DC-WAN-P500-W |
Contact us
|
|
Digi Connect WAN 3G IA HSDPA Generic Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-P501-A |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G IA HSDPA AT&T Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-P502-A |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G IA HSDPA Generic European Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
Not applicable |
DC-WAN-P509-W |
Contact us
|
|
Digi Connect WAN 3G IA EV-DO Sprint Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-P510-A |
Not applicable |
Contact us
|
|
Digi Connect WAN 3G IA EV-DO Verizon Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-P511-A |
Not applicable |
Contact us
|
| Digi Connect WAN | North America: | International: | |
|
Digi Connect WAN GSM Global Quadband GPRS Class 12, EDGE Class 10 with Antenna
View details | Related accessories |
DC-WAN-GE10A Service agreement |
DC-WAN-GE10A-W |
Contact us |
|
Digi Connect WAN CDMA with Antenna - Sprint
View details | Related accessories |
DC-WAN-S1XA Service agreement |
Not applicable |
Contact us |
|
Digi Connect WAN CDMA with Antenna - Verizon
View details | Related accessories |
DC-WAN-D111 Service agreement |
Not applicable |
Contact us |
|
Digi Connect WAN CDMA with Antenna - Centennial
View details | Related accessories |
DC-WAN-D112 Service agreement |
Not applicable |
Contact us
|
| Digi Connect WAN VPN | North America: | International: | |
|
Digi Connect WAN VPN GSM Global Quadband GPRS Class 12, EDGE Class 10 with Antenna
View details | Related accessories |
DC-VPN-GE10A Service agreement |
DC-VPN-GE10A-W |
Contact us
|
|
Digi Connect WAN VPN CDMA with Antenna - Sprint
View details | Related accessories |
DC-VPN-S1XA Service agreement |
DC-VPN-S1XA-W |
Contact us
|
|
Digi Connect WAN VPN CDMA with Antenna - Centennial
View details | Related accessories |
DC-VPN-C1XA Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN VPN CDMA with Antenna - Verizon
View details | Related accessories |
DC-WAN-D311 Service agreement |
Not applicable |
Contact us |
|
Digi Connect WAN VPN CDMA with Antenna - Bell Mobility
View details | Related accessories |
DC-WAN-D318 Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN VPN CDMA with Antenna - Verizon Puerto Rico
View details | Related accessories |
DC-WAN-D321 Service agreement |
Not applicable |
Contact us |
| Digi Connect WAN IA | North America: | International: | |
|
Digi Connect WAN IA GSM Class 10 EDGE Class 12 GPRS Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-F501 Service agreement |
DC-WAN-F501 |
Contact us
|
|
Digi Connect WAN IA CDMA 1xRTT Sprint Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-G510 Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN IA CDMA 1xRTT Verizon Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-G511 Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN IA 1xRTT - Alltel industrial cellular router with antenna (no power supply)
View details | Related accessories |
DC-WAN-G516 Service agreement |
Not applicable |
Contact us
|
|
Digi Connect WAN IA CDMA 1xRTT Bell Mobility Industrial Cellular Router with Antenna (no power supply)
View details | Related accessories |
DC-WAN-G518 Service agreement |
Not applicable |
Contact us
|
| Digi Connect WAN GPRS | North America: | International: | |
|
Digi Connect WAN GPRS with Antenna
View details | Related accessories |
DC-WAN-A101-A Service agreement |
DC-WAN-A101-W |
Contact us
|
| Digi Connect WAN GSM-R | North America: | International: | |
|
Digi Connect WAN GSM-R with Antenna
View details | Related accessories |
Not applicable |
DC-WAN-R303-W |
Contact us
|
| Specifications | Digi Connect® WAN GPRS | Digi Connect® WAN Digi Connect® WAN VPN |
Digi Connect® WAN 3G | Digi Connect® WAN IA Digi Connect® WAN 3G IA |
| Interfaces - Serial | ||||
| Ports | 1 RS-232/422/485 DB-9; Up to 230 Kbps throughput; Hardware and software flow control; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 1 RS-232 DB-9; Up to 230 Kbps throughput; Hardware and software flow control; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 1 RS-232/422/485 DB-9; Up to 230 Kbps throughput; Hardware and software flow control; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | |
| Interfaces - Ethernet | ||||
| Ports | 1 RJ-45 10/100 Mbps 10Base-T (auto-sensing); Full or Half duplex | |||
| Interfaces - Cellular | ||||
| GSM GPRS 12/EDGE 12 -or- CDMA 2000 1xRTT |
Fixed | Upgradable (PCI Express Module) | Fixed | |
| UMTS/HSUPA & EV-DO Rev A | N/A | Upgradable (PCI Express Module - 3G models only) | ||
| Other Interfaces | ||||
| USB | N/A | 1 USB Type A connector (3G models only) | ||
| Sensor | N/A | 1 sensor port for use with Watchport Sensors (3G IA only) | ||
| Dual SIM | N/A | • (3G models only) |
||
| Features | ||||
| Network Protocols | UDP/TCP, DHCP | |||
| Status LEDs | Ethernet, power on, cellular link/activity, signal strength (4 bars) | |||
| Software | Device-initiated patented RealPort COM port redirector and RFC 2217; Digi SureLink "always-on" connection; Python scripting; Custom development environment | |||
| Security | SSL, SSL/TLS, SSHv2, FIPS 197 | |||
| Router/Firewall Features | NAT, NAT-T (NAT traversal) VPN tunneling, Port forwarding, VPN/GRE pass-through; Access control lists (IP filtering), IP pass-through, Virtual Router Redundancy Protocol (VRRP) per RFC 3768 |
|||
| VPN Features | IPsec with IKE/ISAKMP; Multiple tunnel support; DES, 3DES and up to 256-bit AES Encryption, Simple Certificate Enrollment Protocol (SCEP) for X.509 certificateN features not included on Digi Connect WAN model) | |||
| Management | HTTP/HTTPS, CLI or Telnet; Optional secure enterprise management via Digi Connectware Manager | |||
| IA Features | N/A | DIN rail mounting kit included; Class 1, Div 2 Rating (pending on 3G IA); Terminal block for power; Modbus to Modbus TCP protocol conversion | ||
| Dimensions (L x W x H) | 5.25 in (13.34 cm) x 3.35 in (8.51 cm) x 0.97 in (2.47 cm) 3G models: 5.30 in (13.46 cm) x 3.38 in (8.58 cm) x 0.98 in (2.48 cm) |
|||
| Weight | 1.00 lb (0.45 kg) | |||
| RF Features - GSM Models | ||||
| GPRS | 850/900/1800/1900 MHz; Max 86 Kbps DL/UL | |||
| EDGE | N/A | 850/900/1800/1900 MHz; 216 Kbps DL, 108 Kbps UL |
||
| HSDPA/HSUPA | N/A | 850/1900/2100 MHz HSDPA: 3.6 Mbps DL, 384 Kbps UL HSUPA: 7.2 Mbps DL, 2.0 Mbps UL (VPN and 3G models only) |
||
| Antenna | One 50 Ω female SMA connector |
WAN model: One 50 Ω female SMA connector VPN model: 2 antennas (Rx Diversity) | 2 antennas (Rx Diversity) | |
| RF Features - CDMA Models | ||||
| 1xRTT | N/A | 800 MHz; Max 153.6 DL/UL | ||
| 1xEV-DO | N/A | 1900 MHz; 3.1 Mbps DL, 1.8 Mbps UL (VPN and 3G IA models only) |
||
| Antenna | One 50 Ω female SMA connector |
WAN model: One 50 Ω female SMA connector VPN model: 2 antennas (Rx Diversity) | 2 antennas (Rx Diversity) | |
| Power Requirements | ||||
| Power Input | 9-30 VDC | |||
| Power Supply | 12VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included; Extended temperature power supply available | Power supply required (not included) | ||
| DC Power Consumption | Idle: 1.2W; Max: 3.4W | |||
| AC Power Consumption | Idle: 2.0W; Max: 5.8W | |||
| Surge Protection | 4 kV burst (EFT) per-4-4; 2 kV surge per EN61000-4 | |||
| Environmental | ||||
| Operating Temperature | GSM Models: -25° C to +75° C (-13° F to 167° F) CDMA Models: -30° C to +75° C (-22° F to 167° F); Reduced cellular performance will occur above 60° C for CDMA models |
|||
| Relative Humidity | 5 to 95% (non-condensing) | |||
| Ethernet Isolation | 1500VAC min per IEEE 802.3/ANSI X 3.263 | |||
| Serial Port Protection (ESD) | +15 kV air gap and +8 kV contact discharge per IEC 1000-4-2 | |||
| Approvals | ||||
| Safety | UL 60950, CSA 22.2 No. 60950, EN60950 | |||
| Emissions/Immunity | CE, FCC Part 15 Class A (FCC identifier GGL-R1902G), AS/NZS CISPR 22, EN55024, EN55022 Class A | |||
| Mobile Certifications - CDMA/EV-DO |
CDG, TIA/EIA-690, TIA/EIA-98-E | |||
| Mobile Certifications - GSM/UMTS |
PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511 | |||
| Wireless Carrier Certifications | AT&T Wireless (GSM) - U.S. Sprint (CDMA) - U.S. Verizon Wireless (CDMA) U.S., Puerto Rico Rogers Wireless (GSM) - Canada Midwest Wireless (CDMA) - U.S. Alltel Wireless (CDMA) - U.S. T-Mobile (GSM) - U.S. Cellular One (GSM) - U.S. Centennial Wireless (CDMA) - Puerto Rico Claro PR (GSM) - Puerto Rico IUSACELL (CDMA) - Mexico Entel PCS (GSM) - Chile Claro (GSM) - Peru Vodaphone (GSM) – New Zealand Comcel (GSM) - Colombia IDA (GSM) - Singapore Telstra (GSM - Australia) Telefonica Moviles (GSM) - Guatemala, El Salvador ICASA (GSM) - South Africa Movistar - Panama (CDMA), Chile (GSM) Anatel (GSM) - Brazil Bell Mobility (CDMA) - Canada Dalacom (CDMA) - Kazakhstan |
|||
Digi Connect WAN GPRS/VPN - Front
Digi Connect WAN GPRS//VPN - Back
*Digi Connect WAN IA does not include an auxillary port
Digi Connect WAN IA - Front

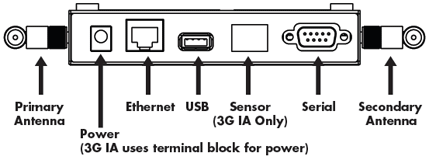

Digi Connect WAN 3G/ Digi Connect WAN 3G IA - Back
Digi Connect WAN 3G - Top
Product Datasheets
Feature Specs
Other
White Papers
- Remote wireless networking 101
- Efficient data transfer over wireless networks
- Digi intelligent gateway vs. cellular modem
- Digi SureLink
- Digi Connectware Manager: Dynamic IP address support
Application Guides
- Digi cellular gateway security overview
- VPN appliance interoperability test results
- Using Digi Connect WAN RG with Bristol RTUs
- Cellular site survey - How to maximize signal strength
- Digi solution spec - Utilities
- Digi solution spec - Retail/POS
- Communicating with GE Fanuc devices over cellular
- Cellular backup/failover scenarios
Support Documentation
General Support Documentation:
- FREE 30-day Trial of Connectware Manager - Details within..
- Application Guide: Cellular IP Connections (Uncovered)
- Application Guide: Configuring a GRE Tunnel on Cisco Routers with the Digi Connect WAN
- Application Guide: Configuring and Testing the Digi Connect WAN GSM
- Application Guide: Configuring IP Passthrough Mode
- Application Guide: Connecting Digi Terminal Servers Using RealPort®
- Application Guide: Connecting Ethernet Devices via Mobile Terminated Connection
- Application Guide: NAT, GRE, ESP and TCP/UPD Forwarding and IP Filtering
- Application Guide: Primary Connections via NAT-T, IPsec ESP or GRE
- Application Guide: Remote Mobile Initiated Connections
- Application Guide: Remote Site Fail-Over Routing or Load Sharing
- Application Guide: Remote Wireless Networking 101 - Cellular Deployment Guide
- Application Guide: Using the Digi Connect WAN and Digi Connect® VPN with a Wireless Router/Access Point
- Application Guide: Using the Serial Console Port for Out-of-Band Console Management of Remote Devices
- Application Guide: Configuring and Testing Digi Cellular Devices - AT&T
- Application Guide: Configuring and Testing Digi Cellular Devices - Custom Provider
- Application Guide: How to Achieve Maximum Signal Strength with Digi Cellular Routers
- Application Guide: Remote Cellular TCP/IP Access to Rockwell Ethernet and Serial Devices
- Config and Test Digi Cellular Device - Cellular One
- Config and Test Digi Cellular Device - European Providers
- Config and Test Digi Cellular Device - Motient Cingular
- Config and Test Digi Cellular Device - Motient Sprint
- Config and Test Digi Cellular Device - Petrocom
- Config and Test Digi Cellular Device - Rogers
- Config and Test Digi Cellular Device - SunCom
- Config and Test Digi Cellular Device - T-Mobile
- Digi Cellular Router Application Helper - Surelink - How to Configure
- Digi Connect Family Command Reference
- Digi Connect Family Customization and Integration Guide
- Getting Started Guide: ConnectWare Manager
- Python Programmers Guide
- Quick Start Guide WAN & WAN VPN
- Remote Command Interface (RCI) Specification
- Users Guide: ConnectWare Manager
- Users Guide: Digi Cellular Family
- Users Guide: RealPort Installation Guide
| Our Digi Connect® WAN and Digi Connect® WAN Family animated demos make it easy to see the value of utilizing wireless cellular networks for primary or backup network connectivity to remote sites and devices. |
 |
 Launch the Digi Connect WAN animated demo |
 |
| Launch the Digi Connect WAN Family animated demo |
Learning Center
Related Links
Digi Connect WAN cellular routers provide secure high-speed wireless connectivity via GSM (GPRS/EDGE/HSDPA) or CDMA (1xRTT/EV-DO Rev. A) networks to remote sites and devices. These products can be used for reliable primary wireless network connectivity to equipment at remote locations, as well as for a backup to existing landline communications. The Digi Connect WAN family is also ideal for use where wired networks are not feasible, or where alternative network connections are required.
Digi Connect WAN products provide a primary Wireless WAN connection to remote sites containing Ethernet and/or serial devices. Applications include new construction locations, industrial automation, power utility substations, retail/POS sites, railroad, temporary facilities without primary wired connections, and many more. Benefits of implementing a remote device management solution with the Digi Connect WAN family include instant deployment, elimination of wiring costs and problems due to wire breaks, the ability to traverse firewalls, and the ability to move the connection virtually anywhere.
For backup network applications, Digi Connect WAN integrates with remote locations via a secondary Ethernet WAN port on an existing router. This provides a truly diverse network connection for remote locations requiring maximum uptime.
Digi Connectware® Manager enterprise software, which provides easy setup, configuration and maintenance of large installations. Users can upgrade firmware or change settings of thousands of devices with only a few clicks, as well as receive status reports for troubleshooting. Supported wireless carriers include Cingular, Sprint , Verizon, Rogers, Alltel and more. Please see Specs page for current list.
For customers requiring end-to-end security WAN connections, Digi offers the Digi TransPort® VC7400, an enterprise class VPN concentrator with support for up to 3000 remote locations.
Please contact us at 1-800-437-7251 or 952-912-3444 for additional information or to discuss your specific application requirements.
