ConnectCore™ 9P 9360
Compact, high-performance ARM9 core module
- Flexible, compact ARM9 core processor module
- Integrated 10/100 Ethernet networking
- Broad range of on-chip peripherals and interfaces
- Extended and industrial operating temperature
- Development kits for NET+OS®, Linux® and Windows® Embedded CE 6.0
- Product brief
The compact ConnectCore 9P 9360 module combines the scalable performance of Digi’s 32-bit NS9360 processor with a complete set of integrated peripherals such as LCD controller and USB host/device support. It is the ideal solution for a wide variety of applications including medical, industrial/building automation and transportation. Built on Digi’s own processor technology, it also delivers the true long-term availability that is a key requirement for embedded applications.
Featured Models/Part Numbers
| North America: | International: | ||
ConnectCore 9P 9360 Digi JumpStart Kit for NET+OS 7 w/Eclipse-based Digi ESP IDE, USB debugger, and installation and setup support package
View details | Related accessories |
CC-9P-NET |
CC-9P-NET |
 Contact us |
ConnectCore 9P 9360 Digi JumpStart Kit for Microsoft Windows Embedded CE 6.0, including 180-day evaluation version of Microsoft Visual Studio/Platform Builder
View details | Related accessories |
CC-9P-CE6 |
CC-9P-CE6 |
Contact us |
ConnectCore 9P 9360 development kit for Digi Embedded Linux, w/Eclipse-based Digi ESP IDE, LiveDVD, and installation and setup support package (1 year)
View details | Related accessories |
CC-9P-LX |
CC-9P-LX |
Contact us |
Bulk packs of all modules are available. Please contact us for a list of available part numbers.
| Digi JumpStart Kits | North America: | International: | |
|
ConnectCore 9P 9360 Digi JumpStart Kit for NET+OS 7 w/Eclipse-based Digi ESP IDE, USB debugger, and installation and setup support package
View details | Related accessories |
CC-9P-NET |
CC-9P-NET |
Contact us |
|
ConnectCore 9P 9360 Digi JumpStart Kit for Microsoft Windows Embedded CE 6.0, including 180-day evaluation version of Microsoft Visual Studio/Platform Builder
View details | Related accessories |
CC-9P-CE6 |
CC-9P-CE6 |
Contact us |
|
ConnectCore 9P 9360 development kit for Digi Embedded Linux, w/Eclipse-based Digi ESP IDE, LiveDVD, and installation and setup support package (1 year)
View details | Related accessories |
CC-9P-LX |
CC-9P-LX |
Contact us |
| Modules for NET+OS | North America: | International: | |
|
ConnectCore 9P 9360 with 64 MB Flash and 64 MB SDRAM, 177 MHz, 0° C to 70° C
View details |
CC-9P-T236-Z1 |
CC-9P-T236-Z1 |
Contact us |
|
ConnectCore 9P 9360 with 32 MB Flash and 32 MB SDRAM, 177 MHz, 0° C to 70° C
View details |
CC-9P-T225-Z1 |
CC-9P-T225-Z1 |
Contact us |
|
ConnectCore 9P 9360 with 64 MB Flash and 64 MB SDRAM, 155 MHz, -40° C to 85° C
View details |
CC-9P-V236-Z1 |
CC-9P-V236-Z1 |
Contact us |
|
ConnectCore 9P 9360 with 32 MB Flash and 32 MB SDRAM, 155 MHz, -40° C to 85° C
View details |
CC-9P-V225-Z1 |
CC-9P-V225-Z1 |
Contact us |
| Modules for Linux and Windows CE 6.0 | North America: | International: | |
|
ConnectCore 9P 9360 with 128 MB Flash and 64 MB SDRAM, 177 MHz, 0° C to 70° C
View details |
CC-9P-T237-Z1 |
CC-9P-T237-Z1 |
Contact us |
|
ConnectCore 9P 9360 with 64 MB Flash and 64 MB SDRAM, 177 MHz, 0° C to 70° C
View details |
CC-9P-T236-Z1 |
CC-9P-T236-Z1 |
Contact us |
|
ConnectCore 9P 9360 with 32 MB Flash and 32 MB SDRAM, 177 MHz, 0° C to 70° C
View details |
CC-9P-T225-Z1 |
CC-9P-T225-Z1 |
Contact us |
|
ConnectCore 9P 9360 with 64 MB Flash and 64 MB SDRAM, 155 MHz, -40° C to 85° C
View details |
CC-9P-V236-Z1 |
CC-9P-V236-Z1 |
Contact us |
|
ConnectCore 9P 9360 with 32 MB Flash and 32 MB SDRAM, 155 MHz, -40° C to 85° C
View details |
CC-9P-V225-Z1 |
CC-9P-V225-Z1 |
Contact us |
| Platform | ConnectCore™ 9P 9360 |
| Hardware | |
| Processor Type | 32-bit Digi NS9360 high-performance RISC processor |
| ARM Core | ARM926EJ-S |
| Processor Speed | 177 MHz |
| Cache | 4k D-Cache/8k I-Cache |
| Memory Population | Up to 128 MB NAND flash Up to 128 MB SDRAM |
| Serial EEPROM | 8 KB |
| UART | 4 high-speed UARTs Maximum data rate 921.6 Kbps |
| GPIO | Up to 55 shared GPIO ports with 7 high-current (8 mA) pin options |
| SPI | Up to 4 SPI ports Master data rate up to 11.25 Mbps Slave data rate up to 5.5 Mbps |
| I2C | Fast mode (400 kHz) and normal mode (100 kHz) support 7-bit and 10-bit address modes |
| USB | USB 2.0 Host/Device low/full speed interface with internal PHY (external PHY interface available) Parallel operation of host and device using combination of internal PHY and external PHY |
| External Memory Bus | 28-bit address/32-bit data |
| LCD Controller | Up to SVGA (800x600) resolution Up to 18 bpp; 256K colors (TFT) 1, 2, 4 bpp palletized grayscale (STN) Up to 16 bpp 4:4:4 RGB, 3375 colors (Color Passive Matrix) |
| Timers/PWM | Up to 8 independent 16-/32-bit programmable timers/counters Up to 4 PWM functions |
| External IRQs | 4 |
| Real-Time Clock | • (no battery-backup) |
| JTAG | • |
| Pins/Form Factor | Small-footprint module with 2 x 120-pin board-to-board connectors |
| Dimensions (L x W x H) | 2.362 in (60 mm) x 1.732 in (44 mm) x 0.0395 in (10.0 mm) |
| Network Interface - Wired | |
| Standard | IEEE 802.3 |
| Physical Layer | 10/100Base-T |
| Data Rate | 10/100 Mbps (auto-sensing) |
| Mode | Full or half duplex (auto-sensing) |
| Environmental | |
| Operating Temperature | 0° C to 70° C (32° F to 158° F) Industrial temperature version available. See website for information. |
| Storage Temperature | -50° C to 125° C (-58° F to 257° F) |
| Relative Humidity | 5% to 90% (non-condensing) |
| Altitude | 12,000 feet (3,658 meters) |
| Power Requirements (3.3V) | |
| Maximum | 400 mA |
| Regulatory Approvals | |
| FCC Part 15 Class B | • |
| EN55022:2006 Class B | • |
| ICES-003, Class B | • |
| VCCI, Class B | • |
| EN55024:1998 +A1:2001, A2:2003 | • |
| EN61000-3-2:2006 | • |
| EN61000-3-3:1995 +A1:2001, A2:2005 | • |
| UL 60950-1, EN 60950 (EU) | • |
• Module Feature

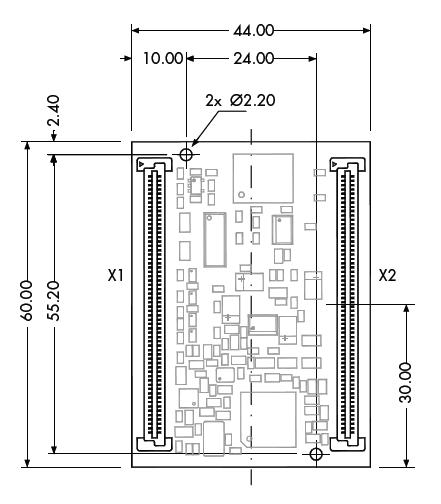

Bottom View

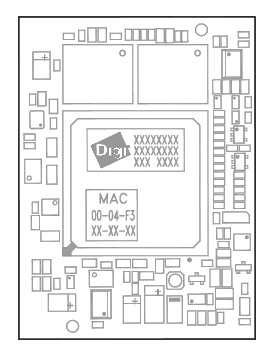

Top View
Side View
Software
Hardware
Support Documentation
General Support Documentation:
- CC9P Dev Board Schematics
- ConnectCore 9P 9360 Development Board BOM
- ConnectCore 9P 9360 Module User Manual (Archive only)
- ConnectCore 9P 9360 Pin Description (Archive only)
- ConnectCore 9P Development Kit Schematics (Archive only)
- ConnectCore 9P Development Kit Specification (Archive only)
- ConnectCore 9P Hardware Reference
- LCDMODARM extension board Specification
- NS7520, NS9360, NS9750: Recommended Storage, Handling, Moisture Control and Reflow Conditions
- NS9360 CPLD schematics
- NS9360 Data Sheet
- NS9360 design rules
- NS9360 Errata
- NS9360 GPIO pin mux
- NS9360 GPIO table (dsn)
- NS9360 GPIO table (pdf)
- NS9360 Hardware Reference
- NS9360 Material Composition
- NS9360 pinout
- NS9360 pinout drawing
- NS9360 Power Sequencing
- Oscillator population issue on ConnectCore 9P 9360
- NS9360 Multifunction GPIO pinout BSDL
- NS9360 I/O Buffer Interface Specification (IBIS) model files (tar file)
- NS9360 Boundary Scan Definition Language (BSDL)
Product Literature
Feature Specs
Related Links
The ConnectCore 9P 9360 module combines superior performance and a complete set of integrated peripherals and component connectivity options in a very compact and versatile form factor. It is the ideal solution for a wide variety of applications including medical, industrial/building automation and transportation.
Built on leading Digi 32-bit NET+ARM processor technology, the network-enabled ConnectCore 9P 9360 module provides a modular and scalable core processor solution. It significantly minimizes software and hardware design risk by simplifying the overall design process and improving time-to-market.
The wide range of embedded software platform options makes the ConnectCore 9P 9360 the ideal choice for your network-enabled product solutions, whether your application requires the small footprint, fast response time, and secure networking offered by our IPv6-ready ThreadX®-based NET+OS® environment; the comprehensive and scalable set of feature-complete high-level software components and applications of Microsoft® Windows Embedded CE 6.0; or the flexibility and power of the open Embedded Linux® environment and its extensive software library.
