ConnectCore™ 9P 9215
Highly integrated, network-enabled core module
- Compact, cost-efficient 32-bit core module
- Secure high-performance Ethernet networking
- Common family footprint for wired and wireless modules
- Programmable on-chip interfaces, dynamic power management
- Development kits for NET+OS®, Linux®, .NET Micro Framework
- Product brief
The ConnectCore 9P 9215 module delivers a powerful, secure, and compact network-enabled 150 MHz NS9215 processor solution with ARM9 core, a rich set of peripherals and unique interface flexibility. With leading features like an on-chip AES encryption engine, two independent and fully programmable flexible interface modules and Digi's patented dynamic power management options, it is the ideal solution for today's networked embedded applications.
Featured Models/Part Numbers
| North America: | International: | ||
ConnectCore 9P 9215 Digi JumpStart Kit for NET+OS 7 w/Eclipse-based Digi ESP IDE, USB debugger, installation and setup support package
View details | Related accessories |
CC-9P-9215-NET |
CC-9P-9215-NET |
 Contact us |
|
ConnectCore 9P 9215 Digi JumpStart Kit for Digi Embedded Linux, w/Eclipse-based Digi ESP IDE, LiveDVD, and installation and setup support package (1 year)
View details | Related accessories |
CC-9P-9215-LX $399 USD |
CC-9P-9215-LX |
Contact us |
ConnectCore 9P 9215 Digi JumpStart Kit for .NET Micro Framework 2.5, including Visual Studio 2005 (90-day trial license)
View details | Related accessories |
CC-9P-9215-MF |
CC-9P-9215-MF |
Contact us |
Bulk packs available. Please contact us for a complete list of available part numbers.
| Digi JumpStart Kits | North America: | International: | |
|
ConnectCore 9P 9215 Digi JumpStart Kit for NET+OS 7 w/Eclipse-based Digi ESP IDE, USB debugger, installation and setup support package
View details | Related accessories |
CC-9P-9215-NET |
CC-9P-9215-NET |
Contact us |
|
ConnectCore 9P 9215 Digi JumpStart Kit for Digi Embedded Linux, w/Eclipse-based Digi ESP IDE, LiveDVD, and installation and setup support package (1 year)
View details | Related accessories |
CC-9P-9215-LX $399 USD |
CC-9P-9215-LX |
Contact us |
|
ConnectCore 9P 9215 Digi JumpStart Kit for .NET Micro Framework 2.5, including Visual Studio 2005 (90-day trial license)
View details | Related accessories |
CC-9P-9215-MF |
CC-9P-9215-MF |
Contact us |
| Modules for NET+OS | North America: | International: | |
|
ConnectCore 9P 9215 module with 2 MB Flash, 8 MB SDRAM, no on-module RJ-45
View details |
CC-9P-V501-C |
CC-9P-V501-C |
Contact us
|
|
ConnectCore 9P 9215 module with 4 MB Flash, 8 MB SDRAM, no on-module RJ-45
View details |
CC-9P-V502-C |
CC-9P-V502-C |
Contact us |
| Modules for Linux | North America: | International: | |
|
ConnectCore 9P 9215, 8 MB flash, 16 MB SDRAM, no on-module RJ
View details |
CC-9P-V513-LX |
CC-9P-V513-LX |
Contact us
|
|
ConnectCore 9P 9215, 16 MB flash, 32 MB SDRAM, no on-module RJ
View details |
CC-9P-V524-LX |
CC-9P-V524-LX |
Contact us |
| Modules for .NET Micro Framework | North America: | International: | |
|
ConnectCore 9P 9215 module with 4 MB Flash, 8 MB SDRAM, no on-module RJ-45
View details |
CC-9P-V502-MF |
CC-9P-V502-MF |
Contact us
|
| Specifications | ConnectCore™ 9P 9215 | ConnectCore™ Wi-9P 9215 |
| Hardware | ||
| Processor Type | 32-bit NS9215 processor | |
| ARM Core | ARM926EJ-S | |
| Cache | 4k I-Cache/4k D-Cache | |
| Processor Speed | 150 MHz | |
| Memory Base Population | Up to 16 MB NOR flash Up to 32 MB SDRAM |
|
| Additional Population Options | RJ-45 Ethernet connector 2 / 4 / 8 / 16 MB NOR flash 8 / 16 / 32 MB SDRAM |
|
| Flexible Interface Modules (FIMs) | 2 x 300 MHz DRPIC165X CPUs with 2k program/192 bytes data RAM | |
| On-chip 256-bit AES Accelerator | • | |
| Power Management Modes | On-the-fly clock scaling; Low-power sleep modes; Configurable scaling/wake-up events (RTC, ADC, EIRQ, UART, etc.) | |
| Pins/Form Factor | Small-footprint module with 2 x 80-pin board-to-board connectors | |
| UART | Up to 4 high-speed UARTs; Maximum data rate 1.8432 Mbps | |
| GPIO | Up to 64 GPIOs; 2 external IRQs | |
| SPI | Master data rate 33.3 Mbps; Slave data rate 7.5 Mbps | |
| I2C | v1.0 bus interface; 7-bit and 10-bit address modes | |
| External Memory Bus | 17-bit address and 16-bit data bus with 2 external chip select | |
| ADC | 12-bit/8-channel; External reference | |
| Timers/PWM | Up to ten 16-/32-bit timers/counters Modes: internal timer with external terminal count option, external gated timer, event counter Up to 5 PWM functions |
|
| LEDs | 2 (general purpose) | |
| POR controller | • | |
| Watchdog Timer (16-bit) | • | |
| Real-Time Clock | With 64 bytes of NVRAM and external battery backup | |
| JTAG interface | • | |
| Quadrature Decoder/Counter | • | |
| 5V Tolerant General Purpose and Memory Inputs | • | |
| Dimensions (L x W x H) | 1.97 in (50 mm) x 1.97 in (50 mm) x 6.1 mm (population option w/o RJ-45) |
2.75 in (70 mm) x 1.97 in (50 mm) x 8.6 mm (population option w/o RJ 45) |
| Network Interface - Wired | ||
| Standard | IEEE 802.3 | |
| Physical Layer | 10/100Base-T | |
| Data Rate | 10/100 Mbps (auto-sensing) | |
| Mode | Full or half duplex (auto-sensing) | |
| Network Interface – Wireless LAN | ||
| Standard | IEEE 802.11a/b/g | |
| Security | WEP/WPA/WPA2/802.11i | |
| Frequency | 2.4/5 GHz | |
| Data Rate | Up to 54 Mbps with automatic rate fallback | |
| Modulation | DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (11, 5.5 Mbps), BPSK (6, 9 Mbps), QPSK (12,18 Mbps), 16-QAM (24, 36 Mbps), 64-QAM (48, 54 Mbps) |
|
| Typical Transmit Power | 18 dBm @ 1 Mbps (802.11b) 12 dBm @ 54 Mbps (802.11g) |
|
| Receive Sensitivity | -72 dBm @ 54 Mbps (802.11a/g) | |
| Connectors | 2 x U.FL | |
| Environmental | ||
| Operating Temperature | -40° C to +85°C | -40° C to +65°C @ 100% WLAN duty cycle -40° C to +85°C @ 33% WLAN duty cycle |
| Storage Temperature | -50° C to 125° C (-58° F to 257 °F) | |
| Relative Humidity | 5% to 95% (non-condensing) | |
| Altitude | 12,000 feet (3,658 meters) | |
| Power Requirements (3.3V) | ||
| Maximum | 554 mA (1.83 W) | 786 mA (2.6 W) -40° C to +85°C @ 33% WLAN duty cycle |
| Typical | 443 mA (1.46 W); UART B/D and Ethernet on |
716 mA (2.36 W); UART B/D,WLAN on, Ethernet on |
| Idle | 208 mA (686 mW); /16 clock scaling, Ethernet on |
533 mA (1.76 W); /4 clock scaling,WLAN on, Ethernet on |
| Sleep | 46 mA (151 mW); EIRQ wake-up, Ethernet PHY off |
138 mA (460 mW); Wake-up on EIRQ,WLAN off, Ethernet PHY off |
| Regulatory Approvals | ||
| FCC Part 15 Class B, EN 55022 Class B | • | |
| EN 61000-3-2 and EN 61000-3-3 | • | |
| ICES-003 Class B, VCCI Class II, AS 3548 | • | |
| FCC Part 15 Sub C Section 15.247 | • | |
| IC RSS-210 Issue 5 Section 6.2.2(o) | • | |
| EN 300 328, EN 301 489-17 | • | |
| UL 60950-1, EN 60950 (EU) | • | |
| CSA C22.2, No. 60950 | • | |
| EN 55024 | • | |
| Japan | Regulatory approvals pending | |
ConnectCore 9P 9215 Bottom View
ConnectCore 9P 9215 Side View

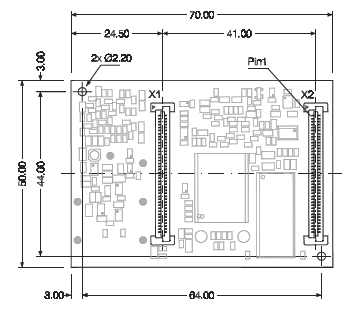

ConnectCore Wi-9P 9215 Bottom View
ConnectCore Wi-9P 9215 Top View
ConnectCore Wi-9P 9215 Side View
Product Literature
Feature Specs
Related Links
- Digi Custom Design
- Digi Embedded Development Partners
- Support
- Warranty registration
- Buy direct from Digi
The ConnectCore 9P 9215 module delivers a powerful, secure, and compact network-enabled 150 MHz NS9215 processor solution with ARM9 core, a rich set of peripherals and unique interface flexibility. With leading features like an on-chip AES encryption engine, two independent and fully programmable flexible interface modules and Digi's patented dynamic power management options, it is the ideal solution for today's networked embedded applications. Digi’s own NET+ARM processor technology also delivers the true long-term availability that is a key requirement for embedded applications.
Easy-to-use and cost-effective Digi JumpStart Kit® development solutions minimize product design risks and allow you to start your embedded product development right out of the box. The kits enable you to leverage the royalty-free and reliable IPv6-ready ThreadX®-based NET+OS® platform, the benefits of rapid development using managed code offered by the Microsoft® .NET Micro Framework software platform, or the readily available library of software and community support of the Linux® environment.
