XStick® USB Adapters

USB to XBee wireless adapter

  • USB plug-and-play USB to XBee Network Adapter
  • Available in ZigBee mesh (ZB) & multipoint (802.15.4) variants
  • Configure and commission XBee networks easily from your laptop or PC
  • Product datasheet

RF Professional Services



The XStick is a USB peripheral adapter that provides short-range wireless connectivity to a low-power mesh or multipoint network in a familiar, easy-to-carry form factor. Housing Digi's XBee® module, this off-the-shelf adapter provides instant wireless connectivity from a laptop or PC, allowing network configuration, diagnostics or device monitoring to be conducted locally.

Two versions of the XStick are available - the XStick ZB (mesh version) and the XStick 802.15.4 (multipoint version). The XStick ZB is configured to behave as a coordinator within a ZigBee network.

The XStick can be plugged directly into the USB port of a laptop or PC or connected using an extension cable (must be three meters or less in length). The XStick is USB powered and does not require batteries or a power adapter.

Featured Models/Part Numbers

  North America: International:
XStick ZB
View details
XU-Z11
XU-Z11
BUY ONLINE
Contact Us
XStick 802.15.4
View details
XU-A11
XU-A11
BUY ONLINE
Contact Us
Compatibility Note:
XStick ZB Adapters are compatible with other devices that use XBee "ZB" technology and XStick 802.15.4 Adapters are compatible with other devices that use XBee "802.15.4" technology.

North America: International:
XStick ZB
View details
XU-Z11
XU-Z11 BUY ONLINE
Contact Us
XStick 802.15.4
View details
XU-A11
XU-A11 BUY ONLINE
Contact Us
XStick ZB for Japan
View details
Not Applicable
XU-Z11J Contact Us
Service and Support North America: International:
RF Support Case Packs
View details
DG-TS-ESS-RF-1
DG-TS-ESS-RF-1 BUY ONLINE
Contact Us
RF Site Survey, Configuration and Setup (Hourly)
View details
XSP-SCS-H
Not Applicable Contact Us
RF Site Survey, Configuration and Setup (Daily)
View details
XSP-SCS-D
Not Applicable Contact Us
Integration, Optimization and Troubleshooting (Hourly)
View details
XSP-IOT-H
Not Applicable Contact Us
Integration, Optimization and Troubleshooting (Daily)
View details
XSP-IOT-D
Not Applicable Contact Us
RF Basics & Product Integration (One Day)
View details
XSP-PT-B1
Not Applicable Contact Us
Advanced Engineering Design (One Day)
View details
XSP-PT-A1
Not Applicable Contact Us
RF Basics & Product Integration + Advanced Engineering Design (Two Days)
View details
XSP-PT-2
Not Applicable Contact Us
Specifications XStick ZB XStick 802.15.4
Performance
Indoor/Urban Range 66 ft (20 m) 49 ft (15 m)
Outdoor/RF Line-of-Sight Range 164 ft (50 m) 131 ft (40 m)
Transmit Power Output (Nominal 25º C) 2.8 mW (4.5 dBm) 1 mW (0 dBm)
RF Data Rate 250 Kbps 250 Kbps
Serial Interface Data Rate (Software Selectable) 1200-115.2K 1200-115.2K
Receiver Sensitivity -90 dBm -90 dBm
Power Requirements
Supply Voltage 5V from USB port of PC 5V from USB port of PC
Operating Currrent (Transmit) 51 mA 64 mA
Operating Current (Recieve) 47 mA 64 mA
Power-Down Current XStick should not be put into sleep mode XStick should not be put into sleep mode
General
Operating Frequency Band 2.4 GHz ISM 2.4 GHz ISM
Dimensions (L x W x H) 1.8 in x 0.7 in x 0.4 in (45.7 mm x 17.8 mm x 10.2 mm) 1.8 in x 0.7 in x 0.4 in (45.7 mm x 17.8 mm x 10.2 mm)
Operating Temperature -40º C to +85º C -40º C to +85º C
Connector USB Type A USB Type A
Antenna Options Internal only Internal only
Networking & Security
Supported Network Topologies Point-to-Point, Point-to-Multipoint, Peer-to-Peer, ZigBee/Mesh Point-to-Point, Point-to-Multipoint, Peer-to-Peer
Number of Channels (Software Selectable) 16 16
Addressing Options PAN, channel, address PAN, channel, address
Agency Approvals
United States (FCC Part 15.247) MCQ-XSTICK2 MCQ-XSTICK1 (Pending)
Industry Canada (IC) 1846A-XSTICK2 1846A-XSTICK1 (Pending)
Europe ETSI ETSI (Pending)

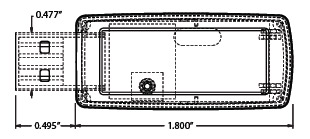

XStick - Top View

XStick - Side View

XStick - Connector
