Digi Connect® WAN Family

Small cellular/WiMAX routers with integrated VPN

Overview
Models
Specs
Documentation
Demo
Related Products
Learn More

Ethernet to high speed (2G/2.5G/3G/4G/Gobi) wireless routers
Enterprise primary and backup wireless WAN connectivity
Unique Digi SureLink™ "always-on" connection
10/100Base-T or serial connection to existing router
Industrial and GSM-R options available
Available iDigi Application Development Services

Digi Connect WAN cellular/WiMAX routers provide secure high-speed wireless connectivity to remote sites and devices. These products can be used for reliable primary wireless network connectivity to equipment at remote locations, as well as for a backup to existing landline communications. The Digi Connect WAN family is also ideal for use where wired networks are not feasible, or where alternative network connections are required. Applications include new construction locations, industrial automation, power utility substations, retail/POS sites, railroad, temporary facilities without primary wired connections, and many more.

Find the right Digi Connect WAN model for your application: Digi Connect WAN features comparison chart

Digi Connect WAN routers benefit from the enhanced management capabilities offered by iDigi Manager Pro™. This web-based device management system enables remote access and control of your Digi cellular routers and gateways.

The iDigi® Device Cloud™ platform as a service provides integration of web and mobile applications via iDigi application programming interfaces (APIs), while providing the required reliability and security infrastructure to elastically scale.

Digi Connect WAN cellular/WiMAX routers provide secure high-speed wireless connectivity via GSM (GPRS/EDGE/HSDPA) or CDMA (1xRTT/EV-DO Rev. A) networks to remote sites and devices. These products can be used for reliable primary wireless network connectivity to equipment at remote locations, as well as for a backup to existing landline communications. The Digi Connect WAN family is also ideal for use where wired networks are not feasible, or where alternative network connections are required.

Digi Connect WAN products provide a primary Wireless WAN connection to remote sites containing Ethernet and/or serial devices. Applications include new construction locations, industrial automation, power utility substations, retail/POS sites, railroad, temporary facilities without primary wired connections, and many more. Benefits of implementing a remote device management solution with the Digi Connect WAN family include instant deployment, elimination of wiring costs and problems due to wire breaks, the ability to traverse firewalls, and the ability to move the connection virtually anywhere.

For backup network applications, Digi Connect WAN integrates with remote locations via a secondary Ethernet WAN port on an existing router. This provides a truly diverse network connection for remote locations requiring maximum uptime.

For customers requiring end-to-end security WAN connections, Digi offers the Digi TransPort® VC7400, an enterprise class VPN concentrator with support for up to 3000 remote locations.

Please contact us at 1-800-437-7251 or 952-912-3444 for additional information or to discuss your specific application requirements.

Digi Connect WAN 3G / 4G	North America:	International:
Digi Connect WAN 3G EV-DO Sprint - 3G router with EV-DO module ready to be provisioned on Sprint network; 2 antennas included View details	DC-WAN-T310-A Service agreement	Not Applicable	Contact Us
Digi Connect WAN 3G Verizon - 3G router with EV-DO Rev A module ready to be provisioned on Verizon network; 2 antennas included View details	DC-WAN-T311-A Service agreement	Not Applicable	Contact Us
Digi Connect WAN 3G with dual SIM - Cellular ready (module not included); antenna included View details	Not Applicable	DC-WAN-E300-W	Contact Us
Digi Connect WAN 3G HSPA International View details	Not Applicable	DC-WAN-U303-W	Contact Us
Digi Connect WAN 3G/4G HSPA+/ 3G EVDO Gobi; antenna(s) included View details	DC-WAN-U801-A	DC-WAN-U801-W	Contact Us
Digi Connect WAN 4G (Sprint/CLEAR) - 4G router ready to be provisioned on Sprint/CLEAR network View details	DC-WAN-Y301-A	Not Applicable	Contact Us
Digi Connect WAN 4G IA - Sprint/CLEAR router including Ethernet and RS-232/422/485 serial, with 9-30VDC terminal blocks, DIN rail kit, Modbus and antenna (no power supply) View details	DC-WAN-Y501	Not Applicable	Contact Us
Digi Connect WAN 3G IA	North America:	International:
Digi Connect WAN 3G IA EV-DO Sprint Industrial Cellular Router with Antenna (no power supply) View details	DC-WAN-P510-A	Not Applicable	Contact Us
Digi Connect WAN 3G IA EV-DO Verizon Industrial Cellular Router with Antenna (no power supply) View details	DC-WAN-P511-A	Not Applicable	Contact Us
Digi Connect WAN IA 3G/4G HSPA+/ 3G EVDO Gobi; antenna(s) included View details	DC-WAN-U805	Not Applicable	Contact Us
Digi Connect WAN IA 1XRTT Sprint; antenna(s) included, no power supply View details	DC-WAN-B105	Not Applicable	Contact Us
Digi Connect WAN	North America:	International:
Digi Connect WAN GSM Global Quadband GPRS Class 12, EDGE Class 10 with Antenna View details	DC-WAN-GE10A Service agreement	DC-WAN-GE10A-W	Contact Us
Digi Connect WAN HSPA+ AT&T Only View details	DC-WAN-U601-A	Not Applicable	Contact Us
Digi Connect WAN HSPA+ - Product ships with embedded HSPA+ module; antenna included - All GSM carriers View details	DC-WAN-U701-A	DC-WAN-U701-W	Contact Us
Digi Connect WAN 1XRTT Sprint; antenna(s) included View details	DC-WAN-B101-A	Not Applicable	Contact Us
Digi Connect WAN VPN	North America:	International:
Digi Connect WAN VPN GSM Global Quadband GPRS Class 12, EDGE Class 10 with Antenna View details	DC-VPN-GE10A Service agreement	DC-VPN-GE10A-W	Contact Us
Digi Connect WAN IA	North America:	International:
Digi Connect WAN IA GSM Class 10 EDGE Class 12 GPRS Industrial Cellular Router with Antenna (no power supply) View details	DC-WAN-F501 Service agreement	DC-WAN-F501	Contact Us
Digi Connect WAN IA HSPA+ - Product ships with embedded HSPA+ module; antenna(s)- All GSM carriers View details	Not Applicable	DC-WAN-U705	Contact Us
Digi Connect WAN IA HSPA+ AT&T Only View details	DC-WAN-U605	Not Applicable	Contact Us
Digi Connect WAN GPRS	North America:	International:
Digi Connect WAN GPRS with Antenna View details	DC-WAN-A101-A Service agreement	DC-WAN-A101-W	Contact Us
Digi Connect WAN GSM-R	North America:	International:
Digi Connect WAN GSM-R with Antenna View details	Not Applicable	DC-WAN-R303-W	Contact Us

Specifications	Digi Connect® WAN GPRS	Digi Connect® WAN Digi Connect® WAN VPN	Digi Connect® WAN 2.5G/3G	Digi Connect® WAN IA Digi Connect® WAN 2.5G/3G IA	Digi Connect® WAN 4G
Interfaces - Serial
Ports	1 RS-232/422/485 DB-9; Up to 230 Kbps throughput; Hardware and software flow control; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD		1 RS-232 DB-9; Up to 230 Kbps throughput; Hardware and software flow control; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD	1 RS-232/422/485 DB-9; Up to 230 Kbps throughput; Hardware and software flow control; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD	1 RS-232 DB-9; Up to 230 Kbps throughput; Hardware and software flow control; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Interfaces - Ethernet
Ports	1 RJ-45 10/100 Mbps 10Base-T (auto-sensing); Full or half duplex, Auto crossover detection (Auto MDIX)
Other Interfaces
USB	N/A		1 USB Type A connector (2.5G/3G/4G models only)
Sensor	N/A			1 sensor port for use with Watchport® Sensors (2.5G/3G IA models only)	N/A
Dual SIM	N/A - single SIM only		2.5/3G/4G models only
Features
Network Protocols	UDP/DHCP, SNMPv1/v2
Status LEDs	Ethernet, Power on, Cellular link/activity, Signal strength (4 bars)
Software	Device-initiated patented RealPort® COM port redirector and RFC 2217; Digi SureLink™ "always-on" connection; Python scripting; Custom development environment
Security	SSL, SSL/TLS, SSHv2, FIPS 197
Router/Firewall Features	NAT, NAT-T (NAT traversal) VPN tunneling, Port forwarding, VPN/GRE pass-through; Access control lists (IP filtering), IP pass-through, Virtual Router Redundancy Protocol (VRRP) per RFC 3768
VPN Features	IPsec with IKE/ISAKMP; Multiple tunnel support; DES, 3DES and up to 256-bit AES Encryption, Simple Certificate Enrollment Protocol (SCEP) for X.509 certificate; VPN features not included on Digi Connect WAN model
Management	HTTP/HTTPS, CLI or Telnet; Optional secure enterprise management via iDigi®
IA Features	N/A			DIN rail mounting kit included; Class 1, Div 2 Rating; Terminal block for power; Modbus to Modbus TCP protocol conversion	N/A
Dimensions (L x W x H)	5.25 in (13.34 cm) x 3.35 in (8.51 cm) x 0.97 in (2.47 cm) 2.5G/3G/4G models: 5.30 in (13.46 cm) x 3.38 in (8.58 cm) x 0.98 in (2.48 cm)
Weight	1.00 lb (0.45 kg)
RF Features - GSM Models
GPRS	850/900/1800/1900 MHz				N/A
EDGE	N/A	850/900/1800/1900 MHz			N/A
HSUPA/HSDPA/UMTS	N/A		850/900/1800/1900/2100 MHz		N/A
HSPA+	N/A		IA model: N/A 3G/3G IA models: 850/900/1900/2100 MHz with Rx Diversity; Optional multi-mode 800/850/900/1700 (AWS)/1900/2100 HSPA+/EV-DO Gobi support		N/A
Antenna	N/A		1 or 2 antennas (Rx Diversity) SMA (Center pin - on device: female; on antenna: male) GPRS/EDGE/HSUPA/HSDPA/UMTS model: 1 antenna; HSPA+ model: 2 antennas		N/A
RF Features - CDMA Models
1xEV-DO	N/A		IA model: N/A 3G/3G IA models: Multi-mode 800/850/900/1700 (AWS)/1900/2100 HSPA+/EV-DO Gobi support		N/A
1xRTT	N/A		800/1900 MHz	IA model: N/A 2.5G/3G IA model: 800/1900 MHz	N/A
Antenna	1 x 50 Ω female SMA connector (Center pin - on device: female; on antenna: male)		1 or 2 antennas (Rx Diversity) SMA (Center pin - on device: female; on antenna: male) 2.5G model: 1 antenna; 3G model: 2 antennas		N/A
RF Features - 4G Models
WiMAX	N/A				WiMAX (802.16e-2005); 2.3-2.7 GHz (WF3A Profile); Wave2; S-OFDMA MIMO; QPSK, 16 QAM, 64 QAM; 5/10 MHz bandwidth UL/DL
Antenna	N/A				2 x 50 Ω RP-SMA (Center pin - on device: male; on antenna: female)
Power Requirements
Power Input	9-30 VDC		6-30 VDC	IA model: 9-30VDC 2.5G/3G IA model: 6-30VDC	6-30 VDC
Power Supply	12VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included (except IA models); Extended temperature power supply available; IA models require a power supply (not included)
DC Power Consumption	Idle: 1.2W; Max: 3.4W
AC Power Consumption	Idle: 2.0W; Max: 5.8W
Surge Protection	4 kV burst (EFT) per-4-4; 2 kV surge per EN61000-4
Environmental
Operating Temperature	-30° C to +75° C (-22° F to 167° F) Reduced cellular performance may occur above 65° C (depending on module)
Relative Humidity	5 to 95% (non-condensing)
Ethernet Isolation	1500 VAC min per IEEE 802.3/ANSI X 3.263
Serial Port Protection (ESD)	+15 kV air gap and +8 kV contact discharge per IEC 1000-4-2
Approvals
Safety	UL 60950, CSA 22.2 No. 60950, EN60950
Emissions/Immunity	CE, FCC Part 15 Class A, AS/NZS CISPR 22, EN55024, EN55022 Class A
Mobile Certifications - CDMA/EV-DO	CDG, TIA/EIA-690, TIA/EIA-98-E
Mobile Certifications - GSM/UMTS	PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511
Wireless Carrier Certifications	AT&T Wireless (GSM) - U.S. Sprint (CDMA) - U.S. Verizon Wireless (CDMA) U.S., Puerto Rico Rogers Wireless (GSM) - Canada Midwest Wireless (CDMA) - U.S. Alltel Wireless (CDMA) - U.S. T-Mobile (GSM) - U.S. Cellular One (GSM) - U.S. Centennial Wireless (CDMA) - Puerto Rico Claro PR (GSM) - Puerto Rico IUSACELL (CDMA) - Mexico Entel PCS (GSM) - Chile Claro (GSM) - Peru Vodaphone (GSM) – New Zealand Comcel (GSM) - Colombia IDA (GSM) - Singapore Telstra (GSM - Australia) Telefonica Moviles (GSM) - Guatemala, El Salvador ICASA (GSM) - South Africa Movistar - Panama (CDMA), Chile (GSM) Anatel (GSM) - Brazil Bell Mobility (CDMA) - Canada Dalacom (CDMA) - Kazakhstan

Digi Connect WAN GPRS/VPN - Front

Digi Connect WAN GPRS/IA/VPN - Back

*Digi Connect WAN IA does not include an auxiliary port

Digi Connect WAN IA - Front

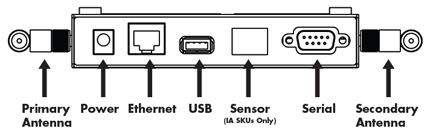

Digi Connect WAN 3G/ Digi Connect WAN 3G/4G IA - Back

Digi Connect WAN 3G/4G - Top
