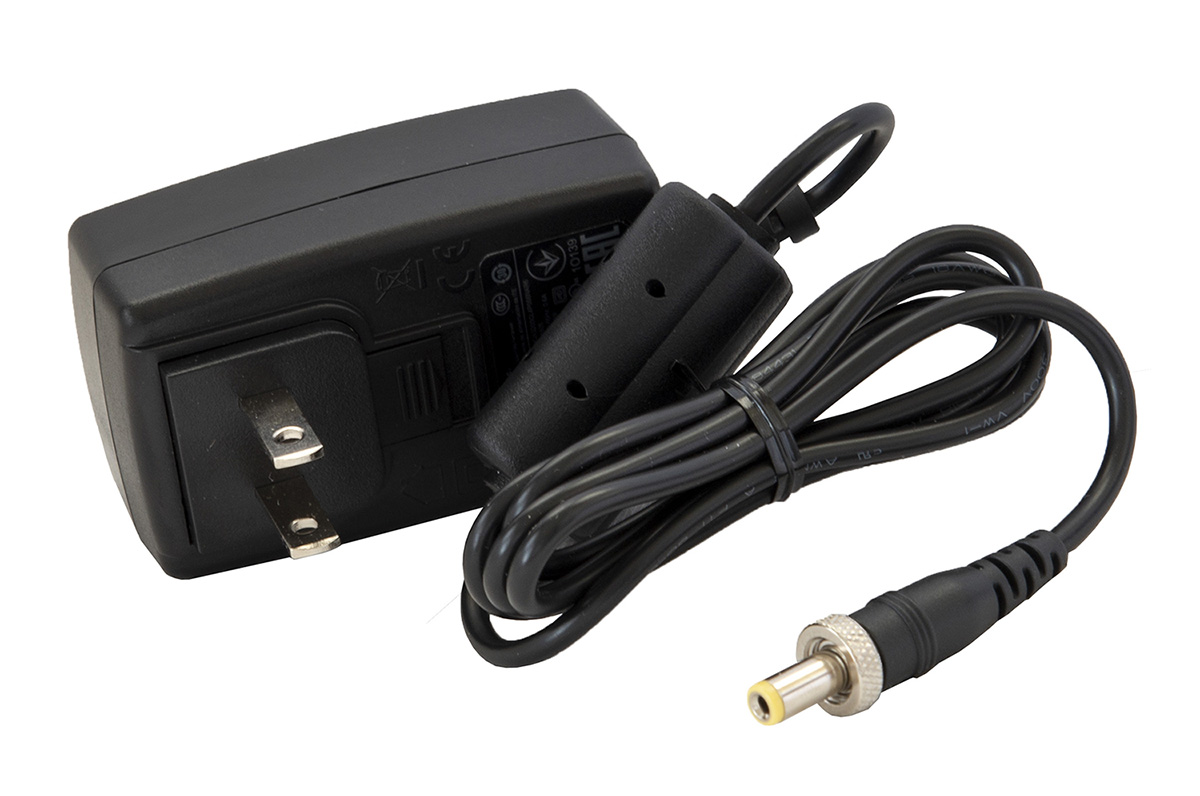

AC Power Supply – 5VDC, 100-240VAC, Interchangeable blades, locking barrel



Part Number:

24000066

View Purchase Options

Input Specifications:

Rated Input Voltage Range:
100VAC - 240VAC
Input Frequency:
50Hz - 60Hz
Rated Input Current:
0.6A
Input Plug Type:
Interchangeable blades for most worldwide outlet configurations

Output Specifications:

Output Voltage:
5VDC
Max. load current:
3.2A
Min. load current:
0A
Output Power:
16W
Output Plug:
Connector Type: Female barrel with thumb screw
Outer Diameter: 5.5mm
Inner Diameter: 2.1mm

Environment:

Operating Temperature:
0° C to 40° C
Storage Temperature:
-10° C to 70° C

Dimensions:

Size (LxHxW):
74 x 43.5 x 34mm
Weight:
68.5g
Cord Length:
1200 mm
Certifications:
UL, cUL, PSE, CE, CCC, TUV,FCC, EAC, KET KC, NOM
