Embedded Wireless and Wired Solutions

Narrow Results

Wireless Interfaces

802.15.4(1)
ZigBee(2)
Wi-Fi(13)
Bluetooth(3)
Cellular(1)
Satellite(1)

Wired Interfaces

Ethernet(26)
UART(32)
SPI(23)
CAN(7)
Display(9)
Audio(4)

Brand

XBee(12)
XCite(2)
XTend(1)
XStream(1)

Processor

ARM(10)
Rabbit(23)

Ethernet

Gigabit Ethernet(1)
10/100 Ethernet(17)
10 Base-T Ethernet(5)
Dual 10/100 Ethernet(3)

Cellular

3G(2)
2G(2)

More options

Search Within

Solutions on Module
High-performance processor module solutions with wireless/wired networking options.

RF Modules
Easy-to-implement embedded short- and long-range wireless modules.

Single-Board Computers and Operator Interfaces
Single-board computers and operator interfaces based on 16-bit Rabbit processors.

Software Platforms
Complete out-of-the-box embedded software and development solutions.

Application Kits
Ready-to-use development kits tailored to specific applications and markets.

Microprocessors
Highly integrated, cost-efficient 16-/32-bit processor families with built-in network connectivity.

Software Development
Our software support services minimize your design risk and significantly improve time-to-market by...

70 Products

XBee-PRO® 900HP
900 MHz RF Module

Superior outdoor LOS range of up to 28 miles
RF data rate up to 200 Kbps
Patent-pending channel selectivity algorithm allows for more dense networks
DigiMesh or point-to-multipoint topologies
Programmablel versions enable custom application development

Dynamic C®
Integrated development environment

Industry-proven for embedded applications
Debug on the target hardware
Libraries to configure your application
Includes AES and SSL
Remote device management with Device Cloud by Etherios

Rabbit RIO Programmable I/O Application Kit
Intelligent I/O expansion chip

Easily interface to any CPU via an available SPI or parallel port
Instantly add up to 32 digital I/O lines
8 independent functional channels with 4 ports each
Functional channels configurable as: Bi-directional I/O, PWM or PPM outputs, TRIAC signal generators, input capture, counter, Quadrature decode peripheral
Add I/O and peripheral features to any new or existing design
Use multiple Rabbit RIO devices for large I/O requirements

XPress™ Crypto Module
NIST FIPS 140-2 certified cryptographic module

Cryptographic module enables marking with official NIST FIPS 140-2 logo
AES 128-, 192- or 256-bit encryption
Mini USB Type B port for easy configuration management with PC or serial terminal

XBee-PRO 868
Long-range RF connectivity for European applications

868 MHz G3 band for Europe
Best-in-class long-range RF module
Point-to-multipoint network topology
No configuration needed for out-of-the-box RF communications

Digi m10
Compact satellite modem

Global LEO satellite coverage (no blockage)
Simple serial interface for host communication
Extremely compact module form factor
Very low receive and transmit power consumption
Industrial operating temperature and shock/vibration

MiniCore RCM6700
High performance embedded device servers

Rabbit® 6000 running up to 200 MHz
10/100 Ethernet and pin-compatible with MiniCore 802.11b/g wireless modules
1 MB of internal RAM for program storage
Up to 4 MB of serial Flash for datalogging or web page storage
Flexible Interface Module (FIM) provides protocol support for CANbus or SD/SDIO
Device Cloud by Etherios platform provides cost-effective cloud computing for remote device management
Seamless migration to chip level design
5X greater throughput performance

XBee® ZB
RF modules utilizing the ZigBee PRO Feature Set

Development Kit - $299
ZigBee PRO mesh features self-healing and discovery for network stability
Advanced configuration options available via simple AT or API commands
No configuration needed for out-of-the-box RF communications
Common XBee footprint for a variety of RF modules

XBee 868LP
Low-power RF module

Low-power 868 MHz RF module for Europe
ADF7023 transceiver from Analog Devices
AFA+LBT provides superior interference immunity
DigiMesh or point-to-multipoint topologies

MiniCore RCM5700
Ultra-compact serial to Ethernet module

10/100Base-T Ethernet
Up to 640 KB SRAM for data, 1 MB flash memory for program storage, 2 MB serial flash for mass storage
Up to 32 GPIO lines and 6 serial ports
Serial to Ethernet bridge
Embedded web server, remote firmware update, open source code and royalty-free
Cost-competitive embedded solution
Quick time to market

XBee Wi-Fi
Embedded Wi-Fi module for OEMs

Common Through-Hole and Surface Mount XBee footprints available
Flexible SPI and UART serial interfaces
RPSMA, PCB, U.FL and wired whip antenna options
Support for low power sleeping applications with < 6 μA power-down current
802.11n provides up to 72 Mbps data rate

SBC BL4S200
Single-board computer

Uses Rabbit® 4000 and Rabbit 5000 microprocessors
Choice of Wi-Fi, ZigBee or Ethernet connectivity
40 digital I/O and up to 5 serial ports
8 input and 2 output analog channels
Advanced I/O subsystem is software configurable reducing the load on the processor
I/O features include event/capture counting, quadrature decoders, PWMs and PPMs

OP7200 eDisplay
Ethernet-intelligent operator interface

Rabbit® 2000 microprocessor at 22 MHz
¼ VGA display (320 x 240 pixels)
10Base-T Ethernet, RJ-45
256K Flash/128K SRAM
24-27 industrialized I/O and 4 CMOS-compatible serial ports
English and foreign language fonts
Graphic and bitmap images
Open source GUI libraries

Simple Sensor Application Kit
Connecting a 1-Wire® bus to a Rabbit® embedded system

RCM4300 Development Kit
Up to 1GB in flash memory
DS2406 SPST addressable switch, DS18B20 temperature sensor, DS2450 A/D converter, DS2480B line driver
1-Wire based application samples
Web Server capability
Sample program on how to detect and manage 1-Wire via a Web Interface
Easy-to-use integrated design environment

RabbitCore RCM4510W
ZigBee RF core module

Rabbit 4000 at 29.49 MHz
Designed for ZigBee connectivity
512K Flash, 512K data SRAM
Up to 40 general-purpose I/O line configurable
Web Server capability
Wireless mesh networking capability
Low power

RabbitCore RCM3900
Microprocessor core module

Rabbit® 3000 microprocessor at 44 MHz
Extended operating temperature range: -20° C to +80° C
10/100Base-T Ethernet
Up to 1 GB microSD hot-swappable storage
Lower-risk design of embedded systems applications
Software debugging directly on target hardware

RabbitCore RCM5400W
Microprocessor core module

Rabbit 5000 running at 74 MHz
Up to 2 MB of serial flash for data intensive applications utilizing FAT file system
39 digital I/O lines and up to 6 serial ports
Integrated IEEE 802.11b/g Wi-Fi
802.11i security compliance supporting WPA and WPA2 enterprise authentication
Wireless web server capability
Easy C-language program development and debugging
Low design risk – deploy with confidence into any Wi-Fi network, reduce development time by 50%

Digi Connect Wi-ME 9210

Secure 802.11b/g/n Wi-Fi support
Support for Digi Embedded Linux and Digi NET+OS

Device Cloud Telehealth Application Kit
Cloud-enabled Home Health Hub reference design

Includes Freescale Semiconductor Home Health Hub (HHH) reference design
Built-in Device Cloud by Etherios™ services for anywhere, anytime information access
Integrated wired and wireless connectivity options
Microsoft Windows Emdedded Compact 7 and Linux BSP support included

Digi M2M Solution Builder Kit
Cloud-enabled end-to-end solution for M2M applications

Seamless Device Cloud by Etherios™ integration
Integrated wired and wireless connectivity options
Highly versatile and capable product platform
Professional Wind River Linux development environment

ConnectCore i.MX53 / Wi-i.MX53
Freescale i.MX53 Cortex A8 system-on-module

High-end 1 GHz Cortex-A8 System-on-Module solution
802.11abgn, Bluetooth 4.0, Ethernet and CAN Bus connectivity
Integrated 2D/3D graphics and 1080p video processing

Software Development Support

Dedicated support department rapid response
Free support for Development Kit installation and setup
Support plans available for phone and email assistance

XBee 865LP
Low-cost 865 MHz RF module

Low-cost 865 MHz RF module for India
Best-in-class range up to 4 km range (LOS)
ADF7023 transceiver from Analog Devices
DigiMesh or point-to-multipoint topologies

NS9215
Cost-efficient 150 MHz ARM926EJ-S microprocessor

Cost-efficient, compact ARM9 up to 150 MHz
Ethernet interface and AES encryption engine
2 independent, programmable interface modules
Digi-patented dynamic power management
Complete set of on-chip peripheral interfaces

XCite RF Modems
900 MHz data radio modem

900 MHz XCite (9XCite) is End-of-life (EOL) starting October 1, 2012.
4 mW
Up to 1000 feet
Low-cost wireless solution

NS9210
Cost-efficient, small footprint ARM9 microprocessor

Cost-efficient 150 MHz Digi ARM9 processor with integrated Ethernet, AES, and programmable interfaces
Pin-compatible with NS7520 for easy design migration
Development kit support for NET+OS

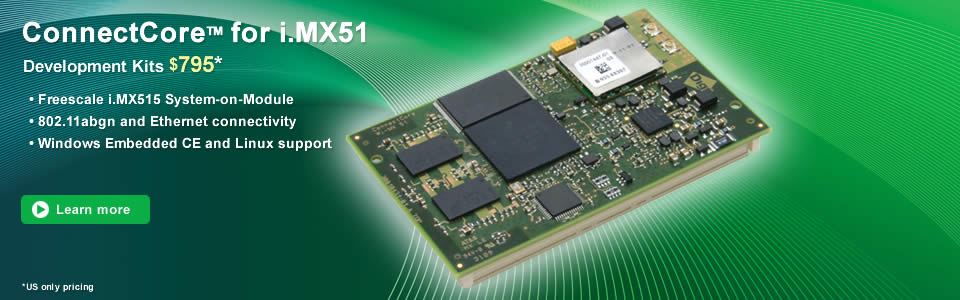

ConnectCore i.MX51 / Wi-i.MX51
Freescale i.MX51 Cortex A8 system-on-module (SoM)

Freescale i.MX51 Cortex A8 system-on-module (SoM)
Integrated secure wireless 802.11abgn Wi-Fi WLAN
Powerful 2D/3D and 720p video capabilities

Digi Connect ME 9210
Integrated 10/100 Ethernet support

Ultra-compact network-enabled ARM9 embedded module
Security and performance through on-chip hardware encryption
Superior and unique peripheral interface flexibility
Pin- and software-compatibility with Digi Connect ME family

XCite OEM RF Modules
900 MHz embedded RF modules for OEMs

4 mW
Up to 1000 feet
Low cost wireless solution

Digi Connect ME
Secure network device server module

Web- and network-enable products quickly
1 high-speed TTL serial interface, 2/4 MB Flash memory, 8 MB RAM
Pin- and software-compatible with Digi Connect Wi-ME

XStream OEM RF Modules
900 MHz and 2.4 GHz embedded RF modules for OEMs

100 mW, 50 mW
Up to 20 miles
Versatile wireless design

XTend OEM RF Modules
1 Watt/900 MHz long-range OEM RF modules

1 Watt
Up to 40 miles
256-bit AES Encryption

XBee ZB SMT
ZigBee® embedded surface mount RF modules for OEMs

Development Kit - $299
Industry leading sleep current of sub 1uA
Firmware upgrades via UART, SPI or over the air
ZigBee PRO mesh features self-healing and discovery for network stability
NEW! - Programmable ZigBee SMT available

Rabbit 6000
Communications and Control Processor

Clock speed up to 200 MHz
On-board 802.11 a/b/g and 10/100 Ethernet
64 I/O and up to 6 serial ports (4 as SPI)
1 MB internal DRAM and 32K battery backable SRAM
USB 2.0 full speed host
12-bit A/D converter samples up to 1Megasamples/s
Ideal for industrial motor control
Integrated hardware and software environment
Easily add an HMI as well as CANbus protocol support with the on-board FIMs
4 PWM channels, 4 PPM channels

Plug-and-Play Firmware
Add wired/wireless connectivity to any device

No custom programming required
Implements configurable networking/security services
Supports custom web pages and Java applets

Digi Embedded Application Development Kit for Android
Embedded Android Application Development Kit

Complete and royalty-free embedded Linux environment with full source code
Fully integrated and optimized BSPs for Digi hardware platforms
Built on recent stable version of Linux kernel

XBee® DigiMesh® 2.4
Wireless connectivity using the DigiMesh protocol

Development Kit - $269
Ideal for metering and remote asset management applications
Common XBee footprint for a variety of RF modules
Simple DigiMesh self-healing network features Sleeping Routers

SBC BL4S100
Single-board computer

Rabbit 4000 running at 40 MHz
On-board Rabbit RIO® device for exceptional I/O functionality and flexibility
Web Server functionality
Easy implementation of mesh networking with known good hardware
Dynamic C® software environment to reduce development time

MiniCore RCM5600W
Ultra-compact Wi-Fi module

Rabbit® 5000 running at 74 MHz
On-board single-chip 802.11b/g transceiver
Up to 32 GPIO lines and 6 serial ports
1 MB of SRAM and up to 4 MB of serial flash
Update firmware wirelessly
Embedded web server

RabbitCore RCM3700
Microprocessor core module

Up to 4 serial ports for multiple device connectivity
10Base-T with optional 10/100Base-T Ethernet
Up to 512K Flash for code and up to 512K SRAM for data
1 MB of on-board serial Flash utilizing FAT file support for reliable data storage
Embedded web server capability for remote monitoring and control
Exceptionally fast performance for math, logic and I/O

RabbitCore RCM4300
Microprocessor core module

Rabbit 4000 running at 58.98 MHz
Supports up to 2 GB microSD memory card, 1 MB SRAM for shared code, 512K of battery-backed SRAM, FAT file organization
10/100Base-T Ethernet, 36 GPIO, 6 serial ports
8 channel 12-bit resolution (RCM4300 only)
Embedded web server
Easily implement secure embedded devices with client side SSL or AES encryption
Included Remote Program Update allows for firmware updates from anywhere in the world

ConnectCard for i.MX28
Compact wired and wireless core module

Cost-effective design in compact form factor
32-bit ARM processor at up to 454 MHz
Pre-approved 802.11a/b/g/n Wi-Fi + Bluetooth 4.0

Rabbit 4000
Low-EMI, high-performance microprocessor

60 MHz max clock speed
Integrated 10Base-T Ethernet
Supports 8-bit or 16-bit Flash and SRAM memories
Extended low-power “sleepy” modes
Watchdog timer
Battery backed option for protected data storage

NET+OS 7
Integrated Real-Time OS development platform

Royalty-free off-the-shelf networking software platform
Based on reliable and field-proven ThreadX® RTOS
Professional Eclipse-based Digi ESP™ IDE

RabbitCore RCM3600
Microprocessor core module

Rabbit 3000 microprocessor at 22 MHz
Up to 512K Flash/512K SRAM
33 parallel digital I/O with configurable options
4 serial ports (IrDA, HDLC, async, SPI)
5VDC input, 3.3VDC interface
Compact footprint: 2.11” x 1.23” x 0.62” (54 mm x 31 mm x 16 mm)
Ready-made platform for fast time-to-market – save up to 3 months of design integration time
Low-cost embedded microprocessor module

SBC BL2600
Ethernet-enabled single-board computer

Rabbit® 3000 microprocessor at 44 MHz
10/100Base-T Ethernet, RJ-45
512K Flash/512K SRAM
36 digital I/O (configurations include protected digital inputs, sinking/sourcing outputs, high current outputs)
12 analog channels: eight 11-bit A/D, four 12-bit D/A buffered outputs
RabbitNet expansion ready
Multiple “core module” options allow flexibility in functionality

RabbitCore RCM4200
Microprocessor core module

Rabbit 4000 running at 59 MHz
10/100Base-T Ethernet, RJ-45 jack
512K Flash / 512K Data SRAM
4 MB or 8 MB Serial Flash for data storage
Up to 35 GPIO, up to 5 serial ports
8 channels 12-bit A/D converter option
Embedded device networking, intelligence, I/O control and web server capability
Abilty to remotely update firmware

ConnectCore Wi-9P 9215
Highly integrated 802.11a/b/g wireless core module

Compact, cost-efficient 150 MHz ARM9 module
Secure 802.11abg Wi-Fi networking
Programmable interface modules
Dynamic power management options

Rabbit 3000
Low EMI, high performance microprocessor

55 MHz max clock speed
56+ I/O lines and 6 CMOS-compatible serial ports
Ten 8-bit timers and one 10-bit timer with 2 match registers
Hardware and/or software support for TCP/IP, IrDA, SDLC/HDLC, Async, SPI, I2C
Extended low-power “sleepy” modes
Watchdog timer
TCP/IP connectivity allows for programming and debugging Rabbit processor-based systems over intranets or the Internet

Digi Embedded Linux
Integrated Linux platform for embedded systems

Royalty-free Linux package with source code
State-of-the-art graphical development tools
Fully tested and integrated environment

XBee® 802.15.4
Device connectivity using multipoint wireless networks

Starter Kit only $129
1 mW (XBee) & 63 mW (XBee-PRO)
Up to 300 ft/90 m (XBee) & 1 mile/1.6 km (XBee-PRO) RF LOS
Point-to-multipoint IEEE 802.15.4 protocol

SBC BL2100
Single-board computer

40 sinking/sourcing digital I/O
Up to 512K Flash for program and up to 512K SRAM for data
16 digital outputs which can sink/source 200 mA
11 A/D and 4 D/A with 12-bit resolution
Up to 4 serial ports: two 3-wire (or one 5-wire) RS-232 and 1 RS-485
Royalty-free TCP/IP stack

RabbitCore RCM3400
Microprocessor core module

Rabbit 3000 microprocessor at 30 MHz
Up to 512K Flash/512K SRAM
8 channel 12-bit A/D with programmable gain
47 digital I/O ports
5 serial ports (IrDA, HDLC, asynch, SPI)
MAC ID installed
Compact size simplifies integration
Ready-made platform for fast time-to-market, up to 3 months of design integration time savings
Low-cost embedded microprocessor module

RabbitCore RCM4100
Microprocessor core module

Rabbit 4000 running up to 59 MHz
512K Flash, 256K / 512K Data SRAM
Up to 40 GPIO, up to 6 CMOS-compatible serial ports
Auxiliary I/O feature for reducing processor bus loading
8 channels 12-bit A/D converter(RCM4100)
Ideal for device intelligence and control
Well suited for easy integration with peripheral technologies such as GPS, cellular modems, RFID readers, sensors, etc.

ConnectCore 9P 9215
Highly integrated, network-enabled core module

Compact, cost-efficient 150 MHz ARM9 module
Secure high-performance Ethernet networking
Programmable interface modules
Dynamic power management options

Microsoft Windows Embedded CE 6.0 / Windows Embedded Compact 7
Windows Embedded software support for Digi embedded products

Immediate and accelerated product development
Optimized Digi BSP and drivers with full source code
Windows Embedded CE 6.0 and Windows Embedded Compact 7

Digi Connect Wi-ME
Integrated secure 802.11b Wi-Fi WLAN support

Fully customizable and secure 802.11b wireless embedded module
1 high-speed TTL serial interface, 4 MB Flash memory, 8 MB RAM
Pin- and software-compatible with Digi Connect ME

RabbitCore RCM3309
Microprocessor core module

Rabbit® 3000 microprocessor at 44 MHz
10/100Base-T Ethernet, RJ-45
512K Flash/512K SRAM/512K Program Execution SRAM
4 MB or 8 MB serial Flash
49 digital I/O and 5 serial ports
Plenty of storage with safe and secure firmware and data transfers
Debug software directly on target hardware

SBC LP3500
Single-board computer

Low power consumption less than 100 uA in power save mode
8 A/D inputs with 12 bit resolution
Digital outputs can sink up to 200 mA
6 serial ports for multiple device connectivity
16 protected digital inputs
1 relay output up to 1A
Backup battery for data protection
Data logger

RabbitCore RCM4000
Communications and control processor

Rabbit 4000 running at 59 MHz
Up to 1 MB (16-bit) Program Flash, 1 MB (16-bit) SRAM, 32 MB of Flash memory
10Base-T Ethernet (RJ-45 connector), up to 28 GPIO, up to 5 serial ports
8 channels 12-bit A/D converter
Web server capability and remote device control
Low-cost and easily deployable platform for non-critical embedded security
Security-key feature with “tamper detect” and encryption capabilities

Digi ESP
Integrated development environment for Digi products

Simplified and highly accelerated development and deployment
Feature-rich and future-proof; common look-and-feel minimizes effort required to learn new development tools
Easy and direct access to information saves time and effort

RabbitNet
Expandable control boards

8 channels of 12-bit analog output
24 protected and filtered digital inputs
16 high-speed protected sinking/sourcing digital outputs
6 SPDT Relays
10 A maximum switching current (5A DC)
Display and Keypad

RabbitCore RCM3209
Microprocessor core module

Rabbit 3000 microprocessor at 44 MHz
Optional 10/100Base-T Ethernet
512K Flash / 256K SRAM / 512K Program Execution SRAM
52 digital I/O and 6 serial ports for multiple device connecvity options
Software debugging directly on target hardware

RabbitCore RCM3100
Microprocessor core module

Rabbit 3000 microprocessor at 30 MHz
Up to 512K Flash/512K SRAM
54 digital I/O and 6 serial ports (IrDA, HDLC, asynch, SPI)
3.3V operation, low power “sleepy” modes (< 2mA)
Compact size simplifies integration
Ready-made platform for fast time-to-market, up to 3 months of design integration time savings
Low-cost embedded microprocessor module
Easily links to multiple serial devices

Digi Connect Wi-Wave
802.11b/g radio card for embedded systems

Compact 802.11b/g radio card with USB interface
Support for Windows Embedded CE and Linux
Digi WLAN technology for true long-term availability

RabbitCore RCM3000
Microprocessor core module

Rabbit 3000 microprocessor at 30 MHz
Up to 512K Flash/512K SRAM
52 digital I/O and 6 serial ports (IrDA, HDLC, asynch, SPI)
3.3V operation, low power “sleepy” modes (< 2mA)
Small form factor
Royalty-free TCP/IP stack in source code
Low-cost embedded microprocessor module
Security software add-on modules available

XBee-PRO XSC
900 MHz Long-Range RF Module

Optimized for over-the-air compatibility with legacy 9XStream products
Development Kit only $149
900 MHz long-range RF module
Outdoor LOS range up to 28 mi (45 km) with high-gain antenna
Low power consumption – less than 2.5 uA in power down

XBee-PRO 900
Long-range RF connectivity using multipoint protocol

Not recommended for new designs. For new designs see XBee-PRO 900HP
No configuration needed for out-of-the-box RF communications
Common XBee footprint for a variety of RF modules
Simple point-to-multipoint proprietary RF network

ConnectCore® 3G
Embedded M2M gateway module

Embedded M2M gateway module with customization options
Universal 2G/3G cellular connectivity, GPS option and Ethernet
Future-proof design with 4G upgrade path

XBee DigiMesh 900 Mesh RF Modules
Long-range RF connectivity using the DigiMesh protocol

Not recommended for new designs. For new designs see XBee-PRO 900HP
No configuration needed for out-of-the-box RF communications
Common XBee footprint for a variety of RF modules
Simple DigiMesh self-healing network features Sleeping Routers

Embedded Wireless and Wired Solutions

Narrow Results

Wireless Interfaces

Wired Interfaces

Brand

Processor

Ethernet

Cellular

OS Support

Frequency

Software

Applications

Mounting

Display/Video

Type

Programming Language

Search Within
