Digi ConnectCore 8X SOM based on NXP i.MX 8X

Intelligent and connected embedded system-on-module based on the NXP i.MX 8X, with scalable dual/quad-core performance for industrial IoT applications


  • Industrial i.MX 8X quad/dual-core SOM and SBC platform family
  • Digi SMTplus® form factor (40 mm x 45 mm) for ultimate reliability and design freedom
  • Power management with both hardware and software support for low-power designs
  • Multi-display and camera capabilities with hardware acceleration
  • Pre-certified dual-band 802.11a/b/g/n/ac 2x2 and Bluetooth® 5 connectivity
  • Seamless cellular modem and Digi XBee® 3 integration
  • Cloud and edge-compute services integration
  • Built-in device security with Digi TrustFence®
  • Remote management with Digi ConnectCore® Cloud Services
  • Digi Embedded Yocto  Linux® and Android support

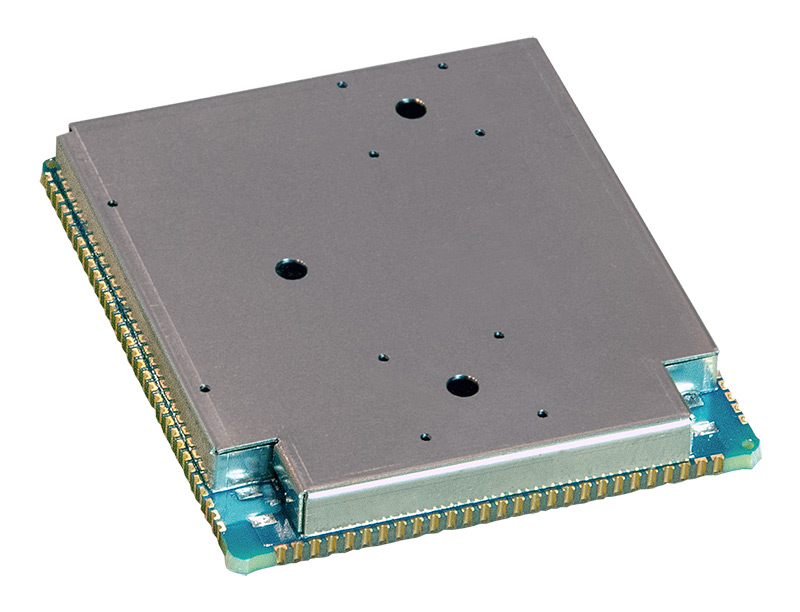

Digi ConnectCore® 8X delivers a secure and cost-effective connected system-on-module platform that measures in at just 40 mm x 45 mm.

The Digi SMTplus® surface mount form factor allows you to choose simplified design integration leveraging proven and easy-to-use edge-castellated SMT technology, or a versatile LGA option for ultimate design flexibility with access to virtually all interfaces.

Built on the NXP® i.MX 8X application processor

The module is the intelligent communication engine for today’s secure connected devices. Digi ConnectCore 8X can help jump-start the development of streaming video/audio devices, voice control and general human-machine interface solutions.

With a multitude of high performance interconnecting options, including 1x USB 3.0 port, dual Gigabit Ethernet, PCIe 3.0, and pre-certified dual-band 2x2 MU-MIMO WLAN, ConnectCore 8X is ideal for developing a wide range of embedded and IoT applications.

TrustFenceYocto ProjectBluetoothWi-Fi AllianceNXP Gold PartnerPowered by AWSAndroid

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.

Compare SOMs

Compare SOMs
Kits

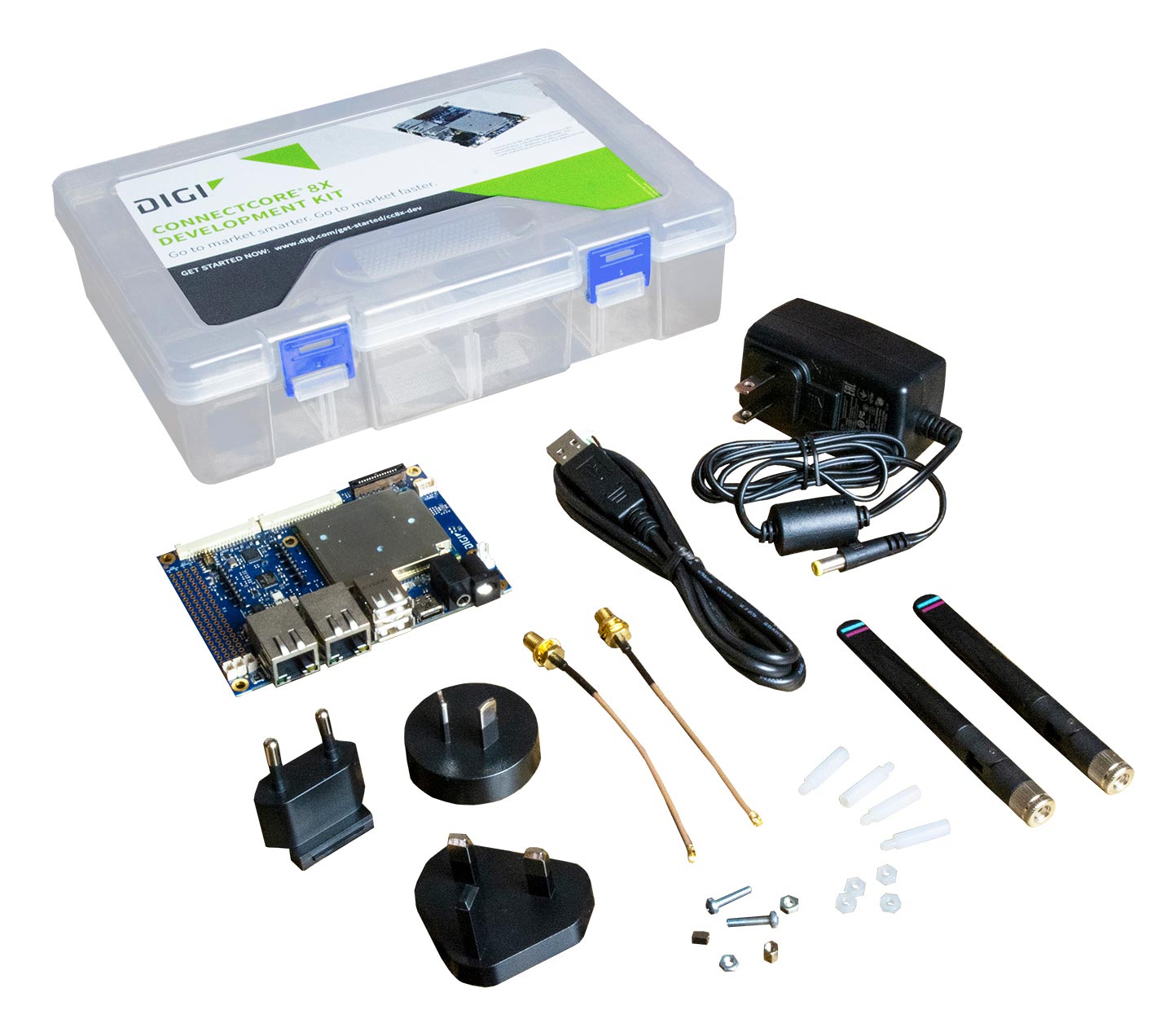

SKU: CC-WMX8-KIT Digi ConnectCore 8X SBC Pro Development Kit CC-WMX8-KIT How to Buy
Dual-core Modules
SKU: CC-MX-JQ7D-ZN Digi ConnectCore® 8X SOM DualXZ 1.2 GHz, 8 GB eMMC, 1 GB LPDDR4 CC-MX-JQ7D-ZN How to Buy
Quad-core Modules
SKU: CC-MX-JM7D-ZN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz, 8 GB eMMC, 1 GB LPDDR4 CC-MX-JM7D-ZN How to Buy
SKU: CC-MX-JM8D-ZN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz, 8 GB eMMC, 2 GB LPDDR4 CC-MX-JM8D-ZN How to Buy
SKU: CC-WMX-JM7D-NN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz, 8 GB eMMC, 1 GB LPDDR4, 802.11a/b/g/n/ac 2x2, Bluetooth® 5 CC-WMX-JM7D-NN How to Buy
SKU: CC-WMX-JM8E-NN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz, 16 GB eMMC, 2 GB LPDDR4, 802.11a/b/g/n/ac, 2x2, Bluetooth® 5 CC-WMX-JM8E-NN How to Buy
SBCs

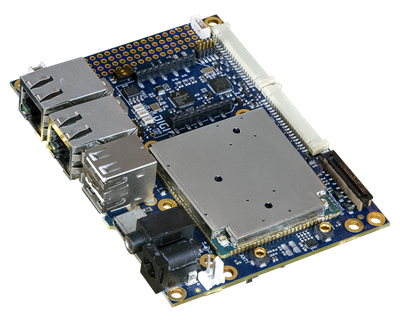

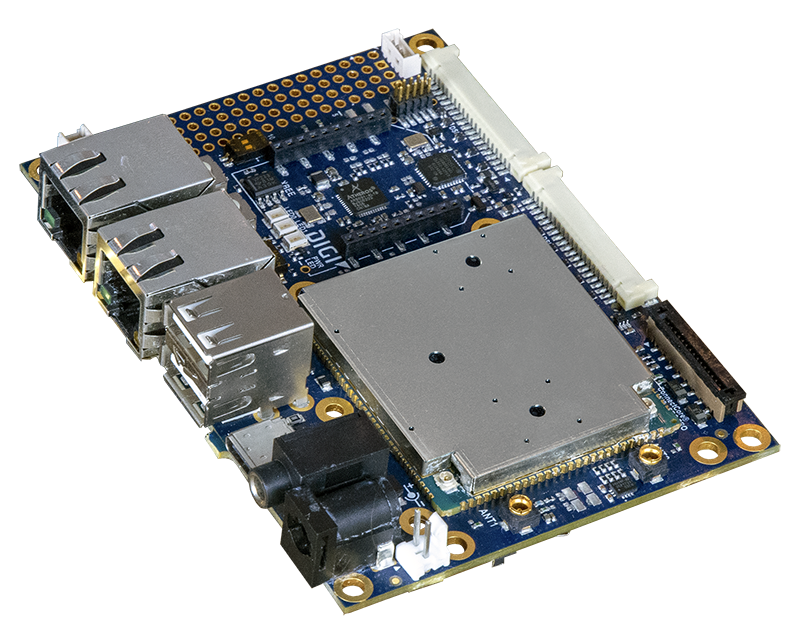

SKU: CC-SBP-WMX-JM8E Digi ConnectCore® 8X SBC Pro CC-SBP-WMX-JM8E How to Buy
SMARC Adapter
Digi SMARC Adapter
SMARC® Adapter SOM and SBC reference designs provide maximum flexibility and scalability for Digi ConnectCore® SOMs
  Get Started
Accessories
SKU: CC-ACC-LCDH-10 LCD Application Kit, including 10 in WXGA (high resolution) LCD panel CC-ACC-LCDH-10 How to Buy
Services and Support
Cloud Services
Digi ConnectCore® Cloud Services enable OEMs in a wide range of industries to create connected devices with remote-dashboard, -service and -application capabilities using Digi ConnectCore system-on-modules (SOMs).
  Get Started
Security Services
Maintaining the security for connected devices after product release is challenging. Digi ConnectCore® Security Services enable customers to keep products secure.
  Get Started
Support Services
Get the help you need to deploy, manage, connect, customize and enhance your Digi solution
  Get Started
Wireless Design Services
Digi wireless design services help companies solve business problems by embedding wireless technologies to create innovative M2M products
  Get Started
SPECIFICATIONS Digi ConnectCore® 8X Digi ConnectCore® 8X Dual
APPLICATION PROCESSOR NXP® i.MX8QuadXPlus
  • 4x Cortex® — A35 cores at 1.2 GHz
  • 1x Cortex — M4F at 266 MHz core for real-time processing
  • 1x Tensilica® Hi-Fi 4 DSP
NXP® i.MX8DualXZ
  • 2x Cortex® — A35 cores at 1.2 GHz


MEMORY Up to 64 GB eMMC, up to 4 GB of LPDDR4
PMIC NXP PF8100
GRAPHICS Multi-stream-capable HD video engine with H.265 (4Kp30), H.264 (1080p60), VP6/VP8 (1080p60), MPEG-2 (1080p60), MPEG4 (1080p), RealVideo (1080p) decode and H.264 (1080p30) encode; 3D video playback in HD in high-performance families; Superior 3D graphics performance with up to four shaders H.264 (1080p60), VP6/VP8 (1080p60), MPEG-2 (1080p60), MPEG4 (1080p), RealVideo (1080p) decode and H.264 (1080p30) encode; 3D video playback in HD in high-performance families; Superior 3D graphics performance with up to four shaders
SECURITY Digi TrustFence®, TRNG, TrustZone, Ciphers, Security Cntrl, Secure RTC, Secure JTAG, eFuses (OTP)
PERIPHERALS/ INTERFACES** 1x SD 3.0 card interface handles SD/SDIO/MMC protocols (1x additional one reserved on the SOM for supporting eMMC),
5x UARTs (4x UARTs from Cortex-A35 core, 1x UART from Cortex-M4);
8x I2C (4xI2C high-speed DMA support 4x I2C low-speed no DMA support),
4x SPI, 1x ESAI, 4x SAI/I2S/SSI/AC97, S/PDIF Tx/Rx, 3x FlexCAN, MLB150 + DTCP, USB 3.0 OTG with PHY, USB 2.0 OTG with PHY,
4x PWM, GPIO, Keypad, PCIe 3.0 (x1 lane)*, 2x MIPI DSI/LVDS, MIPI CSI, 8/10-bit CSI,
24-bit RGB, RTC, Watchdog, Timers, JTAG
1x SD 3.0 card interface handles SD/SDIO/MMC protocols (1x additional one reserved on the SOM for supporting eMMC),
5x UARTs (4x UARTs from Cortex-A35 core, 1x UART from Cortex-M4);
8x I2C (4xI2C high-speed DMA support 4x I2C low-speed no DMA support),
4x SPI, 1x ESAI, 4x SAI/I2S/SSI/AC97, S/PDIF Tx/Rx, 3x FlexCAN, MLB150 + DTCP, USB 2.0 OTG with PHY,
4x PWM, GPIO, Keypad, PCIe 3.0 (x1 lane)*, 2x MIPI DSI/LVDS, MIPI CSI, 8/10-bit CSI,
24-bit RGB, RTC, Watchdog, Timers, JTAG
ETHERNET 2x 10/100/1000M Ethernet + AVB
WI-FI 802.11a/b/g/n/ac: 2.412 - 2.484 GHz, 4.900 - 5.850 GHz
802.11b: 1, 2, 5.5, 11 Mbps (17 dBm typical ±2 dBm)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps (15 dBm typical ±2 dBm)
802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (12 dBm typical ±2 dBm) HT40, MCS 0-7
802.11ac: 15, 30, 45, 60, 90, 120, 135, 150, 180, 200 Mbps (10 dBm typical ±2 dBm) HT40, MCS 0-9
Note: all data rates provided above are for 1 spatial stream. For 2x spatial steams, double the data rate.
Security: WEP, WPA-PSK/WPA2-personal, WPA/WPA2-enterprise, 802.11i, Access Point Mode (up to 10 clients), Wi-Fi Direct
Industry certifications: Wi-Fi Alliance Logo Certification Ready, CCXv4 ASD Ready
BLUETOOTH Bluetooth® 5
ON-MODULE MICROCONTROLLER ASSIST Digi Microcontroller Assist™
  • Independent Cortex-M0+ microcontroller subsystem
  • Supporting ultra-low power modes at <3 µA
OPERATING TEMPERATURE Industrial: −40 °C to 85 °C (−40 °F to 185 °F) (depending on use case and enclosure/system design)
STORAGE TEMPERATURE −50 °C to 125 °C (−58 °F to 257 °F)
RELATIVE HUMIDITY 5% to 90% (non-condensing)
RADIO APPROVALS US, Canada, EU, Japan, Australia/New Zealand
EMISSIONS/ IMMUNITY/ SAFETY FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548,
FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1)
DESIGN VERIFICATION Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78
Vibration/shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT
MECHANICAL DIMENSIONS 118 castellated vias, LGA-474, 1.27 mm pitch, fully shielded for radio emissions and thermal management (heat-spreading) 40 mm x 45 mm x 5.4 mm (1.6 in x 1.8 in x 0.21 in)
PRODUCT WARRANTY 3-year
*PCIe is only supported on wired variants
**Each single PHY can either be a 1 x 4 lane MIPI-DSI or a 1 x 1 channel LVDS interface for a total of 2 display interfaces. In combination, the two PHYs can be configured to be a single 2-channel LVDS interface.
