Digi XBee 3 Zigbee 3 RF Module

Easy-to-add connectivity in a compact, low-power, low-profile footprint

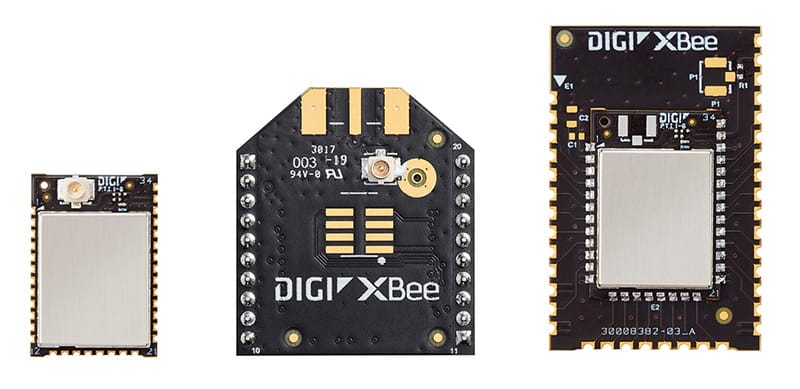

  • At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
  • Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XCTU®
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT

Digi XBee® 3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee 3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

Digi XBee 3 Zigbee 3.0 offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others.

With Digi Remote Manager®, Digi XBee 3 modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence® security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and Digi XCTU® software tools simplify adding functionality, configuration and testing.

From edge computing to future migration, Digi XBee modules offer size, weight, power and performance advantages ideal for scalable device connectivity. A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software, the Digi XBee 3 Series is engineered to accelerate development and deployment.

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
Kit

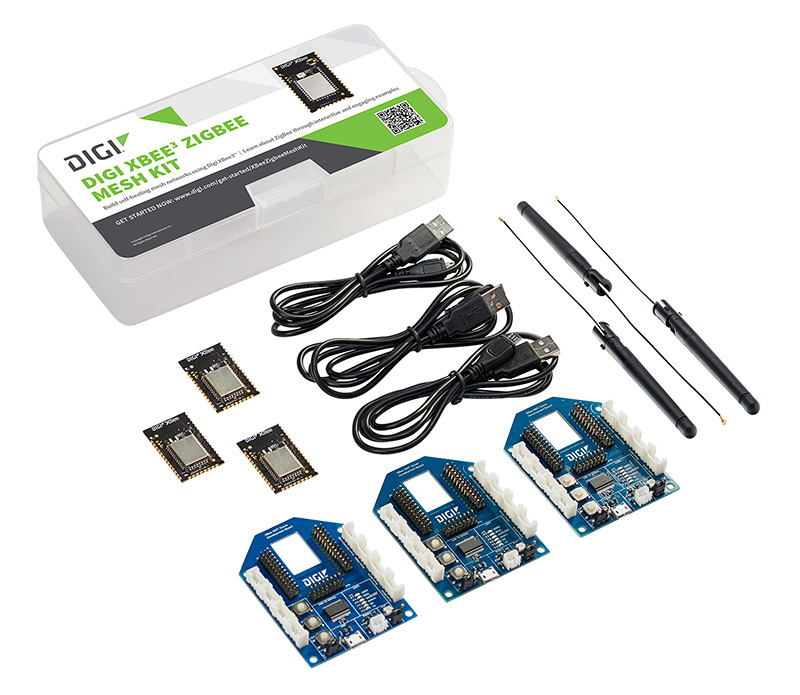

SKU: XK3-Z8S-WZM Digi XBee 3 Zigbee Mesh Kit, worldwide XK3-Z8S-WZM How to Buy
Modules

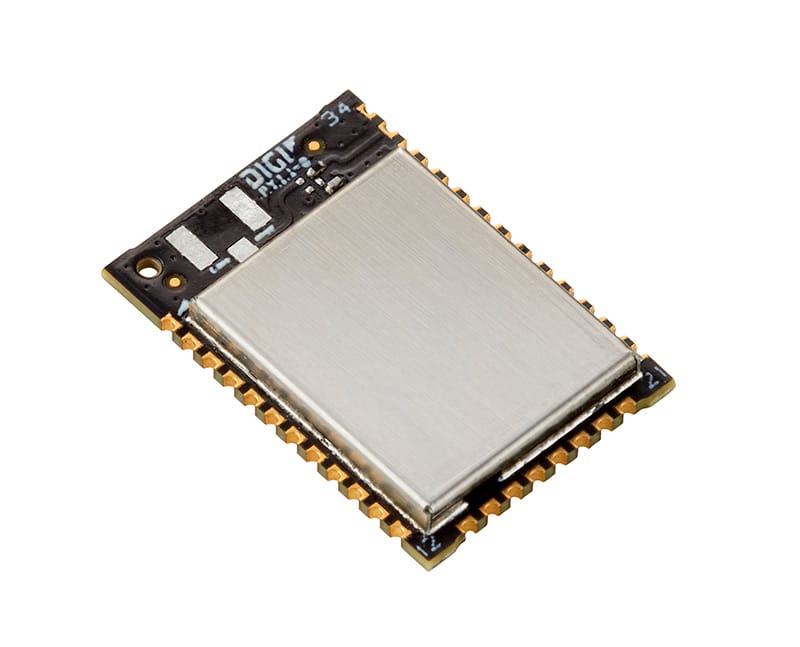

SKU: XB3-24Z8RM-J Digi XBee 3 Zigbee 3.0, 2.4 GHz, Micro, RF Pad Ant, MMT XB3-24Z8RM-J How to Buy
SKU: XB3-24Z8UM-J Digi XBee 3 Zigbee 3.0, 2.4 GHz, Micro, U.FL Ant, MMT XB3-24Z8UM-J How to Buy

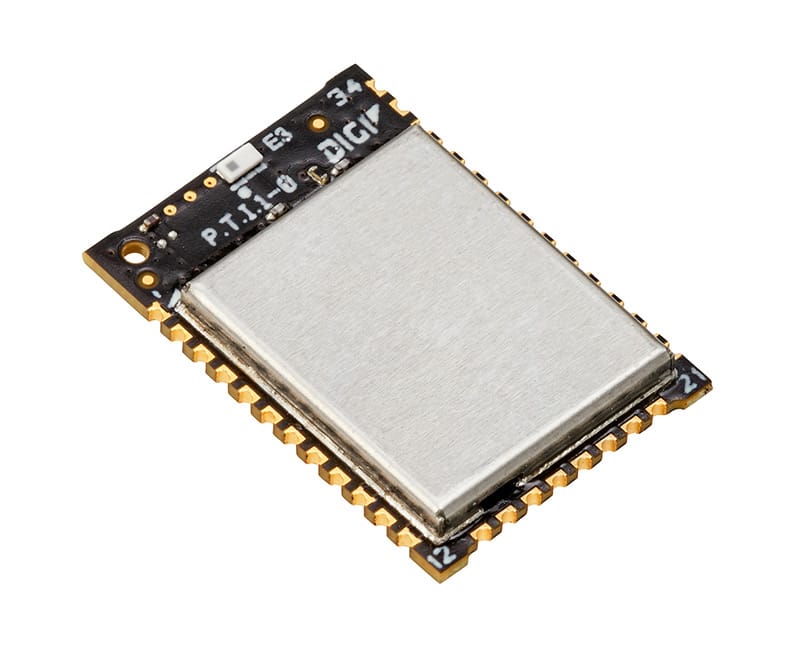

SKU: XB3-24Z8CM-J Digi XBee 3 Zigbee 3.0, 2.4 GHz, Micro, Chip Ant, MMT XB3-24Z8CM-J How to Buy
SKU: XB3-24Z8RM Digi XBee 3 PRO Zigbee 3.0, 2.4 GHz, Micro, RF Pad Ant, MMT XB3-24Z8RM How to Buy
SKU: XB3-24Z8UM Digi XBee 3 PRO Zigbee 3.0, 2.4 GHz, Micro, U.FL Ant, MMT XB3-24Z8UM How to Buy
SKU: XB3-24Z8CM Digi XBee 3 PRO Zigbee 3.0, 2.4 GHz, Micro, Chip Ant, MMT XB3-24Z8CM How to Buy

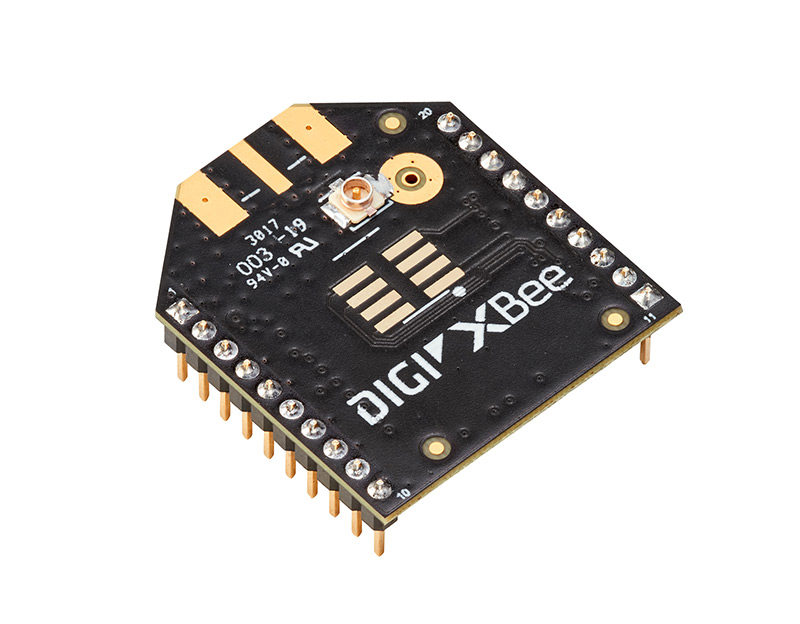

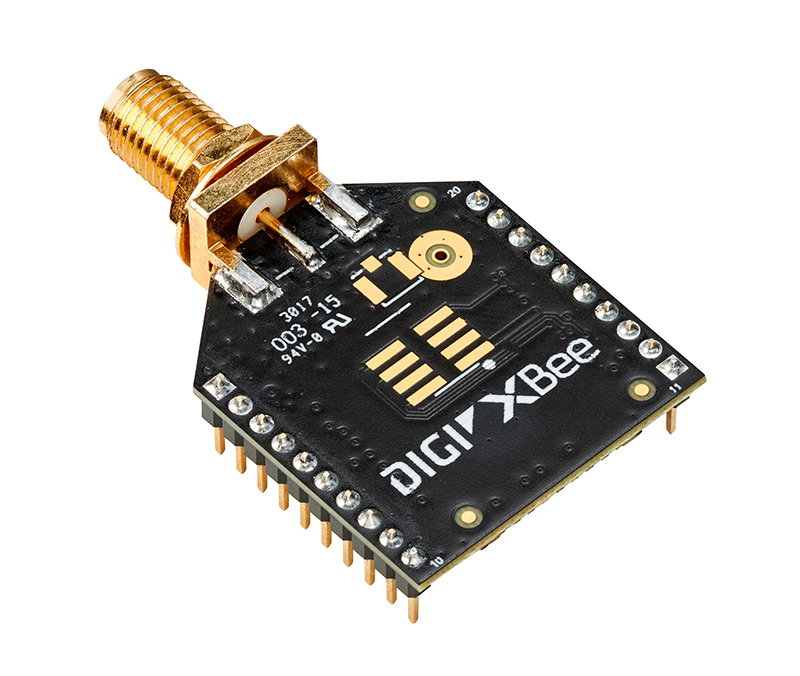

SKU: XB3-24Z8ST-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, RPSMA Ant, TH MT XB3-24Z8ST-J How to Buy
SKU: XB3-24Z8UT-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, U.FL Ant, TH MT XB3-24Z8UT-J How to Buy

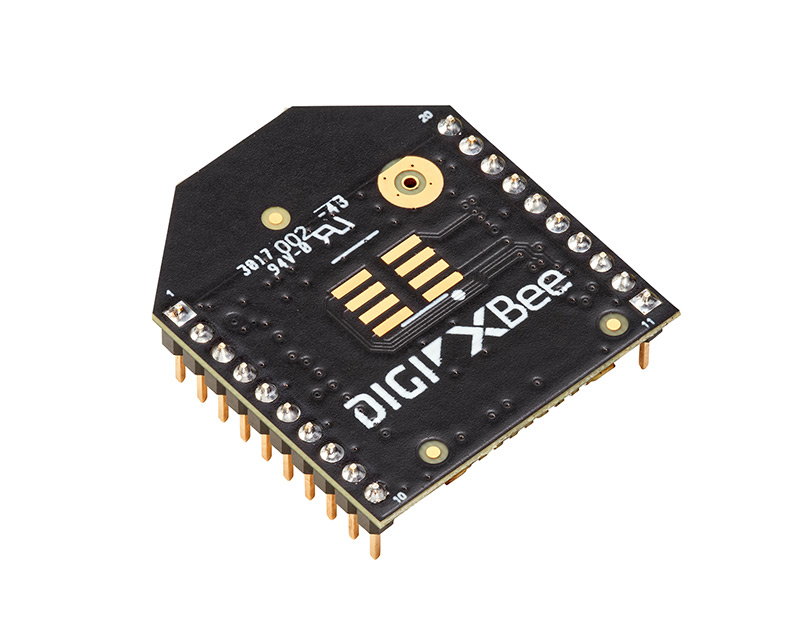

SKU: XB3-24Z8PT-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, PCB Ant, TH MT XB3-24Z8PT-J How to Buy
SKU: XB3-24Z8ST Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, RPSMA Ant, TH MT XB3-24Z8ST How to Buy
SKU: XB3-24Z8UT Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, U.FL Ant, TH MT XB3-24Z8UT How to Buy
SKU: XB3-24Z8PT Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, PCB Ant, TH MT XB3-24Z8PT How to Buy

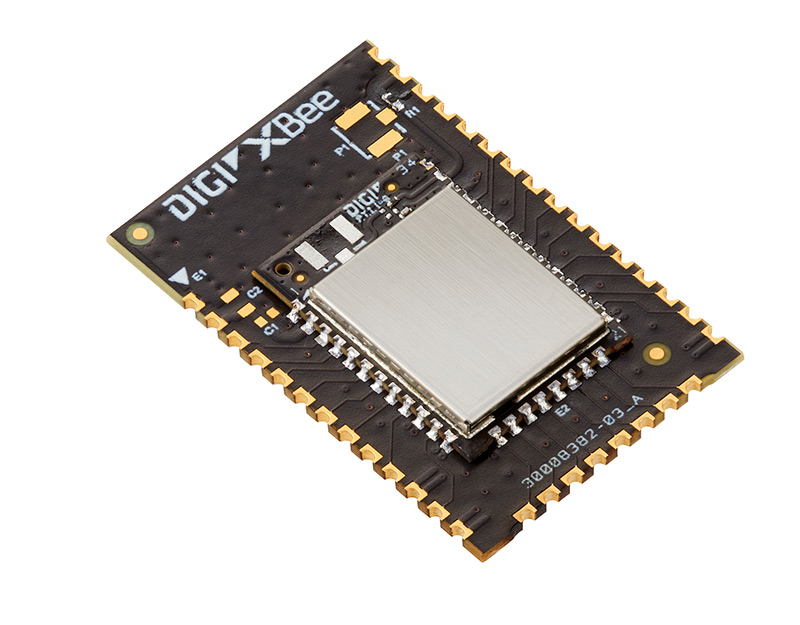

SKU: XB3-24Z8RS-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, RF Pad Ant, SMT XB3-24Z8RS-J How to Buy

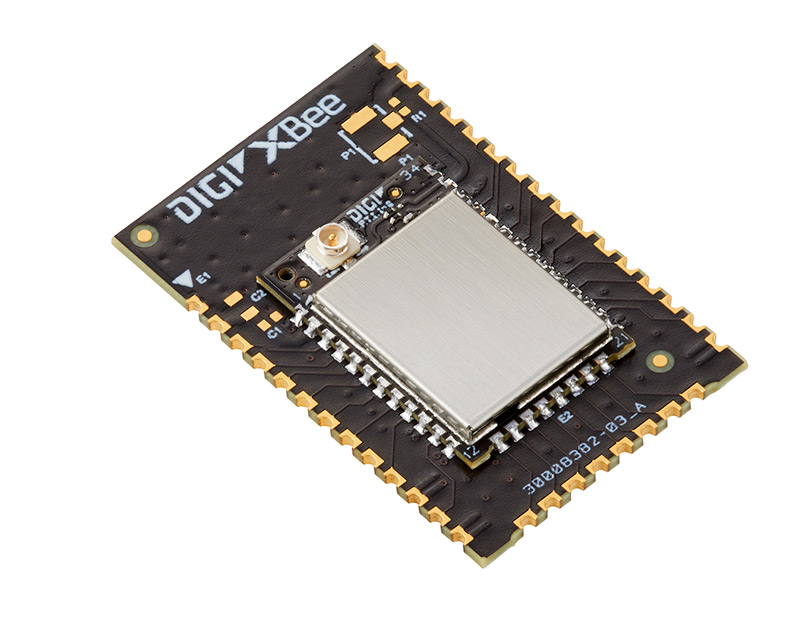

SKU: XB3-24Z8US-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, U.FL Ant, SMT XB3-24Z8US-J How to Buy

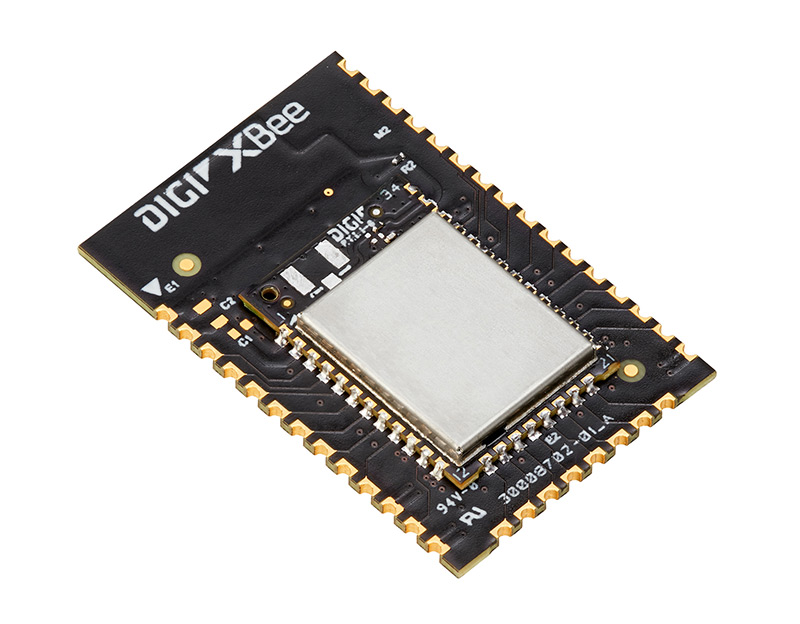

SKU: XB3-24Z8PS-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, PCB Ant, SMT XB3-24Z8PS-J How to Buy
SKU: XB3-24Z8RS Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, RF Pad Ant, SMT XB3-24Z8RS How to Buy
SKU: XB3-24Z8US Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, U.FL Ant, SMT XB3-24Z8US How to Buy
SKU: XB3-24Z8PS Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, PCB Ant, SMT XB3-24Z8PS How to Buy
SKU: A24-HABUF-P5I Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, U.FL female, articulating. A24-HABUF-P5I How to Buy
SKU: A24-HASM-450 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-450 How to Buy
SKU: A24-HASM-525 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-525 How to Buy
SKU: DC-ANT-24DT Antenna - Wi-Fi, table-top mount, 2450 Mhz, 0.5 m cable DC-ANT-24DT How to Buy
Development Boards
SKU: 76000956 Grove Connector Development Board - XBee, through-hole sockets 76000956 How to Buy
SKU: XBIB-C-MMT Development board - XBee 3, USB-C, micro XBIB-C-MMT How to Buy
SKU: XBIB-C-SMT Development board - XBee 3, USB-C, surface-mount socket XBIB-C-SMT How to Buy
SKU: XBIB-CU-TH Development board - XBee 3, USB-C, through-hole sockets XBIB-CU-TH How to Buy
Digi XBee Multi Programmer
SKU: XBEE-MP-MCRO Digi XBee Multi Programmer, micro form factor (MMT) XBEE-MP-MCRO How to Buy
SKU: XBEE-MP-SMT Digi XBee Multi Programmer, surface mount (SMT) XBEE-MP-SMT How to Buy
SKU: XBEE-MP-TH Digi XBee Multi Programmer, through-hole (TH) XBEE-MP-TH How to Buy
SKU: XBEE-MP-MCRO-PCB Digi XBee Multi Programmer, micro form factor (MMT) printed circuit board XBEE-MP-MCRO-PCB How to Buy
SKU: XBEE-MP-SMT-PCB Digi XBee Multi Programmer, surface mount (SMT) printed circuit board XBEE-MP-SMT-PCB How to Buy
SKU: XBEE-MP-TH-PCB Digi XBee Multi Programmer, through-hole (TH) printed circuit board XBEE-MP-TH-PCB How to Buy
Digi XBee 3 USB Adapters

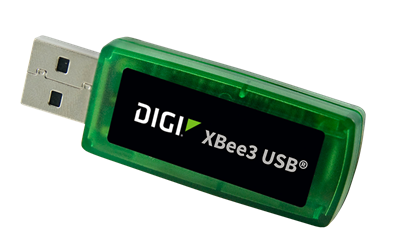

SKU: XU3-A11 Digi XBee 3 USB Adapter - US, Canada and EMEA XU3-A11 How to Buy
Specifications Digi XBee® 3 Zigbee 3.0 Digi XBee® 3 PRO Zigbee 3.0
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC
DATA RATE RF 250 Kbps, serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 60 m (200 ft) Up to 90 m (300 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 1200 m (4000 ft) Up to 3200 m (2 miles)
TRANSMIT POWER +8 dBm +19 dBm
RECEIVER SENSITIVITY (1% PER) -103 dBm normal mode
BLUETOOTH® PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC
BLE VERSION Supports BLE 4.2 and capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0, but not yet enabled except payload extensions (future release).
MAXIMUM DATA RANGE 1 Mbps
INDOOR/URBAN RANGE* Up to 15 m (49 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 300 m (984 ft)
TRANSMIT POWER +8 dBm
RECEIVER SENSITIVITY (1% PER) -95 dBm normal mode
FEATURES
SERIAL DATA INTERFACE UART, SPI, I2C
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Micro, through-hole, surface mount
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 15
ANTENNA OPTIONS Through-hole: PCB Antenna, U.FL Connector, RPSMA Connector
SMT: RF Pad, PCB Antenna, or U.FL Connector
Micro: U.FL Antenna, RF Pad, Chip Antenna
OPERATING TEMPERATURE -40 ºC to 85 ºC (-40 ºF to 185 ºF)
DIMENSIONS (L X W X H) Through-Hole: 2.438 x 2.761 cm (0.960 x 1.087 in)
SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in)
Micro: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in)
PROGRAMMABILITY
MEMORY 1 MB / 128 KB RAM (32 KB are available for MicroPython)
NETWORKING AND SECURITY
PROTOCOL Zigbee 3.0
ENCRYPTION 128/256 bit AES
RELIABLE PACKET DELIVERY Retries/acknowledgements
IDS PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS 16 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.1 to 3.6 V
TRANSMIT CURRENT 40 mA at 8 dBm 140 mA at 19 dBm
RECEIVE CURRENT 17 mA
POWER-DOWN CURRENT 2 micro Amp at 25 ºC (77 ºF)
REGULATORY APPROVALS**
FCC, IC (NORTH AMERICA) Yes Yes
ETSI (EUROPE) Yes No
RCM (Australia) Yes Yes
Anatel (Brazil) Yes Yes
Teleck MIC (Japan) Yes No
KCC (South Korea) Yes No

Line Art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
**Visit https://www.digi.com/resources/certifications for latest certifications
