WIRELESS INTERFACES |
WWAN** |
5G NR SUB-6 GHZ WITH 4G LTE-ADVANCED PRO AND 3G FALLBACK (TX64-A161) |
5G NR Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77, n78, n79 C-band
4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48 CBRS, B66, B71
3G: B1, B2, B3, B4, B5, B6, B8, B9, B19 |
LTE-ADVANCED PRO CAT 18 (TX64-A141) |
LTE FDD: B1, B3, B7, B8, B12, B13, B14 FirstNet®, B20, B25, B26, B28, B29; B30, B32, B48 CBRS, B66, B71
LTE TDD: B38, B39, B40, B41, B42, B43, B46
3G: B1, B2, B4, B5, B8 |
4G LTE-ADVANCED CAT 11 (TX64-A121) |
LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B26, B28, B29, B30, B66
LTE TDD: B38, B40, B41
3G: B1, B2, B4, B5, B8 |
CONNECTOR |
(2) or (4) 50 Ω SMA per module (center pin: female) |
SIM SLOTS |
(2) Mini-SIM (2FF) per module (4 total) |
SIM SECURITY |
SIM slot cover plate included |
WI-FI |
TECHNOLOGY |
Private backhaul: Wi-Fi 6 (802.11ax), 5 GHz, 4 x 4 MIMO, up to 128 clients
Public Wi-Fi: Wi-Fi 6 (802.11ax), 2.4 / 5 GHz, 2 x 2 MIMO, up to 128 clients |
SECURITY |
WPA, WPA2 and WPA3 Personal and Enterprise, Open and Open Enhanced security standards |
HOTSPOT |
Captive portal with customizable splash page, terms and conditions, shared password, user-specific password, RADIUS authentication |
THIRD-PARTY SERVICES |
Content filtering, embedded advertising |
MODES |
Up to 8 access points and 1 client per Wi-Fi module (16 + 2 total) |
CONNECTORS |
Private backhaul: (4) 50 Ω RP-SMA (center pin: male)
Public Wi-Fi: (2) 50 Ω RP-SMA (center pin: male) |
GNSS |
TECHNOLOGY |
GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support |
SENSITIVITY |
Tracking and navigation: −160 dBm |
PROTOCOL |
NMEA 0183 4.0, TAIP |
CONNECTOR |
(1) 50 Ω SMA (center pin: female); +3.3 VDC active antenna drive |
WIRED INTERFACES |
ETHERNET |
PORTS / CONNECTOR |
(4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN |
SERIAL |
PORTS / CONNECTOR |
(1) RS-232; DB-9 male (DTE) |
USB |
PORTS / CONNECTOR |
(3) USB 3.0 Type A |
SOFTWARE AND MANAGEMENT* |
REMOTE MANAGEMENT |
Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed), SMS |
LOCAL MANAGEMENT |
Web UI (HTTPS); CLI (SSH, serial) |
MANAGEMENT TOOLS |
SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog |
MEMORY |
RAM / FLASH |
2 GB / 8 GB |
PHYSICAL |
DIMENSIONS (L X W X H) |
260 mm x 196 mm x 67 mm (10.2 in x 7.8 in x 2.6 in) |
WEIGHT |
3.3 kg (7.25 lbs) |

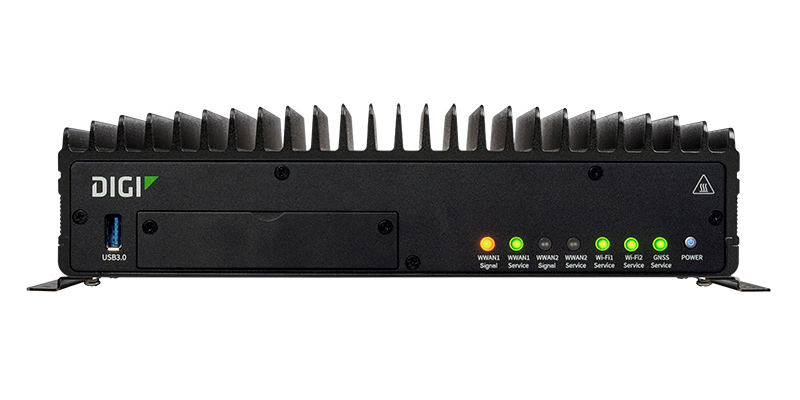

STATUS LEDS |
Power, WWAN (signal, service), Wi-Fi service (per module), GNSS service, LAN (link, activty) |
ENCLOSURE / RATING |
Aluminum alloy / IP40 |
POWER |
POWER INPUT |
9 – 36 VDC, reverse polarity protection, 60 W minimum power source required, ignition sense |
POWER CONSUMPTION |
28 W typical (idle), 41 W (peak RF Tx/Rx) |
ENVIRONMENTAL |
OPERATING TEMPERATURE |
−30 °C to 70 °C (−22 °F to 158 °F) |
STORAGE TEMPERATURE |
−40 °C to 85 °C (−40 °F to 185 °F) |
RELATIVE HUMIDITY |
5% to 95% (non-condensing) at 25 °C (77 °F) |
NEMA |
SPECIFICATION |
Meets or exceeds the NEMA TS2 environmental requirements (−34 °C to 74 °C temperature range; 18% to 95% humidity over the temperature range; vibration: 0.5 g at 5 Hz to 30 Hz; shock: 10 g) |
APPROVALS** |
CELLULAR |
PTCRB, AT&T, FirstNet Capable™, FirstNet Trusted™, T-Mobile, Verizon, Verizon Frontline |
SAFETY |
UL 60950, EN 62368, CSA 22.2 No. 60950 |
VEHICLE |
E-Mark (UNECE Reg. 10), SAE J1113-2, SAE J1455, ISO 7637-2/3, ISO 10605, ISO 16750-2 load dump |
EMISSIONS / IMMUNITY |
CE, FCC Part 15 Class B with IC, EN 303413, EN 301489-1/-19, CISPR 25, Level 3, ISO 11452-2, ISO 11452-4 |
ENVIRONMENTAL |
MIL-STD 810G (temperature, humidity, vibration, shock, dust) |
WARRANTY*** |
PRODUCT WARRANTY |
3-year |
