Digi ConnectCore MP1

New

Intelligent, wireless and secure embedded system-on-module based on the STM32MP1 MPU family, with turnkey Linux support in the robust Digi SMTplus standard form factor


  • Industrial-grade, scalable, embedded SOM platform
  • STMicroelectronics STM32MP13 and STM32MP15
  • Pre-certified dual-band Wi-Fi 5 (802.11ac) and Bluetooth® 5.2
  • Power management with hardware and software support
  • Digi SMTplus® form factor (29 x 29 mm) for ultimate reliability
  • High level of pin-compatibility with Digi ConnectCore 6UL SOMs
  • Built-in Digi TrustFence® device security, identity and privacy
  • Seamless cellular modem and Digi XBee® integration
  • Digi ConnectCore Cloud Services remote monitoring, device management and IoT application enablement
  • Digi Embedded Yocto Linux support
  • Turnkey development services available from Digi WDS

Digi ConnectCore® MP1 modules deliver a highly integrated and secure connected system-on-module solution. The Digi SMTplus® surface-mount form factor provides simplified design integration, efficiency and reliability.

AwardBuilt on the STM32MP13 and STM32MP15 microprocessors, Digi ConnectCore MP1 modules are the intelligent communication engine for today’s secure connected devices with pre-certified dual-band Wi-Fi 5 (802.11a/b/g/n/ac) with Bluetooth® 5.2 and Gigabit Ethernet connectivity.

The scalable Digi ConnectCore MP1 module family provides ideal options for headless gateway products with rich connectivity requirements and display devices with advanced HMIs powered by a 3D graphics processing unit (GPU) and camera support. Digi ConnectCore MP1 system-on-modules are designed for industrial and medical use with high levels of security, reliability, performance and 10+ year longevity.

Embedded device security is a critical design aspect for the growing number of connected IoT applications. Digi ConnectCore SOM solutions provide built-in security with Digi TrustFence®, a fully integrated device-security framework simplifying the process of securing connected devices.

Digi ConnectCore Cloud Services, Digi ConnectCore Security Services and Expert Support provide additional capabilities for development, deployment and maintenance.

Digi Embedded Yocto®, Digi’s feature-rich Linux distribution with many extensions for embedded product design provides a fully tested, validated and maintained turnkey Linux software platform.

With over twenty years of embedded SOM experience enabling millions of globally connected products, Digi is a trusted embedded and IoT solutions provider, simplifying the way customers design, build and deploy connected applications. Digi Wireless Design Services (WDS) offer additional cellular integration support, certification assistance, and custom design and build services to get your products to market smarter and faster.

Yocto Projectcrank-logo-sm.jpgdigi-trustfence-shield-sm.jpgWi-Fi AllianceBluetoothPowered by AWS ST Authorized Partner

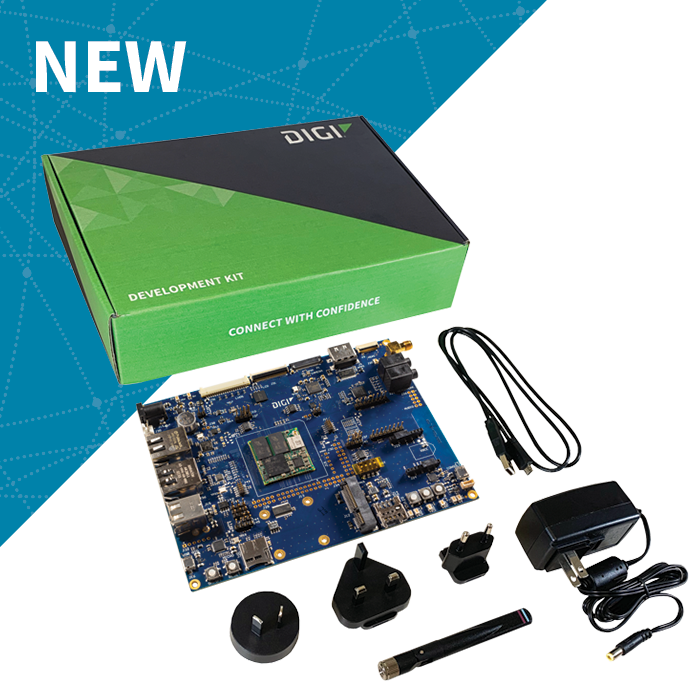

Digi ConnectCore MP157 Development Kit

Digi ConnectCore MP157 dual 512 MB/512 MB wireless SOM kit is a complete development platform for intelligent, connected and secure embedded products with a broad suite of tools and turnkey Linux software support.

Development Kits Now Available

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.

Notify me of Digi ConnectCore MP1 product updates

Compare SOMs

Compare SOMs
Digi ConnectCore MP1 Development Kits

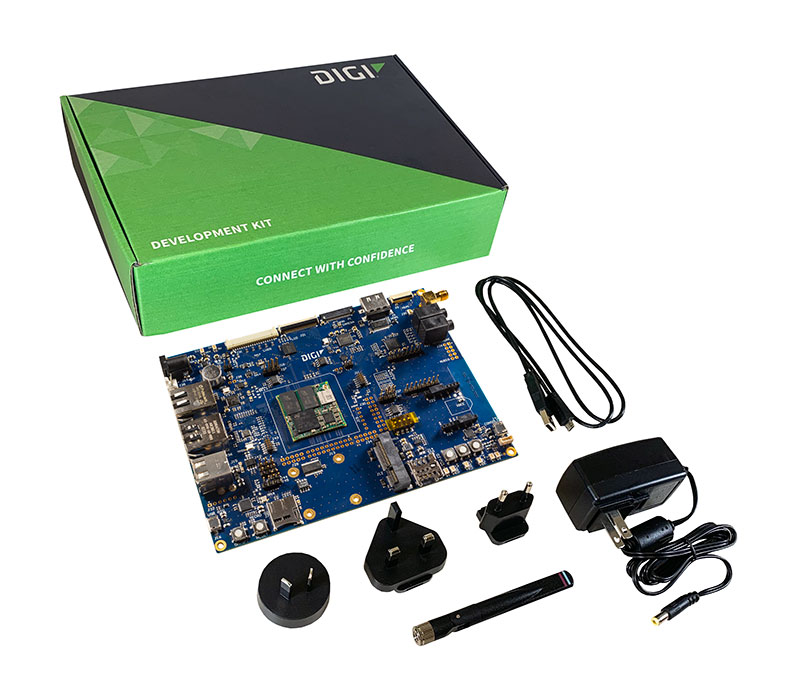

SKU: CC-WMP157-KIT Digi ConnectCore MP157 Development Kit
  • Digi ConnectCore® MP157 development board with SOM
  • Console port cable
  • Dual-band wireless antenna
  • Power supply and accessories
  • Reference designs and online documentation
CC-WMP157-KIT How to Buy

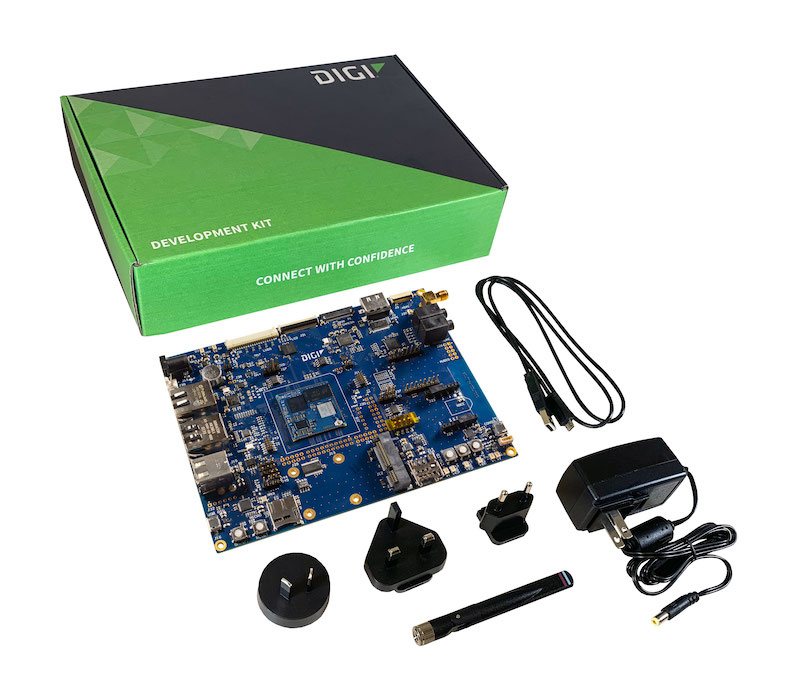

SKU: CC-WMP133-KIT Digi ConnectCore MP133 Development Kit
  • Digi ConnectCore® MP133 development board with SOM
  • Console port cable
  • Dual-band wireless antenna
  • Power supply and accessories
  • Reference designs and online documentation
CC-WMP133-KIT How to Buy

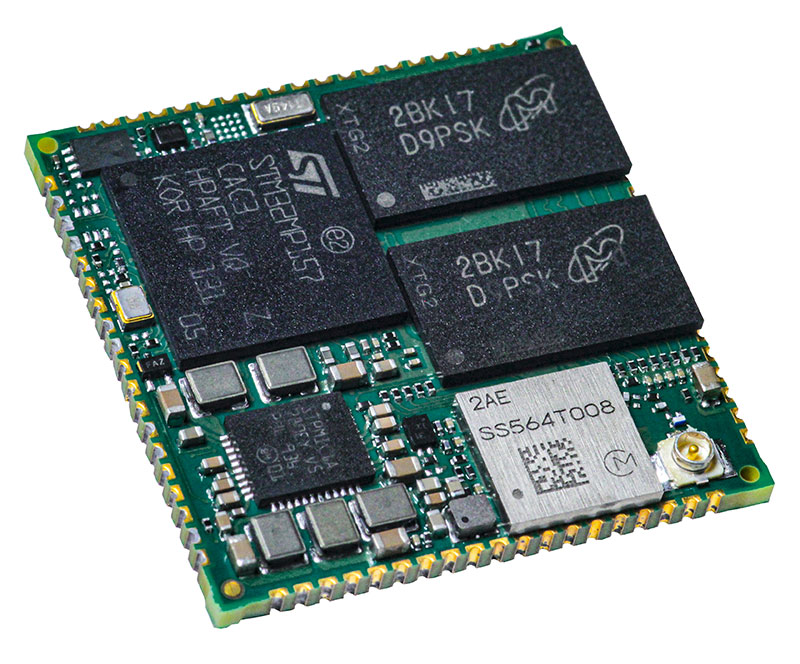

Digi ConnectCore MP157 — Secure Wireless Modules
SKU: CC-WST-DW69-NM Digi ConnectCore MP157 Secure Wireless System-On-Module
  • STMicroelectronics STM32MP157C, Arm® dual Cortex®-A7 at 650 MHz
  • Cortex®-M4 at 209 MHz with FPU/MPU
  • 3D GPU
  • Gigabit Ethernet
  • Wi-Fi 5 802.11a/b/g/n/ac
  • Bluetooth® 5.2
CC-WST-DW69-NM How to Buy
SKU: CC-WST-DW7A-NM New
Digi ConnectCore MP157 Secure Wireless System-On-Module
  • STMicroelectronics STM32MP157C, Arm® dual Cortex®-A7 at 650 MHz
  • Cortex®-M4 at 209 MHz with FPU/MPU
  • 3D GPU
  • 1 GB SLC NAND flash and 1 GB DDR3L
  • Gigabit Ethernet
  • Wi-Fi 5 802.11a/b/g/n/ac
  • Bluetooth® 5.2
CC-WST-DW7A-NM How to Buy
Digi ConnectCore MP157 — Secure Ethernet Modules
SKU: CC-ST-DW69-ZM Digi ConnectCore MP157 Secure Ethernet System-On-Module
  • STMicroelectronics STM32MP157C, Arm® dual Cortex®-A7 at 650 MHz
  • Cortex®-M4 at 209 MHz with FPU/MPU
  • 3D GPU
  • Gigabit Ethernet
CC-ST-DW69-ZM How to Buy
SKU: CC-ST-DW7A-ZM New
Digi ConnectCore MP157 Secure Ethernet System-On-Module
  • STMicroelectronics STM32MP157C, Arm® dual Cortex®-A7 at 650 MHz
  • Cortex®-M4 at 209 MHz with FPU/MPU
  • 3D GPU
  • 1 GB SLC NAND flash and 1 GB DDR3L
  • Gigabit Ethernet
CC-ST-DW7A-ZM How to Buy

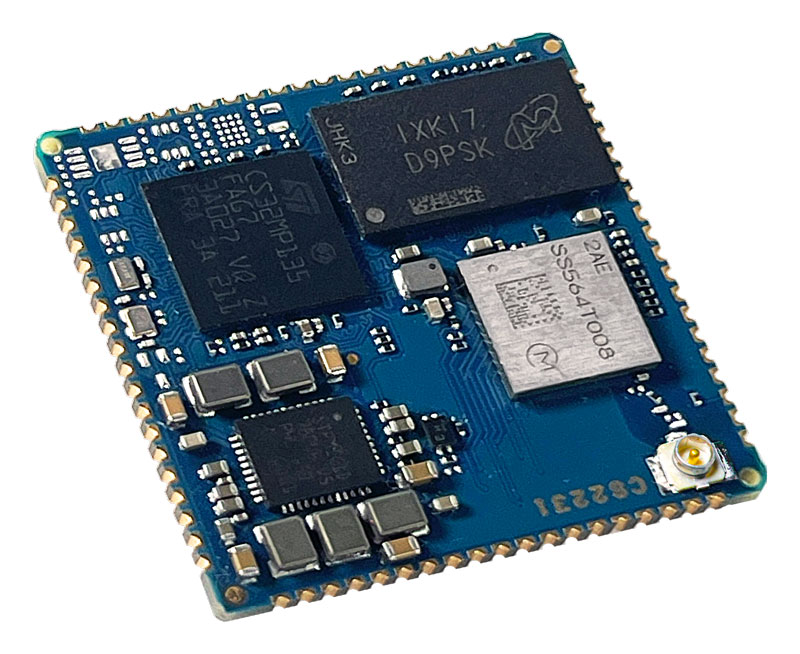

Digi ConnectCore MP133 — Secure Wireless Module
SKU: CC-WST-DX58-NK Digi ConnectCore MP133 Secure Wireless System-On-Module
  • STMicroelectronics STM32MP133C, Arm® Cortex®-A7 at 650 MHz
  • 2x Gigabit Ethernet
  • Wi-Fi 5 802.11a/b/g/n/ac
  • Bluetooth® 5.2
CC-WST-DX58-NK How to Buy
Digi ConnectCore MP133 — Secure Ethernet Module
SKU: CC-ST-DX58-ZK Digi ConnectCore MP133 Secure Ethernet System-On-Module
  • STMicroelectronics STM32MP133C, Arm® Cortex®-A7 at 650 MHz
  • 2x Gigabit Ethernet
CC-ST-DX58-ZK How to Buy
Accessories
SKU: CC-ACC-LCDH-10 LCD Application Kit, including 10 in WXGA (high resolution) LCD panel CC-ACC-LCDH-10 How to Buy
Services and Support
Cloud Services
Digi ConnectCore® Cloud Services enable OEMs in a wide range of industries to create connected devices with remote-dashboard, -service and -application capabilities using Digi ConnectCore system-on-modules (SOMs).
  Get Started
Security Services
Maintaining the security for connected devices after product release is challenging. Digi ConnectCore® Security Services enable customers to keep products secure.
  Get Started
Support Services
Get the help you need to deploy, manage, connect, customize and enhance your Digi solution
  Get Started
Wireless Design Services
Digi wireless design services help companies solve business problems by embedding wireless technologies to create innovative M2M products
  Get Started
SPECIFICATIONS Digi ConnectCore® MP157 SOM Digi ConnectCore® MP133 SOM
APPLICATION PROCESSOR STMicroelectronics STM32MP157C, Arm® dual Cortex®-A7 at 650 MHz
Cortex®-M4 at 209 MHz with FPU/MPU, 3D GPU, secure boot, crypto engine
STMicroelectronics STM32MP133C, Arm® Cortex®-A7 at 650 MHz, secure boot, crypto engine
MEMORY Up to 1 GB SLC NAND flash, up to 1 GB DDR3L 256 MB SLC NAND flash, 256 MB DDR3L
PMIC STMicroelectronics Power Management IC — STPMIC1
VIDEO / GRAPHICS 3D GPU (Vivante® — OpenGL® ES 2.0) running at up to 533 MHz, with performance up to 26 Mtriangle/s, 133 Mpixel/s
Parallel LCD-TFT controller, up to 24-bit digital RGB888, up to WXGA (1366 × 768) at 60 fps or up to Full HD (1920 × 1080) at 30 fps
MIPI® DSI 2 data lanes up to 1 Gbps each, up to WXGA at 60 fps (63 M pixels/s) or up to Full HD (1920 × 1080) at 30 fps

CAMERA 8- to 14-bit camera
SECURITY Secure boot, TrustZone® peripherals, 3x tamper pins including 1x active tamper, 2x TRNG (6 triple oscillators), 2x CRC calculation units, 2x cryptographic processors, hardware acceleration with DMA support
encryption/decryption: DES/TDES: ECB (electronic codebook) and CBC (cipher block chaining) 64-, 128- or 192-bit key; AES: ECB, CBC, GCM, CCM, and CTR (counter mode) chaining algorithms, 128-, 192- or 256-bit key
Universal HASH: SHA-1, SHA-224 and SHA-256 (secure HASH algorithms), MD5, HMAC; Cortex®-M4 resources isolation
Digi TrustFence® embedded security framework
Secure boot, TrustZone® peripherals, 12x tamper pins including 5x active tamper, 1x TRNG (6 triple oscillators), 1x CRC calculation units, 1x cryptographic processors, hardware acceleration with DMA support
encryption/decryption: DES/TDES: ECB (electronic codebook) and CBC (cipher block chaining) 64-, 128- or 192-bit key; AES: ECB, CBC, GCM, CCM, and CTR (counter mode) chaining algorithms, 128-, 192- or 256-bit key
Universal HASH: SHA-1, SHA-224 and SHA-256, SHA-384, SHA-512, SHA-3, HMAC;
Digi TrustFence® embedded security framework
PERIPHERALS / INTERFACES 6x I2C, 4x UART + 4x USART, 6x SPI (3 with full duplex I2S)
4x SAI (stereo audio: I2S, PDM, SPDIF Tx), SPDIF Rx (4 inputs)
HDMI-CEC
3x SDMMC up to 8-bit (SD / eMMC™ / SDIO)
2x CAN FD (including 1 TTCAN)
2x USB 2.0 high-speed host + 1x USB 2.0 full-speed OTG
Up to 176 I/O ports with interrupt capability
2x ADCs (up to 16-bit)
1x temperature sensor
2x 12-bit D/A converters (1 MHz)
1x Digital Filter for Sigma Delta Modulator (DFSDM) with 8 channels/6 filters, internal or external ADC/DAC reference VREF+
2x 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
2x 16-bit advanced motor control timers
10x 16-bit general-purpose timers (including 2 basic timers without PWM)
5x 16-bit low-power timers
Secure RTC
2x 4 Cortex®-A7 system timers (secure, nonsecure, virtual, hypervisor)
1x SysTick M4 timer
3x watchdogs (2x independent and window)
5x I2C, 4x UART, 5x SPI (4 with full duplex I2S)
2x SAI (stereo audio: I2S, PDM, SPDIF Tx), SPDIF Rx (4 inputs)
2x SDMMC up to 8-bit (SD / eMMC™ / SDIO)
2x CAN FD (including 1 TTCAN)
2x USB 2.0 high-speed host + 1x USB 2.0 full-speed OTG
Up to 135 I/O ports with interrupt capability
2x ADCs (up to 12-bit)
1x temperature sensor
1x Digital Filter for Sigma Delta Modulator (DFSDM) with 4 channels/2 filters, internal or external ADC/DAC reference VREF+
2x 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
2x 16-bit advanced motor control timers
10x 16-bit general-purpose timers (including 2 basic timers without PWM)
5x 16-bit low-power timers
Secure RTC
4 Cortex®-A7 system timers (secure, nonsecure, virtual, hypervisor)
2x independent watchdogs
ETHERNET 10/100 M or Gigabit Ethernet
GMAC IEEE 1588v2, MII/RMII/GMII/RGMII
2x 10/100 M or Gigabit Ethernet
GMAC IEEE 1588v2, MII/RMII/RGMII
WIRELESS Wi-Fi 5 dual-band 802.11a/b/g/n/ac 1x1 radio (up to 433.3 Mbps) with strong WPA3-Enterprise authentication/encryption, −40 °C to 85 °C (−40 °F to 185 °F) full temperature range; Bluetooth® 5.2 (Basic Rate, Enhanced Data Rate and Bluetooth Low Energy)
OPERATING TEMPERATURE Industrial: −40 °C to 85 °C (−40 °F to 185 °F); depending on use case and enclosure/system design
STORAGE TEMPERATURE −50 °C to 125 °C (−58 °F to 257 °F)
RELATIVE HUMIDITY 5% to 90% (non-condensing)
RADIO APPROVALS* US, Canada, EU, Japan, Australia/New Zealand, Brazil, Mexico
EMISSIONS/ IMMUNITY/ SAFETY* FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548
FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024
EN 301 489-3, Safety (IEC 62368-1); visit product certifications for latest updates
DESIGN VERIFICATION* Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; vibration/shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT
MOUNTING / PIN COUNT Common Digi SMTplus® surface mount footprint using 76-pad edge castellated pads (1.27 mm pitch) or 245-pad LGA (1.27 mm pitch) option
MECHANICAL DIMENSIONS 29 mm x 29 mm x 3 mm (1.14 in x 1.14 in x 0.12 in)
PRODUCT WARRANTY 3-year
*Visit product certifications for latest updates
