Digi CORE® plug-in LTE modem

Modular LTE connectivity with Carrier Smart Select and dual SIM support across major carriers for optimal mobile network access


  • Certified with major cellular carriers
  • Scalable throughput with multiple module types:

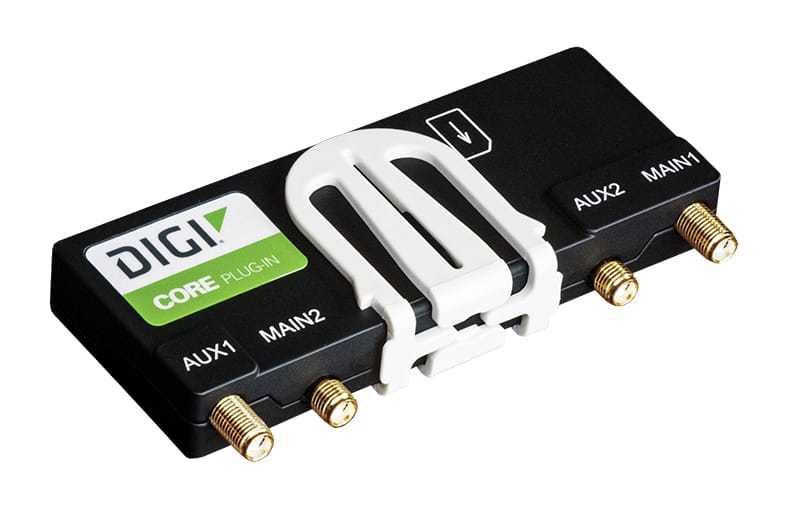

    • LTE-Advanced Cat 7 and LTE-Advanced Pro Cat 18
    • LTE Cat 4 with 3G / 2G fallback
    • LTE 450 MHz with public LTE fallback
    • LTE Cat M1 / NB1 with 2G fallback (EGPRS)
  • FirstNet Trusted™ devices for critical communication

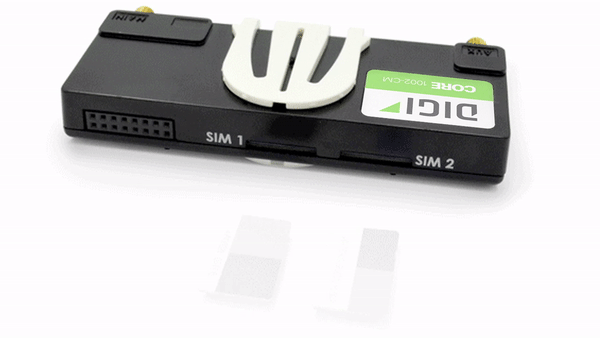

  • Dual SIM slots with automatic or manual swapping
  • Carrier Smart Select™ for optimal connectivity
  • Readily upgrade to meet changing cellular standards
  • Tamper-proof optional locking mechanism

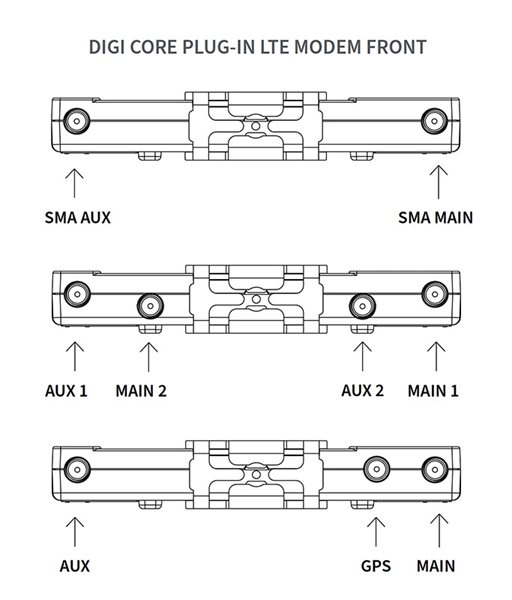

  • External SMA connectors for custom antenna runs
  • Digi WAN Bonding for WAN aggregation and immediate failover

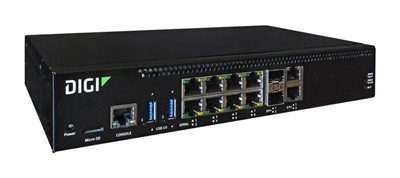

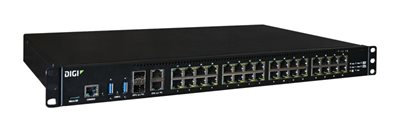

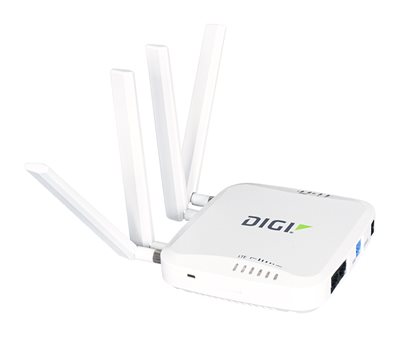

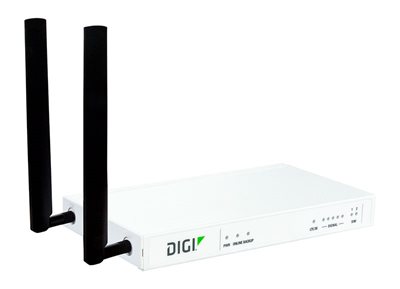

Stay connected with Digi CORE® plug-in LTE modems for LTE, LTE-Advanced and LTE-Advanced Pro connectivity across major cellular networks. The modular design integrates with a range of Digi high-performance routers and infrastructure devices, including Digi EX15, Digi IX20, Digi Connect EZ® 2/4, Digi Connect EZ® 8, Digi Connect EZ® 16/32, Digi Connect IT® 4, Digi Connect IT® 16/48 and Digi AnywhereUSB® Plus.

With Digi CORE plug-in LTE modems, enabled Digi devices can connect to mobile networks using the LTE standard that best suits each use case. Larger locations or data-intensive applications can utilize the LTE-Advanced Cat 7 and LTE-Advanced Pro Cat 18 versions of the Digi CORE plug-in modem to take advantage of faster speeds and carrier aggregation.

FirstNet Trusted™ devices provide additional support for critical priority responder communication. Applications with less intensive needs can opt for the cost-saving deployment of a standard LTE Cat 4 connection. Select the router and modem that best fit current and future connectivity needs with the ability to upgrade devices rather than replacing them.

Digi Remote Manager® is a secure cloud-based device management solution that provides remote monitoring and control of Digi enterprise routers and gateways after deployment. It enables easy setup, configuration and support for installations of Digi devices. Digi WAN Bonding provides additional reliability and performance with 5G/LTE WAN aggregation and immediate failover

Upgrade with swappable plug-In LTE modems and dual SIM support

A suite of Digi CORE plug-in LTE modems allows customers to select the cellular connection that best meets their speed, budget, fallback-network and geographic requirements. As new LTE technologies become available Digi will launch additional versions of Digi CORE plug-in LTE modems, which may be available for use in Digi EX15, Digi IX20, Digi Connect EZ 2/4, Digi Connect EZ 8, Digi Connect EZ 16/32, Digi Connect IT 4, Digi Connect IT 16/48, Digi AnywhereUSB Plus and future products. The modular nature of Digi CORE plug-in modems helps mitigate technological obsolescence by allowing customers to upgrade to newer LTE standards without replacing their Digi router.

Accelerate your LTE connection without replacing your router

Accelerate Your LTE Connection without Replacing Your RouterDigi CORE plug-in LTE modems are a best-in-class solution that can future-proof network infrastructure thanks to the modular nature, combined with the stateful firewall and VPN capabilities of Digi enterprise routers and infrastructure devices. Ensure maximum uptime and performance with the flexibility to deploy LTE connections where you need quick, easy, reliable internet access.

Featured Models
SKU: 1002-CMM1-GLB Digi CORE plug-In LTE modem — North America LTE / M1 / NB1, 2G fallback
1002-CMM1-GLB How to Buy
SKU: 1002-CMF4-OUS Digi CORE plug-In LTE modem — North America LTE / HSPA+ Cat 4, 3G fallback
1002-CMF4-OUS How to Buy
SKU: 1002-CMG4-GLB Digi CORE plug-In LTE modem — Global LTE Cat 4, 3G / 2G fallback
  • LTE Cat 4 with 3G / 2G fallback (Global)
  • Industrial temperature: −40 °C to 70 °C (−40 °F to 158 °F)
  • Cellular certifications: PTCRB, AT&T, Verizon, Telus, US, Canada, Europe
1002-CMG4-GLB How to Buy
SKU: 1002-CMG4-GLB-G Digi CORE plug-in LTE modem — EMEA LTE Cat 4, 3G / 2G fallback; GNSS
  • LTE Cat 4 with 3G / 2G fallback (EMEA)
  • GNSS: GPS, GLONASS, BeiDou, Galileo, QZS
  • Industrial temperature: −40 °C to 70 °C (−40 °F to 158 °F)
  • Cellular certifications: PTCRB, AT&T, Verizon, Telus, US, Canada, Europe
1002-CMG4-GLB-G How to Buy
SKU: 1002-CM45-OEU Digi CORE plug-In LTE modem — EMEA LTE Cat 4; 450 MHz support
  • LTE Cat 4 (EMEA)
  • 450 MHz support
  • Industrial temperature: −40 °C to 70 °C (−40 °F to 158 °F)
  • Cellular certifications: RED, Europe
1002-CM45-OEU How to Buy
SPECIFICATIONS DIGI CORE PLUG-IN LTE MODEM
SOFTWARE
REMOTE MANAGEMENT Digi Remote Manager®
PROTOCOLS USB 2.0 / 3.0 (CM module’s interface), UMTS, EVDO, HSPA+, LTE, LTE-A, LTE-A Pro (supported cellular protocols vary by module type)
SECURITY Tamper-proof with internal SIM slots and optional locking mechanism
PHYSICAL

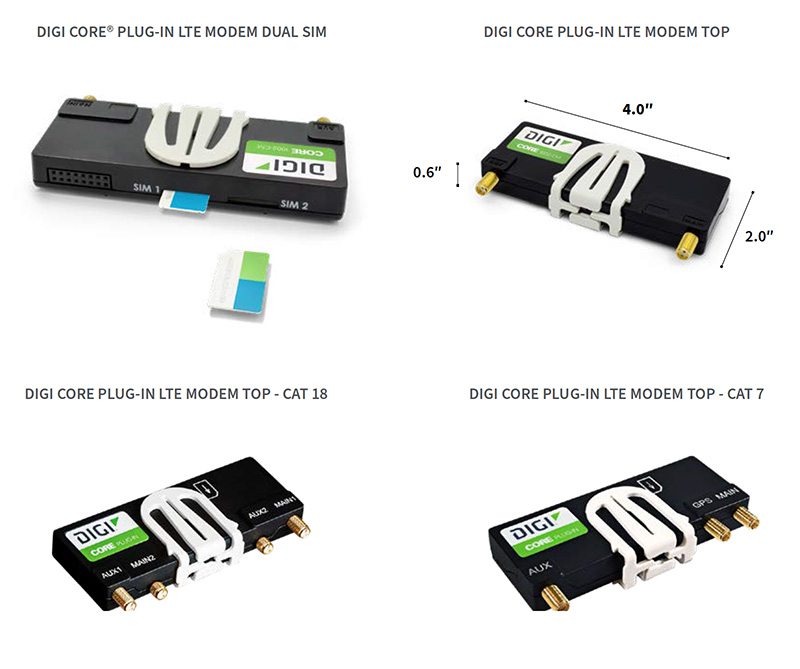

DIMENSIONS (L x W x H) 102 mm x 51 mm x 15 mm (4.0 in x 2.0 in x 0.6 in)
WEIGHT 0.156 kg (5.5 oz)
ENVIRONMENTAL
OPERATING TEMPERATURE Commercial temperature: 0 °C to 40 °C (32 °F to 104 °F)
Industrial temperature: −40 °C to 70 °C (−40 °F to 158 °F)
STORAGE TEMP AND HUMIDITY −45 °C to 75 °C −49 °F to 167 °F); 5% to 95% non-condensing
APPROVALS
EMISSIONS / IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES-3(B)/NMB-3(B)
CELLULAR SPECIFICATIONS
CELLULAR ANTENNA (1, 2, 3 or 4) Dipole; frequency: 700-960/1575-2700 hz; gain: 1-4 dBi
SIM (2) SIM card slot (size 2FF), software selectable and hardware switchable
DIGI CORE PLUG-IN LTE MODEM*
DIGI CORE 1002-CMM1 (NORTH AMERICA) LTE Cat M1 / NB1; LTE Bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28; 2G (EGPRS): 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): M1: 300 kbps down, 375 kbps up; NB1: 21 kbps down, 62.5 kbps up; 2G: 296 kbps down, 236 kbps up; Industrial temperature
DIGI CORE 1002-CMF4 (NORTH AMERICA) LTE Cat 4; LTE Bands: B2, B4, B5, B12, B13, B14 FirstNet®, B66, B71; 3G: B2, B4, B5; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature
DIGI CORE 1002-CMG4 (GLOBAL) LTE Cat 4; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature
DIGI CORE 1002-CMG4-G (EMEA) LTE Cat 4; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature
DIGI CORE 1002-CM45 (EMEA) LTE Cat 4; LTE Bands: B3, B7, B20, B31, B72; 450 MHz support; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature
DIGI CORE 1003-CM07 (NORTH AMERICA) LTE-Advanced Cat 7; LTE Bands: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B25, B26, B41, B42, B43, B48, B66, B71; 3G: B2, B5; Transfer rate (max): 300 Mbps down, 150 Mbps up; Industrial temperature
DIGI CORE PLUG-IN LTE MODEM WITH GNSS SUPPORT*
DIGI CORE 1003-CM07 (NORTH AMERICA) AND DIGI CORE 1002-CMG4-G (EMEA) GPS, GLONASS, BeiDou, Galileo, QZSS; Connector: 50 Ω SMA (center pin: female); Protocol NMEA 0183 V3.0; Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s; Accuracy Horizontal: < 2 m (50%), < 5 m (90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s
*Please reference router/chassis datasheets for Digi CORE plug-in LTE modem compatibility. Transfer rates are network operator dependent.
