CELLULAR CONNECTIVITY** |
5G NR |
Bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77 C-band, n78, n79 |
4G LTE-ADVANCED PRO |
Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46 LAA, B48 CBRS, B66, B71 |
3G HSPA+ |
Bands: B1, B2, B4, B5, B6, B8, B9, B19 |

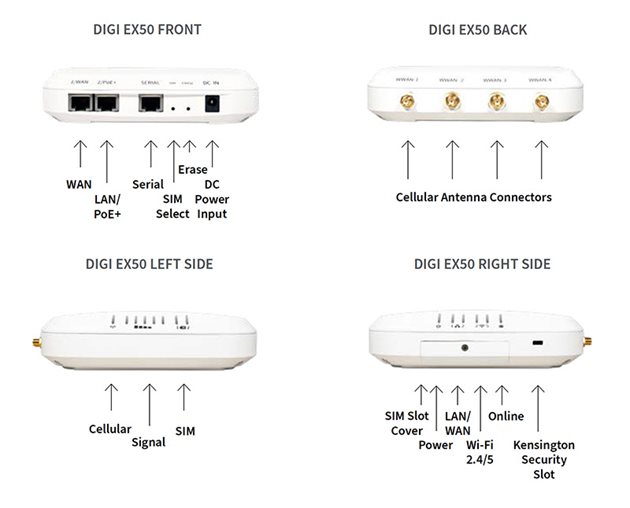

ANTENNA CONNECTORS |
(4) 50 Ω SMA (center pin: female) |
SIM SLOTS |
(2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate |
SOFTWARE AND MANAGEMENT* |
SOFTWARE |
Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable |
REMOTE MANAGEMENT |
Digi Remote Manager; security, management, updates, alerts, scheduling and intelligence |
LOCAL MANAGEMENT |
Web Interface (HTTPS); Command Line Interface (SSH, serial port) |
PERFORMANCE |
ETHERNET THROUGHPUT |
2.5 Gbps |
CELLULAR THROUGHPUT |
1.4 Gbps |
IPSEC VPN THROUGHPUT |
500 Mbps |
VPN TUNNELS |
10 tunnels |
CLIENT COUNT |
256 clients (typical) |
PROCESSOR |
APPLICATION PROCESSOR |
ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit |
MEMORY |
512 MB RAM, 512 MB flash |
ETHERNET |
PORTS |
(2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing) |
WI-FI |
RADIOS |
Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax |
ANTENNAS |
Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain |
SECURITY |
Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise |
MODES |
(4) Wi-Fi access points; (2) Wi-Fi clients; (256) Wi-Fi users (typical) |
SERIAL |
PORTS |
(1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network appliances and servers |
PHYSICAL |
DIMENSIONS (L x W x H) |
158 mm x 158 mm x 35 mm (6.2 in x 6.2 in x 1.4 in) |
WEIGHT |
600 g (21 oz) |
STATUS LEDs |
(14) total for easy visual troubleshooting; Power, LAN, WAN, Wi-Fi 2.4/5, Online, Cellular Signal, Cellular Service, SIM 1/2 |
ENCLOSURE |
Hybrid (die-cast aluminum + ABS plastic); Kensington Security Slot |
POWER REQUIREMENTS |
DC BARREL INPUT |
19 VDC / 2.5 A barrel connector, 2.5 mm pin, center-positive |
POWER OVER ETHERNET |
Standards-based, IEEE 802.3at, PoE+ (25.5 W) |
POWER CONSUMPTION |
8 W (idle), 15 W (typical), 25 W (maximum) |
ENVIRONMENTAL |
OPERATING TEMPERATURE |
-30 °C to 60 °C (-22 °F to 140 °F) with Power over Ethernet or industrial-rated power supply; 0 °C to 40 °C (32 °F to 104 °F) with included commercial-rated power supply |
RELATIVE HUMIDITY |
5% to 95% (non-condensing) |
APPROVALS** |
CELLULAR |
Visit product certifications for latest approvals and updates |
EMISSIONS / IMMUNITY |
CE; RED; FCC Part 15 Subpart B; CAN ICES-003 |
SAFETY |
IEC62368-1, CB, EN62311 |
WARRANTY*** |
PRODUCT WARRANTY |
3-year |
