Set up your kit

The quick start process provides a demo and ensures proper setup.

Continue with kit setup

I already set up my kit. Take me to documentation.

Identify your kit components

Confirm that all of the following components are present.

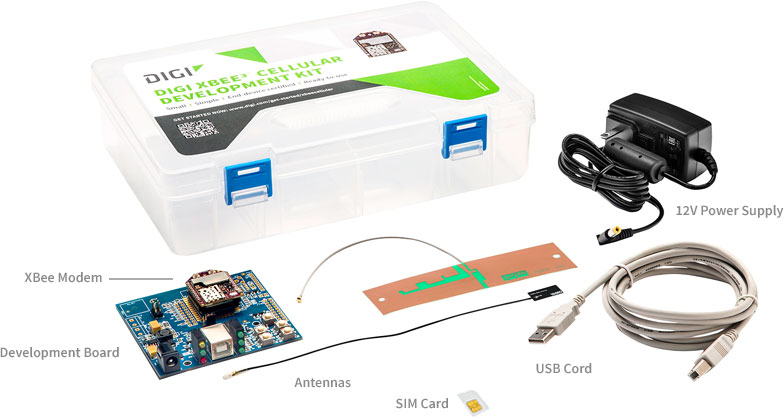

Development board, Antenna, XBee modem, 12V power supply, USB cord, SIM card
  • Development board
  • Antenna
  • XBee modem
  • 12V power supply
  • USB cord
  • SIM card

Download XCTU

XBee Configuration and Test Utility (XCTU) is a multi-platform program that enables users to interact with Digi radio frequency (RF) devices through a graphical interface. The application includes built-in tools that make it easy to set up, configure, and test Digi RF devices.

To use XCTU, you may need to install FTDI Virtual COM port (VCP) drivers onto your computer. Click below to download the drivers for your operating system.

Connect all the components of the hardware

The XBee Smart Modem should already be plugged into the XBIB-U-DEV board.

  1. The SIM card should already be inserted into the XBee Smart Modem. If not, install the SIM card into the XBee Smart Modem before attaching the XBee device to the board.
  2. Connect the antennas to the XBee Smart Modem by aligning the U.FL connectors carefully, then firmly pressing straight down to seat the connector. You should hear a snap when the antenna attaches correctly. U.FL is fragile and is not designed for multiple insertions, so exercise caution when connecting or removing the antennas. We recommend using a U.FL removal tool.
  3. Plug the 12 V power supply to the power jack on the development board.
  4. Connect the USB cable from a PC to the USB port on the development board. The computer searches for a driver, which can take a few minutes to install.

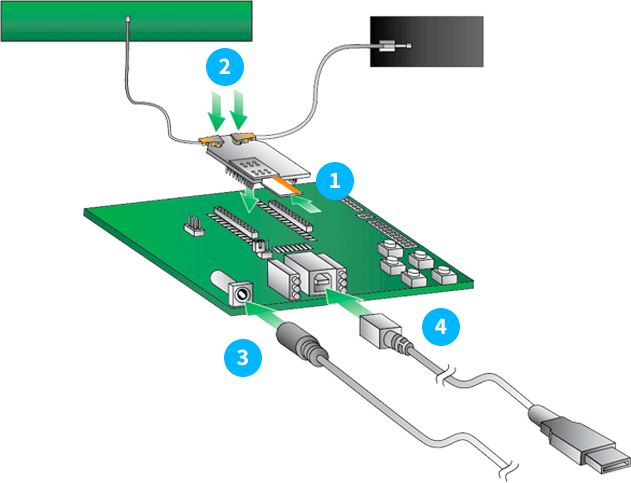

Digi XBee3 LTE-M Kit Connections

Connect your device to the cellular network

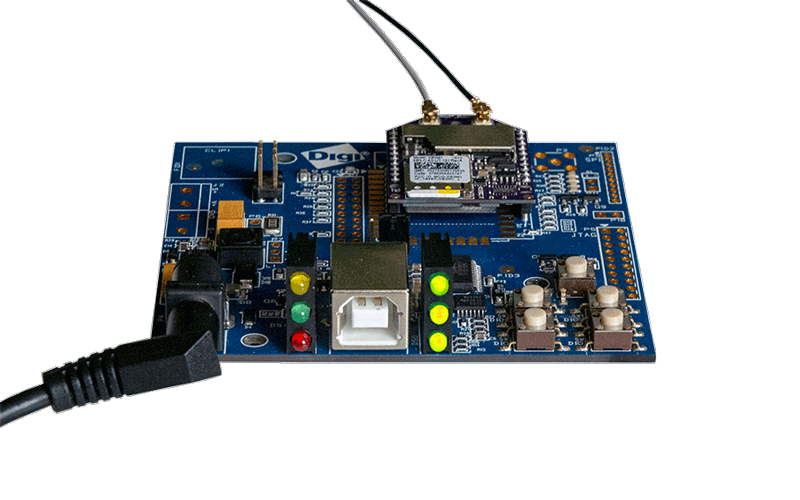

Once your device is communicating with the cellular network the red LED will blink RED.

Add your device to XCTU

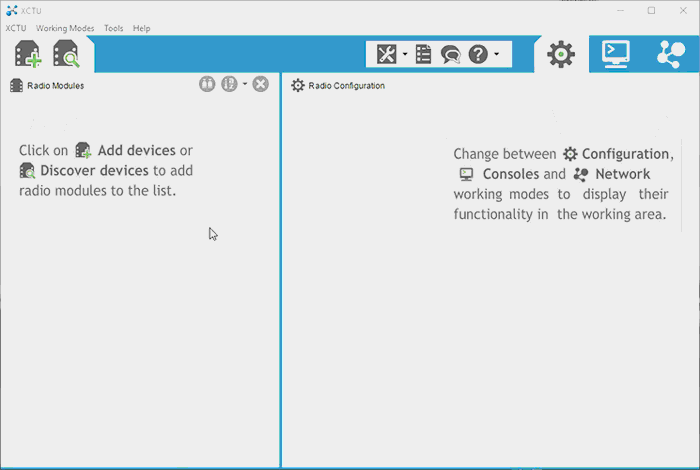

Click Discover Devices.

Add your device to XCTU - Continued

Select the proper port your development board is connected to.

Add your device to XCTU - Continued

Select default port parameters.

Add your device to XCTU - Continued

Click “Add selected devices.”

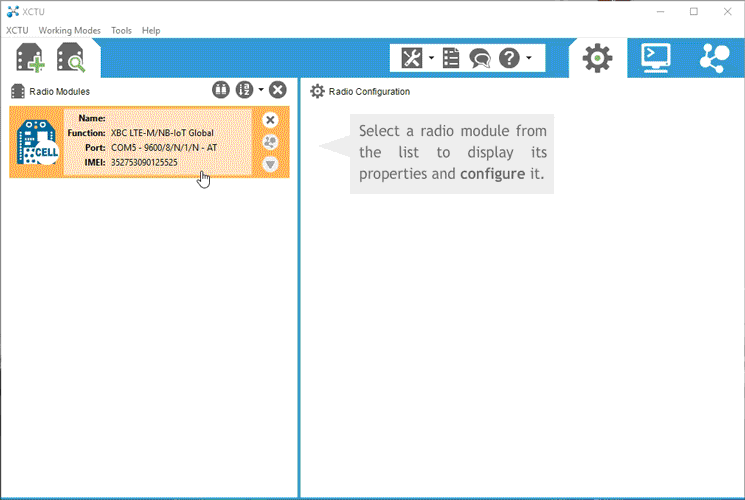

Select radio module

Update module to the most recent firmware

Contacting the Echo server demo

Switch to TCP communication, in the IP field, select 1 and click the Write button.

Contacting the Echo server demo – Continued

Enable the XBee Cellular Modem to recognize carriage return as a message delimiter, in the TD field, type D and click the Write button.

Contacting the Echo server demo – Continued

Enter the destination address of the echo server, in the DL field, type 52.43.121.77 and click the Write button.

Contacting the Echo server demo – Continued

Enter the destination IP port number, in the DE field, type 2329 and click the Write button.

Contacting the Echo server demo – Continued

Click the Consoles working mode button on the toolbar to open a serial console to the device. Click the Open button to open a serial connection to the device. Click in the left pane of the Console log, then type in the Console to talk to the echo server.

Congratulations, you completed the first demo

During this demo you have verified that your XBee has connected to the network and successfully communicated with the Echo server.

Next steps

To explore the additional demos in our documentation, click the button below.

Explore additional demos View the XBee3 LTE-M user guide
