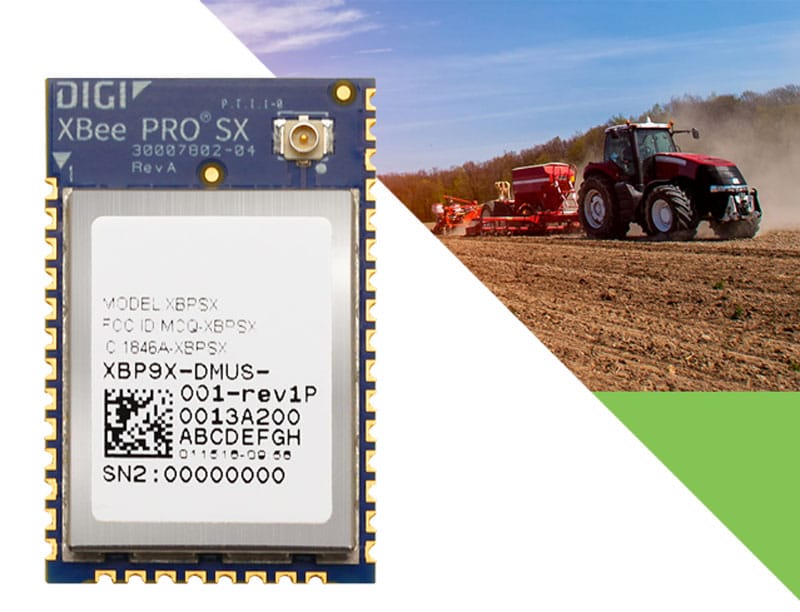

Digi XBee SX 900 RF Module

900 MHz OEM RF modules pack maximum power, security, and flexibility into the Digi XBee SMT footprint for mission-critical wireless designs


  • Family includes powerful 1-Watt 900 MHz Digi XBee-PRO SX 900 and battery-optimized 20 mW Digi XBee SX 900 modules for mission-critical OEM designs
  • DigiMesh networking topology for redundancy and reliability
  • Design includes SAW filter for optimal performance in noisy RF environments
  • 256-bit AES encryption for secure data communications
  • Digi XBee SMT form factor saves valuable PCB space
  • Fully certified for use in unlicensed 900 MHz band

Digi XBee® SX 900 MHz RF modules are the "muscle modules" of the Digi XBee ecosystem, providing a combination of reliability and redundancy for OEMs building low-power, mission-critical wireless devices. They utilize the DigiMesh® networking protocol, featuring redundant mesh network operation and support for low-power sleeping nodes. Customers that don’t require mesh network architecture can configure the Digi XBee 900 SX to operate in simple point to multipoint mode.

With RF line-of-sight ranges up to 65 miles* and strong interference blocking, these modules are ideal for applications requiring the combination of range, data redundancy, and data reliability.

The Digi XBee SX 900 modules can be configured easily using Digi’s free XCTU software or via Digi’s simplified AT or API command sets. They are pre-certified for use in multiple countries and include integrated antennas, removing the burden of RF development/support costs and enabling fast time to market for OEM designs.

The modules provide secure, reliable delivery of critical data between devices with 256-bit AES encryption, and the small Digi XBee surface-mount form factor saves valuable board space.

Compare Sub-GHz Wireless OEM RF Modules

Compare Sub-GHz Wireless OEM RF Modules
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
Kits

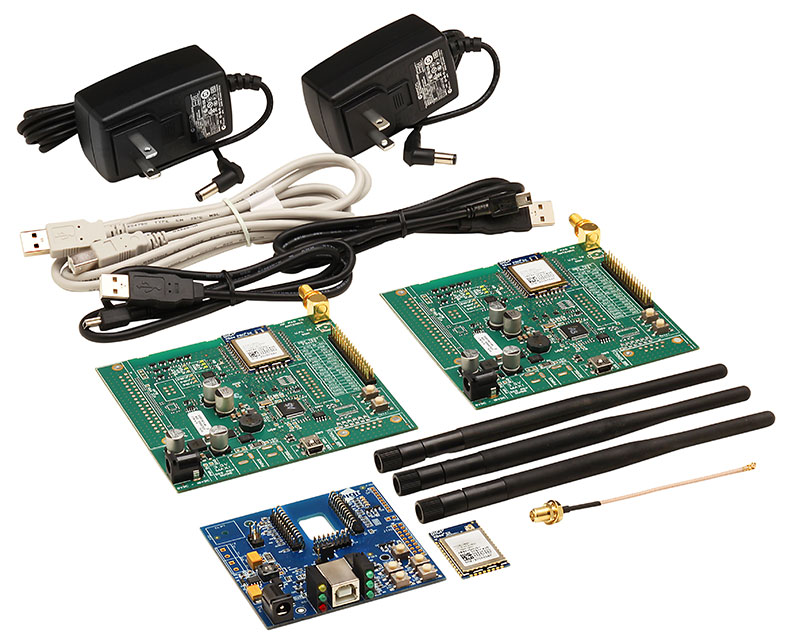

SKU: XK9X-DMS-0 Digi XBee SX RF Module Dev Kit, US/CA XK9X-DMS-0 How to Buy
SKU: XK9X-DMS-1 Digi XBee SX RF Module Dev Kit, Brazil XK9X-DMS-1 How to Buy
SKU: XK9X-DMS-2 Digi XBee SX RF Module Dev Kit, Australia XK9X-DMS-2 How to Buy
XBee 20 mW SX Modules

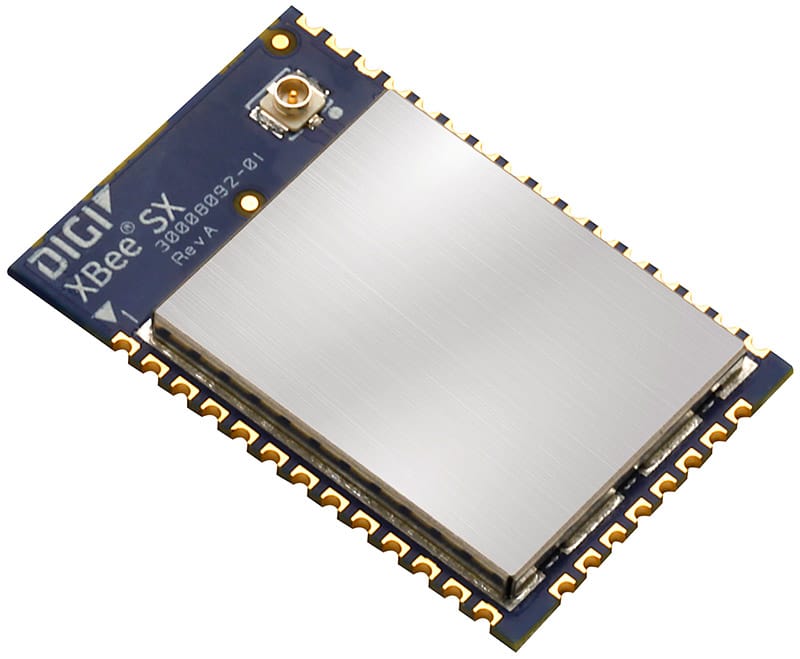

SKU: XB9X-DMUS-001 XBee SX, 20 mW, DigiMesh, Point to Multipoint, SMT, U.FL, North America XB9X-DMUS-001 How to Buy

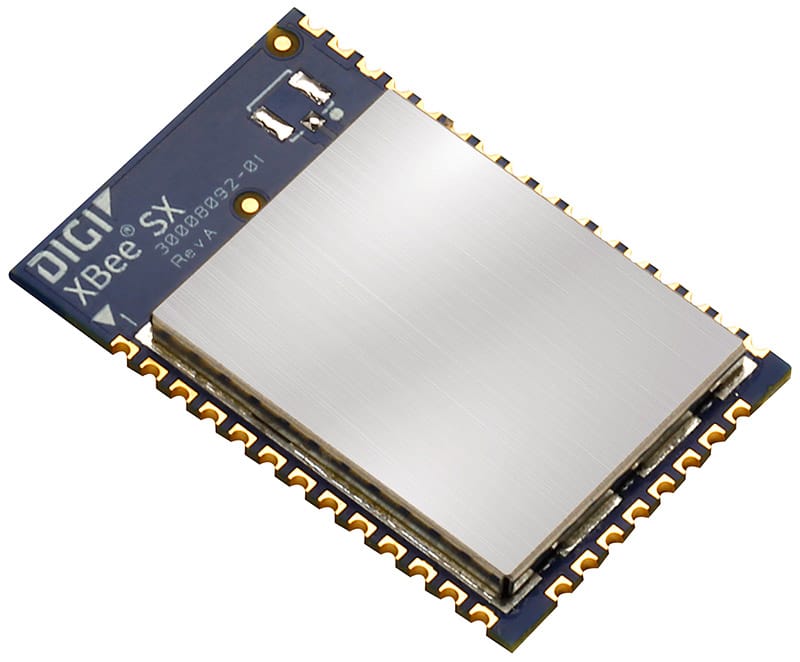

SKU: XB9X-DMRS-001 XBee SX, 20 mW, DigiMesh, Point to Multipoint, SMT, RF Pad, North America XB9X-DMRS-001 How to Buy
SKU: XB9X-DMUS-021 XBee SX, 20 mW, DigiMesh, SMT, U.FL, Australia XB9X-DMUS-021 How to Buy
SKU: XB9X-DMRS-021 XBee SX, 20 mW, DigiMesh, SMT, RF Pad, Australia XB9X-DMRS-021 How to Buy
SKU: XB9X-DMUS-031 XBee SX, 20mW, DigiMesh, Point to Multipoint, SMT, U.FL, New Zealand XB9X-DMUS-031 How to Buy
SKU: XB9X-DMRS-031 XBee SX, 20mW, DigiMesh, Point to Multipoint, SMT, RF Pad, New Zealand XB9X-DMRS-031 How to Buy
SKU: XB9X-DMUS-011 Digi XBee SX, 20 mW, DigiMesh, SMT, U.FL, Brazil XB9X-DMUS-011 How to Buy
XBee-PRO 1-Watt SX Modules

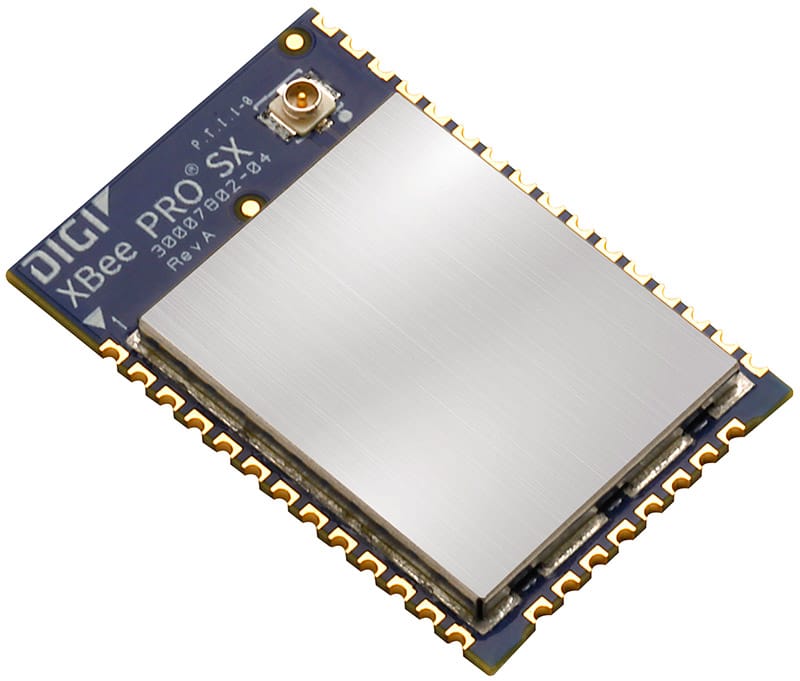

SKU: XBP9X-DMUS-001 XBee-PRO SX, 1W, DigiMesh, Point to Multipoint, SMT, U.FL, North America XBP9X-DMUS-001 How to Buy

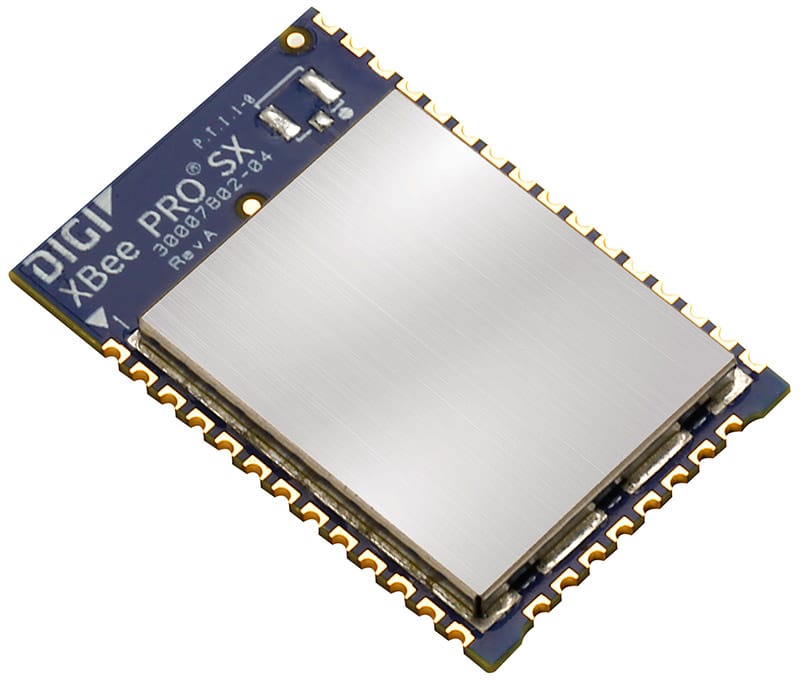

SKU: XBP9X-DMRS-001 XBee-PRO SX, 1W, DigiMesh, Point to Multipoint, SMT, RF Pad, North America XBP9X-DMRS-001 How to Buy
SKU: XBP9X-DMUS-021 XBee-PRO SX, 1W, DigiMesh, SMT, U.FL, Australia XBP9X-DMUS-021 How to Buy
SKU: XBP9X-DMRS-021 XBee-PRO SX, 1W, DigiMesh, SMT, RF Pad, Australia XBP9X-DMRS-021 How to Buy
SKU: XBP9X-DMUS-011 Digi XBee-PRO SX, 1W, DigiMesh, SMT, U.FL, Brazil XBP9X-DMUS-011 How to Buy
SKU: XBP9X-DMRS-011 Digi XBee-PRO SX, 1W, DigiMesh, SMT, RF Pad, Brazil XBP9X-DMRS-011 How to Buy
Development Boards
SKU: XBIB-C-SMT Development board - XBee 3, USB-C, surface-mount socket XBIB-C-SMT How to Buy
Digi XBee Multi Programmer
SKU: XBEE-MP-SMT End-of-life
Digi XBee Multi Programmer, surface mount (SMT)
XBEE-MP-SMT How to Buy
SKU: XBEE-MP-SMT-PCB End-of-life
Digi XBee Multi Programmer, surface mount (SMT) printed circuit board
XBEE-MP-SMT-PCB How to Buy
Related
Digi XBee SX RF Modems
Digi XBee SX RF Modems
  Get Started
Antennas
SKU: A09-HASM-7 Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A09-HASM-7 How to Buy
SKU: A09-Y8NF Antenna - 900 MHz, yagi, 8.1 dBi, N-female. A09-Y8NF How to Buy
SKU: A09-Y11NF Antenna - 900 MHz, yagi, 11.1 dBi, N-female. A09-Y11NF How to Buy
SKU: A09-HSM-7 Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HSM-7 How to Buy
SKU: A09-HBSM-P5I Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HBSM-P5I How to Buy
Specifications Digi XBee® SX 900 Module Digi XBee-PRO® SX 900 Module
PERFORMANCE
FREQUENCY RANGE ISM 902 to 928 MHz (Australia / New Zealand: 915 to 928 MHz) ISM 902 to 928 MHz (Australia: 915 to 928 MHz)
TRANSMIT POWER (SOFTWARE SELECTABLE) Up to 13 dBm Up to 30 dBm*
CHANNELS 10 hopping sequences share 50 frequencies 10 hopping sequences share 50 frequencies
RF DATA RATE Low data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s
MAXIMUM DATA THROUGHPUT High data rate: 120 kb/s High data rate: 120 kb/s
AVAILABLE CHANNEL FREQUENCIES Low and middle data rate: 101**; High data rate: 50 Low and middle data rate: 101**; High data rate: 50
RECEIVER SENSITIVITY Low data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm
RECEIVER IF SELECTIVITY Low data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB
Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB
High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB
RECEIVER RF SELECTIVITY Below 900 MHz and above 930 MHz; > 50 dB Below 900 MHz and above 930 MHz; > 50 dB
RURAL RANGE LINE OF SIGHT*** Low data rate: Up to 14.5 km (9 mi)***** Low data rate: Up to 105 km (65 mi)*****
URBAN RANGE LINE OF SIGHT**** Low data rate: Up to 2.5 km (1.5 mi)***** Low data rate: Up to 18 km (11 mi)*****
INDOOR RANGE***** Low data rate: Up to100 m (330 feet) Low data rate: Up to 300 m (1,000 feet)
NETWORKING AND SECURITY
MODULATION Gaussian Frequency Shift Keying Gaussian Frequency Shift Keying
SPREADING TECHNOLOGY Frequency Hopping Spread Spectrum (FHSS) Frequency Hopping Spread Spectrum (FHSS)
SUPPORTED NETWORK TOPOLOGIES (SOFTWARE SELECTABLE) Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh
ENCRYPTION Optional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command.
GENERAL
DIMENSIONS 3.38 x 2.21 x 1.29 cm (1.33 x 0.87 x 0.12 in) 3.38 x 2.21 x 1.29 cm (1.33 x 0.87 x 0.12 in)
WEIGHT 3 g 3 g
ROHS Compliant Compliant
MANUFACTURING ISO 9001:2000 registered standards ISO 9001:2000 registered standards
HOST INTERFACE CONNECTOR 37 castellated SMT pads 37 castellated SMT pads
ANTENNA CONNECTOR OPTIONS U.FL or RF pad U.FL or RF pad
ANTENNA IMPEDANCE 50 ohms unbalanced 50 ohms unbalanced
MAXIMUM INPUT RF LEVEL AT ANTENNA PORT 6 dBm 6 dBm
OPERATING TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F) −40 °C to 85 °C (−40 °F to 185 °F)
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.4 to 3.6 VDC, 3.3 V typical 2.6 to 3.6 VDC, 3.3 V typical
RECEIVE CURRENT (VCC = 3.3 V) 40 mA 40 mA
TRANSMIT CURRENT (VCC = 3.3 V) 55 mA at 13 dBm; 45 mA at 10 dBm; 35 mA at 0 dBm 900 mA at 30 dBm; 640 mA at 27 dBm; 330 mA at 20 dBm
SLEEP CURRENT (VCC = 3.3 V) 2.5 uA 2.5 uA
REGULATORY APPROVALS**
UNITED STATES FCC ID: MCQ-XBSX FCC ID: MCQ-XBPSX
CANADA IC: 1846A-XBSX IC: 1846A-XBPSX
AUSTRALIA RCM RCM
NEW ZEALAND RSM -
BRAZIL Anatel
MEXICO IFT -

*30 dBm typical at 3.3 V and above. Maximum power will decrease at lower voltages.
**The device hops on 50 channels selected, using the CM command, from 101 available frequencies.
***We estimate rural ranges based on a 14.5 km (9 mi) range test with dipole antennas.
****Range estimated assuming that the urban noise floor is approximately 15 dB higher than rural. The actual range depends on the setup and level of interference in your location.
*****Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.

**Visit https://www.digi.com/resources/certifications for latest certifications
