When it comes to analog input, it doesn't get any easier than a basic potentiometer. Nicknamed "pots," these components are variable resistors. With a twist of their knob you alter the amount of voltage that flows out through their center pin. If you've ever adjusted a volume dial chances are, you were using a potentiometer.
Potentiometers can be used for setting a level, determining an angle or just as a simple user interface adjustment. Because you can set them immediately to a value that they'll hold indefinitely, pots are terrific for prototyping and testing. Use them as a stand-in for any kind of analog input. Let's get started and add them to your development toolkit!
2) Assemble the Parts

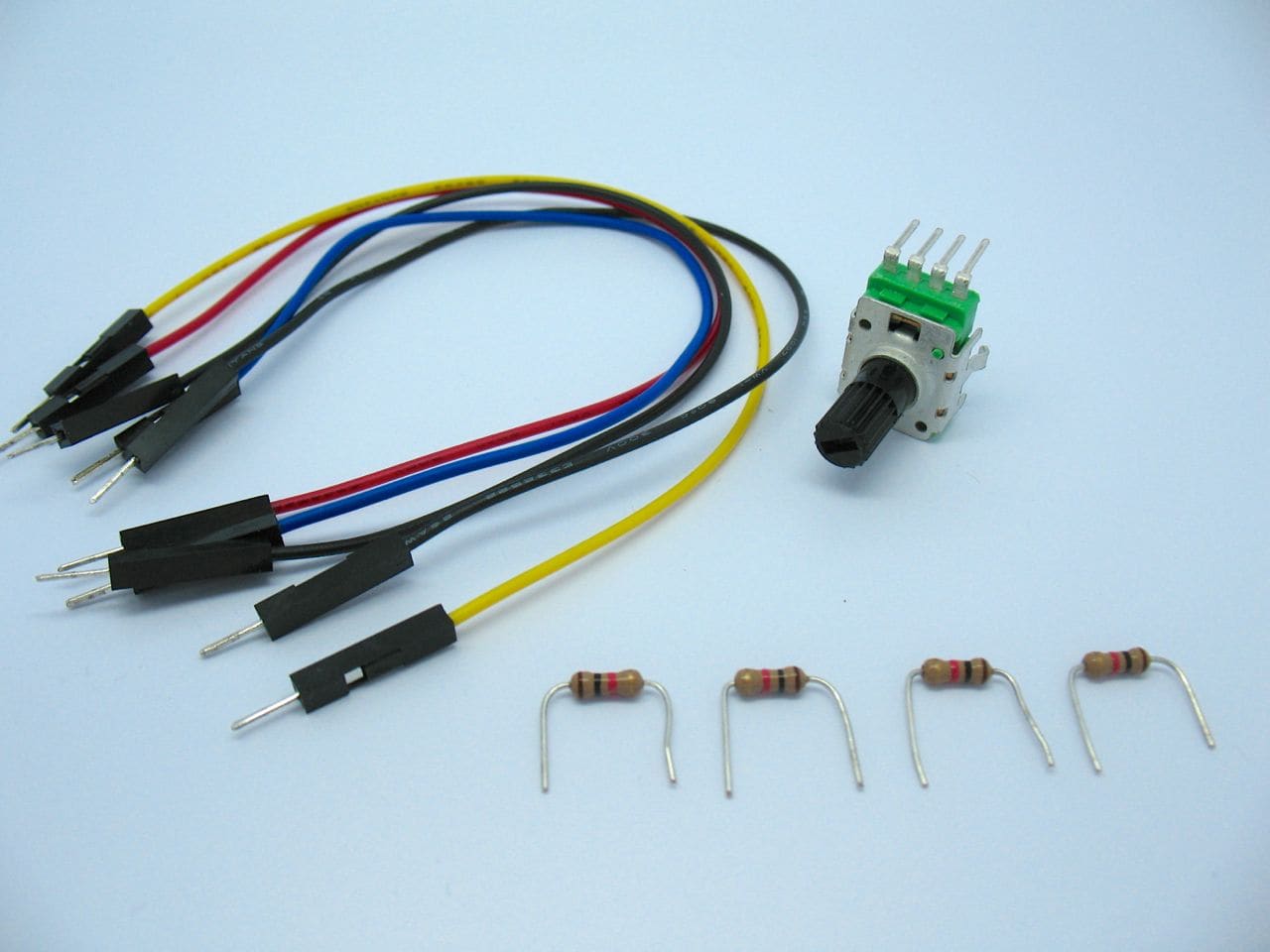

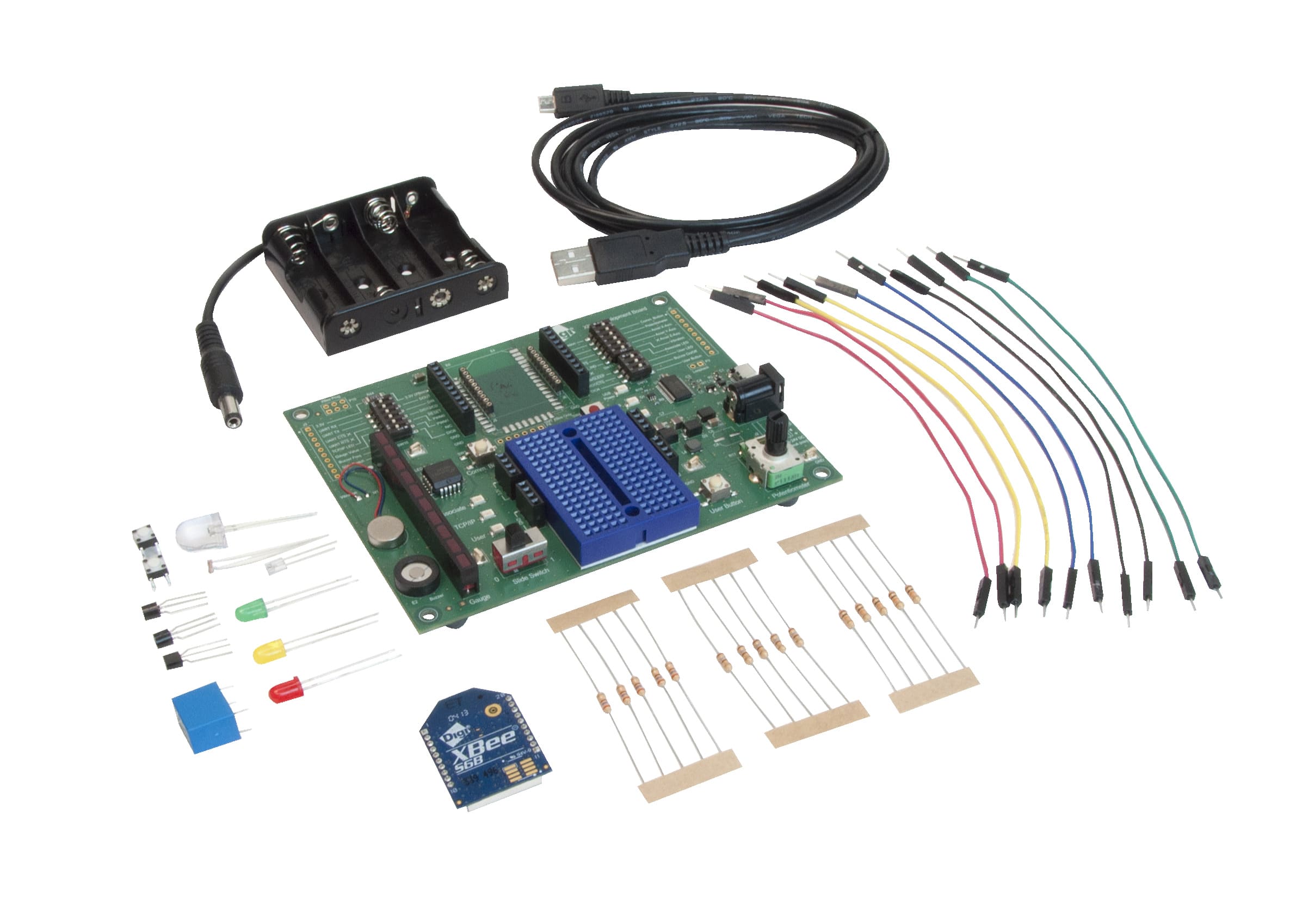

To hook up a potentiometer you'll need:
3) Configure the Radio
You'll configure the radio using your free Device Cloud account. (Note that radios can also be configured using XCTU.)
NOTE: If your radio was recently configured by the XBee Wi-Fi Cloud Kit then the sampling rate and pin settings are already set. You can safely skip these steps.

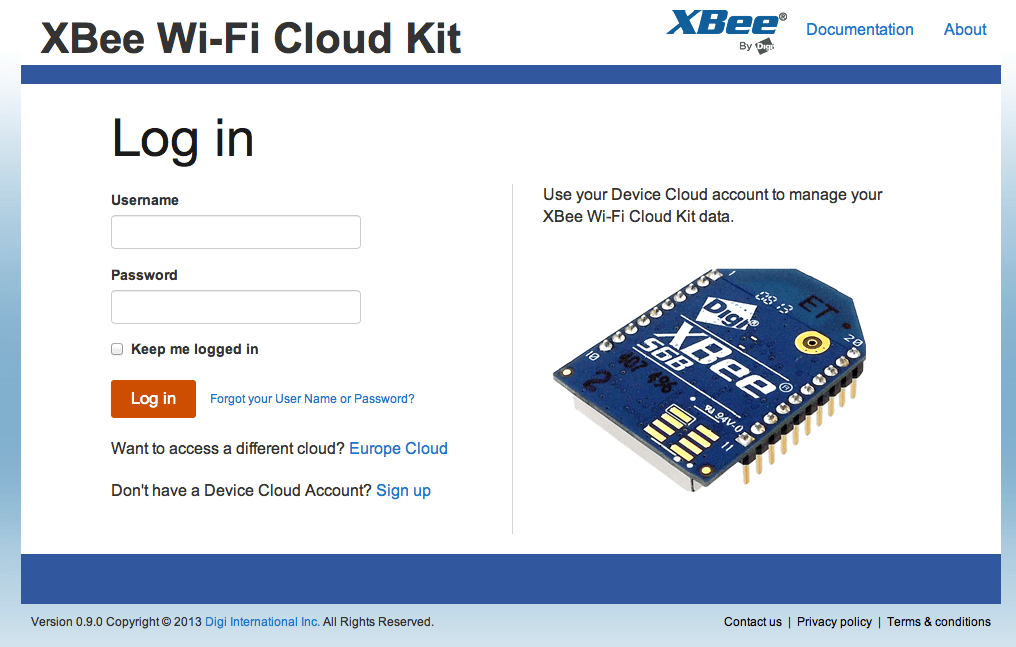

- Log in to Device Cloud.

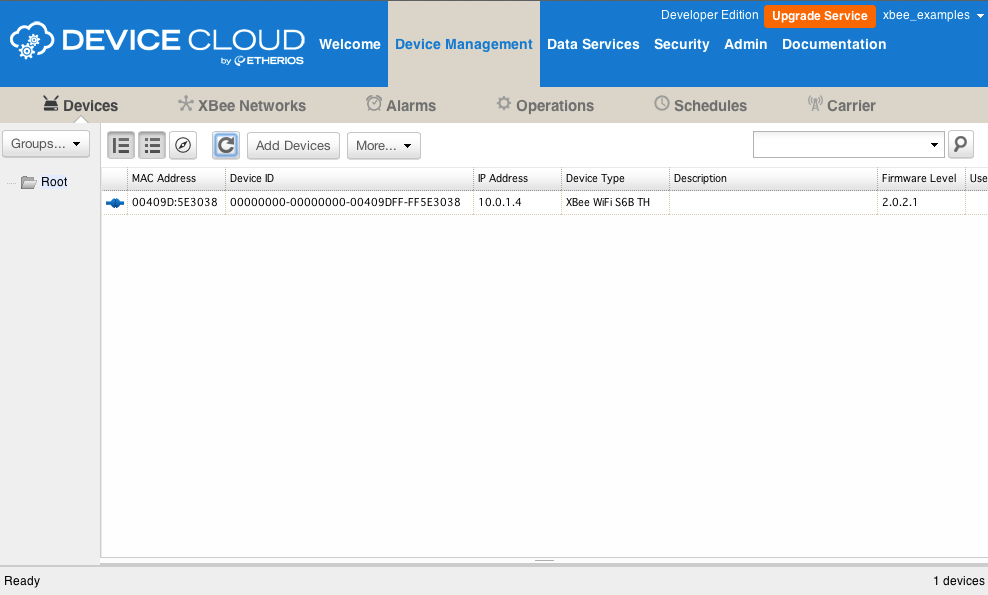

- Select Devices under the Device Management tab.
- Select the XBee Wi-Fi that you are configuring, then select Properties or double-click to open the Properties window for that device.

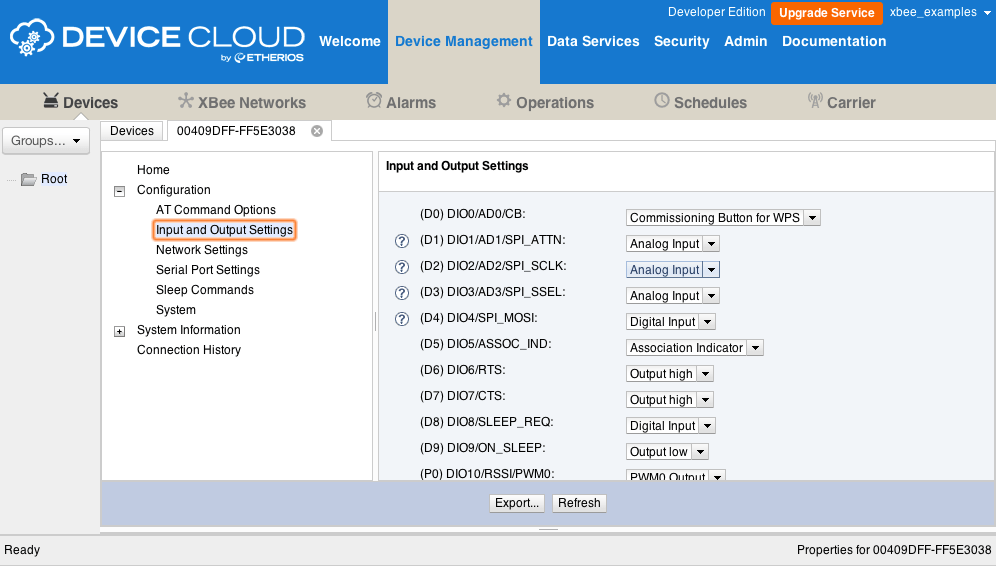

- Select Configurations, then Input and Output Settings, then confirm that DIO1/AD1/SPI_ATTN is set to Analog Input.
- On the same page, confirm that Sample Rate is set to 5000 ms which will take a sample every five seconds.
- Save your changes!
4) Wire up the Circuit

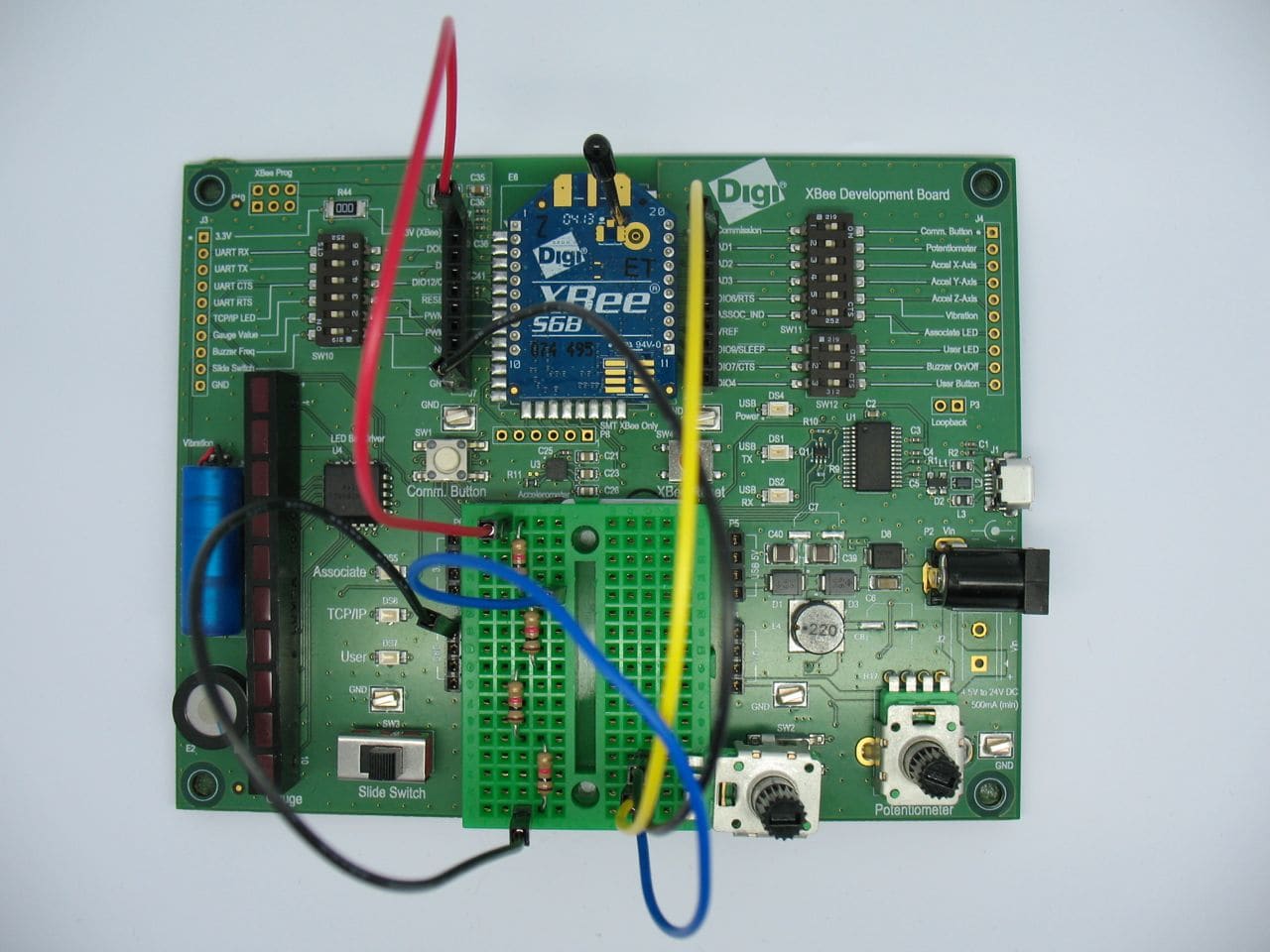

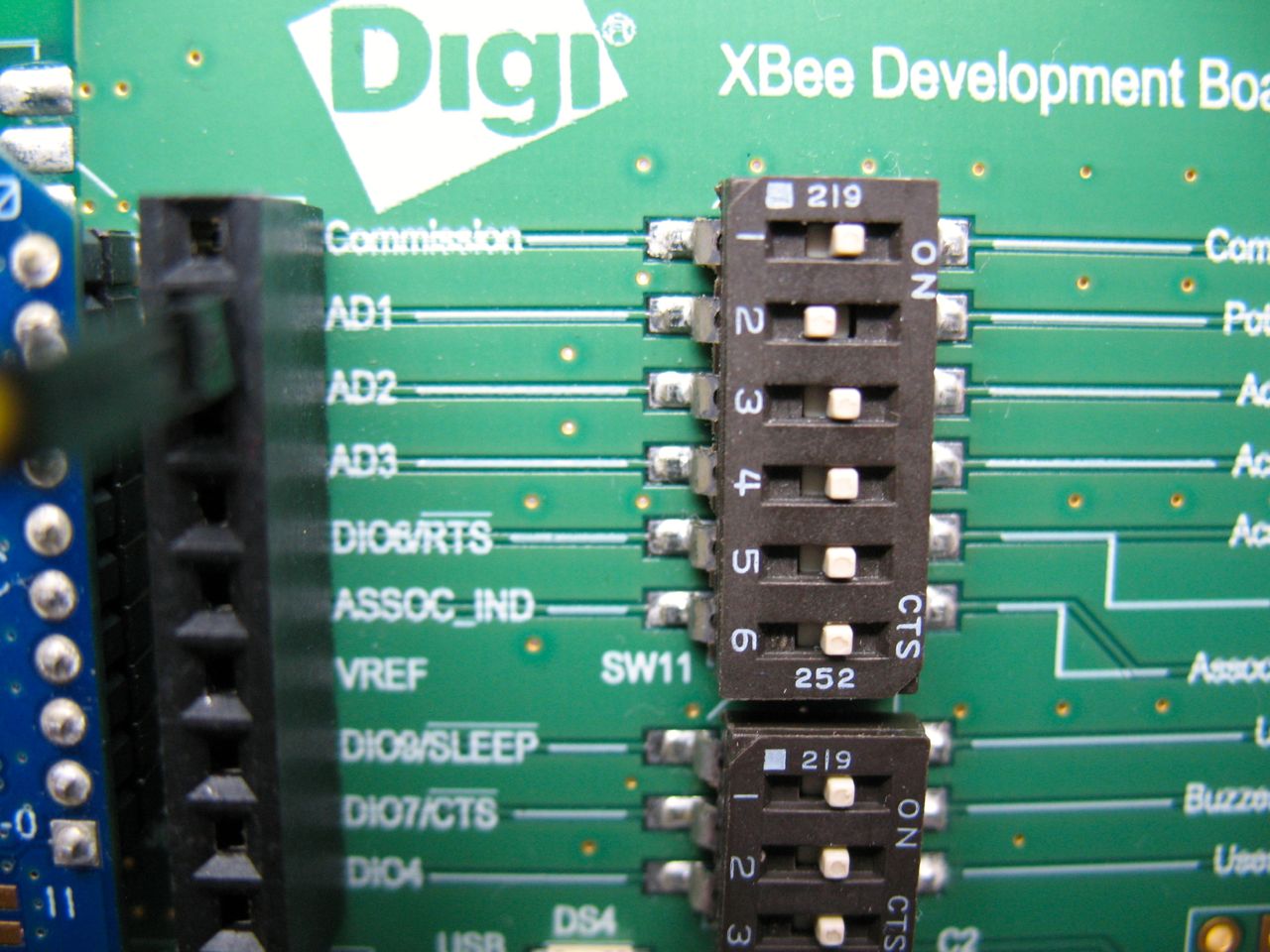

You will build this sensor circuit using the XBee Development Board.

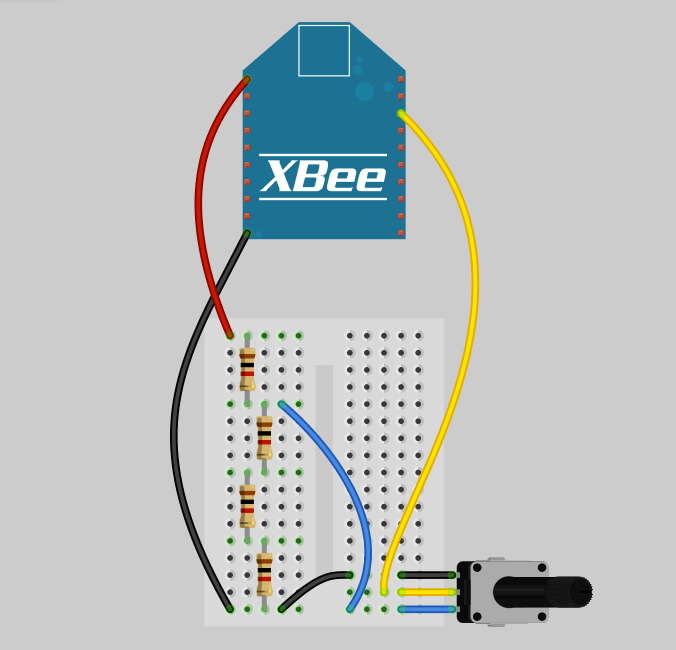

- Plug the potentiometer into the breadboard as shown. It has four pins. When facing the pins, they are from left to right:
- Pin 1: Ground
- Pin 2: Output voltage that varies with the position of the knob
- Pin 3: Voltage in, which we will feed with 2.5 volts.
- Pin 4: This is just a dummy pin and is not used for anything.
- Connect a black jumper wire from the potentiometer's pin 1 to ground (GND) as shown.
- Connect one end of a yellow (or any other color) jumper wire to the second pin (2) of the potentiometer. Connect the other end of this wire to to the XBee's AD1 pin.

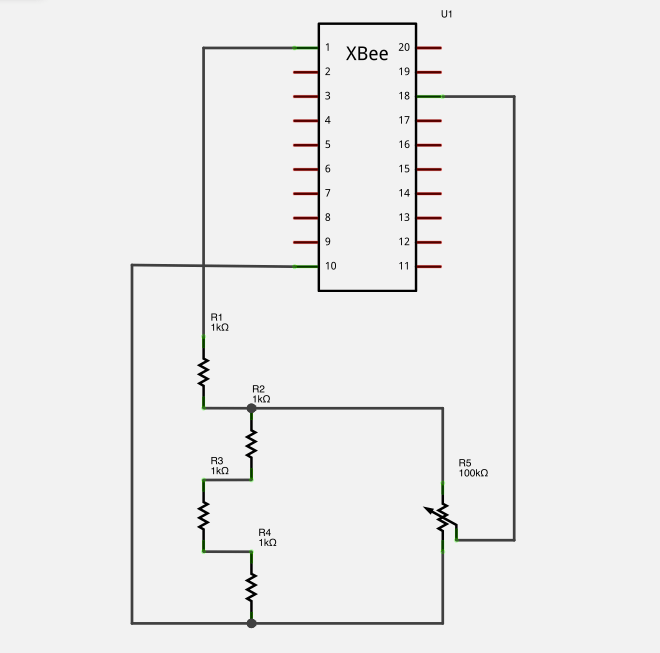

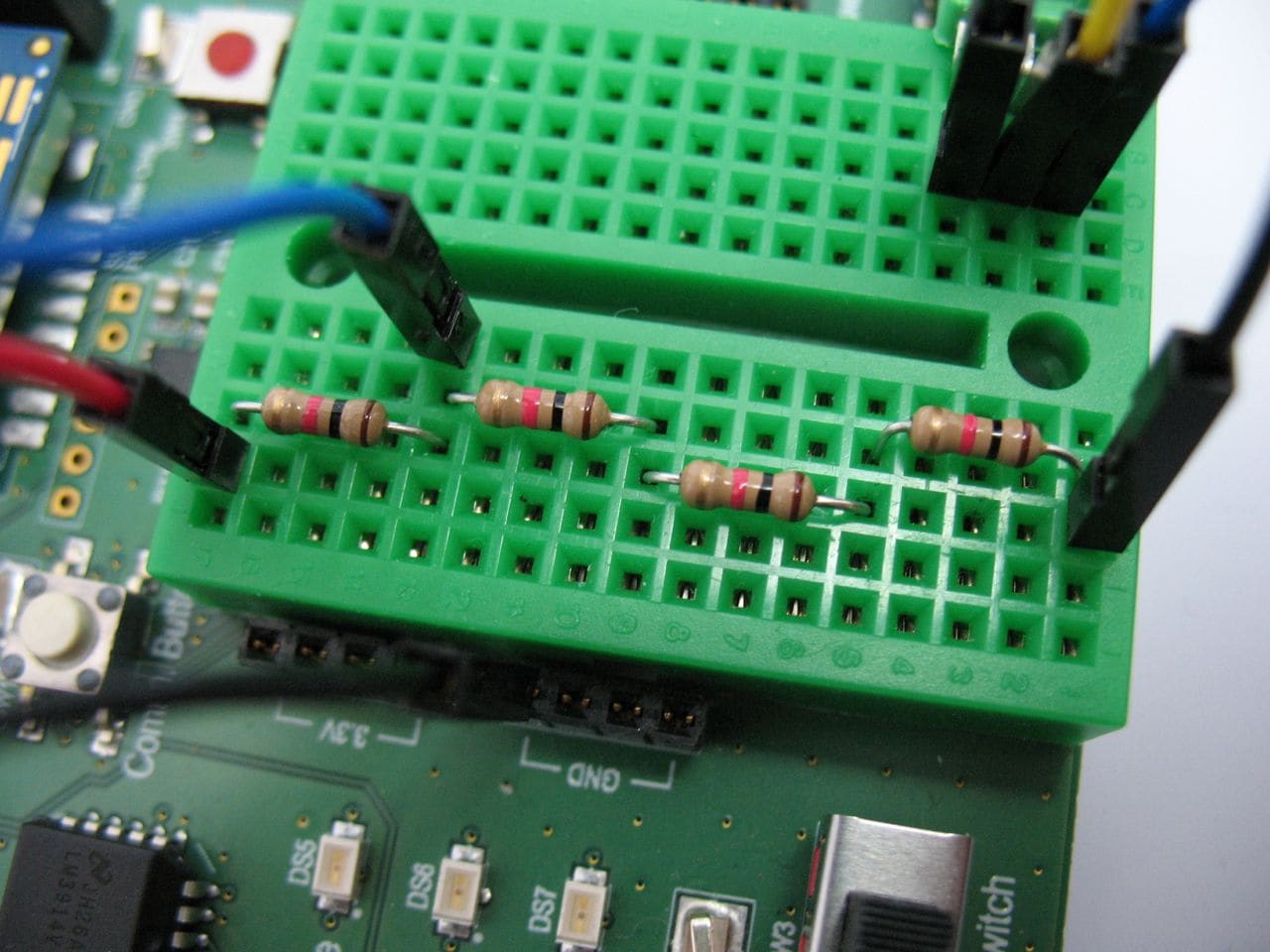

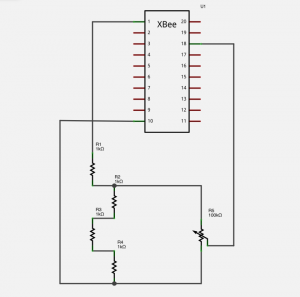

- Plug in the four resistors to separate rows of the breadboard as shown. They will form a chain with the each resistor connecting to one end of each resistor on either side. We will use them to scale the input down from 3.3 volt input to the 2.5 volt maximum of the XBee Wi-Fi's ADC.
- Connect a red wire from 3.3V to the open end of the first resistor.
- Connect a blue (or other color) jumper wire so that the third pin (3) of the potentiometer is connected to the junction between the first and second resistor as shown.
- Use a black wire to connect the open end of the fourth resistor to GND.

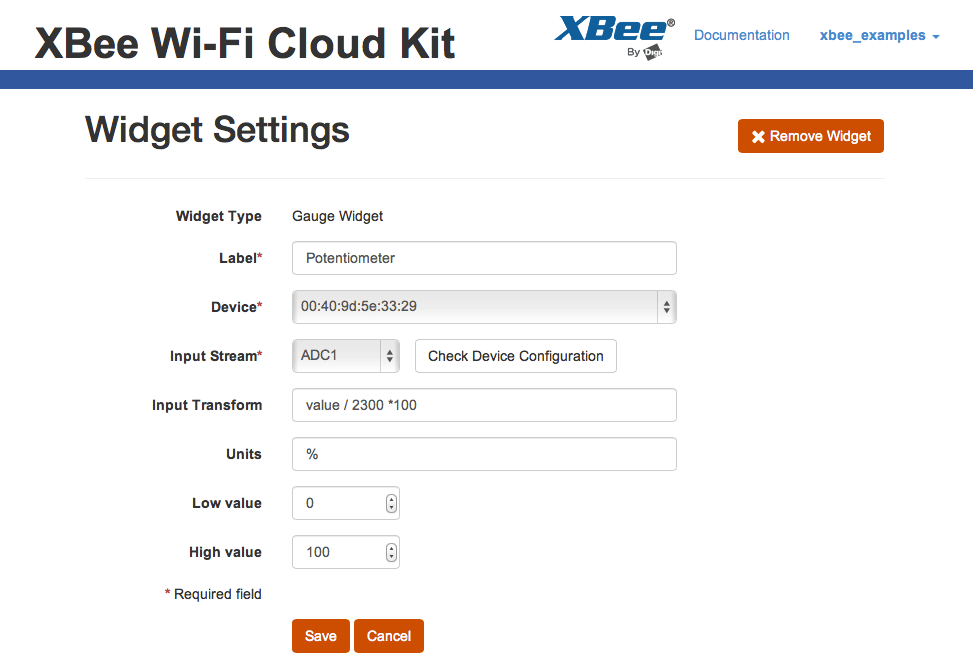

6) Use it!

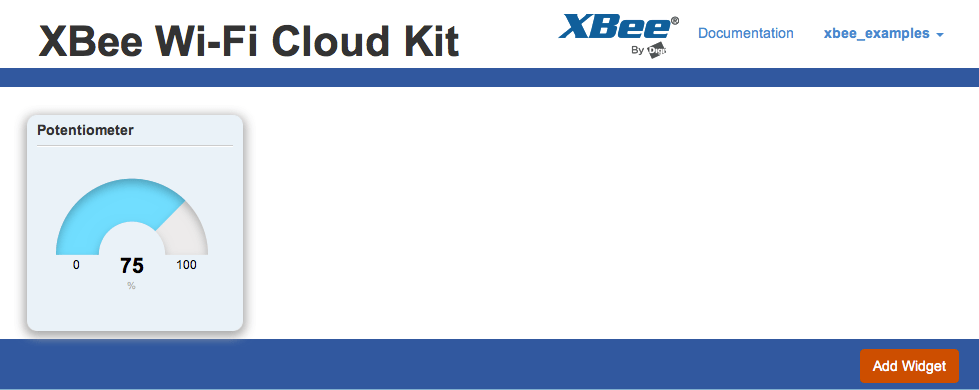

Your potentiometer settings are now instantly transmitted to the web. You can turn the knob directly to affect the gauge, and the new setting will be maintained until the knob gets moved again. This is terrific for testing out new circuits, but potentiometers can also be used to control an online setting, monitor anything that rotates, or as an input to a game that joins the physical and virtual worlds together. Once you're satisfied that your prototype creation is working well, try replacing the pot with a light or temperature sensor to create an input that reacts to real-world environments.
