| Compatibility: |
Digi IX10, Digi IX20, Digi IX30 |
| Contains: |

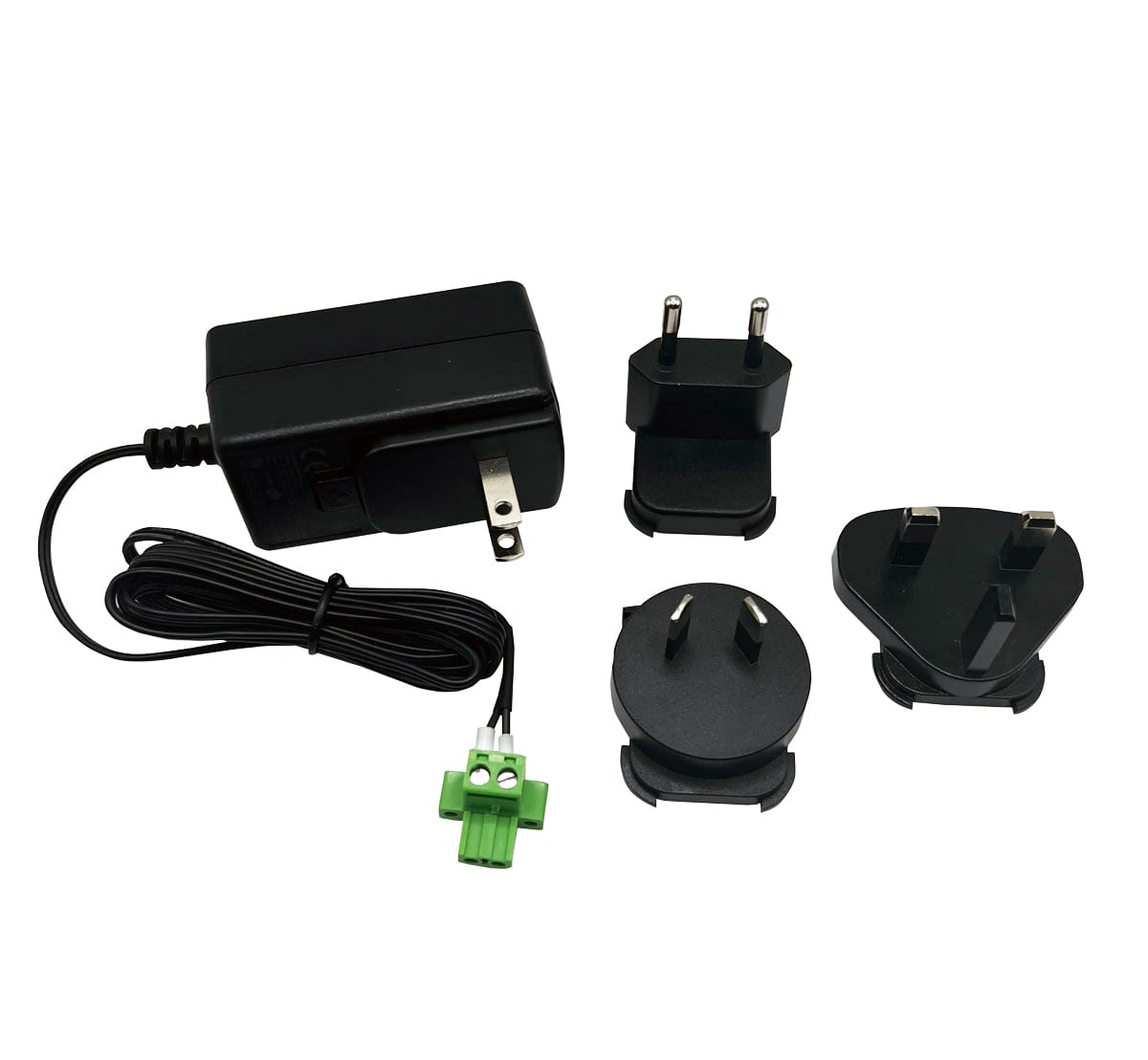

Power supply with plug tips for US, UK, EU, AU
Green power on indicator LED |
| Rated input voltage range: |
100 - 240 V |
| Input frequency: |
50 - 60 Hz |
| Rated input current: |
0.6 A |
| Max. in-rush current: |
30 A @ 115 VAC
60 A @ 230 VAC |
| Input plug type: |
Proprietary, removable plug tips for: US (type 1); AU (type 2); US (type 3); EU (type 4) |
| Max. load current: |
1.0 A |
| Min. load current: |
0 A |
| Output power: |
18 W |
| Output plug: |
Phoenix Contact p/n 1912184, 2 pos; 5.08 mm (0.2 in) pitch, rewireable plug with securing screw |
| Operating temperature: |
0° C to 40° C (32° F to 104° F) |
| Storage temperature: |
0° C to 40° C (32° F to 104° F) |
| Size (L x H x W): |
PSU (excl lead): 74 mm x 44 mm x 40 mm (2.91 in x 1.73 in x 1.57 in) excluding removable plug tips; 167 mm x 84 mm x 59 mm (6.57 in x 3.31 in x 2.32 in) in packaging box (with plug tips) |
| Weight: |
PSU only: 150 g (0.33 lb);
In packaging with plug tips: 205 g (0.45 lb) |
| Cord length: |
1.5 m +/- 20 mm (4.92 ft +/- 0.79 in) |
| Certifications: |
CE, FCC, ETL, UL 1310, RCM, CCC, VCCI, PSE, S-Mark, CB-62368, CB-61558-2-16, CB-60950, EAC, RoHS2, WEEE, CAN ICES-3 |
| Ingress protection: |
IP42 |
