Digi Connect EZ 32 Cellular — serial server, 32-port, RS-232, CMG4, EU power cord

Related to: Digi Connect EZ 16/32

Digi Connect EZ 32 Cellular

  • Connections:
    • SFP+: (2) 10 Gb capable SFP+ sockets
    • Ethernet: (2) 10/100/1000 Mbps (auto-sensing)
    • ​​Serial ports: (32) RJ45 10-pin; RS-232
    • RS-232 / EIA-232 serial modes: Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI flow control options: XON/OFF, CTS/RTS, RTS-toggle
    • Console (RJ45 10-pin): RS-232 serial console port
    • USB: (2) USB 3.1 Gen 1 (Type A)
    • Micro XSD: SD/SDHC/SDXC socket
  • Cellular (when used with Digi CORE plug-in LTE modem):
    • CORE module support: Digi CORE® module compliant socket (see accessories, G4 module recommended)
    • Certifications: Cellular: Visit www.digi.com/resources/certifications for latest certifications
    • LTE (G4) with Digi CORE plug-in LTE modem 1002-CMG4:
      • LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B38, B40, B41
      • 3G: B1, B2, B4, B5, B6, B8, B19
      • 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
    • Connectors: (2) 50 Ω SMA (center pin: female)
    • SIM slots: (2) Mini-SIM (2FF)
    • SIM security: Secured in cellular module
  • Physical:
    • Dimensions (L x W x H): 25.5 cm x 44.5 cm x 4.445 cm (10.4 in x 17.5 in x 1.75 in)
    • Package dimensions:
      • 35.5 cm x 20.4 cm x 6.7 cm (13.98 in x 8.03 in x 2.64 in)
      • Ships with attachable 19” rack ears
    • Package weight: 5.26 kg (11.6 lb)
    • Status LEDs:
      • System: Power 1, Power 2, Fan 1, Fan 2, Sys Fan, User, WWAN Signal, WWAN Service
      • Per port: Ethernet, Serial, Console, USB
  • Power requirements:
    • Power input: Single or dual AC input (C13 connector), use with appropriate National Mains cords
    • Power consumption: Single or dual field replaceable, 100 to 240 VAC, ~50 to 60 Hz , 2.4 A max for each power supply
    • Replaceable power supply: Product supports redundant replaceable power supplies
  • Environmental:
    • Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
    • Storage temperature: 0 °C to 70 °C (32 °F to 158 °F)
    • Relative humidity: 5% to 95% (non-condensing)
  • Approvals:
    • Safety: IEC 62368-1, IEC 60950-1, CB, EN 62311, UL 62368-1, UL 60950-1
    • Emissions / Immunity: CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR 32, CISPR 35
  • Warranty and support:
    • Product warranty: 5-year for base Connect EZ device, 3-year for Digi CORE® plug-in LTE modem
    • Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included
  • Software and management:
    • Remote management: Digi Remote Manager®, SNMP v3 (user installed/managed); 1-year LifeCycle Assurance with Digi Remote Manager Premier included
    • Local management: Digi Navigator™ discovery and configuration tool, Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
    • Management / troubleshooting tools: Digi Navigator discovery and configuration tool, FTP client, SCP, protocol analyzer with PCAP for Wireshark, event logging with syslog and SMTP client, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
    • Memory: 256 MB RAM, 4 GB Flash
    • Authentication: TACACS+, LDAP, Enterprise RADIUS
What's in the box
  • Digi Connect EZ 32 Cellular — serial server, 32-port, RS-232, CMG4, EU power cord
  • Digi CORE plug-in LTE modem (1002-CMG4-GLB)
  • Power supply with EU power cord

1-877-912-3444

Contact us
8 a.m. to 5 p.m. (CST)
International contact options

Find Local Distributors

Digi distributors provide in-country sales and support.
Global distributor search

Get Digi Expert Support

Support for customers that require hands-on assistance.
Expert support

Accessories & Related Products

Accessories
SKU: 1002-CMG4-GLB Digi CORE plug-In LTE modem; Global LTE Cat 4, 3G / 2G fallback
  • LTE Cat 4 with 3G/2G fallback (Global)
  • Industrial temperature: -40° C to 70° C (-40° F to 158° F)
  • Cellular certifications: PTCRB, AT&T, Verizon, Telus, US, Canada, Europe
1002-CMG4-GLB HOW TO BUY
SKU: 76000926 Antenna - Cellular, 3G/4G/LTE (indoor) 76000926 HOW TO BUY
SKU: 76002118 Antenna - dipole, 4G, magnetic mount, 1 meter cable 76002118 HOW TO BUY

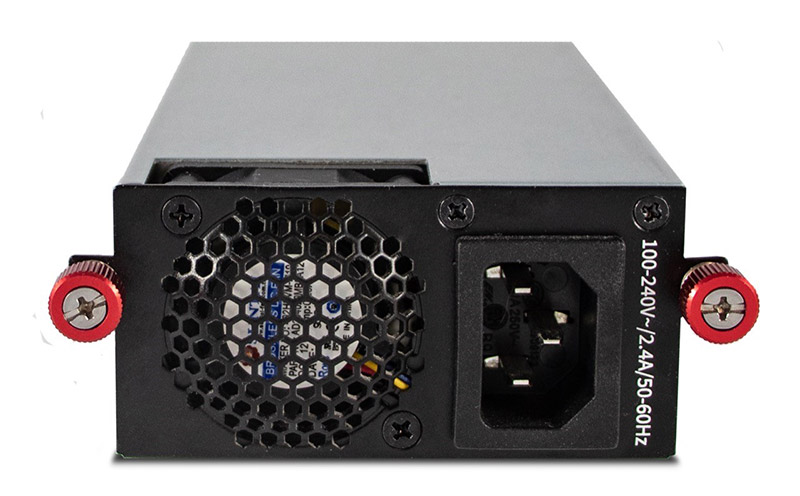

SKU: EZPS-AC Second, spare or replacement power supply for Digi Connect EZ 16 or Digi Connect EZ 32 EZPS-AC HOW TO BUY
