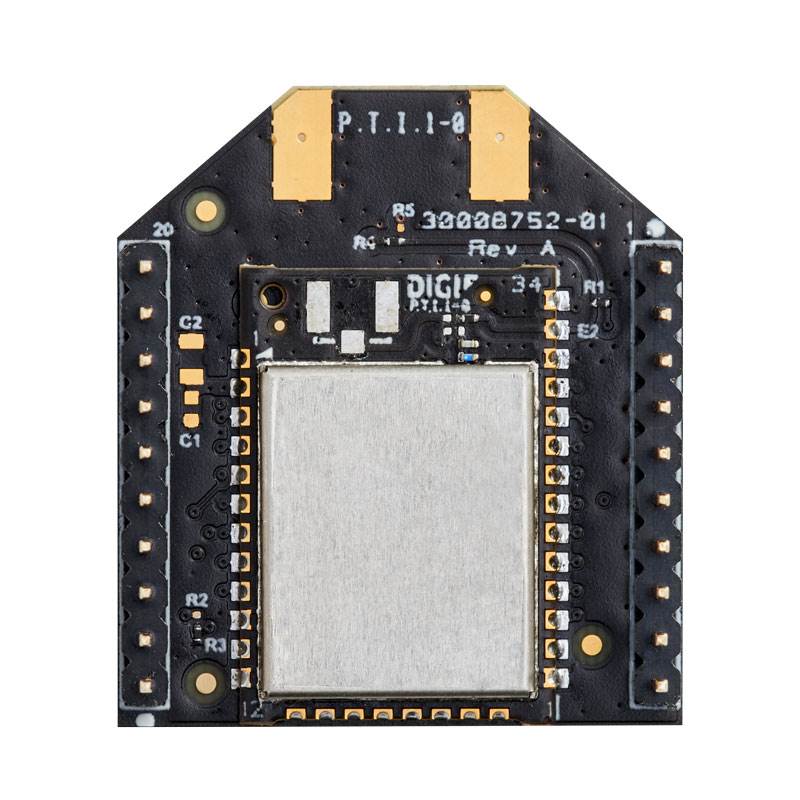

Digi XBee XR 900 MHz DigiMesh TH with dipole antenna, U.FL connector

Related to: Digi XBee XR 900


Digi XBee XR 900

  • Digi XBee XR 900 MHz DigiMesh TH with U.FL connector
    • Processor: EFR32FG13P231F512 transceiver at 40 MHz
    • Frequency band: 902 MHz to 928 MHz
    • Form factor: Through-hole (TH)
    • Weight: 3.1 grams (0.109 oz)
    • Dimensions: 2.438 cm x 2.761 cm (0.960 in x 1.087 in)
  • Performance:
    • RF data rate: Low data rate: 10 kbps; middle data rate: 110 kbps; high data rate: 250 kbps
    • UART data rate: up to 921.6 kbps
    • SPI data rate: up to 5 Mbps
    • Line-of-sight range*: Up to 17 km (10.5 mi) rural, up to 3 km (1.8 mi) urban
    • Indoor range: Up to 140 m (460 ft)
    • Transmit power: up to 19 dBm ERP
    • Receiver sensitivity: Low data rate: −113 dBm; middle data rate: −108 dBm; high data rate: −104 dBm
    • Receiver blocking: Below 900 MHz and above 930 MHz; >70 dB
  • Features:
    • Digital I/O: 15
    • Available channel frequencies: Low and middle data rate: 101**; high data rate: 50
    • Analog inputs: (4) 10-bit ADC inputs
    • Operating temperature: −40 °C to 85 °C (−40 °F to 185 °F)
    • Networking topologies: Point-to-point/point-to-multipoint, DigiMesh®
    • Security: 256-bit AES Encryption
  • Power:
    • Supply voltage: 2.1 - 3.6 VDC, 3.3 VDC typical
    • Transmit current: 110 mA
    • Receive current: 28 mA
    • Sleep current: 1.2 uA
  • Regulatory approvals**:
    • FCC (USA): Yes
    • ISED (CANADA): Yes
    • ROHS: Yes

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
**Visit product certifications for latest updates.
