Digi XBee® DigiMesh® 2.4

NRND

Wireless Mesh Networking RF Module


  • No configuration needed for out-of-the-box RF communications
  • Common Digi XBee footprint for a variety of RF modules
  • Simple topology to deploy and grow
  • 2.4 GHz for worldwide deployment
  • Low-power Digi XBee or extended-range XBee-PRO (pin/over-the-air compatible)
  • Multiple antenna options
  • Outdoor RF line-of-sight range up to 2 miles (3.2 km)* with high-gain antennas
  • DigiMesh® peer-to-peer mesh networking protocol

Digi XBee DigiMesh® 2.4 delivers end-point device connectivity with a globally deployable 2.4 GHz transceiver. These modules use the innovative DigiMesh® networking protocol. This innovative, peer-to-peer protocol offers users added network stability through self-healing, dense network operation and with a very low housekeeping overhead, it is capable of extending the operational life of battery dependent networks.

Digi XBee modules are ideal for low-power, low-cost applications. Digi XBee-PRO modules are power-amplified versions of Digi XBee modules for extended-range applications. Part of the Digi XBee family of RF products, these modules are easy-to-use, share a common hardware footprint, and are fully interoperable with other XBee products utilizing the same technology. Module users have the ability to substitute one Digi XBee for another with minimal development time and risk.

The updated Digi XBee S2C DigiMesh® 2.4 module is built with the SiliconLabs EM357 SoC and offers improved power consumption, support for over-the-air firmware updates, and provides an upgrade path to IEEE 802.15.4 or ZigBee® mesh protocols if desired.

It was a 15-minute discussion with IT to get us approved and live in one of the hospitals.

Chris Hermann, CEO, Clean Hands Safe Hands

Read the full story

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
RF Support Services

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
XBee S2C DigiMesh 2.4 Development Kit

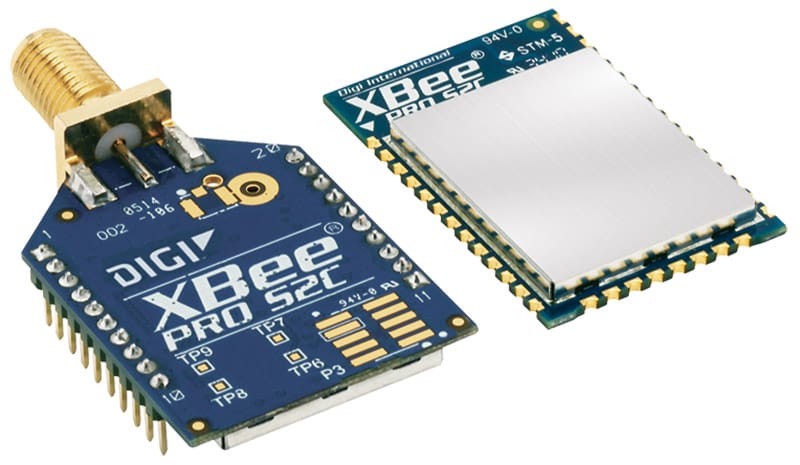

XBee S2C DigiMesh 2.4 Modules
SKU: XB24CDMPIT-001 XBee S2C DigiMesh 2.4 through-hole module w/ PCB antenna XB24CDMPIT-001 How to Buy
SKU: XB24CDMSIT-001 XBee S2C DigiMesh 2.4 through-hole module w/ RPSMA connector XB24CDMSIT-001 How to Buy
SKU: XB24CDMUIT-001 XBee S2C DigiMesh 2.4 through-hole module w/ U.fl connector XB24CDMUIT-001 How to Buy
SKU: XB24CDMWIT-001 XBee S2C DigiMesh 2.4 through-hole module w/ wire antenna XB24CDMWIT-001 How to Buy
SKU: XB24CDMRIS-001 XBee S2C DigiMesh 2.4 SMT module w/ RF Pad connector XB24CDMRIS-001 How to Buy
SKU: XB24CDMPIS-001 XBee S2C DigiMesh 2.4 SMT module w/ PCB antenna XB24CDMPIS-001 How to Buy
SKU: XB24CDMUIS-001 XBee S2C DigiMesh 2.4 SMT module w/ U.fl connector XB24CDMUIS-001 How to Buy
Development Boards
SKU: 76000956 Grove Connector Development Board - XBee, through-hole sockets 76000956 How to Buy
SKU: XBIB-C-SMT Development board - XBee 3, USB-C, surface-mount socket XBIB-C-SMT How to Buy
SKU: XBIB-CU-TH Development board - XBee 3, USB-C, through-hole sockets XBIB-CU-TH How to Buy
Digi XBee Multi Programmer
SKU: XBEE-MP-SMT Digi XBee Multi Programmer, surface mount (SMT) XBEE-MP-SMT How to Buy
SKU: XBEE-MP-TH Digi XBee Multi Programmer, through-hole (TH) XBEE-MP-TH How to Buy
SKU: XBEE-MP-SMT-PCB Digi XBee Multi Programmer, surface mount (SMT) printed circuit board XBEE-MP-SMT-PCB How to Buy
SKU: XBEE-MP-TH-PCB Digi XBee Multi Programmer, through-hole (TH) printed circuit board XBEE-MP-TH-PCB How to Buy
Antennas
SKU: A24-HABUF-P5I Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, U.FL female, articulating. A24-HABUF-P5I How to Buy
SKU: A24-HASM-450 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-450 How to Buy
SKU: A24-HASM-525 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-525 How to Buy
SKU: DC-ANT-24DT Antenna - Wi-Fi, table-top mount, 2450 Mhz, 0.5 m cable DC-ANT-24DT How to Buy
Services and Support
SKU: DG-PSIC-CUST Implementation Planning DG-PSIC-CUST How to Buy
SKU: DG-PSOS-CUST On-site and Troubleshooting DG-PSOS-CUST How to Buy
SKU: DG-PSPP-CUST Installation Services DG-PSPP-CUST How to Buy
SKU: DG-PSSS-RF Site Survey - RF DG-PSSS-RF How to Buy
  Digi XBee S2C DigiMesh® 2.4 Digi XBee-PRO S2C DigiMesh® 2.4
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EM357 SoC
DATA RATE RF 250 Kbps, Serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 200 ft (60 m) Up to 300 ft (90 m)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 4000 ft (1200 m) Up to 2 miles (3200 m)
TRANSMIT POWER 3.1 mW (+5 dBm) / 6.3 mW (+8 dBm)boost mode 63 mW (+18 dBm)
RECEIVER SENSITIVITY (1% PER) -100 dBm / -102 dBm boost mode -101 dBm
FEATURES
SERIAL DATA INTERFACE UART, SPI
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Through-Hole, Surface Mount
HARDWARE S2C
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 15
ANTENNA OPTIONS Through-Hole: PCB Antenna, U.FL Connector, RPSMA Connector, or Integrated Wire
SMT: RF Pad, PCB Antenna, or U.FL Connector
OPERATING TEMPERATURE -40º C to +85º C
DIMENSIONS (L X W X H) AND WEIGHT Through-Hole: 0.960 x 1.087 in (2.438 x 2.761 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
Through-Hole: 0.960 x 1.297 in (2.438 x 3.294 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
NETWORKING AND SECURITY
PROTOCOL XBee 802.15.4
UPDATABLE TO DIGIMESH® PROTOCOL Yes
UPDATABLE TO ZIGBEE PROTOCOL Yes
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ENCRYPTION 128-bit AES
RELIABLE PACKET DELIVERY Retries/Acknowledgements
FILTRATION OPTIONS PAN ID, Channel, and 64-bit addresses
CHANNELS 16 channels 15 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.1 to 3.6V 2.7 to 3.6V
TRANSMIT CURRENT 33 mA @ 3.3 VDC / 45 mA boost mode 120 mA @ 3.3 VDC
RECEIVE CURRENT 28 mA @ 3.3 VDC / 31 mA boost mode 31 mA @ 3.3 VDC
POWER-DOWN CURRENT <1 μA @ 25º C <1 μA @ 25º C
REGULATORY APPROVALS**
FCC, IC (NORTH AMERICA) Yes Yes
ETSI (EUROPE) Yes No
RCM (AUSTRALIA AND NEW ZEALAND) No (Coming soon) No (Coming soon)
TELEC (JAPAN) No (Coming soon) No (Coming soon)
Line Art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.

**Visit https://www.digi.com/resources/certifications for latest certifications

Platform Legacy XBee DigiMesh® 2.4 Legacy XBee-PRO DigiMesh® 2.4 Legacy XBee-PRO DigiMesh® 2.4
(Int'l)
Performance
RF Data Rate 250 Kbps
Indoor/Urban Range 100 ft (30 m) 300 ft (90 m) 200 ft (60 m)
Outdoor/RF Line-of-Sight Range 300 ft (90 m) 1 mile (1.6 km) 2500 ft (750 m)
Transmit Power 1 mW (+0 dBm) 63 mW (+18 dBm) 10 mW (+10 dBm)
Receiver Sensitivity (1% PER) -92 dBm -100 dBm -100 dBm
Features
Serial Data Interface 3.3V CMOS serial UART
Configuration Method AT & API
Frequency Band 2.4 GHz ISM
Interference Immunity DSSS (Direct Sequence Spread Spectrum)
Serial Data Rate Up to 115.2 Kbps
ADC Inputs (6) 10-bit ADC inputs
Digital I/O 13
Antenna Options Chip, Wire whip, U.FL, RPSMA
Networking & Security
Encryption 128-bit AES
Reliable Packet Delivery Retries/Acknowledgments
Addressing Options PAN ID, Channel, 64-bit address
Channels 16 12 12
Power Requirements
Supply Voltage 2.8 – 3.4VDC
Transmit Current 45 mA 250 mA (Wire, Chip, U.FL),
340 mA (RPSMA)
150 mA (Wire, Chip, U.FL),
180 mA (RPSMA)
Receive Current 50 mA 55 mA 55 mA
Power-Down Current <50 uA
Regulatory Approvals**
FCC (USA) Yes
IC (Canada) Yes
ETSI (Europe) Yes No Yes
C-TICK (Australia) Yes
Telec (Japan) Yes No Yes
ANATEL (Brazil) Yes

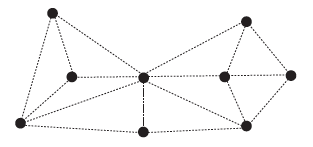

DigiMesh®

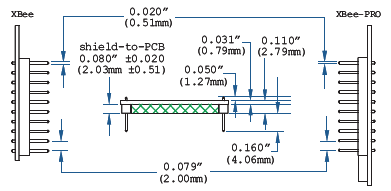

Side

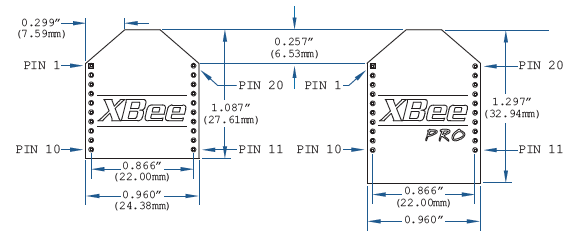

Top

**Visit https://www.digi.com/resources/certifications for latest certifications
