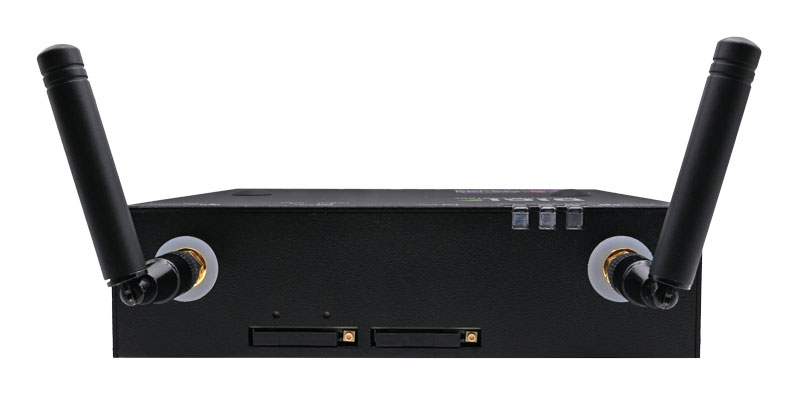

Industrial Controller — Cellular, Digi Axess + Automation Licenses with antennas

This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements.

Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development.

Z45 Industrial Controller

  • Integrated interfaces for analog, digital, hex and pulse information processing
  • Cellular technology:
    • LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8
    • Multi-carrier, auto-configuration
    • Dual-SIM (2FF)
    • DL MIMO/Rx diversity support
    • (1) 50 Ω SMA (center pin: male)
  • Approvals:
  • Position location: GPS, GLONASS
  • Host interfaces:
    • 10/100 Ethernet RJ-45
    • (1) RS-232 (terminal block)
    • (1) RS-485 (terminal block)
    • (1) Full-speed USB (Type A)
    • (1) High-speed micro-USB OTG
  • Input / output:
    • (4) User configurable, digital/analog inputs (0 - 5 V / 4 - 20 mA)
    • (2) Digital outputs (expandable with Z1201 I/O Module)
  • Memory:
    • 128 MB DDR2 RAM
    • 256 MB SLC NAND flash
    • (1) MicroSD Slot (externally accessible)
  • Platform:
    • Linux 4.xx operating system
    • Atmel ARM9 processor
    • Web Manager 2.0
    • Digi Axess
    • Automation application
  • Power: 9 - 24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)
  • Operating temperature: −30° to 70° C (−22° to 158° F)
  • Dimensions: 13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)
  • Warranty: 3-year standard warranty
  • Available accessories:
    • Multifunction I/O Controller — CTK-Z1201
    • Antenna — external, MIMO 2 x 4G LTE / 3G / 2G, GPS, 1 m cable, low-profile, SMA — 76002123
    • Antenna — pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125
    • Antenna — multiband, 4G / 3G / 2G, GPS, flex/strip, SMA — 76002126
    • Power supply — wall; US 100 - 240 VAC / 50 - 60 Hz, 12 VDC, 1 A 0.25 in S/T — 76002127
    • Power supply — DIN mount; out: 40 W, 24 VDC 1.7 A; in: 85 ~ 264 VAC — 76002128
    • Power supply — DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100 - 240 VAC 50/60 hz — 76002129
    • Mount kit — DIN rail — 76002130
What's in the box?
  • Industrial Controller — Cellular, Digi Axess + Automation Licenses with antennas
    • Antenna — pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125
    • DIN rail clip
*Accessories not included with Z45 Industrial Controller models unless otherwise noted.
