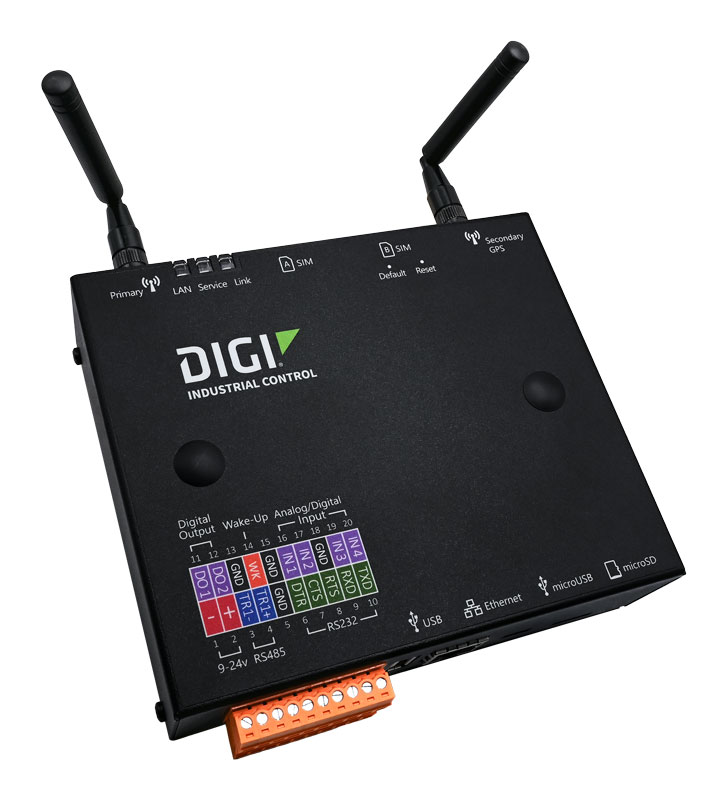

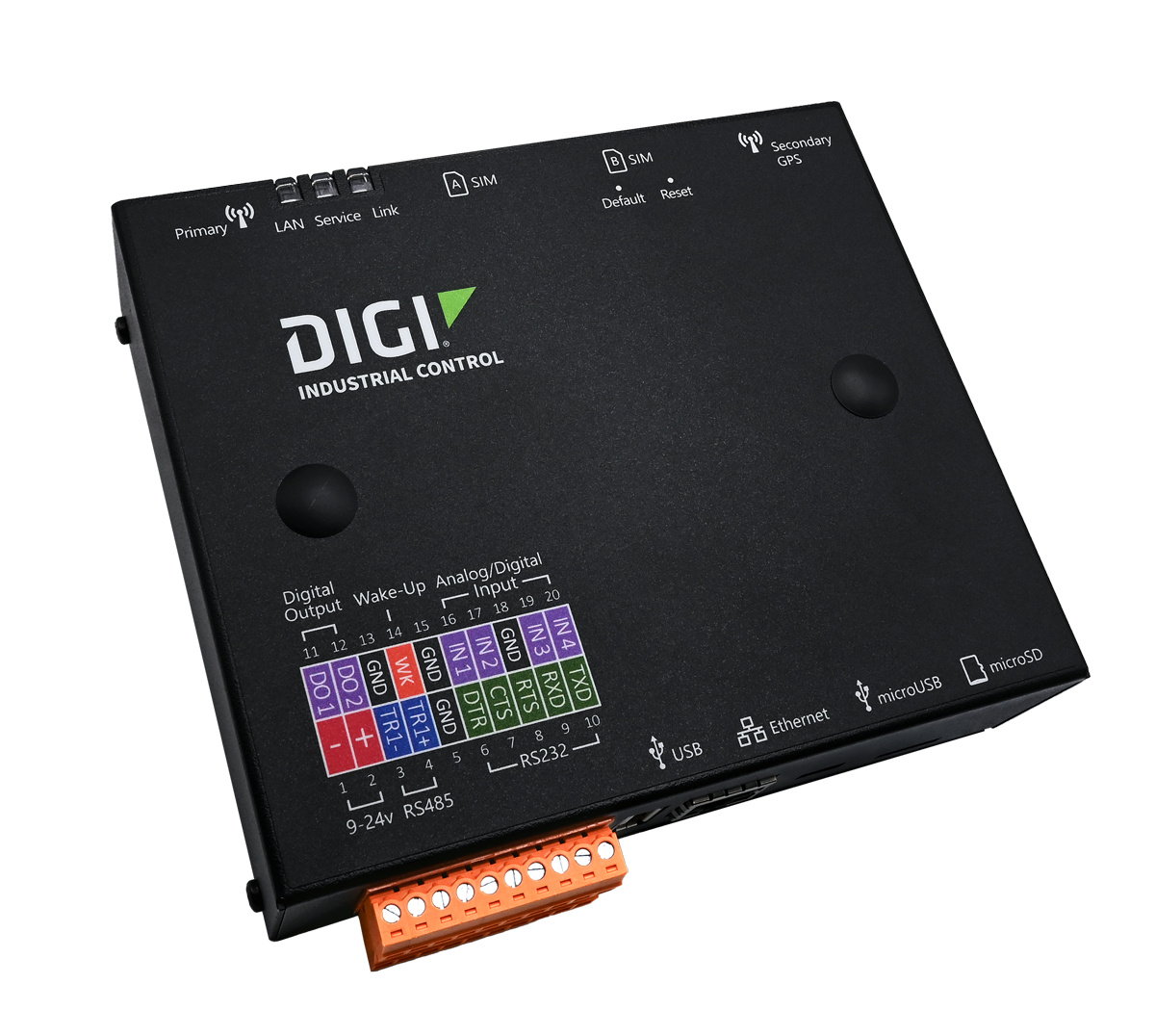

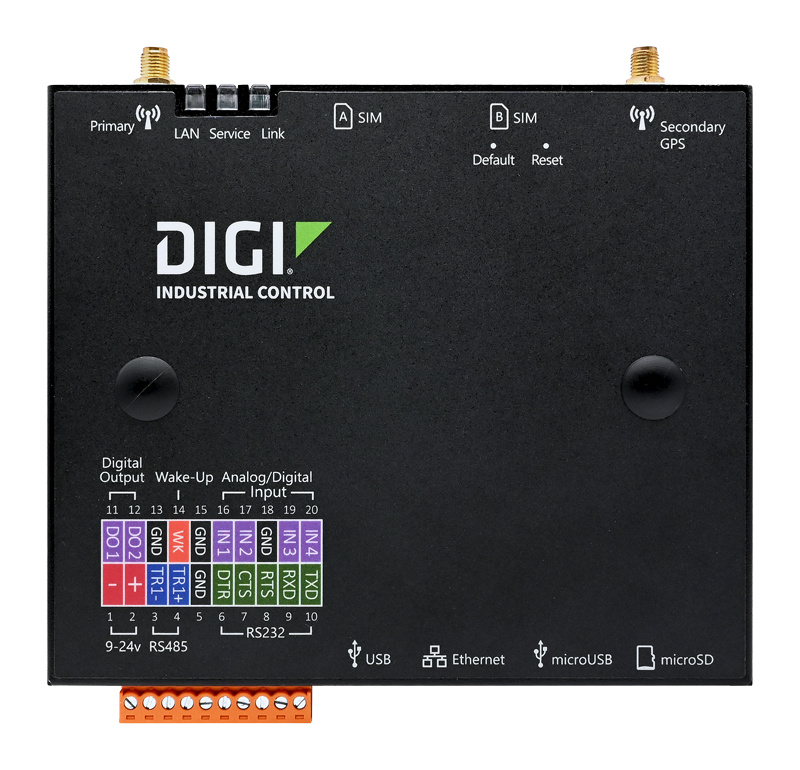

Z45 Industrial Controllers

The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications


  • Integrated interfaces for analog, digital, hex and pulse information processing
  • Modbus client and server configurations
  • Built-in digital and analog input, digital output
  • Networks connectivity over USB, Ethernet and serial interfaces
  • On-board dashboard display with gauges, indicators and charts
  • Self-provisioning devices report to SkyCloud for complete visibility of assets
  • LTE coverage on all bands for North American carriers with 3G HSPA fallback
  • Automatic carrier provisioning and dual-SIM failover support

This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements. Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development.

Automation Control is a software PLC type application based on an intuitive development environment. Monitoring and control applications are quickly deployed with a no-code, menu driven toolset that gets maintainable solutions to market faster and at a lower cost than legacy PLC approaches.

Z45 Industrial Controllers interface with a wide range of sensors to bring data seamlessly and quickly into the system for processing. Standard support includes current and voltage for analog data, wet and dry contacts, Modbus RTU and TCP, and other vendor specific protocols.

The Z45 controller securely and efficiently moves data over the network. The controllers are provisioned for use on domestic and international carriers, with Cellular, Ethernet and Wi-Fi communication options available. Whether the Z45 is operating as a communications device or as an application controller, SkyCloud is available to provide a detailed visualization of network, platform, and application operations. For specialized applications requiring custom coding the Z45 supports a downloadable cross compile development environment, a tested source distribution, and a fully documented tool chain.

AUTOMATION CONTROL — NO CODE, WEB-BASED LOGIC CONFIGURATION

The Z45 Automation Control Application offers the first platform where you can develop custom solutions to address complex problems without low level programming. Web-based configuration and solutions are developed on the controller, and automatically deploy from the controller to the cloud.

The no-code, rapid development software package allows for deployment of monitoring and control applications faster, and at a lower cost than legacy PLC toolsets.

“LANGUAGE-LESS PLATFORM”

No programming required. Our Automation Control platform allows you to address complex problems without low level programming.

COMPLEX FORMULAS AND LOGIC

Built-in function and logical operators give you PLC-like control at the edge with:
– Level thresholds with hysteresis
– Control and monitoring at set thresholds
– Custom alarms and messages

RAW DATA INTERFACES

“Plug and Play” functionality for standard data types including Pulse, Digital, Analog, MODBUS and more.

MANAGE FROM SKYCLOUD — LET DIGI STAND WATCH

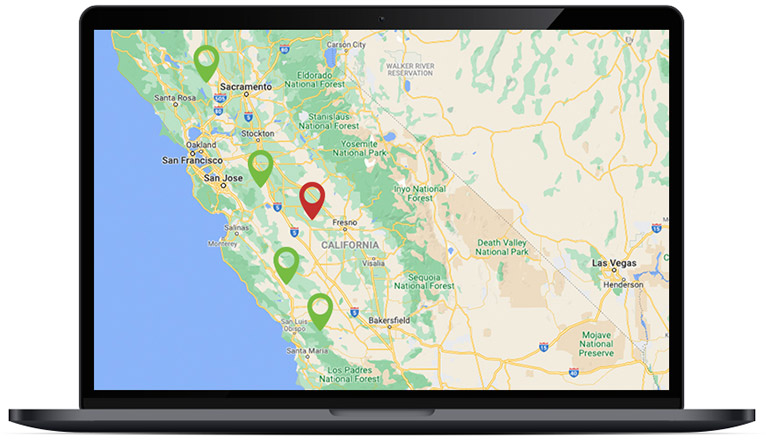

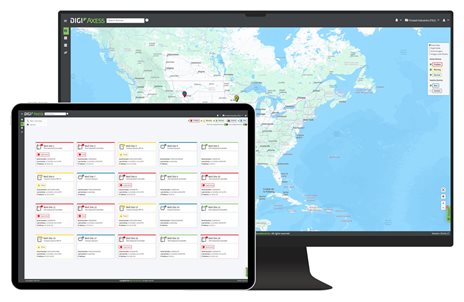

SkyCloud provides a complete snapshot of your network and the equipment behind it. Know as much as you want, or as little as necessary, in order to make informed decisions. Sensor data is processed at the edge and passed to SkyCloud to offer a central point from which to manage all of your assets. See real-time actionable data with the ability to customize reports and alarms.

Digi eliminates the dependency on a server to perform network-wide control. Each endpoint is an autonomous endpoint capable of local monitoring and control. You are in control of the data and how it is used.


  • Take action on real-time data with phone and cloud reporting
  • Define and monitor critical points of the system
  • Customize reports and alarms
  • Receive alerts by text message and email during critical events
  • Gain insights with access to historical data and automated reporting

Related Resources

5 Benefits of Smart Water Management 5 Benefits of Smart Water Management There are 5 key ways in which this technology can make a difference in your operations. VIEW PDF Solutions for Precision, Automation, Sustainability, and Safety in Agriculture Solutions for Precision, Automation, Sustainability, and Safety in Agriculture Agricultural operations are complex and resource-intensive, and farming operations are continually challenged to reduce that... WATCH VIDEO Precision Agriculture Case Study Precision Agriculture Case Study Automation of field operations with Digi led to improved safety, reduced staff hours, lower water usage, precise water and soil data, healthier crops, higher crop yields and greater profits. VIEW PDF Monitoring Industrial Controls Made Simple Monitoring Industrial Controls Made Simple Digi’s Z45 Industrial Controllers coupled with their sensors provided the aquarium with a system they could use to remotely monitor their sensitive installation. VIEW PDF Introducing the Z45 Industrial Controller Introducing the Z45 Industrial Controller The Digi Z45 family of industrial controllers combines the capabilities of programmable logic controllers (PLCs) and SCADA... WATCH VIDEO  Addressing System Management Challenges in Oil and Gas Operations Addressing System Management Challenges in Oil and Gas Operations How centralized management can optimize your operations VIEW PDF Well Water Management Control Well Water Management Control Digi’s well water system manages a wide range of motor sizes through on-board contactors or standard interface connections to variable frequency drives. VIEW PDF Oil and Gas Management System Oil and Gas Management System Digi’s oil and gas management system provides a single controller solution to quickly and reliably address a wide range of applications. VIEW PDF Industrial Generator Management Industrial Generator Management Power Monitoring and Control VIEW PDF Digi Z45 Industrial Controllers Datasheet Digi Z45 Industrial Controllers Datasheet The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications VIEW PDF

All related resources

Get a Personalized Quote

Give us your information and we'll reach out to you

SPECIFICATIONS Z45 INDUSTRIAL CONTROLLERS
CELLULAR TECHNOLOGY
(available on applicable models)
LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41;
3G: B1, B2, B3, B4, B5, B8
Multi-carrier, auto-configuration
Dual-SIM (2FF)
DL MIMO/Rx diversity support

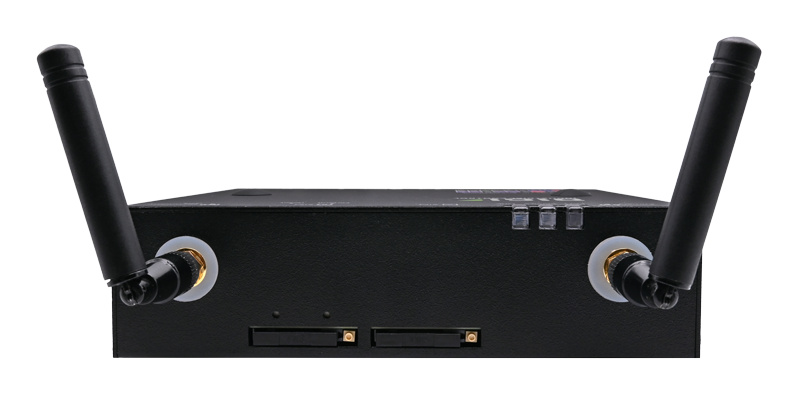

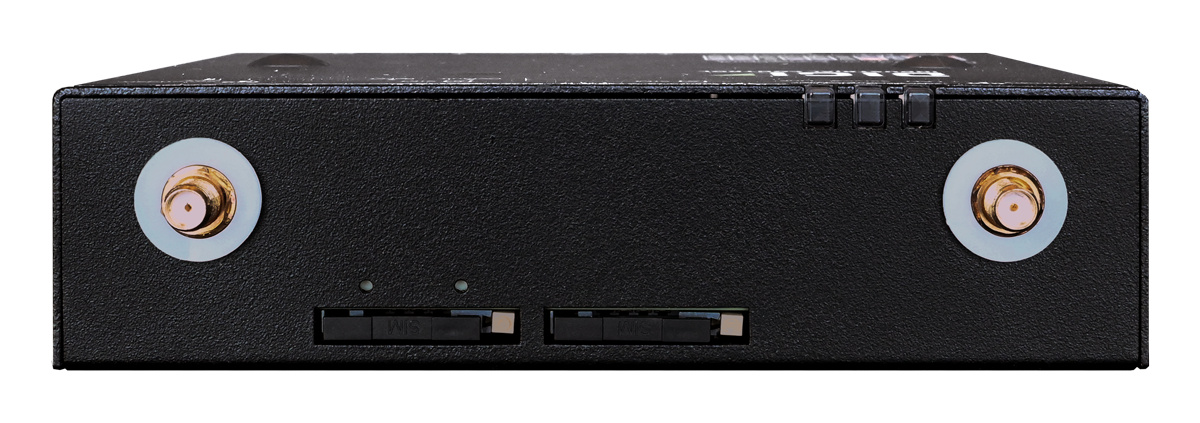

(1) 50 Ω SMA (center pin: male)
WI-FI TECHNOLOGY
(available on applicable models)
802.11b/g/n (2.4 GHz)
64/128-bit WEP, WPA/WPA2, WPA-PSK, WPA2-PSK
APPROVALS FCC, IC, CE, PTCRB
Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus;
visit www.digi.com/resources/certifications for latest cellular certifications
POSITION LOCATION GPS, GLONASS

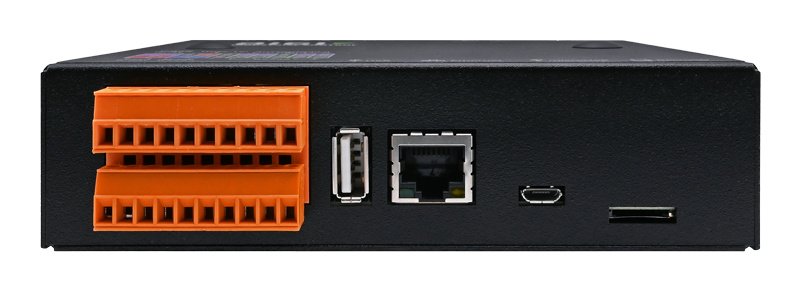

HOST INTERFACES 10/100 Ethernet (RJ-45)
(1) RS-232 (terminal block)
(1) RS-485 (terminal block)
(1) Full-speed USB (Type A)
(1) High-speed micro-USB OTG
INPUT / OUTPUT (4) User configurable, digital/analog inputs (0-5 V / 4-20 mA)
(2) Digital outputs (expandable with Z1201 I/O Module)
MEMORY 128 MB DDR2 RAM
256 MB SLC NAND flash
(1) MicroSD slot (externally accessible)
PLATFORM Linux 4.xx operating system
Atmel ARM9 processor
Web Manager 2.0
SkyCloud services
Automation application
POWER Input: 9 – 24 VDC
Power: 190 mA (typical – Ethernet not connected, varies with signal level)
ENVIRONMENTAL Operating temperature: -30° to 70° C (-22° to 158° F)
Humidity: 90% non-condensing
DIMENSIONS 13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in), excluding terminal block and DIN clip
WEIGHT 0.29 kg (0.65 lb)
WARRANTY 3-year standard warranty
