Z1201 I/O Module

Providing the flexibility required to serve a wide range of digital/analog input and industrial-rated output control requirements


  • Versatile industrial-rated I/O module
  • 8 open controller output options
  • 8 multi-mode inputs configurable to analog, digital or pulse
  • RS-485 communications
  • Compatible with industry standard sensors ranging from 0-5 VDC, 4-20 mA or 0-10 VDC
  • Switch selectable pull-ups
  • Switch selectable RS-485 termination
  • Daisy-chain power and communications to support multiple I/O modules and other RS-485 devices
  • DIN rail mountable
How to Buy Support

Designed specifically for I/O expansion of Z45 Industrial Controllers, the Z1201 is ideal for industrial automation projects with analog, digital and/or pulse sensors. Manage everything from indicator lamps to motor start/stop operations with the Z1201 I/O Module and our Automation Control Application. The module easily interfaces with most any 0-5 VDC, 4-20 mA current loop or 0-10 VDC sensor.

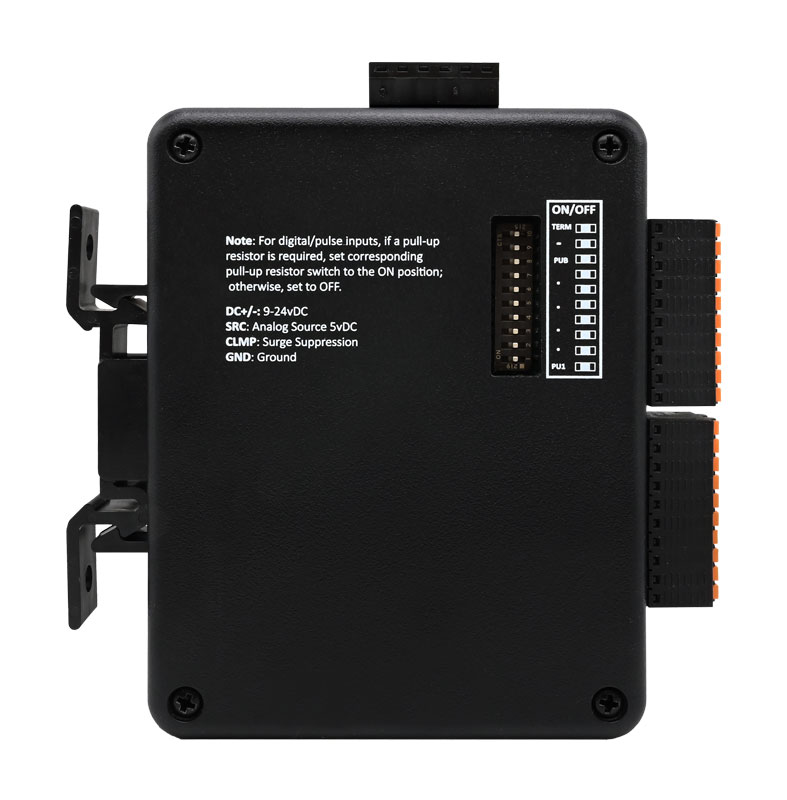

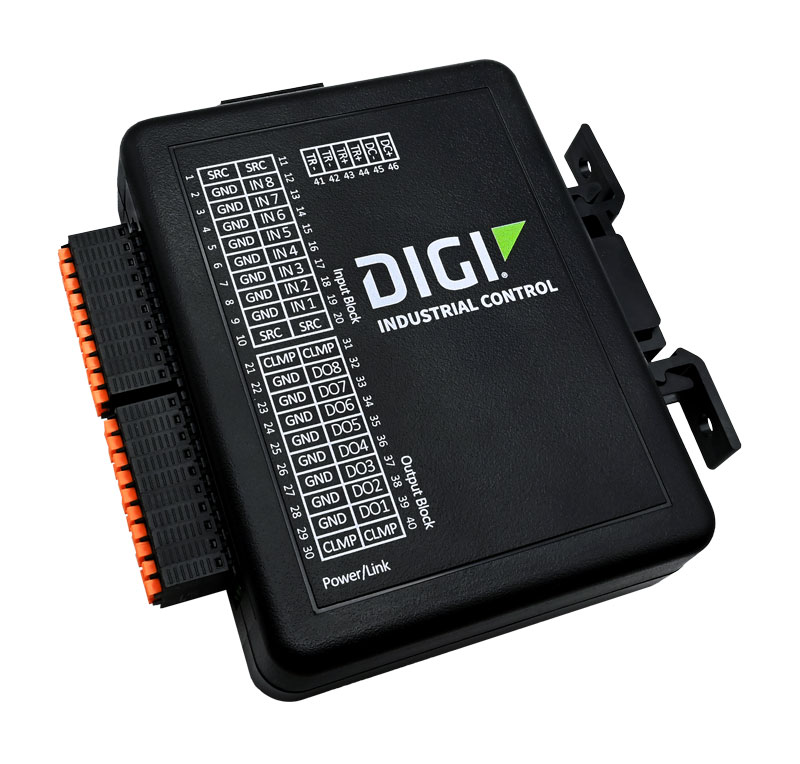

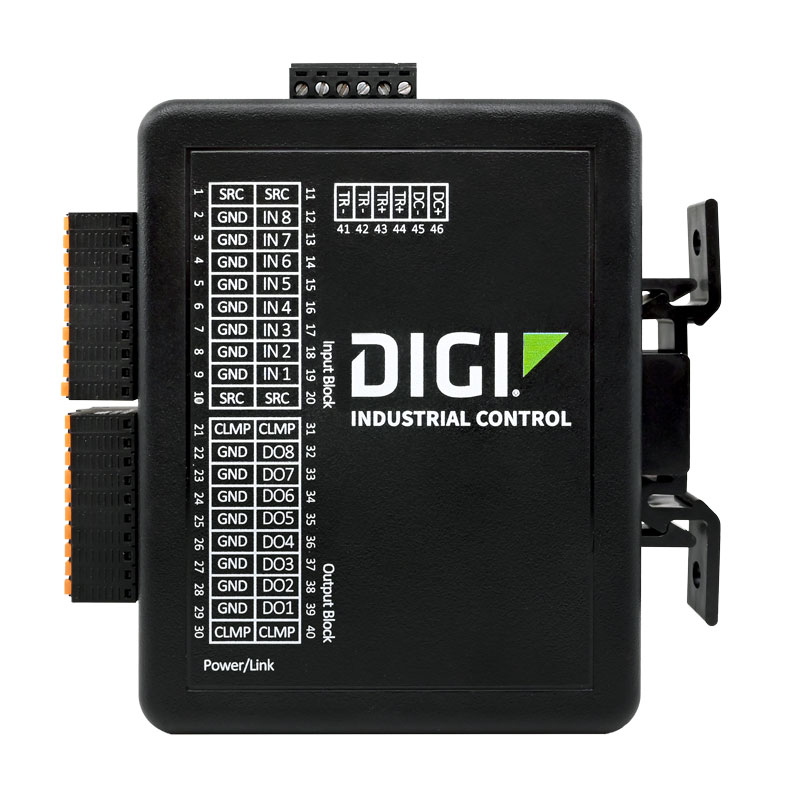

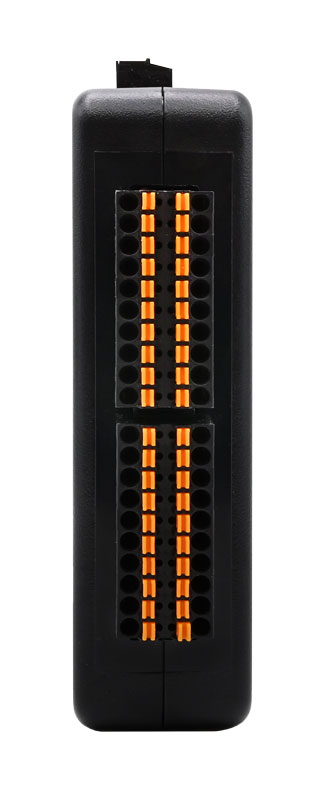

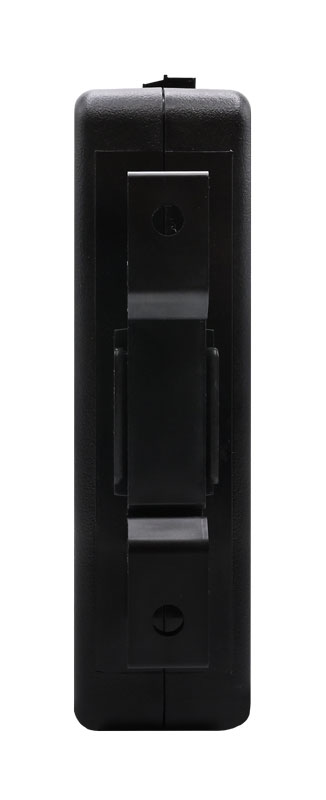

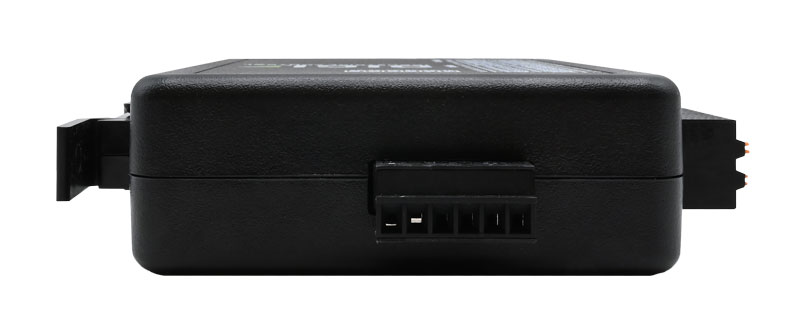

The Z1201 is a 16-pin, multifunction I/O module consisting of 8 open collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation.

Data communication between Z1201 modules and Z45 Industrial Controllers is provided by a 2-wire RS-485 connection with addressing and individual pin function established by program control using our Automation Control Application.

Z1201 modules can be daisy-chained with power and communication connections for expansion beyond a single I/O module.

Download datasheetDownload datasheet User manualsUser manuals & guides Related productsRelated products Add to compareAdd to compare

Related Resources

5 Benefits of Smart Water Management 5 Benefits of Smart Water Management There are 5 key ways in which this technology can make a difference in your operations. VIEW PDF Solutions for Precision, Automation, Sustainability, and Safety in Agriculture Solutions for Precision, Automation, Sustainability, and Safety in Agriculture Agricultural operations are complex and resource-intensive, and farming operations are continually challenged to reduce that... WATCH VIDEO Introducing the Z45 Industrial Controller Introducing the Z45 Industrial Controller The Digi Z45 family of industrial controllers combines the capabilities of programmable logic controllers (PLCs) and SCADA... WATCH VIDEO Well Water Management Control Well Water Management Control Digi’s well water system manages a wide range of motor sizes through on-board contactors or standard interface connections to variable frequency drives. VIEW PDF Oil and Gas Management System Oil and Gas Management System Digi’s oil and gas management system provides a single controller solution to quickly and reliably address a wide range of applications. VIEW PDF Industrial Generator Management Industrial Generator Management Power Monitoring and Control VIEW PDF Digi Z1201 I/O Module Datasheet Digi Z1201 I/O Module Datasheet Providing the flexibility required to serve a wide range of digital/analog input and industrial-rated output control requirements VIEW PDF

All related resources

Related Products

Z45 Industrial Controllers Z45 Industrial Controllers Digi Connect Sensor+ Digi Connect Sensor+

Get a Personalized Quote

Give us your information and we'll reach out to you

SPECIFICATIONS Z1201 I/O MODULE
GENERAL FEATURES RS-485, 2-wire interface
8 open collector outputs, 30 VDC max
8 multi-mode inputs, 30 VDC max
Pulse counting
Analog inputs
Digital outputs
INPUTS Maximum input voltage: 30 VDC
Input logic, Low </= 1, High >/= 4
Sample rate: 512 Hz
CONFIGURABLE I/O: DIGITAL OUTPUTS Open collector output rating: 30 V 350 mA single output, 250 mA with all outputs on
Max update frequency: 60 Hz
Pulse width modulation: 7.8 KHz, 8-bit resolution
CONFIGURABLE I/O: ANALOG INPUTS Measurable range: 0-5 VDC
Read frequency: 20 Hz
Analog input A/D conversion: 12-bit with 10 mV
CONFIGURABLE I/O: PULSE INPUTS Max pulse width: 3 msec
Max count stored between reads: 32,767
CONTROL INTERFACE RS-485 2-wire
Protocol: Proprietary Automation Control
POWER Input: 9-24 VDC (external source)
Consumption: 100 mA (excluding active inputs)
ENVIRONMENTAL Operating temperature: -30° to 70° C (-22° to 158° F)
Humidity: 90% non-condensing
MOUNTING 35 mm DIN
DIMENSIONS 4.22 x 2.37 x 1.312 in (10.719 x 6.02 x 3.33 cm), excluding terminal block and DIN clip
WEIGHT 0.29 kg (0.63 lb), without power adapter
WARRANTY 1-year standard warranty
