Digi Connect Sensor+ with Digi Remote Manager

Easy-to-install and roll-out ready, battery-powered cellular gateway solution


  • Weatherproof enclosure with wide temperature range makes it ideal for use in all environments
  • Configurable read and report intervals with threshold and delta alarms
  • Multiple configurable I/O make it possible to connect to multiple sensor types
  • Modbus protocol support
  • External, configurable power outputs eliminate the need for sensor power supplies
  • Global cellular coverage
  • Digi Remote Manager® platform for easy management
  • Digi Connect Sensor+ with Digi Axess is now available

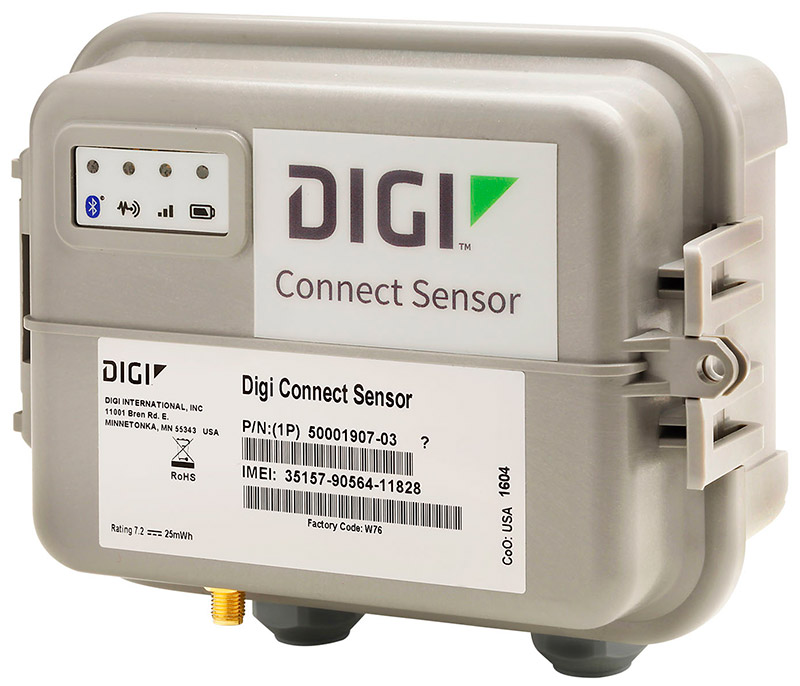

Digi Connect® Sensor+ is a fully integrated, battery powered cellular gateway with I/O for connecting to a wide range of external sensors. Designed to work in rugged industrial environments, the Connect Sensor+ is the ideal solution for companies looking to add remote monitoring and diagnostics in places where power is not easily available. Its easy installation, reliability and low data usage make remote monitoring possible in areas where it was previously cost prohibitive.

Local protocol support allows the Connect Sensor+ to communicate with Modbus sensors and capture sensor diagnostics along with data. This enables users to not only monitor their data but also remotely diagnose the health of their sensors.

Digi Connect Sensor+ leverages Digi Remote Manager® (Digi RM), enabling customers who need to monitor large numbers of sensors to easily integrate that data into existing applications or work with third-party applications. Gain critical insights into your deployed devices and manage your network with Digi RM — the command center for your deployment.

Digi Connect Sensor+ works with Digi Connect Wizard. This smartphone application is the first of its kind for this type of battery powered gateway. It gives local installers, technicians or drivers instant feedback of sensor values over Bluetooth®.


Introductory Video

Video Introduction

Digi Connect Sensor+ is a fully integrated, battery powered cellular gateway with I/O for connecting to a wide range of external sensors. Designed to work in rugged industrial environments, the sensor is the ideal solution for companies looking to add remote monitoring in places where power is not easily available.


How it Works

Digi Connect Sensor+ has four analog inputs that can be configured as either a 0-10VDC or 4-20mA current loop input. Each of these four analog inputs has a power output that can be enabled or disabled by the user. The power outputs have a configurable DC voltage level so the Digi Connect Sensor+ can power almost any sensor. Digi Connect Sensor+ also has a digital I/O which can be configured for any number of functions.

How Digi Connect Sensor+ Works

Beyond a simple digital input or output, the I/O can be configured to count pulses when connected to mechanical switch or pulsed output meters. The Digital I/O can also be configured to wake the device out of sleep mode on a rising and/or falling edge. The Digital I/O, like the analog inputs, has its own DC power output.

Award Winning

2016 IoT Excellence AwardThe Golden Bridge Award



Digi Connect Sensor+, built for Digi Remote Manager

Digi Connect Sensor+ requires Digi Remote Manager to centralize control, edit configurations, update firmware and monitor the values and status of your connected sensors via a web browser. Sign up for your free Digi Remote Manager Developer Account.

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

Learn More

  Digi Connect Sensor+
WWAN
2G BANDS GSM 850, GSM 900, DCS 1800, PCS 1900
3G BANDS FDD B1, B2, B4, B5, B8
LTE CATEGORY 1 Verizon: bands 2, 4, 13
AT&T, T-Mobile: bands 2, 4, 5 with 3G/2G fallback

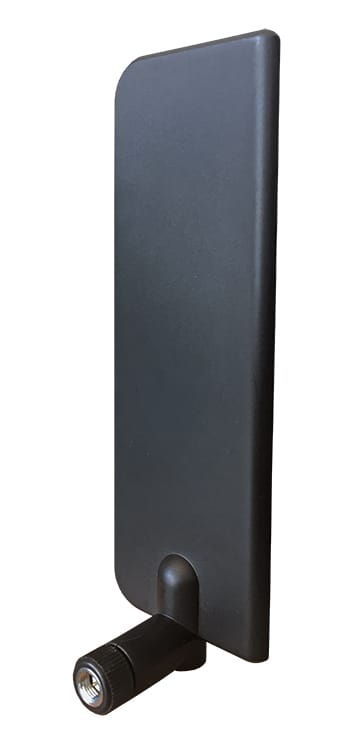

ANTENNA CONNECTOR External SMA
SIM SLOTS 1, standard size
MANAGEMENT
CONFIGURATION AND MANAGEMENT Digi Remote Manager (cloud-based); local USB to serial CLI
POWER (Does not include power draw of external sensors)
EXTERNAL POWER INPUT RANGE 8 VDC to 30 VDC
BATTERY AND BATTERY LIFE 7.2 V, 14.5 Ah, lithium thionyl chloride, non-rechargeable, replaceable; approximately 2 years (at 2 reads/transmits per day)
POWER DRAW, SLEEPING 86.4 uW
POWER DRAW, CONTINUOUS MONITOR 400 mW
POWER DRAW, PEAK TRANSMIT 14.4 watts
SENSOR PROTOCOL SUPPORT
MODBUS Modbus RTU and ASCII, connect to up to 4 devices
ANALOG I/O
INPUTS 4, configurable as 4/20 mA or 0-10 VDC analog inputs
INPUT VOLTAGE RANGE 0-10.5 V (analog input)
INPUT CURRENT RANGE 4-22 mA (current loop input)
INTERNAL A/D CONVERTER 12 bit
DIGITAL I/O
PORTS 1 digital I/O or pulse counter input
INPUT RANGE 0-0.6 VCD logic low; 2.2 V-30 VDC logic high
MAX INPUT VOLTAGE 30 VDC
MAX PULSE COUNT FREQUENCY 2 kHz
DIGITAL OUTPUT Open collector output, max sink current 450 mA
OUTPUT POWER
PORTS 5
OUTPUT VOLTAGE OPTIONS 3.3, 5, 15, 24 VDC
MAX CURRENT OUTPUT 200 mA
ENVIRONMENTAL
OPERATING TEMPERATURES -35˚ C to +70˚ C (-31˚ F to 158˚ F)
STORAGE TEMPERATURE -40˚ C to 85˚ C (-40˚ F to 185˚ F)
RELATIVE HUMIDITY 90%
BATTERY DISCHARGE <1%/year if stored at 30˚ C (86˚ F)
PHYSICAL
DIMENSIONS (L x W x H) 152.4 mm x 108.4 mm, 127 mm including glands, x 74.6 mm (6 in x 4.27 in, 5 in including glands, x 2.94 in)
WEIGHTS 264 g (0.58 lb)
LEDS INDICATORS Battery, cellular, sensor and Bluetooth®
ENCLOSURE Lexan/IP66
REGULATORY APPROVALS
SAFETY UL 60950-1, CAN/CSA C22.2 No. 60950-1-01, IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013, EN 60950-1:2006 / A11:2009 / A1:2010 / A12:2011 / A2:2013 and EN 60950-22:2006;
Class 1, Division II, groups A,B,C,D; ANSI/ISA 12.12.01:2015,CAN/CSA C22.2 No 213-15, 1st Ed
ATEX EN 60079-0:2012+A11:2013, EN 60079-15:2010, eII 3 G Ex nA nC IIC T6 Gc
EMISSIONS FCC part 15 Subpart B class B, EN 55022: 2010/AC: 2011 class B, IECS-003 Issue 5: 2012 class B
IMMUNITY EN 55024:2010
WARRANTY
PRODUCT WARRANTY 3-year*
*Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.
