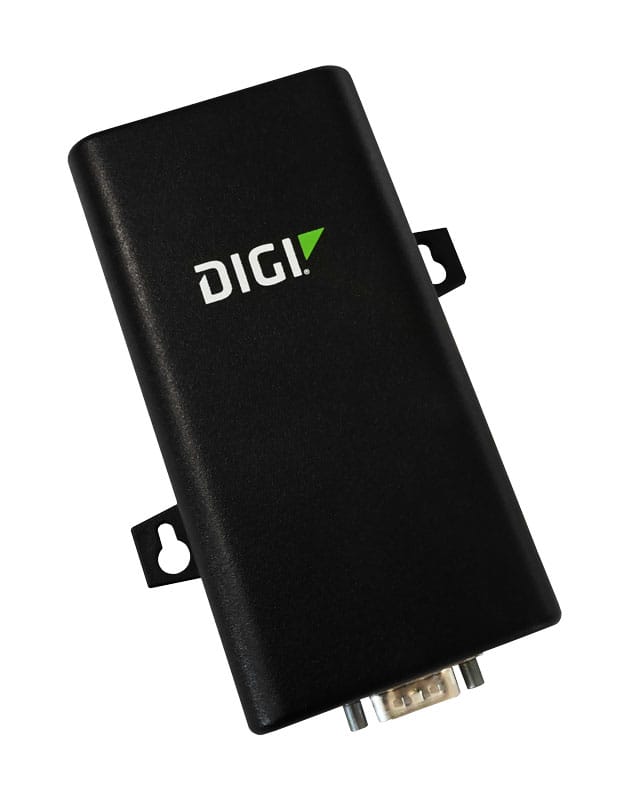

Digi Connect EZ Mini — serial server, 1-port, with accessories

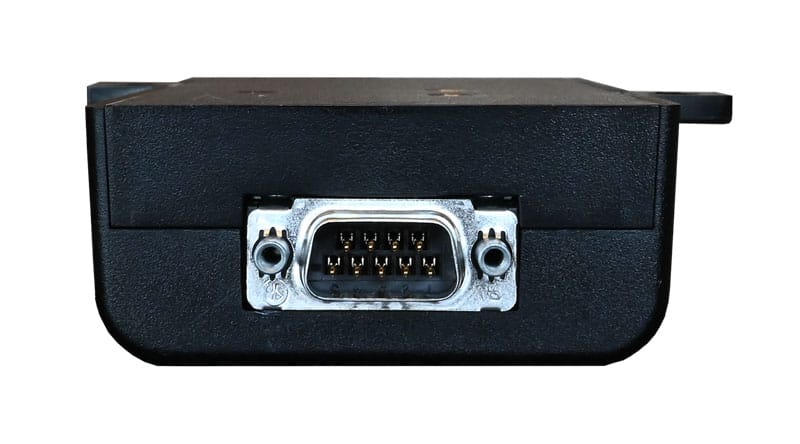

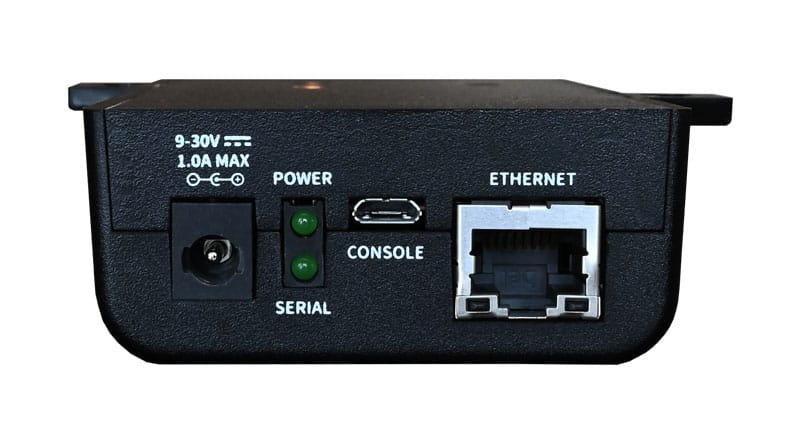

Digi Connect EZ Mini Digi Connect EZ Mini - front Digi Connect EZ Mini - back

Digi Connect EZ Mini

  • Software and management:
    • Remote management: Digi Remote Manager®, SNMP v3 (user installed/managed)
    • Local management: Digi Navigator™ discovery and configuration tool, Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
    • Management / troubleshooting tools: Digi Navigator discovery and configuration tool, FTP client, SCP, protocol analyzer with PCAP for Wireshark, event logging with syslog and SMTP client, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
    • Memory: 256 MB RAM, 4 GB Flash
  • Security:
    • Authentication: TACACS+, LDAP, Enterprise RADIUS
  • Ethernet:
    • Ports: (1) RJ-45; 10/100/1000 Mbps (auto-sensing)
  • Serial:
    • ​​Ports: (1) DB9; RS-232 DTE/RS-422/RS-485 capable, software selectable
    • RS-232 / EIA-232 Serial Modes: Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI flow control options: XON/OFF, CTS/RTS, RTS-toggle
    • RS-422 / EIA-422 Serial Modes: TX+/-, RX+/-, software termination, pre-delay/post-delay
    • RS-485 / EIA-485 Serial Modes: Data+/Data-, software termination, pre-delay/post-delay
  • Physical:
    • Dimensions (L x W x H): 13.7 cm x 9.5 cm x 3 cm (5.39 in x 3.74 in x 1.18 in)
    • Package dimensions: 21.4 cm x 18.4 cm x 6.5 cm (8.43 in x 7.24 in x 2.56 in)
    • Package weight: 0.6 kg (1.32 lb)
    • Status LEDs: power, serial
  • Power requirements:
    • Power input: Locking barrel: 9 to 30 VDC, locking 2.1 mm center barrel connector
    • Power consumption: 9 V at 1 A max, typical 1.7 W
  • Environmental:
    • Operating temperature:
      • Standard operating temperature of Connect EZ device: 0 °C to 40 °C (32 °F to 104 °F)
    • Relative humidity: 5% to 95% (non-condensing)
  • Approvals:
    • Safety: IEC62368-1, CB, EN62311
    • Environmental: ROH53
    • Emissions / Immunity: CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
  • Product warranty: 5-year for base Connect EZ device
  • Accessories: Includes power supply and DIN rail clip (DIN rail bracket available separately — 76002093)
What's in the box
  • Digi Connect EZ Mini — serial server, 1-port, with accessories
  • Power supply — 12 V, 2.5 A (76000823)
  • DIN rail clip (76002095)
