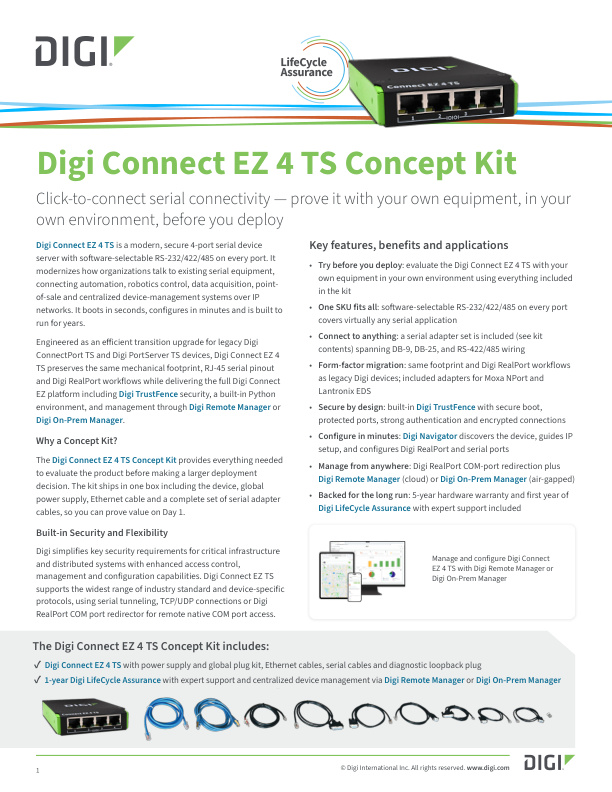

Digi Connect EZ 4 TS Concept Kit
Click-to-connect serial connectivity — prove it with your own equipment, in your own environment, before you deploy
Digi Connect EZ 4 TS is a modern, secure 4-port serial device server with software-selectable RS-232/422/485 on every port. It modernizes how organizations communicate with existing serial equipment, connecting automation, robotics control, data acquisition, point-of-sale and centralized device-management systems over IP networks. It boots in seconds, configures in minutes and is built to run for years.
Engineered as an efficient transition upgrade for legacy Digi ConnectPort TS and Digi PortServer TS devices, Digi Connect EZ 4 TS preserves the same mechanical footprint, RJ-45 serial pinout and Digi RealPort workflows while delivering the full Digi Connect EZ platform, including Digi TrustFence security, a built-in Python environment and management through Digi Remote Manager or Digi On-Prem Manager.
Why a Concept Kit?

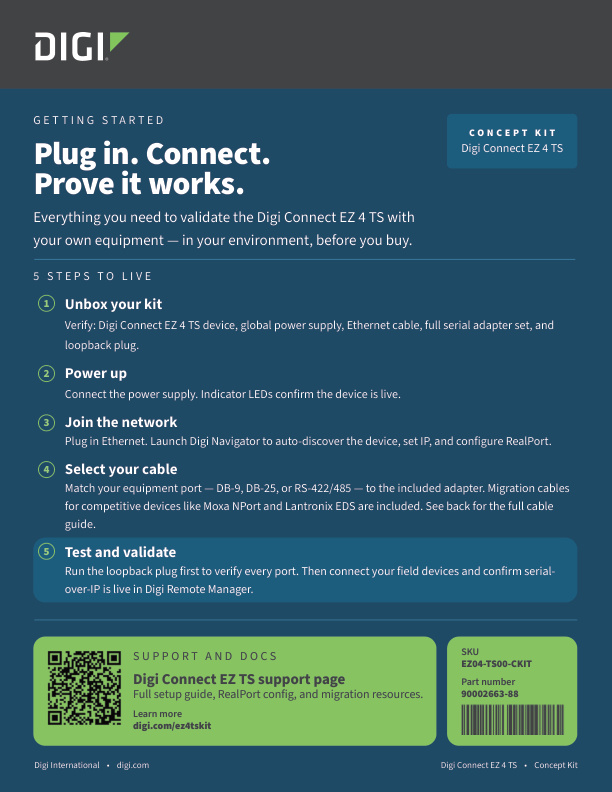

The Digi Connect EZ 4 TS Concept Kit provides everything needed to evaluate the product before making a larger deployment decision. The kit ships in one box with the device, global power supply, Ethernet cable and a complete set of serial adapter cables, so you can prove value on Day 1.
Built-in Security and Flexibility

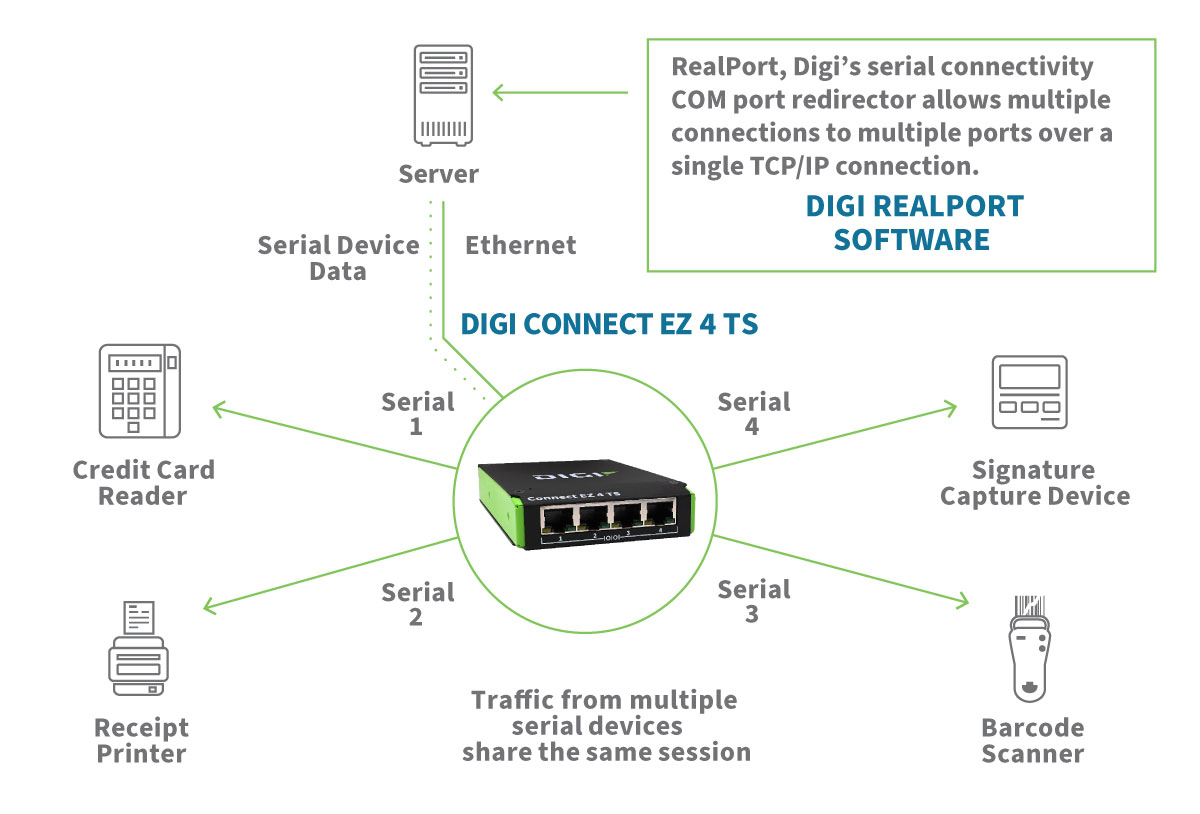

Digi simplifies key security requirements for critical infrastructure and distributed systems with enhanced access control, management and configuration capabilities. Digi Connect EZ TS supports a wide range of industry-standard and device-specific protocols using serial tunneling, TCP/UDP connections or Digi RealPort COM-port redirection for remote native COM-port access.
Key Features, Benefits and Applications
- Try before you deploy: Evaluate Digi Connect EZ 4 TS with your own equipment in your own environment using everything included in the kit
- One SKU fits all: Software-selectable RS-232/422/485 on every port covers virtually any serial application
- Connect to virtually anything: The included serial adapter set spans DB-9, DB-25, RJ-45 console and RS-422/485 field wiring
- Simplify migration: Preserve the same footprint, RJ-45 serial pinout and Digi RealPort workflows as legacy Digi devices, with included adapters for Moxa NPort and Lantronix EDS equipment
- Secure by design: Built-in Digi TrustFence provides secure boot, protected ports, strong authentication and encrypted connections
- Configure in minutes: Digi Navigator discovers the device, guides IP setup and configures Digi RealPort and serial ports

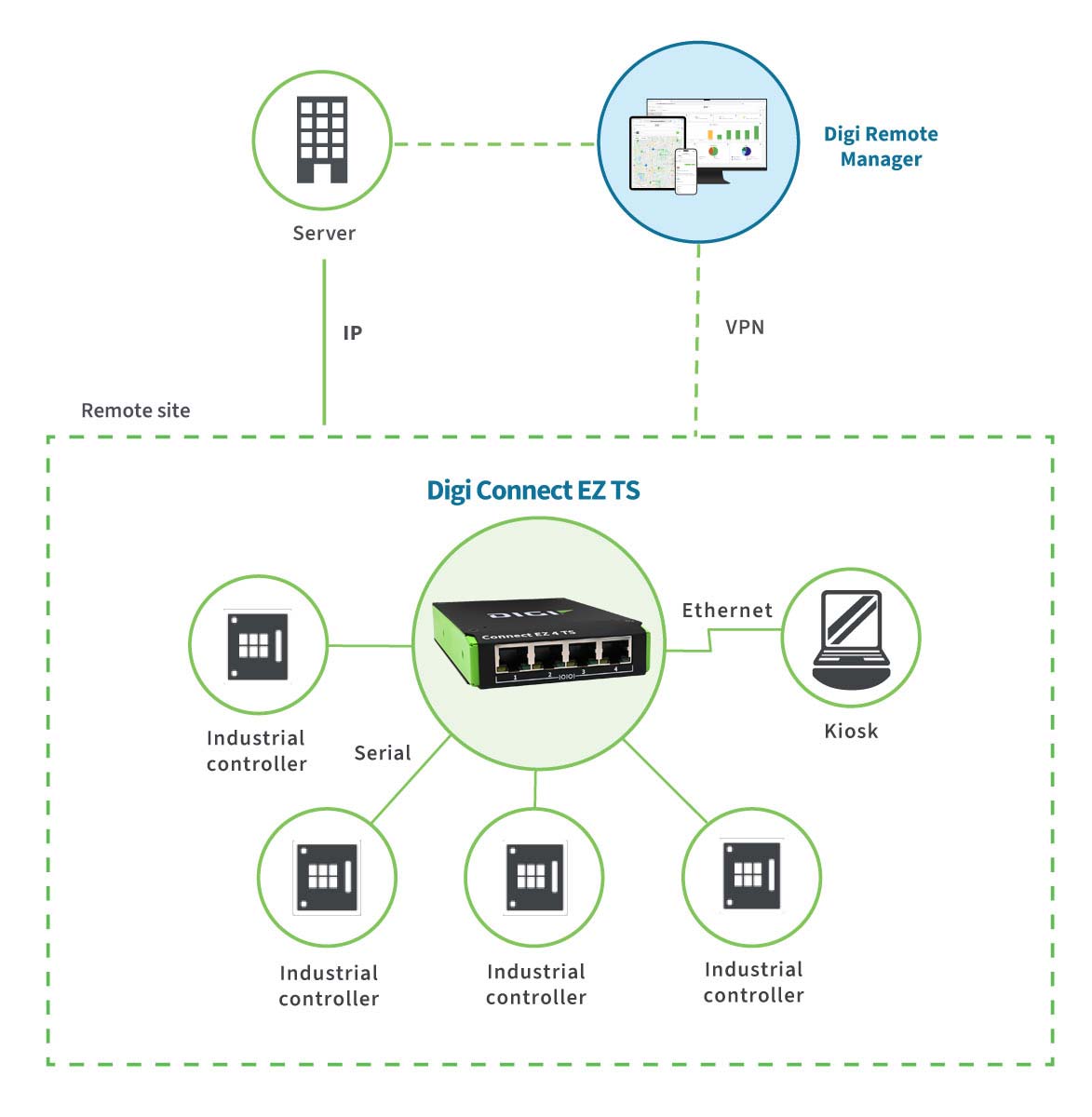

- Manage from anywhere: Use Digi RealPort COM-port redirection with Digi Remote Manager in the cloud or Digi On-Prem Manager in local and air-gapped environments
- Backed for the long run: Includes a 5-year hardware warranty and the first year of Digi LifeCycle Assurance with expert support
The Digi Connect EZ 4 TS Concept Kit Includes
✓ Digi Connect EZ 4 TS with power supply and global plug kit
✓ Ethernet cable and complete serial adapter cabling set
✓ Diagnostic serial loopback plug
✓ 1-year Digi LifeCycle Assurance with 24×7 expert support and centralized device management
Product Specifications
| Specifications |
Digi Connect EZ 4 TS |
| Connectors |
| Ethernet |
1 × 10/100/1000 Ethernet |
| Serial ports |
4 × RJ-45 10-pin ports; RS-232/422/485 capable and software selectable |
| RS-232 / EIA-232 modes |
TXD, RXD, RTS, CTS, DTR, DSR, DCD and RI; flow-control options include XON/OFF, CTS/RTS and RTS-toggle |
| RS-422 / EIA-422 modes |
TX+/−, RX+/− and software termination |
| RS-485 / EIA-485 modes |
Data+/Data− and software termination |
| Console |
RJ-45 10-pin RS-232 console serial port |
| Physical |
| Dimensions (L × W × H) |
132.08 × 83.82 × 22.86 mm (5.2 × 3.3 × 0.9 in) |
| Package dimensions |
210.82 × 182.88 × 63.5 mm (8.3 × 7.2 × 2.5 in) |
| Weight |
0.75 kg (1.65 lb) |
| Status LEDs |
System: Power; per port: Ethernet, serial and console |
| Power Requirements |
| Power input |
9–30 VDC at 0.8 A maximum |
| Power supply |
12 VDC power supply with non-locking barrel connector included |
| Environmental |
| Operating temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Storage temperature |
0 °C to 60 °C (32 °F to 140 °F) |
| Relative humidity |
5% to 95% non-condensing |
| Approvals* |
| Safety |
IEC 62368-1, CB and UL 62368-1 |
| Emissions / immunity |
CE, FCC Part 15 Class A, ICES-003, AS/NZS CISPR 22, EN 55035 and EN 55032 |
| Warranty and Support |
| Product warranty |
5-year warranty for the base Digi Connect EZ TS device |
| Digi LifeCycle Assurance |
1-year Digi LifeCycle Assurance with 24×7 expert support and centralized device management via Digi Remote Manager or Digi On-Prem Manager |
Software and Management
| Capability |
Description |
| Remote management |
Digi Remote Manager or Digi On-Prem Manager; SNMP v3 |
| Local management |
Digi On-Prem Manager, Digi Navigator, Web UI over HTTP/HTTPS and CLI over Telnet or SSH |
| Management and troubleshooting |
Digi Navigator, FTP client, SCP, PCAP protocol analyzer for Wireshark, syslog and SMTP event logging, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping and traceroute |
| Memory |
256 MB RAM and 4 GB Flash |
| Authentication |
TACACS+, LDAP and Enterprise RADIUS |
What’s Included in the Kit

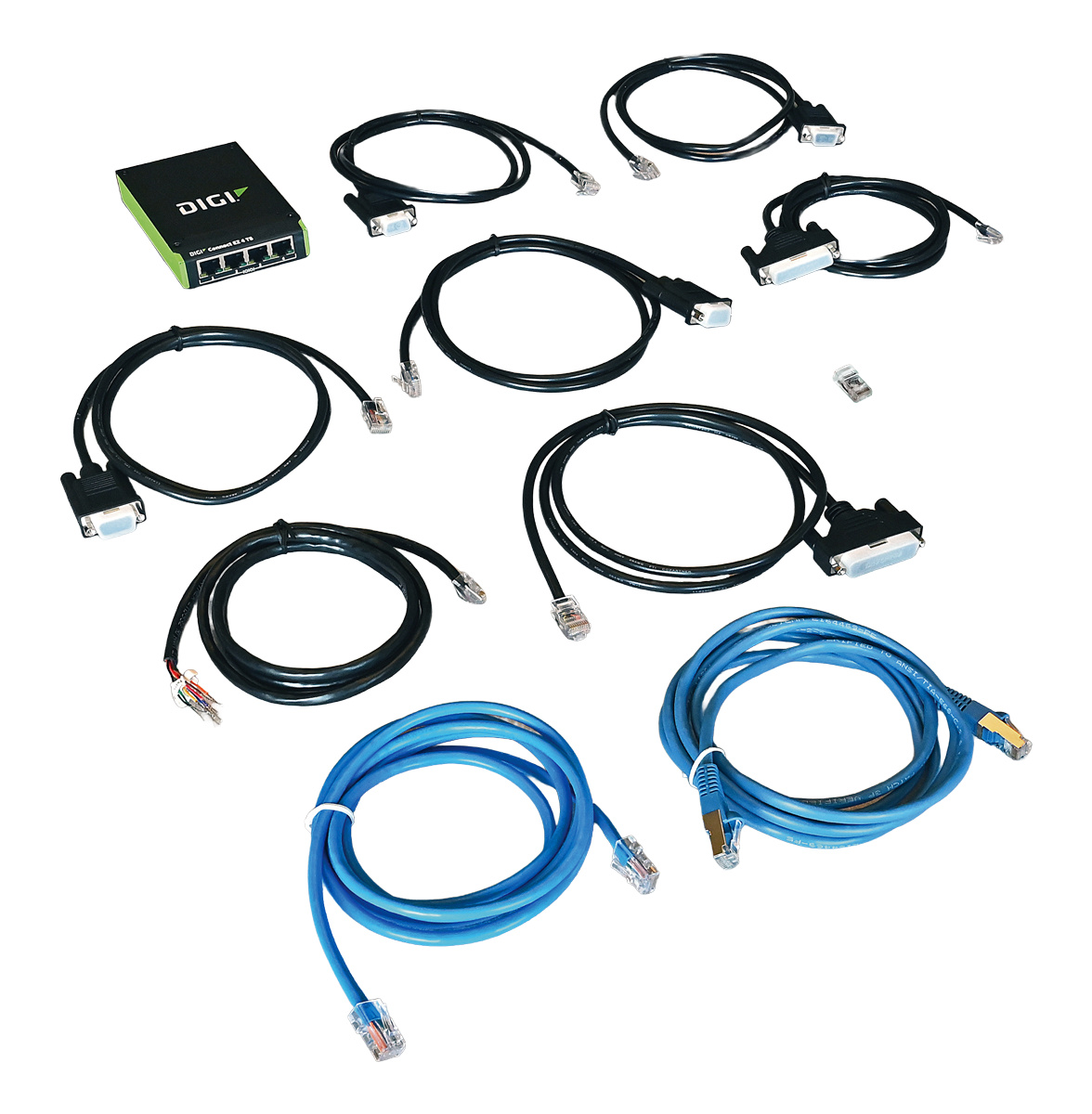

The Digi Connect EZ 4 TS Concept Kit packages the Digi Connect EZ 4 TS device together with the serial cabling needed to connect to virtually any common serial endpoint. The cabling is added specifically for evaluation and migration from legacy or competitive equipment without requiring field devices to be recabled.
| Part Number |
Included Item |
Connect To |
Application |
| Device |
| EZ04-TS00-GLB |
Digi Connect EZ 4 TS 4-port RS-232/422/485 software-selectable serial device server with power supply and global plug kit |
N/A |
The device under evaluation, with a 12 V power supply and North America, EU, UK and AU plugs |
| Cables and Adapters |
| 4731-0600 |
Ethernet cable |
Ethernet port |
Connects Digi Connect EZ 4 TS to the IP network using shielded twisted-pair cable |
| 76000201 |
RJ-45 to DB-9 female straight-through cable, 4 ft |
DB-9 male |
Straight-through connection to modem or other DCE equipment with a DB-9 male port |
| 76000240 |
RJ-45 to DB-9 male straight-through cable, 4 ft |
DB-9 female |
Straight-through connection to DB-9 female devices; can be used as a Moxa NPort RS-232 migration adapter |
| 76000264 |
RJ-45 to DB-9 male crossover cable, 4 ft |
DB-9 female |
Crossover connection to DTE devices or console ports with a DB-9 female port |
| 76000199 |
RJ-45 to DB-25 female straight-through cable, 4 ft |
DB-25 male |
Straight-through connection to modem or other DCE equipment with a DB-25 male port |
| 76000238 |
RJ-45 to DB-25 male crossover cable, 4 ft |
DB-25 female |
Crossover connection to DTE equipment with a DB-25 female port |
| 76000265 |
RJ-45 to DB-9 male crossover cable, 4 ft |
DB-9 male |
Crossover or rollover connection to DTE equipment with a DB-9 male port |
| 76000631 |
RJ-45 to RJ-45 Sun Netra/Cisco cable, 6 ft |
RJ-45 console |
Console or rollover connection to Sun Netra and Cisco equipment |
| 76000723 |
EIA-422/485 screw-terminal adapter |
Terminal block / bare wire |
Connects RS-422/485 field devices and supports migration from Lantronix EDS equipment |
| JE1D2-CDA-A |
DB-9 male to RJ-45 adapter |
RJ-45 console |
Console or rollover connection as needed |
| Diagnostics |
| 60000401 |
Loopback plug |
Any Digi 10-pin serial port |
On-site serial-port self-test for verifying TX/RX and signal lines before connecting equipment and for diagnostics during evaluation |
Cord Application and Migration Mapping
How the Cords Are Applied
Each Digi Connect EZ 4 TS serial port uses a 10-pin RJ-45 Digi MEI connector. Use the included adapter cable that converts RJ-45 to the connector used by the target device. Selecting the correct cable comes down to three questions:
- Connector type: Determine whether the target device uses a DB-9, DB-25 or RJ-45 console connector.
- Gender: Select a cable with the opposite gender from the device port. A male device port requires a female cable connector and a female device port requires a male cable connector.
- Straight-through or crossover: Use a straight-through cable for modem-style DCE equipment. Use a crossover or null-modem cable for terminal-, PC-, server- and console-style DTE equipment. Confirm the device pinout when uncertain.
| Quick Selection Guide |
Use |
| Modem or other DCE device |
Straight-through cable |
| PC, router, switch console or serial server (DTE) |
Crossover or null-modem cable |
| Migrating From |
Use the Included Cable |
Result |
| Moxa NPort and other RS-232 devices |
76000240 — RJ-45 to DB-9 male straight-through |
RS-232 connection to the same field devices |
| Lantronix EDS RS-422/485 |
76000723 — EIA-422/485 screw-terminal adapter |
Existing RS-422/485 field wiring connects directly to Digi Connect EZ 4 TS |
| Digi ConnectPort TS or PortServer TS |
Existing RJ-45 cabling with the same pinout and footprint |
Cabling and Digi RealPort applications carry over with minimal change |
Accessories included: 12 V, 1.5 A power supply with non-locking barrel connector, US/EU/UK/AU plug adapters, barrel-to-bare-wire adapter, Ethernet cable, complete serial adapter cabling set and diagnostic loopback plug.
