Digi Connect EZ 4 — serial server, 4-port, with LTE, Wi-Fi and accessories

Digi Connect EZ 4

  • Software and management:
    • Remote management: Digi Remote Manager®, SNMP v3 (user installed/managed)
    • Local management: Digi Navigator™ discovery and configuration tool, Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
    • Management / troubleshooting tools: Digi Navigator discovery and configuration tool, FTP client, SCP, protocol analyzer with PCAP for Wireshark, event logging with syslog and SMTP client, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
    • Memory: 256 MB RAM, 4 GB Flash
  • Security:
    • Authentication: TACACS+, LDAP, Enterprise RADIUS
  • Ethernet:
    • Ports: (2) RJ-45; 10/100/1000 Mbps (auto-sensing)
  • Serial:
    • ​​Ports: (4) RJ45-10; RS-232 DTE/RS-422/RS-485 capable, software selectable
    • RS-232 / EIA-232 Serial Modes: Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI flow control options: XON/OFF, CTS/RTS, RTS-toggle
    • RS-422 / EIA-422 Serial Modes: TX+/-, RX+/-, software termination, pre-delay/post-delay
    • RS-485 / EIA-485 Serial Modes: Data+/Data-, software termination, pre-delay/post-delay
  • Cellular connectivity:
    • LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B38, B40, B41
    • 3G: B1, B2, B4, B5, B6, B8, B19
    • 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
    • Antenna connectors: (2) 50 Ω SMA (center pin: female)
    • SIM slots: (2) Mini-SIM (2FF)
    • SIM security: Secured in cellular module
  • Wi-Fi:
    • Module: 1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)
    • Modes: Client mode and access point mode simultaneously
    • Clients: Maximum 10 clients (access point mode: regardless of combination of clients and access points)
    • Access points: Maximum 2 access points (access point mode: regardless of combination of clients and access points)
    • Security: WPA-3/WPA-2 personal, WPA/WPA-2 enterprise
    • Connectors: (1) 50 Ω SMA (center pin: male)
  • Physical:
    • Dimensions (L x W x H): 19.2 cm x 13.4 cm x 3.5 cm (7.56 in x 5.28 in x 1.38 in)
    • Package dimensions: 35.5 cm x 20.4 cm x 6.7 cm (13.98 in x 8.03 in x 2.64 in)
    • Package weight: 1.3 kg (2.87 lb)
    • Status LEDs: Each Ethernet and serial port has two status LEDs; power, signal, LTE, Wi-Fi, Ethernet, serial
  • Power requirements:
    • Power input: Locking barrel: 9 to 30 VDC, locking 2.1 mm center barrel connector
    • Power consumption: 9 V at 1.5 A max, 5 W typical with Digi CORE modem, 4.5 W typical without Digi CORE modem
  • Environmental:
    • Operating temperature:
      • Standard operating temperature of Connect EZ device: 0 °C to 40 °C (32 °F to 104 °F)
      • With Digi CORE plug-in LTE modem: 0 °C to 40 °C (32 °F to 104 °F)
    • Relative humidity: 5% to 95% (non-condensing)
  • Approvals:
    • Cellular: Visit www.digi.com/resources/certifications for latest cellular certifications
    • Safety: IEC62368-1, CB, EN62311
    • Environmental: ROH53
    • Emissions / Immunity: CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
  • Product warranty: 5-year for base Connect EZ device, 3-year for Digi CORE plug-in LTE modem
  • Accessories: Includes Digi CORE® plug-in LTE modem, 4G dipole antenna, 2.4 and 5 GHz antenna, power supply and DIN rail clip (DIN rail bracket available separately — 76002093)
What's in the box
  • Digi Connect EZ 4  — serial server, 4-port, with LTE, Wi-Fi and accessories
  • Digi CORE plug-in LTE modem (1002-CMG4-GLB)
  • Antenna — dipole, 4G, quantity 2 (76002118)
  • Antenna — 2.4 and 5 GHz (29000938)
  • Power supply — 12 V, 3 A (24000136)
  • DIN rail clip (76002095)
Icon of telephone

Contact Sales

Phone, chat or email


Contact Sales
Globe showing points around the world

Find Local Distributors

Digi distributors provide in-country sales and support.

Global Distributor Search
Icon of hands holding gear

Technical Support

Open a support case


Contact Support

Accessories & Related Products

Accessories
SKU: 1002-CMG4-GLB Digi CORE plug-In LTE modem — Global LTE Cat 4, 3G / 2G fallback
  • LTE Cat 4 with 3G / 2G fallback (Global)
  • Industrial temperature: −40 °C to 70 °C (−40 °F to 158 °F)
  • Cellular certifications: PTCRB, AT&T, Verizon, Telus, US, Canada, Europe
1002-CMG4-GLB How to Buy
SKU: 76002118 Antenna - dipole, 4G, magnetic mount, 1 meter cable 76002118 How to Buy

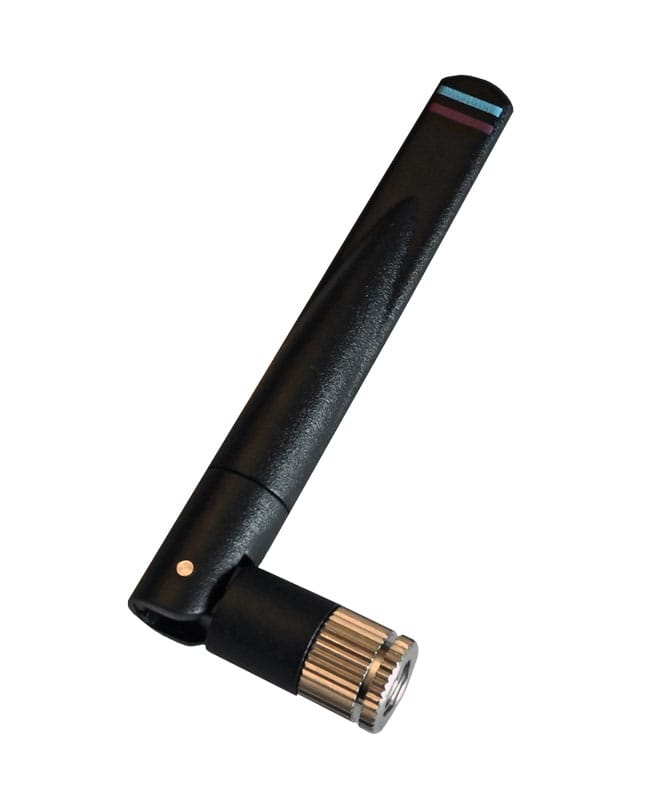

SKU: 29000938 Antenna - whip 2.4 and 5 GHz dipole 5 dBi 29000938 How to Buy
