Digi IX20 - LTE Cat M1 Global, (2) Ethernet, DB-9 RS-232

Part Number:



Model: Digi IX20

  • Cellular connectivity:
    • LTE Cat M1/NB1 Global (M1) with Digi CORE plug-in LTE modem 1002-CMM1*
      • LTE Cat M1/NB1: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28;
      • 2G: 850 / 900 / 1800 / 1900 MHz
    • Connectors: (2) 50 Ω SMA (center pin: female)
    • SIM slots: (2) Mini-SIM (2FF)
    • SIM security: Secured in cellular module
  • Software and management:
    • Remote management: Digi Remote Manager®, SNMP v2/v3 (user installed/managed)
    • Local management: Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
    • Management / troubleshooting tools: FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
    • Memory: 256 MB RAM, 256 MB Flash
  • Ethernet:
    • Ports: (2) RJ-45; 10/100 Mbps (auto-sensing)
  • Serial:
    • (1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)
  • Physical:
    • Dimensions (L x W x H): 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)
    • Weight: 0.65 kg (1.4 lb)
    • Status LEDs: Power, Internet, Wi-Fi, SIM 1, SIM 2, Signal Strength (5), LTE
    • Enclosure: Glass-filled polyphenylene sulphide (PPS) / IP30
  • Power requirements:
    • Power input: 9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included
    • Power consumption: 2.5 W typical (idle); 6 W typical (peak Tx/Rx)
  • Environmental:
    • Operating temperature: -40° C to 70° C (-40° F to 158° F)
    • Storage temperature: -40° C to 85° C (-40° F to 185° F)
    • Relative humidity: 5% to 95% (non-condensing)
  • Approvals:
    • Cellular: Visit www.digi.com/resources/certifications for latest cellular certifications
    • Safety: IEC62368-1, CB, EN62311
    • Environmental: ROH53
    • Emissions / Immunity: CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
  • Product warranty: 3-year
  • Accessories: View available accessories
What's in the box
  • Digi IX20 - LTE Cat M1 Global, (2) Ethernet, DB-9 RS-232
*Digi CORE 1002-CMM1 requires only one cellular antenna.


Contact us
8 a.m. to 5 p.m. (CST)
International contact options

Find Local Distributors

Digi distributors provide in-country sales and support.
Global distributor search

Get Digi Expert Support

Support for customers that require hands-on assistance.
Expert support

Accessories & Related Products

Accessory Kits
76002093 DIN rail mounting bracket kit 76002093 HOW TO BUY
Contact Us
76002095 DIN rail clip kit 76002095 HOW TO BUY
Contact Us

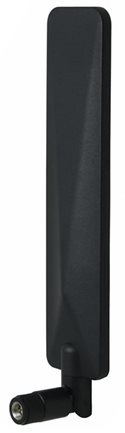

76000926 Antenna - Cellular, 3G/4G/LTE (indoor) 76000926 HOW TO BUY
