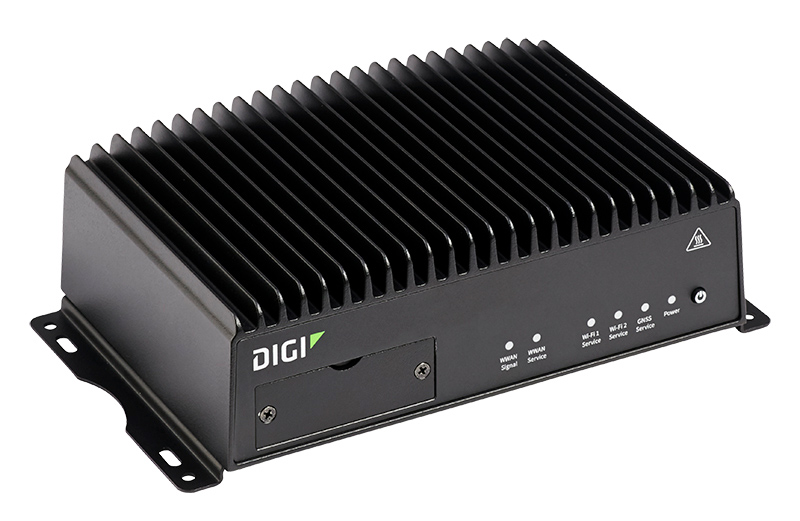

Digi TX54 5G Cellular Router with Digi 360
Rugged and secure cellular router for mission critical industrial and transportation applications, including 5G and primary responder models for public safety networks
The versatility of Digi TX54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. Digi TX54 provides secure routing and gateway functionality across wired and wireless communication networks with the latest-generation technology — easy to deploy and centrally managed via Digi Remote Manager® (Digi RM), which is included in your Digi 360 solution.
Digi TX54 single 5G (Power Class 1.5), dual Wi-Fi, global
- Cellular: Single 5G (Power Class 1.5) with global coverage
- 5G NR Sub-6 GHz bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48 CBRS, n66, n71, n75, n77, n78, n79, C-band
- 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48 CBRS, B66, B71
- 3G UMTS/HSPA+ bands: B1, B2, B4, B5, B6, B8, B9, B19
- Power Class: 1.5; increases upload range and throughput on select bands (29 dBm: n41, n77, n78, n79)
- Connectors: (8) 50 Ω SMA (center pin: female)
- eSIM support: Digi eSIM optional 2FF accessory for remote carrier switching
- SIM slots: (4) Mini-SIM (2FF)
- SIM security: SIM slot cover plate included
- Wi-Fi: Dual Wi-Fi 5 (802.11ac) 2.4 GHz and 5 GHz, 2x2 MIMO
- Bluetooth®: Bluetooth 4.2
- GNSS: GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support

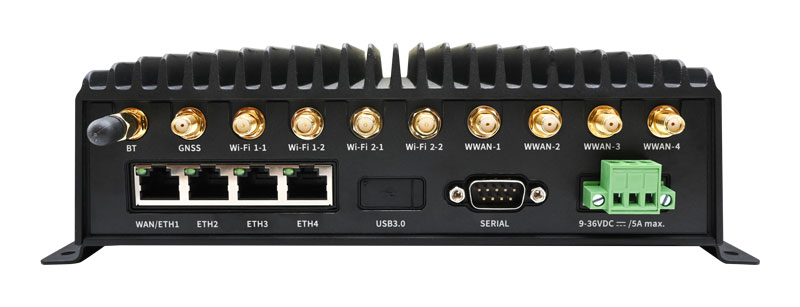

- Ethernet: (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
- Serial: (1) RS-232; DB-9 male (DTE)
- USB: (1) USB 3.0 Type A connector
- Power input: 9 – 36 VDC, ignition sense, reverse polarity protection
- Power connector: Screw down removable terminal block with ignition sense
- Power consumption: 18 W typical; 30 W (peak RF Tx/Rx)
- Accessories: Not included with this product, see additional accessory options
- View full product specifications
What's in the box?
- Digi TX54 5G — single 5G (Power Class 1.5), dual Wi-Fi, global
Includes Digi 360
Digi TX54 5G includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management.
