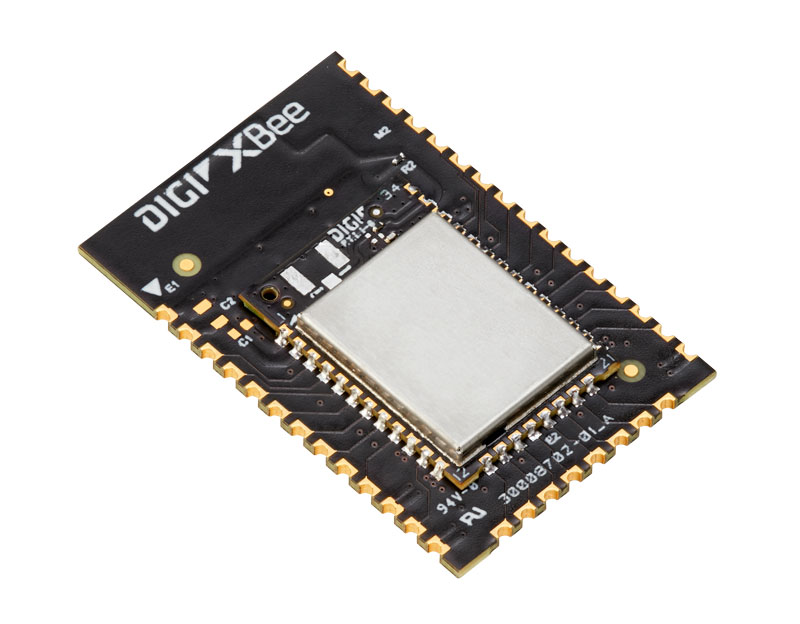

Digi XBee RR, 2.4 GHz, Zigbee, PCB Ant, SMT

Digi XBee RR

  • 2.4 GHz, Zigbee, PCB antenna, SMT
  • Memory: 1 MB flash, 96 kB RAM
  • Transceiver chipset: Silicon Labs EFR32MG SoC
  • Data rate: RF 250 Kbps, serial up to 1 Mbps
  • Indoor/urban range*: Up to 60 m (200 ft)
  • Outdoor/line-of-sight range*: Up to 1200 m (4000 ft)
  • Transmit power: +8 dBm
  • Receiver sensitivity: −103 dBm normal mode
  • Bluetooth® performance:  Supports BLE 4.2 (slave only) and capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0, but not yet enabled except payload extensions (future release). 1 Mbps, up to 15 m (49 ft) indoor/urban range*, up to 300 m (984 ft) outdoor/RF line-of-sight range*, +8 dBm transmit power, −95 dBm normal mode receiver sensitivity (1% per).
  • Serial data interface: UART, SPI
  • Operating temperature: −40 °C to 85 °C (−40 °F to 185 °F)
  • Dimensions (L x W x H): 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in)
  • Supply voltage: 1.72 – 3.8 V
  • Transmit Current: 30 mA at 8 dBm
  • Protocol: Zigbee 3.0
*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
