How to extract flash from a Rabbit module using sample Extract_flash.c

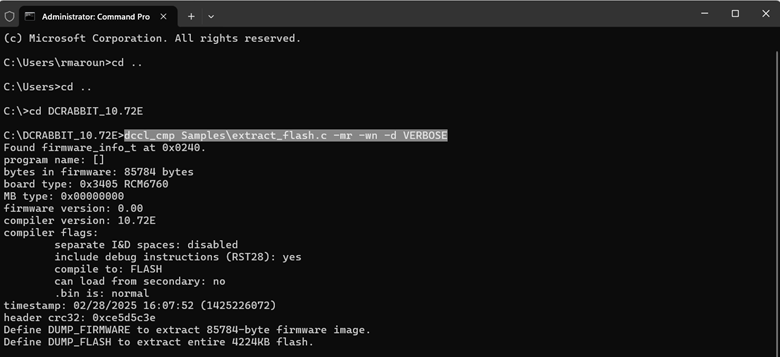

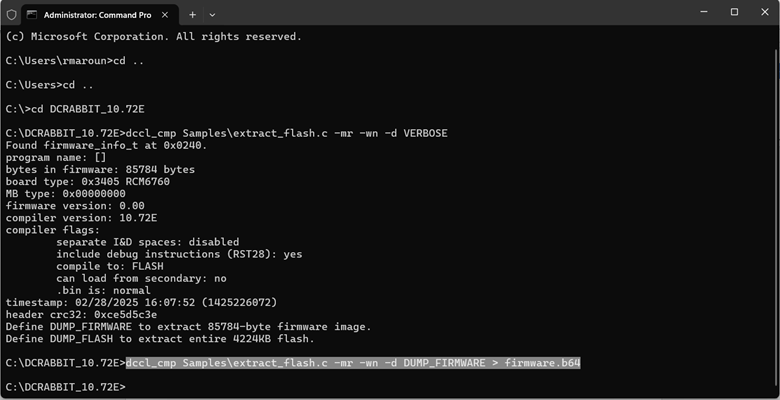

Commands are highlighted in the screen below;
Open a CMD prompt as an Administrator
Unit should be on default com port; COM7
.png?lang=en-US)

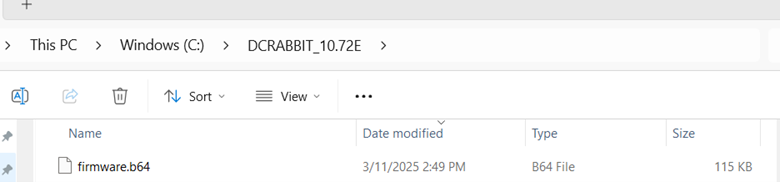

Firmware.b64 will be created in this Directory;

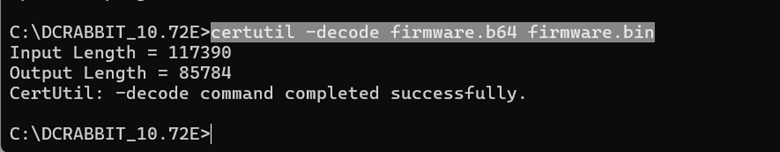

You will need to decode firmware.b64 with the command in the box below;

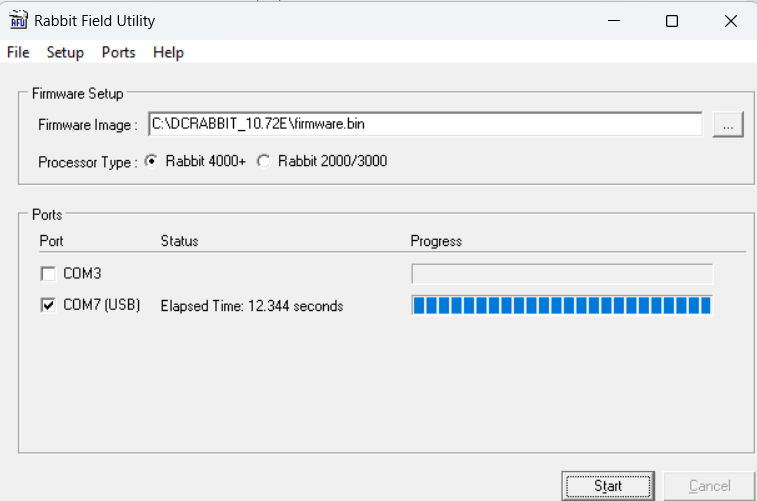

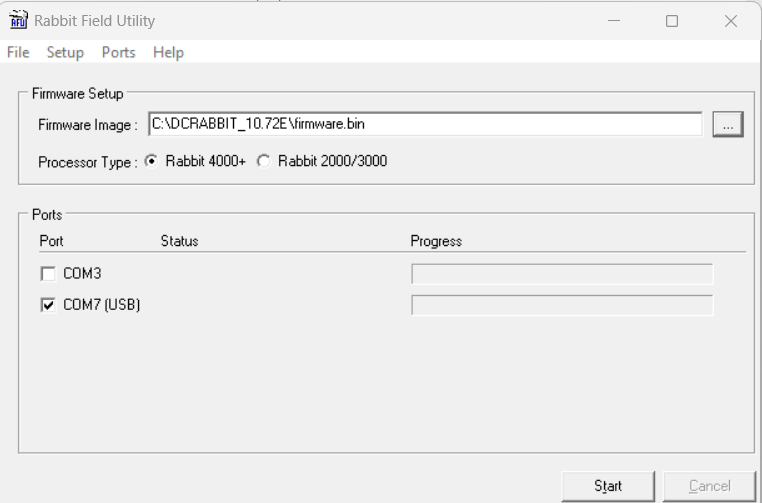

Use the program \utilities\RFU.exe to program the firmware.bin file into your new unit.
.png?lang=en-US)
