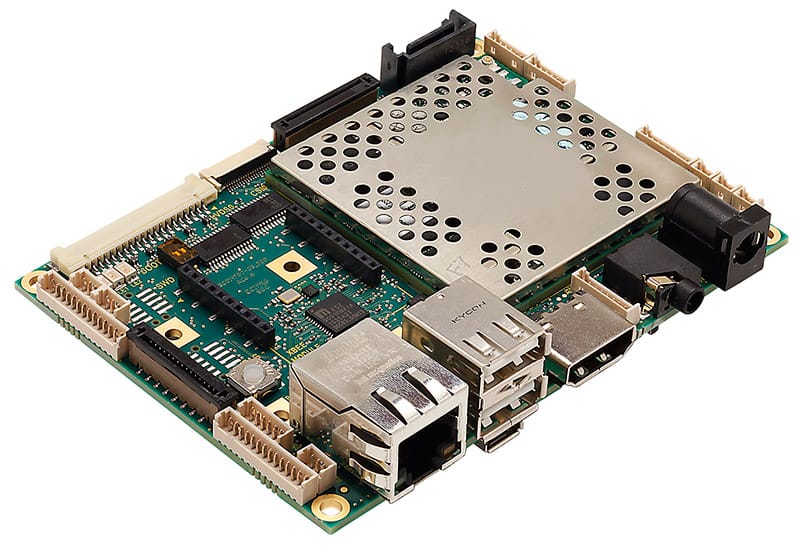

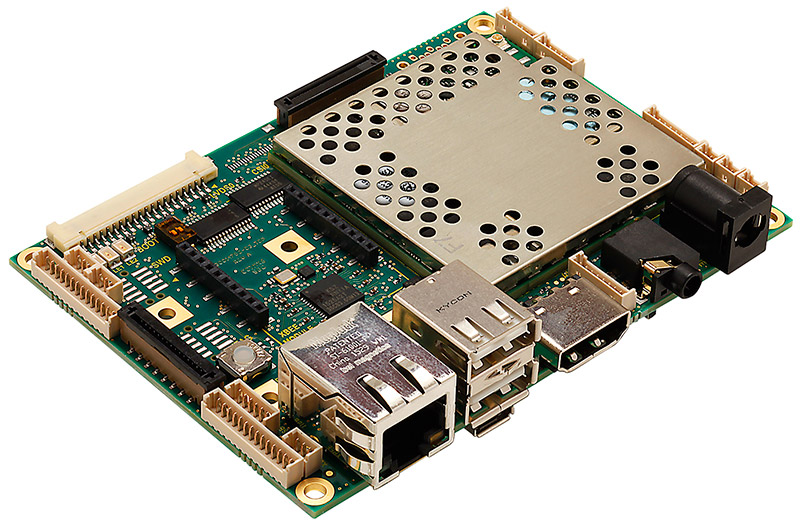

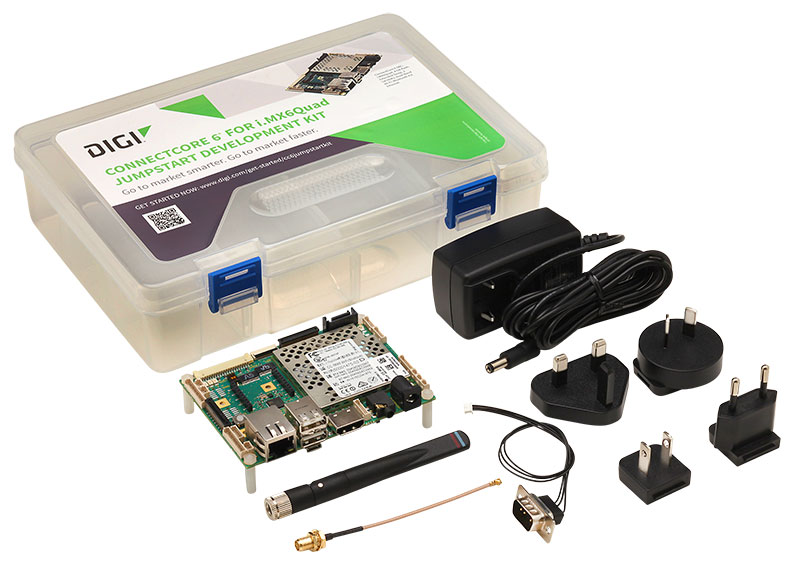

Digi ConnectCore 6N SBC

Reliable and compact NXP i.MX6 SBC family with integrated Ethernet, Wi-Fi, Bluetooth, Digi XBee and cellular connectivity options

  • Compact off-the-shelf SBC family
  • Scalable capabilities and i.MX6Quad/Dual performance
  • Gigabit Ethernet and pre-certified dual-band Wi-Fi 5 and Bluetooth® 5.0
  • Ready for cellular connectivity and Digi XBee® RF
  • Complete set of available peripherals and interfaces with customizable options
  • Designed for flexibility and reliability
  • Windows® Embedded Compact, Yocto Project® Linux® and Android™ software platform support
  • Industrial operating temperature available

Digi ConnectCore 6N SBC is an ultra-compact and versatile off-the-shelf single board computer (SBC) platform. It offers significantly reduced time-to-market by virtually eliminating the traditional risk, effort, and complexity of custom board designs without sacrificing flexibility or capabilities.

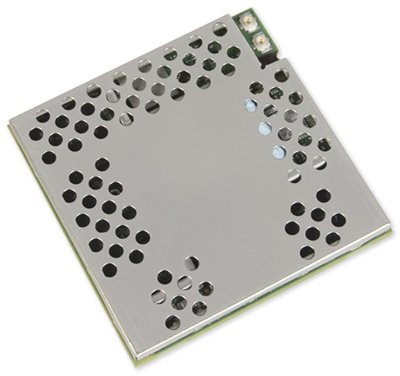

Built on the Digi ConnectCore 6N System-On-Module (SOM), it provides a common platform with scalable NXP® i.MX6 performance, pre-certified Wi-Fi 5 and Bluetooth 5.0 integration, Digi XBee® RF module and cellular connectivity options, Gigabit Ethernet support, multi display/camera and audio support, external storage, expansion connectors, and reliability in harsh environments.

Leading and innovative features such as Digi Microcontroller Assist™ (MCA) enable the development of connected products with highly optimized power footprints. Optional Digi Remote Manager® integration provides secure remote OTA firmware updates, device management and health capabilities for the Internet of Things.

Digi also provides a true end-to-end offering with hardware customization, wireless design, and app development services.

TrustFenceYocto ProjectBluetoothWi-Fi AllianceNXP Gold PartnerPowered by AWSAndroid

Our goal was to create a next-generation on-board system with superior speed, interfaces and functionality. Digi provided a great solution to help us do so.

Ladislav Heglas, Chairman of the Board, EMTEST

Read the full story

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.

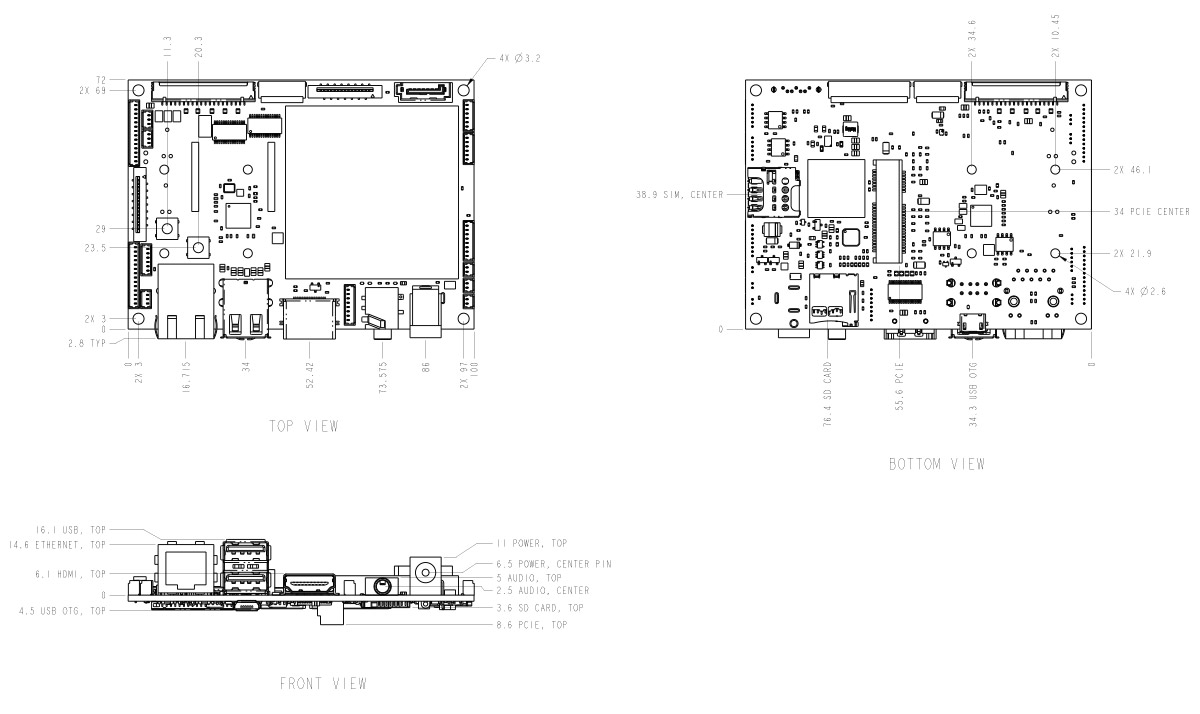

Specifications Digi ConnectCore 6N SBC
Application Processor On-board ConnectCore 6N multi-chip module with NXP i.MX6Quad/i.MX6Dual, Industrial (Dual  - 800 MHz) and Extended Commercial (Quad - 1.2 GHz) options
Memory 4 GB eMMC flash, 1 GB DDR (64-bit)
Graphics Multi-stream-capable HD video engine with 1080p60 decode, 1080p30 encode and 3D video playback in HD in high-performance families;
Superior 3D graphics performance with up to 4 shaders at 200 Mt/s w/ OpenCL support;
Separate 2D and/or Vertex acceleration engines for UI support;
Stereoscopic image sensor support for 3D imaging
Security RNG, TrustZone, Ciphers, Security Cntrl, Secure RTC, Secure JTAG, eFuses (OTP)

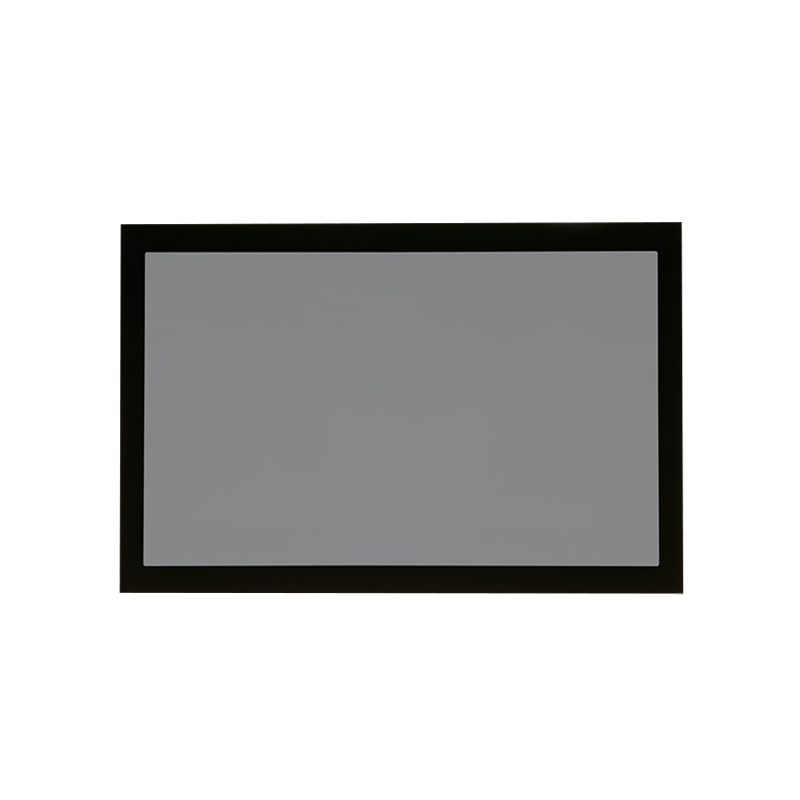

Displays 1x HDMI (Type A);
2x LVDS with backlight control and I2C touch interface (Hirose DF14A-20P-1.25H);
1x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A);
1x MIPI-DSI with backlight control and I2C touch interface (FCI SFW15S-2STE1LF, compatible with Raspberry Pi DSI)
Camera 1x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A);
1x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410);
1x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI)
USB 2.0 2x USB Host (Dual Type A),
1x USB OTG (Micro AB),
1x USB Host (Molex 53047-0610)
Audio 1x Line-In (3.5 mm stereo jack, CUI SJ1-3515-SMT);
1x Line-In, 1 x Line-Out, 1 x Mic-In (Molex 53047-0810);
On-board NXP SGTL5000 audio codec
Console (RS232) Molex 53047-0310
SATA 3.0 3M 5607-5102-SH
Micro-SIM Yes
PCI Express Mini Card Foxconn AS0B226-S68Q-7H;
Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals;
Supports mounting of half-size and full-size PCI Express Mini Cards
Boot Configuration eMMC / SD / SATA
XBee Socket Samtec MMS-110-01-L-SV
Wi-Fi 802.11a/b/g/n/ac
Bluetooth Bluetooth 5.0
Antenna Connectors 1x U.FL / 2x U.FL
Gigabit Ethernet RJ-45, with two LEDs for link/speed/activity
CAN Bus 2x FlexCAN (Molex 53047-0610)
GPIO/I2C/SPI/UART 1x GPIO (8 x i.MX GPIOs + 4 Kinetis GPIOs, Molex 53047-1410);
1x I2C (Molex 53047-0310), 1x SPI (Molex 53047-0610);
3x UART (4-wire TX/RX/RTS/CTS, 1 shared with Digi XBee socket, Molex 53047-1410)
Debug 1x JTAG for i.MX6 (FCI 20021111-00010T4LF);
1x SWD for Digi MCA (FCI 20021111-00010T4LF);
Headers populated on development units only;
Production units without header for plug of nails (Tag-Connect TC2050-IDC-NL)
Power Button Power on, power off, sleep, wake-up
Reset Button Yes
User LEDs 1x Red, 1x Yellow, 1x Green
Coin Cell Connector Molex 53047-0210
Supply Voltage 5 V @ 3.2 A (typical, depending on use-case)
Power Supply Connector Main power supply via 2 mm locking barrel connector
Operating Temperature Ext. Commercial: -20° C to 70° C (-4° F to 158° F) / Industrial: -40° C to 85° C (-40° F to 185° F)
Storage Temperature -50° C to 125° C (-58° F to 257° F)
Relative Humidity 5% to 90% (non-condensing)
Radio Approvals US, Canada, EU, Japan, Australia/New Zealand, Brazil
Emissions / Immunity / Safety FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3:
ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada);
RSS-210 Issue 5 Section 6.2.2(o), EN 300 328;
EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1)
Product Warranty 1-year
