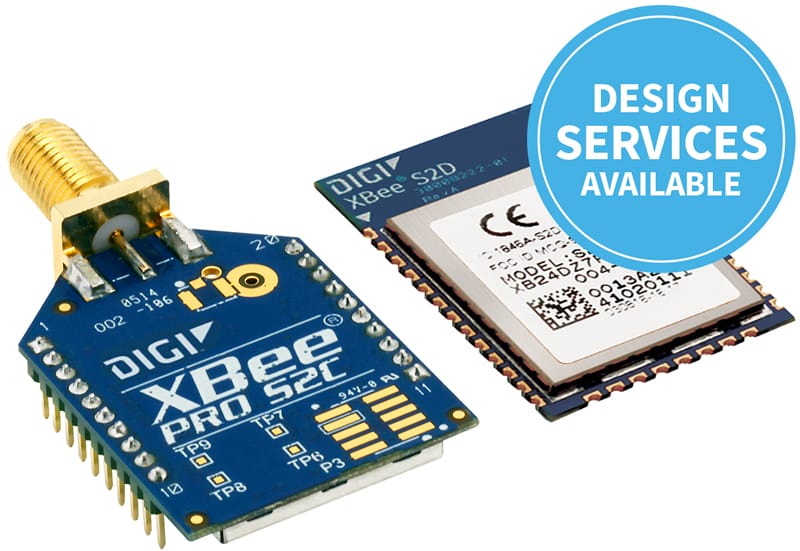

Digi XBee® Zigbee

NRND

Embedded ZigBee modules provide OEMs with a simple way to integrate mesh technology into their application


  • Programmable versions with on-board microprocessor enable custom Zigbee application development
  • Through-Hole and Surface Mount form factors enable flexible design options
  • Link budgets of 110 dB for XBee and 119 dB for XBee-PRO
  • Industry-leading sleep current
  • Firmware upgrades via UART, SPI or over the air (OTA)
  • Turnkey development available from Digi WDS
How to Buy

Digi XBee® and Digi XBee-PRO Zigbee RF modules provide cost effective wireless connectivity to electronic devices. They are interoperable with other Zigbee PRO feature set devices, including devices from other vendors*. Digi Zigbee Development Kits are the perfect way to begin Zigbee application development.

Digi XBee and Digi XBee-PRO Zigbee modules are ideal for applications in the energy and controls markets where manufacturing efficiencies are critical. The Serial Peripheral Interface (SPI) provides a high-speed interface and optimizes integration with embedded microcontrollers, lowering development costs and reducing time to market.

Products in the Digi XBee family require little to no configuration or additional development. Programmable versions of the Digi XBee and Digi XBee-PRO Zigbee module make customizing applications easy. Programming directly on the module eliminates the need for a separate processor. Because the wireless software is isolated, applications can be developed with no risk to RF performance or security.

Digi’s Zigbee compatible module is based on the Ember EM35x (EM357 and EM3587) system on chip (SoC) radio ICs from Silicon Labs, utilizing 32-bit ARM® Cortex® M3 processor.

Digi had the expertise to help us develop the strategy to bring the solution to market in the most efficient way. Now, it’s saving cities around the world hundreds of thousands of dollars a year.

Ryan Morgan, Schréder North America marketing manager

Read the full story

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
RF Support Services

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE

Related Resources

Five Tips for Successfully Developing IoT Applications Five Tips for Successfully Developing IoT Applications This field guide provides an overview of five ways to improve the design of your wireless IoT product, get to market faster, and increase the reliability of your solution. VIEW PDF Digi XBee Ecosystem Digi XBee Ecosystem Find everything to explore and create wireless connectivity in the Digi XBee Ecosystem. WATCH VIDEO Owlet Nightshift Integrates Cellular Connectivity with Digi XBee Owlet Nightshift Integrates Cellular Connectivity with Digi XBee Digi XBee® gave Owlet Nightshift the processing horsepower they needed for a Zigbee Mesh solution. Watch this video to see how... WATCH VIDEO Mesh Networking Vs. Cellular Technology for IoT Applications Mesh Networking Vs. Cellular Technology for IoT Applications Digi Chief Innovation Officer, Rob Faludi, dives deep into the describing and comparing mesh networks and cellular networks. WATCH VIDEO Choosing the Right Mesh Networking Technology for Your Application Choosing the Right Mesh Networking Technology for Your Application Digi Chief Innovation Officer, Rob Faludi, explains the strengths and weaknesses of mesh networking protocols specific to... WATCH VIDEO SmartBox The ability to virtually order anything online has significantly improved the way we do things , however it can become quite an... READ STORY Where Will You Use Your XBee? Where Will You Use Your XBee? Around the world, XBee RF wireless modules are extending the reach of wireless technology. They can be found anywhere... WATCH VIDEO Digi XBee 802.15.4 Protocol Comparison Digi XBee 802.15.4 Protocol Comparison This Technical Brief will explore the Zigbee® protocol industry standard for data transmission, and the 802.15.4 protocol upon which it was built. VIEW PDF Digi XBee Zigbee Datasheet Digi XBee Zigbee Datasheet Embedded Zigbee modules provide OEMs with a simple way to integrate mesh technology into their application VIEW PDF XBee Zigbee Mesh Kit Product Datasheet XBee Zigbee Mesh Kit Product Datasheet VIEW PDF Digi XBee Family Features Comparison Chart Digi XBee Family Features Comparison Chart VIEW PDF Mira Bella The Internet of Things Powering A New Way to Light Streets with Bifacial Solar Panels Using intelligent, bifacial solar panels, Mira Bella Energy has created a smart, efficient, scalable street-lighting system... READ STORY 40,000 Digi XBee Connected Meters Save Energy for CAS Customers CAS Tecnologia is a leading global solutions provider for the energy industry, serving more than 200 customers in Brazil, Latin... READ STORY An Introduction to XCTU An Introduction to XCTU WATCH VIDEO Devergy Expands Solar Power Possibilities in Africa Devergy is a social enterprise committed to providing an affordable and reliable source of energy to low-income people in... READ STORY AddÉnergie Driving Electric Vehicle Charging Station Networks AddÉnergie develops, manufactures and operates charging solutions for market segments such as the public sector, workplace... READ STORY Digi Helps Outdoor Lighting Company, Owlet Nightshift, Save Energy and Reduce Maintenance Costs for Cities and Municipalities Owlet partnered with Digi to develop new outdoor lighting technologies that help cities reduce energy usage, maintenance and... READ STORY Remote Temperature Monitoring of Perishable Goods Saves Money, Prevents Hazards RMONI, a Belgium-based company established in 2005, provides wireless remote monitoring of crucial control parameters including... READ STORY Clean Hands Safe Hands Improving Hand Washing Performance Decreases the Spread of Infection at Hospitals and Lowers Expenses Hand washing is one of the most important daily routines to avoid the spreading of bacteria and disease, especially in... READ STORY Digi XBee Enables Street Light Management System CIMCON Software, a leading developer of automated street light control systems, helps communities reduce the maintenance cost... READ STORY Digi XBee Modules Reduce Hotel Energy Costs Lodging Technology is the originator of infrared sensor-based hotel energy management technology and has been providing... READ STORY Digi XBee-Enabled Sensors Monitor Harsh Environments Sensor technology research and development is important for monitoring the environment around us, ranging from prevention of... READ STORY Digi Gateways Enable Wildfire Early Detection System Firebreak USA Corp. is a leading manufacturer of perimeter wildfire detection systems. The company's FirePosse™ system detects... READ STORY Digi Delivers Superior Smart Metering Solution in India In July 2012, India experienced the world's largest blackout, leaving nearly 700 million people without electricity for two... READ STORY

All related resources
S2C Kits

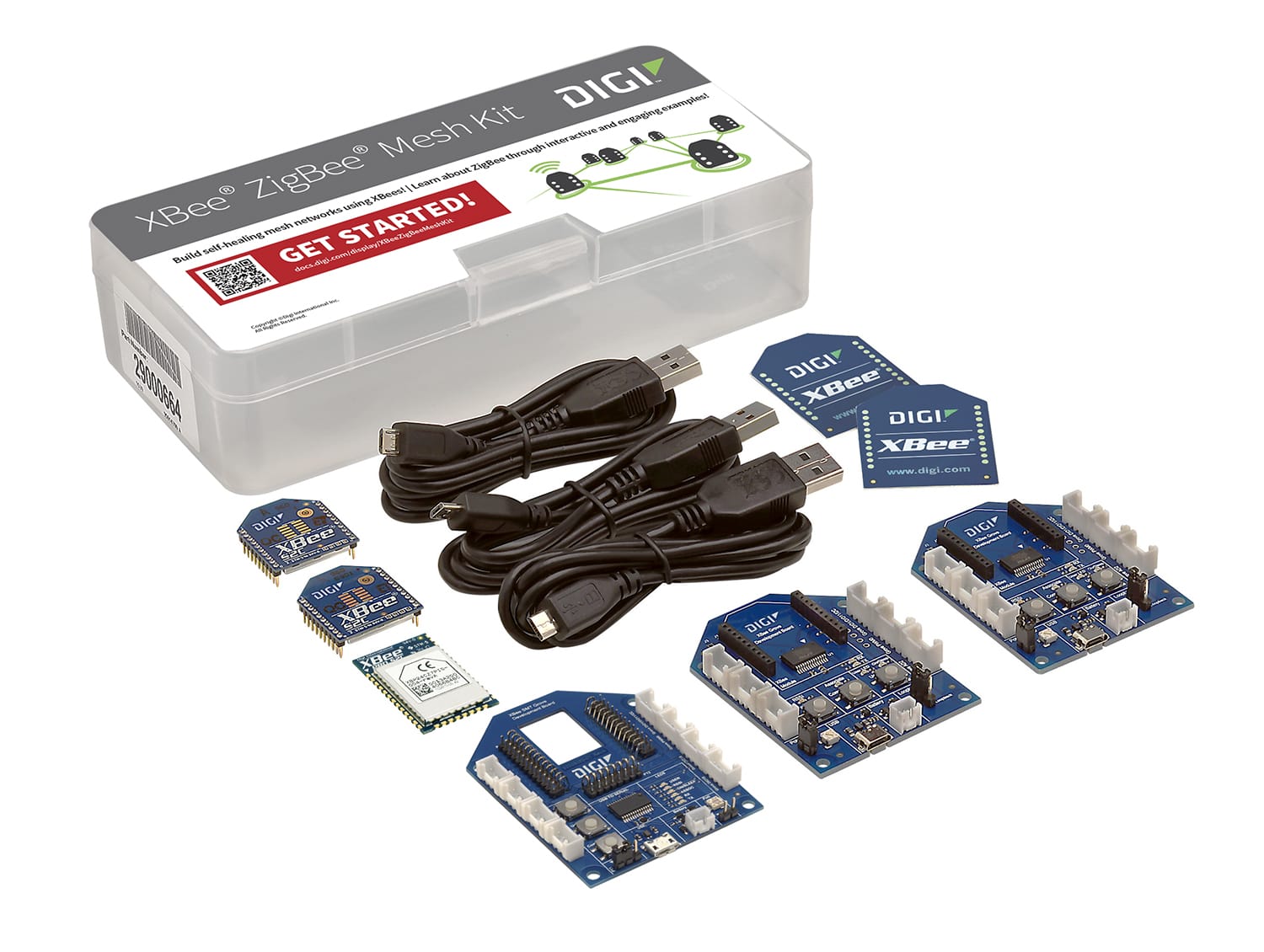

XKB2-Z7T-WZM Digi XBee Zigbee Mesh Kit XKB2-Z7T-WZM HOW TO BUY
Contact Us
S2C Modules
XB24CZ7PIT-004 XBee Zigbee Through-Hole (PCB Antenna) XB24CZ7PIT-004 HOW TO BUY
Contact Us
XB24CZ7WIT-004 XBee Zigbee TH (Wire Antenna) XB24CZ7WIT-004 HOW TO BUY
Contact Us
XB24CZ7UIT-004 XBee Zigbee TH (U.FL Antenna) XB24CZ7UIT-004 HOW TO BUY
Contact Us
XB24CZ7SIT-004 XBee Zigbee Through-Hole (RPSMA Antenna) XB24CZ7SIT-004 HOW TO BUY
Contact Us
XB24CZ7PITB003 Programmable XBee Zigbee Through-Hole (PCB Antenna) XB24CZ7PITB003 HOW TO BUY
Contact Us
XB24CZ7WITB003 Programmable XBee Zigbee Through-Hole (Wire Antenna) XB24CZ7WITB003 HOW TO BUY
Contact Us
XB24CZ7UITB003 Programmable XBee Zigbee Through-Hole (U.FL Antenna) XB24CZ7UITB003 HOW TO BUY
Contact Us
XB24CZ7SITB003 Programmable XBee Zigbee Through-Hole (RPSMA Antenna) XB24CZ7SITB003 HOW TO BUY
Contact Us
XB24CZ7PIS-004 XBee Zigbee SMT (PCB Antenna) XB24CZ7PIS-004 HOW TO BUY
Contact Us
XB24CZ7RIS-004 XBee Zigbee SMT (RF Pad Antenna) XB24CZ7RIS-004 HOW TO BUY
Contact Us
XB24CZ7UIS-004 XBee Zigbee SMT (U.FL Antenna) XB24CZ7UIS-004 HOW TO BUY
Contact Us
XB24CZ7PISB003 Programmable XBee Zigbee SMT (PCB Antenna) XB24CZ7PISB003 HOW TO BUY
Contact Us
XB24CZ7RISB003 Programmable XBee Zigbee SMT (RF Pad Antenna) XB24CZ7RISB003 HOW TO BUY
Contact Us
XB24CZ7UISB003 Programmable XBee Zigbee SMT (U.FL Antenna) XB24CZ7UISB003 HOW TO BUY
Contact Us
Development Boards
76000956 Grove Connector Development Board - XBee, through-hole sockets 76000956 HOW TO BUY
Contact Us
XBIB-C-SMT Development board - XBee 3, USB-C, surface-mount socket XBIB-C-SMT HOW TO BUY
Contact Us
XBIB-CU-TH Development board - XBee 3, USB-C, through-hole sockets XBIB-CU-TH HOW TO BUY
Contact Us
Digi XBee Multi Programmer
XBEE-MP-SMT Digi XBee Multi Programmer, surface mount (SMT) XBEE-MP-SMT HOW TO BUY
Contact Us
XBEE-MP-TH Digi XBee Multi Programmer, through-hole (TH) XBEE-MP-TH HOW TO BUY
Contact Us
XBEE-MP-SMT-PCB Digi XBee Multi Programmer, surface mount (SMT) printed circuit board XBEE-MP-SMT-PCB HOW TO BUY
Contact Us
XBEE-MP-TH-PCB Digi XBee Multi Programmer, through-hole (TH) printed circuit board XBEE-MP-TH-PCB HOW TO BUY
Contact Us
Antennas
A24-HABUF-P5I Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, U.FL female, articulating. A24-HABUF-P5I HOW TO BUY
Contact Us
A24-HASM-450 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-450 HOW TO BUY
Contact Us
A24-HASM-525 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-525 HOW TO BUY
Contact Us
DC-ANT-24DT Antenna - Wi-Fi, table-top mount, 2450 Mhz, 0.5 m cable DC-ANT-24DT HOW TO BUY
Contact Us
Service and Support
DG-PSTR-CUST Customer Training DG-PSTR-CUST HOW TO BUY
Contact Us
DG-PSOS-CUST On-site and Troubleshooting DG-PSOS-CUST HOW TO BUY
Contact Us
DG-PSSS-RF Site Survey - RF DG-PSSS-RF HOW TO BUY
Contact Us
DG-PSIC-CUST Implementation Planning DG-PSIC-CUST HOW TO BUY
Contact Us
DG-PSPP-CUST Installation Services DG-PSPP-CUST HOW TO BUY
Contact Us

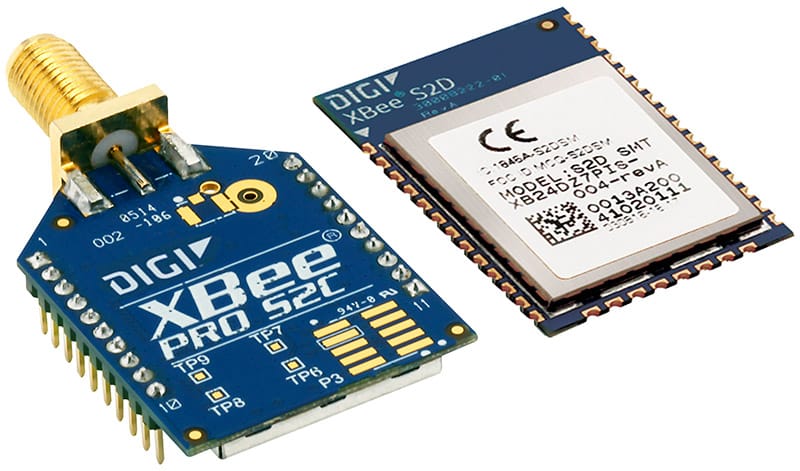

  Digi XBee S2C Zigbee Digi XBee-PRO S2C Zigbee Digi XBee S2D Zigbee
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EM357 SoC Silicon Labs EM357 SoC Silicon Labs EM3587 Soc
DATA RATE RF 250 Kbps, Serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 200 ft (60 m) Up to 300 ft (90 m) Up to 200 ft (60 m)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 4000 ft (1200 m) Up to 2 miles (3200 m) Up to 4000 ft (1200 m)
TRANSMIT POWER 3.1 mW (+5 dBm) / 6.3 mW (+8 dBm)boost mode 63 mW (+18 dBm) 3.1 mW (+5 dBm) / 6.3 mW (+8 dBm)boost mode
RECEIVER SENSITIVITY (1% PER) -100 dBm / -102 dBm boost mode -101 dBm -100 dBm / -102 dBm boost mode
FEATURES
SERIAL DATA INTERFACE UART, SPI
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Through-Hole, Surface Mount Through-Hole, Surface Mount Surface Mount
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 15
ANTENNA OPTIONS Through-Hole: PCB Antenna, U.FL Connector, RPSMA Connector, or Integrated Wire SMT: RF Pad, PCB Antenna, or U.FL Connector
OPERATING TEMPERATURE -40º C to +85º C
DIMENSIONS (L X W X H) AND WEIGHT Through-Hole: 0.960 x 1.087 in (2.438 x 2.761 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
Through-Hole: 0.960 x 1.297 in (2.438 x 3.294 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
PROGRAMMABILITY
MEMORY Standard: N/A
Programmable: 32 KB Flash/2 KB RAM
Standard: N/A
Programmable: 32 KB Flash/2 KB RAM
N/A
CPU/CLOCK SPEED Standard: N/A
Programmable: HCS08/up to 50.33 MHz
Standard: N/A
Programmable: HCS08/up to 50.33 MHz
N/A
NETWORKING AND SECURITY
PROTOCOL Zigbee PRO 2007, HA-Ready with support for binding/multicasting
ENCRYPTION 128-bit AES
RELIABLE PACKET DELIVERY Retries/Acknowledgements
IDS PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS 16 channels 15 channels 16 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.1 to 3.6V 2.7 to 3.6V 2.1 to 3.6V
TRANSMIT CURRENT Standard: 33 mA @ 3.3 VDC/45 mA boost mode
Programmable: 47 mA @ 3.3 VDC/59 mA boost mode
Standard: 120 mA @ 3.3 VDC
Programmable: 120 mA @ 3.3 VDC
33 mA @ 3.3 VDC / 45 mA boost mode
RECEIVE CURRENT Standard: 28 mA @ 3.3 VDC/31 mA boost mode
Programmable: 42 mA @ 3.3 VDC/45 mA boost mode
Standard: 31 mA @ 3.3 VDC
Programmable: 45 mA @ 3.3 VDC
28 mA @ 3.3 VDC / 31 mA boost mode
POWER-DOWN CURRENT Standard: <1 μA @ 25º C
Programmable: 1.5 μA @ 25º C
Standard: <1 μA @ 25º C
Programmable: 1.5 μA @ 25º C
<3 μA at 25º C
REGULATORY APPROVALS
FCC, IC (NORTH AMERICA) Yes Yes Yes
ETSI (EUROPE) Yes No Yes
RCM (AUSTRALIA AND NEW ZEALAND) Yes Yes No (Coming Soon)
*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
