PortServer TS M MEI

NRND Recommended replacement: Digi Connect EZ

Serial Server with Internal Modem

  • Easily connect to remote networks and devices
  • Internal v.90/v.92 modem
  • 3-port models for application flexibility
  • RS-232/422/485 switch-selectable on all ports
  • RealPort® for COM or TTY port control and management
  • PPP and SSH for creating secure IP network over serial connection
  • Easy IP assignment via DCHP, RARP, ARP-Ping or Digi utilities

PortServer® TS M MEI offers Ethernet and RS-232/422/485 serial connections, with the addition of an internal modem. The three-port serial servers are ideal for applications requiring both IP networking and standard phone line dial-up connectivity for remote access to serial devices.

The embedded modem adds another level of flexibility to the PortServer TS line. It allows remote hosts to dial-in to a serial device attached to the Digi serial server, as well as the serial device to dial-out to a remote location using a standard phone line. The modem helps to create a PPP connection (TCP/IP connection over modem) so that applications and devices can communicate via an IP network, even when the primary LAN or WAN is not available. This allows users from a central location to maintain access to remote serial devices.

Other applications for PortServer TS M MEI include remote site console management for small branches and remote login via a TCP/IP network for easy troubleshooting, monitoring, configuration or control.

*The RealPort encryption feature is compatible with Microso Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®. The RealPort authentication feature is compatible only with Microso Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019.

Specifications PortServer TS 3 M MEI
Management HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority - remote management diagnostics and auto-discovery tool
Protocols UDP/TCP, PPP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support
Software Supports Digi’s Realport® COM port redirector
Security SSHv2, static routing, RIP 1
Status LEDs Link, power
Operating Systems Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®. Note: TCP/UDP socket services are operating system independent.
(L x W x D)
13.34 cm x 8.46 cm x 2.42 cm (5.25 in x 3.33 in x 0.95 in)
Weight 64.00 g (2.25 oz)
Other DIN rail mounting options, full modem and hardware flow control, port buffering, RJ45-DB-9F console adapter included for optional serial configuration
Ports 3 RS-232/422/485 RJ-45; Up to 230 kbps throughput; signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ports 1 RJ-11
Modem Type Internal v.90/v.92
Ports 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); full or half duplex
Power Requirements
Power Input 9-30 VDC
Power Supply (included) 12 VDC / 1.5 A max out; 100-240 VAC in (wall mount)
Power Consumption Typical: 4 W; Max: 6 W
Product Surge Protection (ESD) 4 kV burst (EFT) per EN61000-4-4, 2 kV surge transient per EN61000-4-5
Operating Temperature -0° C to 50° C (32° F to 122° F)
Relative Humidity 5% to 90% (non-condensing)
Ethernet Isolation 1500 VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD) 15 kV human body model
Safety UL60950, CAN/CSA C22.2 No. 60950, EN60950
Emissions/Immunity CE; FCC Part 15 (Subpart B, Class B); EN55022 Class B; EN61000-3-2, 3; EN55024

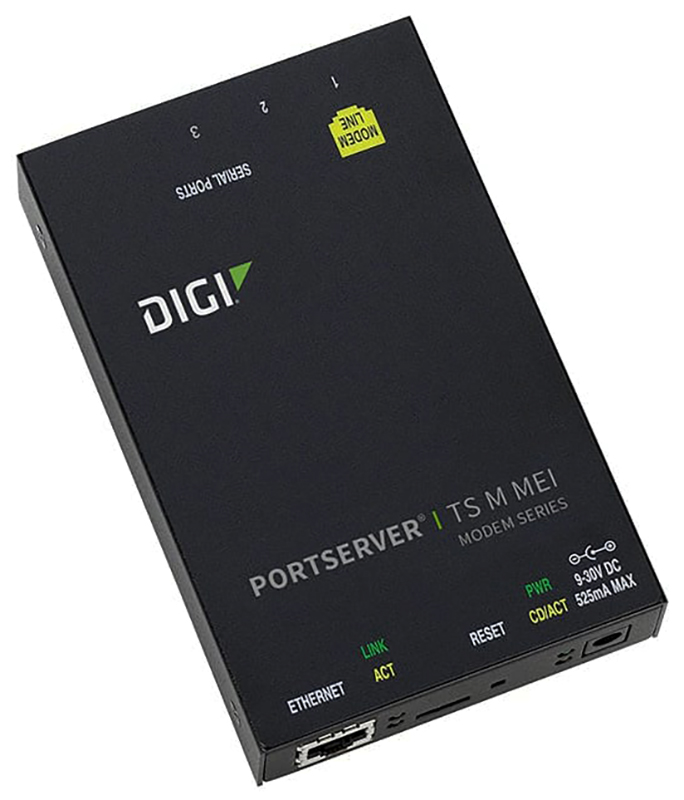

PortServer TS M MEI - Front

PortServer TS M MEI - Back
