Zigbee Products and Modules

Embedded modules, gateways and adapters that support the Zigbee protocol for designs requiring highly secure mesh networking.

Jump To
RF ModulesGatewaysSingle Board ComputersDigi XBee Tools

RF Modules

Digi XBee 3 Zigbee 3 RF Module

Digi XBee 3 Zigbee 3 RF Module

Easy-to-add connectivity in a compact, low-power, low-profile footprint

  • At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
  • Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XBee Studio
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT
Add to compare
Digi XBee<span>®</span> Zigbee

Digi XBee Zigbee

NRND

Embedded ZigBee modules provide OEMs with a simple way to integrate mesh technology into their application

  • Programmable versions with on-board microprocessor enable custom Zigbee application development
  • Through-Hole and Surface Mount form factors enable flexible design options
  • Link budgets of 110 dB for XBee and 119 dB for XBee-PRO
  • Industry-leading sleep current
  • Firmware upgrades via UART, SPI or over the air (OTA)
  • Turnkey development available from Digi WDS
Add to compare

Gateways

Digi ConnectPort X2 Gateway

Digi ConnectPort X2 Gateway

Industrial-grade Digi XBee to IP gateways

  • Digi XBee® to Ethernet IP gateways support numerous Digi XBee protocols
  • Industrial-grade enclosures for rugged environments
  • Digi Remote Manager® for secure, scalable access to an unlimited number of remote assets and seamless web services integration from Digi gateways into customer back office applications
Add to compare

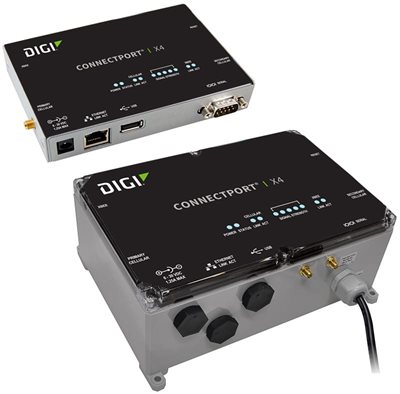

Digi ConnectPort X4 Gateway

Digi ConnectPort X4 Gateway

Remote M2M networking gateways designed for commercial grade and rugged outdoor applications

  • WAN connectivity via LTE or 3G HSPA+ Networks
  • Local wireless connectivity through Zigbee
  • Local wired connectivity through RS-232/422/485, 2 analog inputs and 2 digital inputs
  • Small commercial grade enclosure or NEMA 4X/IP66 case
  • Full routing/IP filtering plus IPsec/SSL VPNs with DES, 3DES or AES encryption
  • Easy development environment via DIA and Python scripting as part of Digi ESP IDE
  • Support for Modbus/Modbus TCP
  • Digi Remote Manager® support for easy setup, mass configuration and management
Add to compare
Digi XBee Industrial Gateway

Digi XBee Industrial Gateway

Programmable gateway connects Digi XBee enabled devices to remote applications over cellular or Ethernet

  • Open-source Python environment for custom application development on the gateway
  • Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee networks
  • ZigBee enabled for connection to local wireless devices
  • Cellular and Ethernet WAN options for flexible broadband connectivity
  • Can be deployed in any environment due to industrial temp range and rugged enclosure
Add to compare

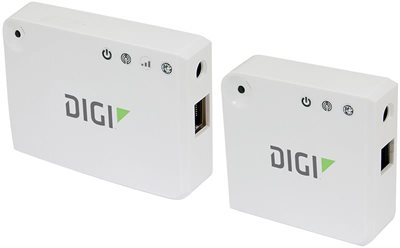

Digi XBee Zigbee Gateway Wi-Fi Hub

Digi XBee Zigbee Gateway Wi-Fi Hub

Programmable Zigbee gateway hub connects Digi XBee module devices to cloud-based applications and products over cellular, Wi-Fi or Ethernet

  • Open Source Python environment for custom application development on the gateway
  • Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee® networks
  • Secure, scalable access to an unlimited number of remote Digi XBee-based devices
  • Cellular, Wi-Fi and Ethernet WAN options for flexible broadband connectivity
Add to compare

Single Board Computers

Digi ConnectCore 6N SBC

Digi ConnectCore 6N SBC

Reliable and compact NXP i.MX6 SBC family with integrated Ethernet, Wi-Fi, Bluetooth, Digi XBee and cellular connectivity options

  • Compact off-the-shelf SBC family
  • Scalable capabilities and i.MX6Quad/Dual performance
  • Gigabit Ethernet and pre-certified dual-band Wi-Fi 5 and Bluetooth® 5.0
  • Ready for cellular connectivity and Digi XBee® RF
  • Complete set of available peripherals and interfaces with customizable options
  • Designed for flexibility and reliability
  • Windows® Embedded Compact, Yocto Project® Linux® and Android™ software platform support
  • Industrial operating temperature available
Add to compare
Digi ConnectCore 6+ SBC

Digi ConnectCore 6+ SBC

NXP i.MX6Plus based surface-mount module solution with scalable, quad-core performance and integrated wireless connectivity

  • Compact off-the-shelf SBC
  • Scalable capabilities and i.MX6Plus performance
  • Gigabit Ethernet and pre-certified dual-band 802.11ac + Bluetooth® 5
  • Seamless cellular modem and Digi XBee® integration
  • Complete set of available peripherals and interfaces with customization options
  • Designed for flexibility and reliability
  • Yocto Linux and Android software platform support
  • Industrial operating temperature available
Add to compare
Digi ConnectCore 6UL SBC Pro

Digi ConnectCore 6UL SBC Pro

Powerful, secure, pre-certified connected Single Board Computer in standard form factor with complete design flexibility.

  • Powerful and flexible off-the-shelf solution in Pico-ITX form factor
  • Production-ready with minimal hardware design effort
  • Rugged design with industrial operating temperature range
  • Pre-certified dual-band 802.11ac Wi-Fi connectivity
  • Bluetooth® 5, with Bluetooth Low Energy support
  • Out-of-box support for cellular connectivity
  • On-board NFC Forum Type 2 compliant tag
  • Dual 10/100 Mbit Ethernet networking
  • Integrated display and camera capabilities
  • Rich interface and peripheral support
  • Complete Yocto Project® Linux® BSP with source code
  • Digi TrustFence® device security framework
Add to compare

Digi XBee Tools

Digi XBee 3 USB Adapter

Digi XBee 3 USB Adapter

Digi XBee 3 USB Adapter provides local connectivity to wireless Digi XBee networks from a laptop or PC, enabling local commissioning of the network and its devices

  • Programmable to communicate with any of Digi's supported wireless protocols
  • Provides connectivity to local Digi XBee networks from a laptop/PC
  • Enables fast local commissioning of devices on the local network
  • USB powered
  • LEDs for UART traffic and network association
Add to compare
