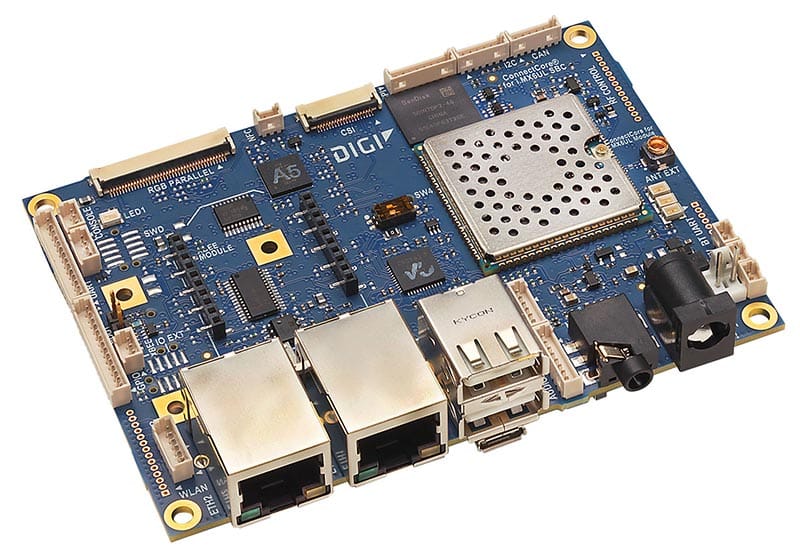

| PERFORMANCE* |
| APPLICATION PROCESSOR |
NXP i.MX6UL-2, ARM® Cortex®-A7 @ 528 MHz, 128 KB L2 cache, with NEON™ MPE (Media Processor Engine) co-processor |
| MEMORY |
256 MB NAND flash, 256 MB DDR3 (CC-SBP-WMX-JN58); 1 GB NAND flash, 1 GB DDR (CC-SBP-WMX-JN7A) |
| WIRED NETWORK CONNECTIVITY |
| ETHERNET |
2 x 10/100 Mbit Ethernet |
| WIRELESS NETWORK CONNECTIVITY |
| WI-FI |
Dual-band 802.11a/b/g/n/ac 1x1 (MCS 0-9) |
| BLUETOOTH |
Bluetooth 5, with Bluetooth Low Energy support |
| ANTENNAS |
On-module U.FL or on-board MMCX antenna connector for Wi-Fi and Bluetooth, external NFC antenna option |
| NFC |
Energy-harvesting NXP NTAG, field detection trigger, ISO 14443A and NFC Forum Type 2 Tag compliant |

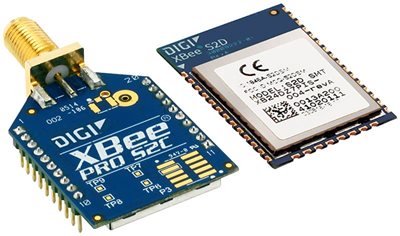

| DIGI XBEE® RF |
Standard Digi XBee socket |
| PERIHPERALS/INTERFACES |
| ETHERNET |
2 x RJ-45 (10/100 Mbit) |
| USB |
2 x USB Host (dual Type-A), 1 x USB Host (6-pin header ), 1 x USB OTG (micro-USB) |
| DISPLAY |
24-bit Parallel RGB (40-pin header), and 18-bit LVDS (20-pin header) |
| CAMERA |
8-bit Parallel CSI (20-pin header) |
| GPIO |
14-pin header (8 x GPIO, 1 x touch) |
| UART / CONSOLE |
14-pin header (1 x two-wire, 2 x four-wire, one shared with XBee socket), 3-pin header (console) |
| OTHER CONNECTIVITY |
1 x I2C (6-pin header), 1 x SPI (8-pin header), 2 x CAN (6-pin header) |
| PCI EXPRESS MINI CARD |
Half-size and full-size card support, with on-board Micro SIM slot support |
| RF CONTROL |
14-pin header (Wi-Fi Enable/Disable, Bluetooth Enable/Disable, Wakeup, PCM, LTE Control, GPS Co-Existence) |
| EXTERNAL STORAGE |
microSD , on-board 4 GB eMMC flash for data storage |
| AUDIO |
3.5 mm headphone jack, 6-pin header (speaker), 8-pin header (line-in, microphone, line-out) |
| BUTTONS / SWITCHES |
Power, Reset, User, Boot Select (NAND/microSD), RF (Wi-Fi Enable, Bluetooth Enable), Antenna Select (U.FL on-module/MMCX on-board) |
| DEBUG |
Tag-Connect for JTAG and SWD |
| POWER |
3.3 V out (2-pin header), 5 V out (2-pin header), battery (2-pin header) |
| LEDS |
Power, 3 x User |
| CERTIFICATIONS** |
| RADIO APPROVALS |
US, Canada, EU, Japan, Australia, New Zealand |
| EMISSIONS / IMMUNITY / SAFETY |
FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (UL/UL equivalent) |
| POWER REQUIREMENTS |
| SUPPLY VOLTAGE |
5 V @ 3.2 A (typical, depending on use case); see ConnectCore 6UL module product brief for module-only power consumption guidance |
| POWER CONNECTORS |
Locking barrel connector (2 mm), or dedicated power connector (3-pin header) |
| ENVIRONMENTAL |
| OPERATING TEMPERATURE |
-40° C to 85° C (-40° F to 185° F) |
| STORAGE TEMPERATURE |
-50° C to +125° C (-58° C to 257° F) |
| RELATIVE HUMIDITY |
Relative humidity 5% to 90% (non-condensing) |
| DESIGN VERIFICATION |
Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |

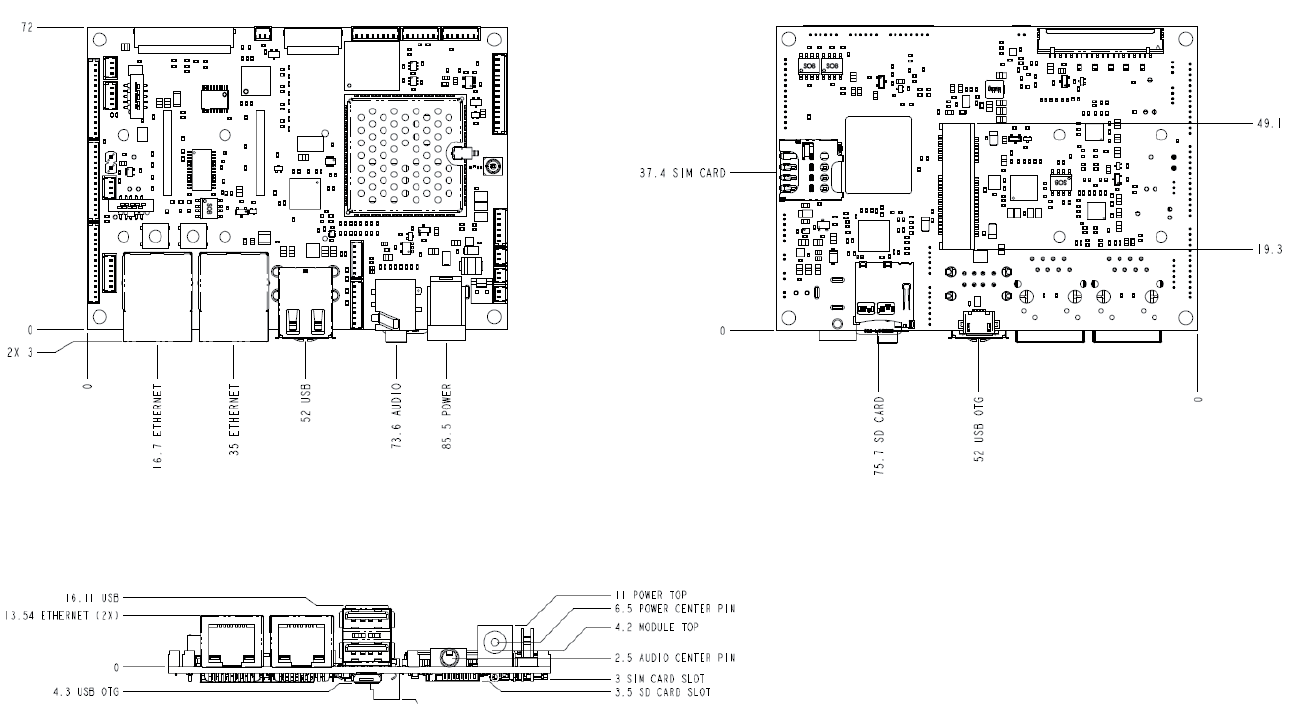

| MECHANICAL |
| DIMENSIONS |
100 mm x 72 mm (4.0 in x 2.83 in) |
| WARRANTY |
| PRODUCT WARRANTY |
1 year |
