Digi XBee Intelligent Edge Controller

Coming soon

Cloud-managed LoRaWAN smart industrial IoT solution for edge sensors and systems

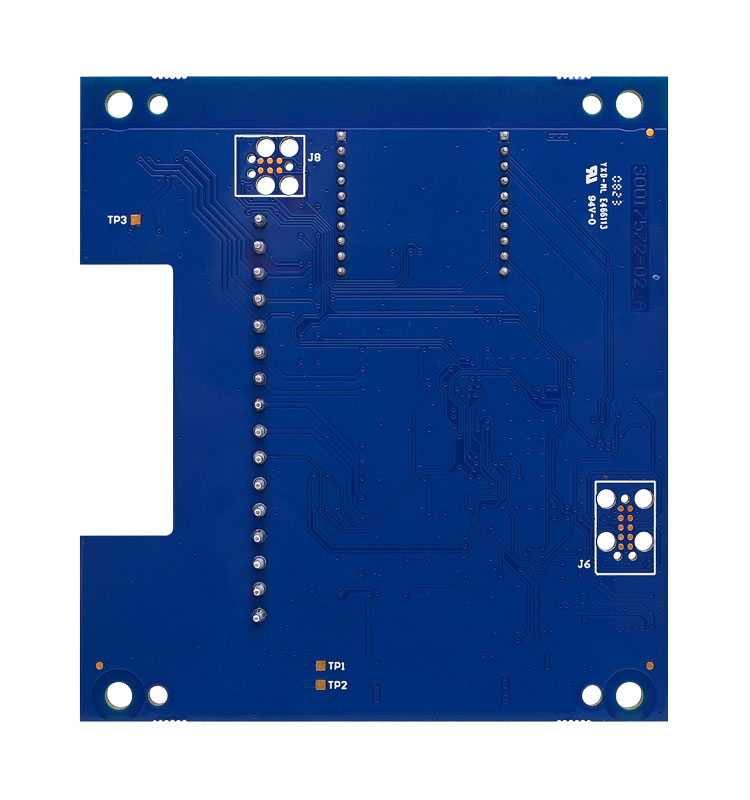

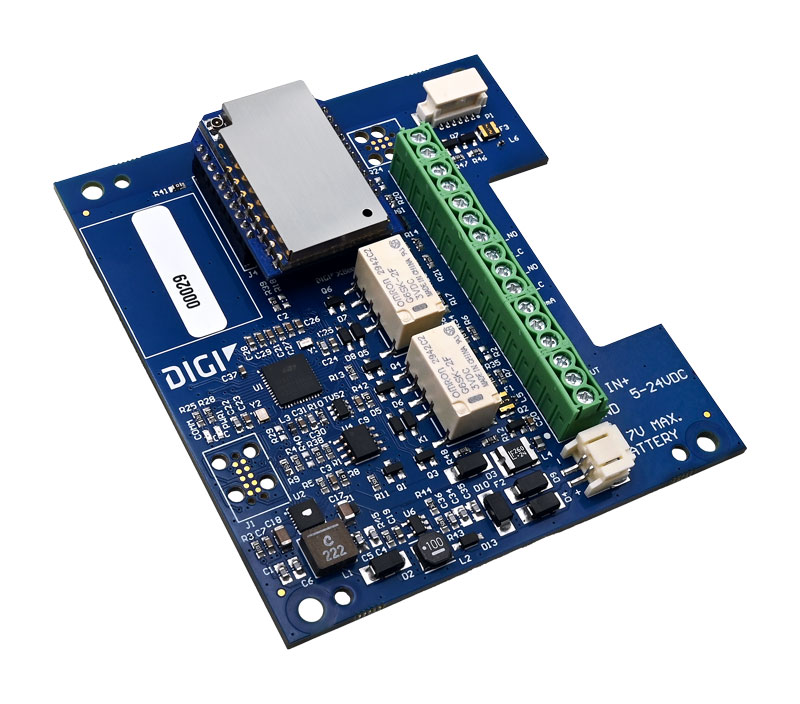

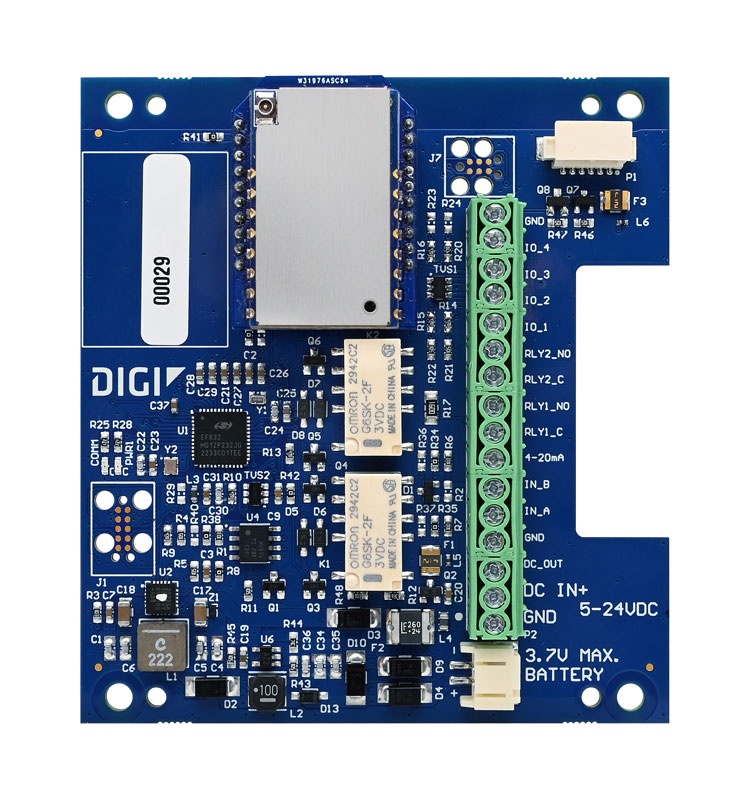

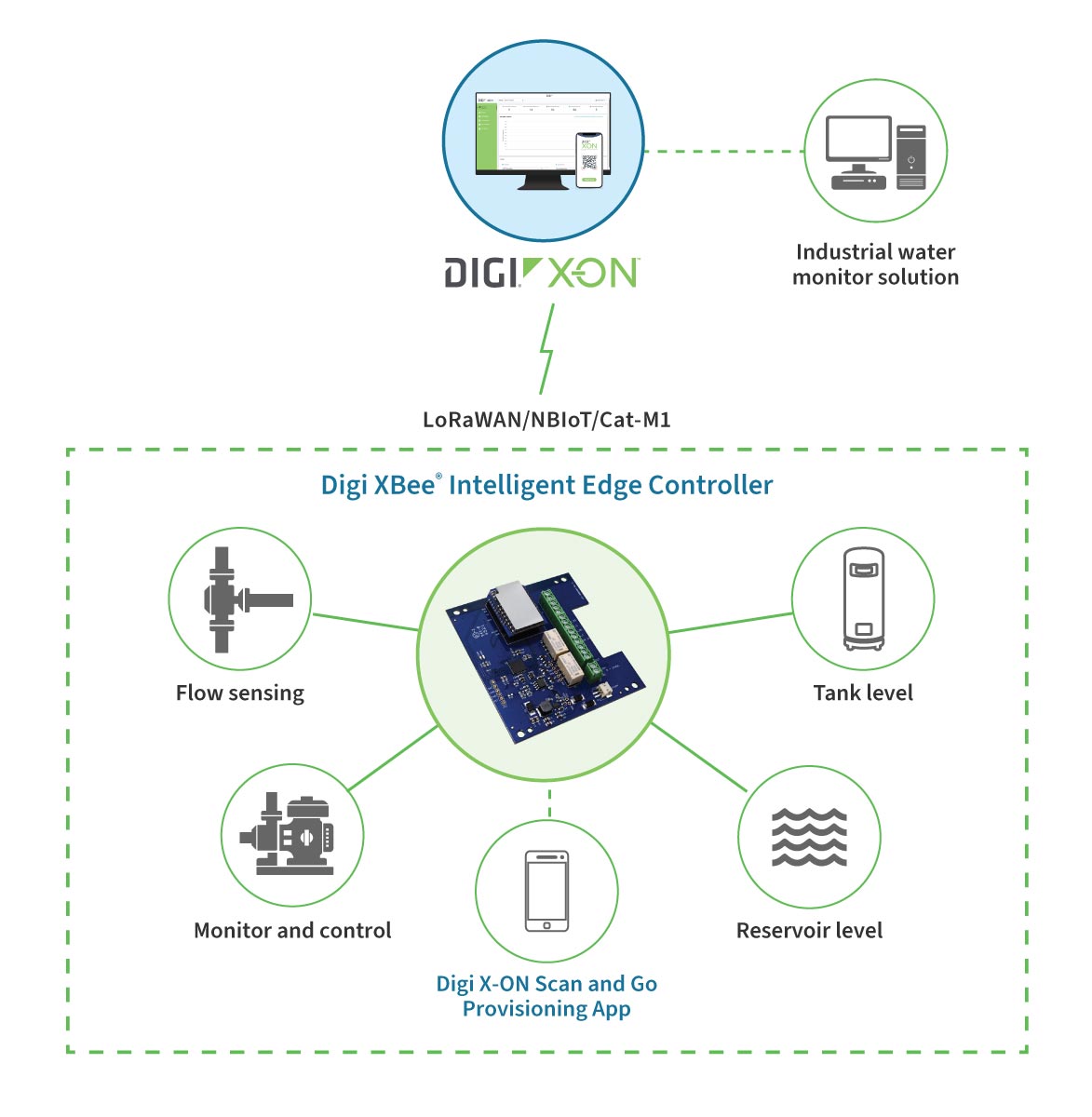

Digi XBee IEC with Digi X-ON Digi XBee Intelligent Edge Controller Digi XBee Intelligent Edge Controller — front Digi XBee Intelligent Edge Controller — back Digi XBee Intelligent Edge Controller with Enclosure Digi XBee Intelligent Edge Controller with Enclosure - front Digi XBee Intelligent Edge Controller with Enclosure - back Digi XBee Intelligent Edge Controller — application example
  • Low-Power Wide-Area Network - LPWAN
  • 80x local intelligent edge rules and unlimited cloud-based rules
  • Cloud-based configuration
  • On-demand cloud polling and configuration for any Modbus register
  • Device portal
  • Intelligent edge processing
  • Sub-second local monitoring and alarms
  • Mobile provisioning app

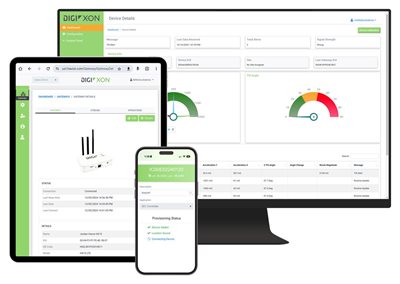

  • Digi X-ON cloud platform for easy management
  • Typical range up to 15 km (10 miles)

Digi XBee® Intelligent Edge Controller provides a development-ready upgrade to existing industrial sensors with the latest innovation in wireless and cloud technologies. Combine Digi X-ON Cloud with Digi XBee Intelligent Edge Controller to monitor sensor or remote-control assets over LoRaWAN™. Industrial devices can be monitored with sub-second accuracy using Modbus RTU or digital or analog I/O. Alarms and data are wirelessly delivered to the Digi X-ON™ Cloud IoT platform.

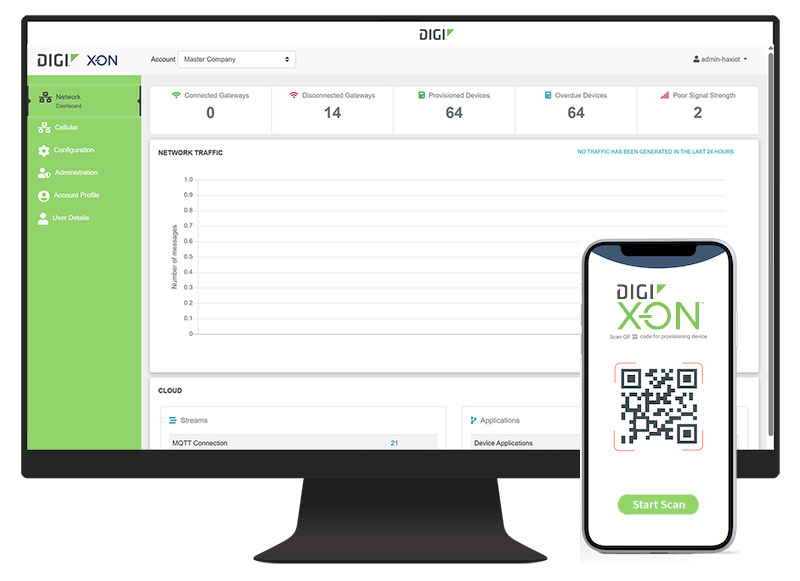

Provision and verify secure wireless connectivity with the Digi X-ON mobile app. Add custom workflows to streamline the installation process in the field. Deploy pre-configured device templates from the cloud with support for over-the-air configuration updates.

Leverage the complete, deployment-ready device-to-cloud XBee Intelligent Edge Controller IoT solution for sensor monitoring and real-time data insights. Ideal for predictive maintenance, the remotely configurable edge controller lowers network and operational costs with rapid deployment and secure, long-range connectivity. Local edge monitoring of up to 80 different parameters eliminates site visits with cloud management. Retrofit existing Modbus or analog industrial sensors in the field, configure Modbus device settings remotely, and reduce network traffic by over 99%.

Digi XBee Intelligent Edge Controller is a turnkey solution for intelligent agent edge processing, rapid polling, and long-range, low-power wireless connectivity with mobile provisioning and cloud control.

Digi XBee Ecosystem

Explore the Digi XBee Ecosystem

Digi XBee is more than a module. It's a complete ecosystem of RF modules, gateways, adapters, and software, all engineered to accelerate wireless development for global deployments. One socket allows you to connect to IoT networks around the globe. With the authentic Digi XBee footprint, you can future-proof your design and know that Digi has you covered for new technologies as they emerge.

Digi XBee Ecosystem

Digi XBee Intelligent Edge Controller
SKU: IEC-9-LR-O-001 Coming soon
Digi XBee Intelligent Edge Controller — U.FL, 1.2 dBi omni antenna, IP65, no battery
  • LoRaWAN, Modbus, DIO
  • 4 - 20 mA, 902 - 928 MHz, 5 - 24 VDC
  • U.FL
  • 1.2 dBi omni antenna
  • IP65
  • No battery
IEC-9-LR-O-001 Contact Us
SKU: IEC-9-LR-O-002 Coming soon
Digi XBee Intelligent Edge Controller — U.FL, 1.2 dBi omni antenna, IP65, no battery
  • LoRaWAN, Modbus, DIO
  • 4 - 20 mA, 902 - 928 MHz, 5 - 24 VDC
  • Tilt/shock sensor
  • U.FL
  • 1.2 dBi omni antenna
  • IP65
  • No battery
IEC-9-LR-O-002 Contact Us
SKU: IEC-8-LR-O-PCA Coming soon
Digi XBee Intelligent Edge Controller — U.FL connector, PCA only
  • LoRaWAN, Modbus, DIO
  • 4 - 20 mA, 863 - 870 MHz, 5 - 24 VDC
  • U.FL connector
  • PCA only
IEC-8-LR-O-PCA Contact Us
SKU: IEC-9-LR-O-PCA Coming soon
Digi XBee Intelligent Edge Controller — U.FL connector, PCA only
  • LoRaWAN, Modbus, DIO
  • 4 - 20 mA, 902 - 928 MHz, 5 - 24 VDC
  • U.FL connector
  • PCA only
IEC-9-LR-O-PCA Contact Us
  Digi XBee® Intelligent Edge Controller
WWAN
LORAWAN REGIONAL SUPPORT US915, EU868
ANTENNA CONNECTOR U.FL (for IEC-8-LR-O-PCA and IEC-9-LR-O-PCA models)
MANAGEMENT
CONFIGURATION AND MANAGEMENT Digi X-ON Cloud (cloud-based); local USB to serial CLI
POWER (Does not include power draw of external sensors)
EXTERNAL POWER INPUT RANGE 5 VDC – 24 VDC
MAXIMUM DC INPUT 30 V
BATTERY AND BATTERY LIFE 3.6 V, 8 Ah, lithium thionyl chloride, non-rechargeable, replaceable; approximately 8 years (at 10 msgs / day)
POWER CONSUMPTION &emdash; SLEEPING 30 uA (battery)
POWER CONSUMPTION &emdash; CONTINUOUS 8 mA (battery)
POWER CONSUMPTION &emdash; TRANSMIT 135 mA (battery)
SENSOR PROTOCOL SUPPORT
MODBUS Modbus RTU RS-485 up to 32 devices direct or 192 devices with Modbus RTU I/O port expanders
EDGE COMPUTE 80 local rules, unlimited cloud rules
ANALOG I/O
INPUTS 1x 4 – 20 mA with 24 VDC power on battery or 5 – 24 VDC when on external DC
INPUT VOLTAGE RANGE 0 – 3.3 VDC (analog input)
INPUT CURRENT RANGE 4 – 20 mA (current loop input)
INTERNAL A/D CONVERTER 12-bit
DIGITAL I/O
PORTS 1x RS-485/Modbus, 1x I2C or 4x Digital I/O
INPUT RANGE 0 – 0.6 VDC logic low; 3.3 VDC logic high
MAX INPUT VOLTAGE 24 VDC
DIGITAL OUTPUT Latching relay, max current, 2 A 0 – 150 VDC / 0 – 240 VAC
ENVIRONMENTAL
OPERATING TEMPERATURES −35 °C to 70 °C (−31 °F to 158 °F)
STORAGE TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F)
RELATIVE HUMIDITY 90%
BATTERY DISCHARGE <1%/year if stored at 30 °C (86 °F)
PHYSICAL
DIMENSIONS (L x W x H) IEC-9-LR-O-001: 152.4 mm x 108.4 mm, 127 mm including glands, x 74.6 mm (6 in x 4.27 in, 5 in including glands, x 2.94 in);
IEC-9-LR-O-002: 152.4 mm x 108.4 mm, 127 mm including glands, x 74.6 mm (6 in x 4.27 in, 5 in including glands, x 2.94 in;
IEC-8-LR-O-PCA: 86.3 mm x 79.6 mm (3.4 in x 3.13 in)
IEC-9-LR-O-PCA: 86.3 mm x 79.6 mm (3.4 in x 3.13 in)
WEIGHTS IEC-9-LR-O-001: 246 g (0.54 lb);
IEC-9-LR-O-001: 264 g (0.58 lb);
IEC-8-LR-O-PCA: 45 g (0.10 lb)
IEC-9-LR-O-PCA: 45 g (0.10 lb)
ENCLOSURE IEC-9-LR-O-001: IP65;
IEC-9-LR-O-002: IP65;
IEC-8-LR-O-PCA: PCA only (no enclosure)
IEC-9-LR-O-PCA: PCA only (no enclosure)
REGULATORY APPROVALS
EMISSIONS FCC part 15 Subpart B class B, EN55022: 2010/AC: 2011 class B, ICES-003 Issue 5: 2012 class B; EU868
WARRANTY
PRODUCT WARRANTY 1-year*
*Standard 1-year warranty upgradeable to 3 years with purchase of a Digi X-ON 3-year subscription applicable to the product purchased at time of first installation.
