| CELLULAR** |
| CERTIFICATIONS |
Visit product certifications for latest certifications and updates |

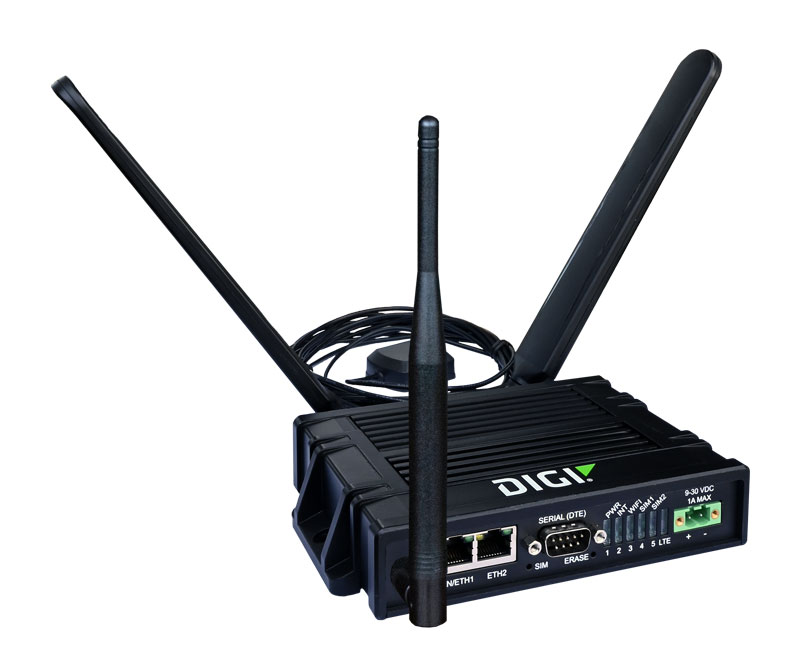

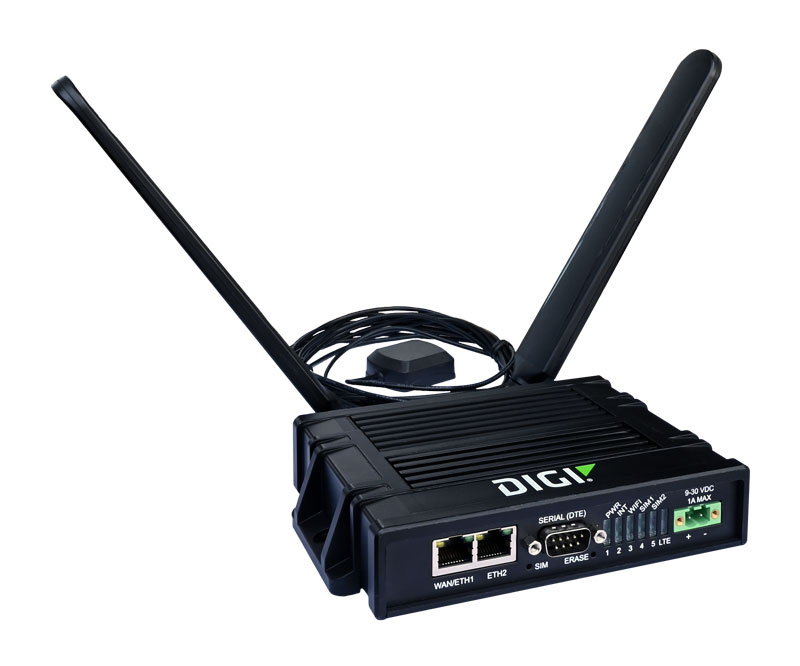

| LTE-A (07) WITH DIGI CORE PLUG-IN LTE MODEM 1003-CM07-OUS** |
LTE-Advanced Cat 7 (North America): B2, B4, B5, B7, B12, B13, B14 FirstNet®, B25, B26, B41, B42, B43, B48, B66, B71;
3G: B2, B5;
Transfer rate (max): 300 Mbps down, 150 Mbps up;
Industrial temperature |
| LTE (G4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMG4-GLB** |
LTE Cat 4 (Global): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41;
3G: B1, B2, B4, B5, B6, B8, B19;
2G: 850 / 900 / 1800 / 1900 MHz;
Transfer rate (max): 150 Mbps down, 50 Mbps up;
Industrial temperature |
| LTE (G4-G) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMG4-GLB-G** |
LTE Cat 4 (EMEA): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41;
3G: B1, B2, B4, B5, B6, B8, B19;
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz;
Transfer rate (max): 150 Mbps down, 50 Mbps up;
Industrial temperature |
| LTE (N4/P4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMF4-OUS** |
LTE Cat 4 (North America): B2, B4, B5, B12, B13, B14 FirstNet®, B66, B71;
3G: B2, B4, B5;
Transfer rate (max): 150 Mbps down, 50 Mbps up;
Industrial temperature |
| LTE (45) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CM45-OEU** |
LTE Cat 4 (EMEA): B3, B7, B20, B31, B72; 450 MHz support
Transfer rate (max): 150 Mbps down, 50 Mbps up;
Industrial temperature |

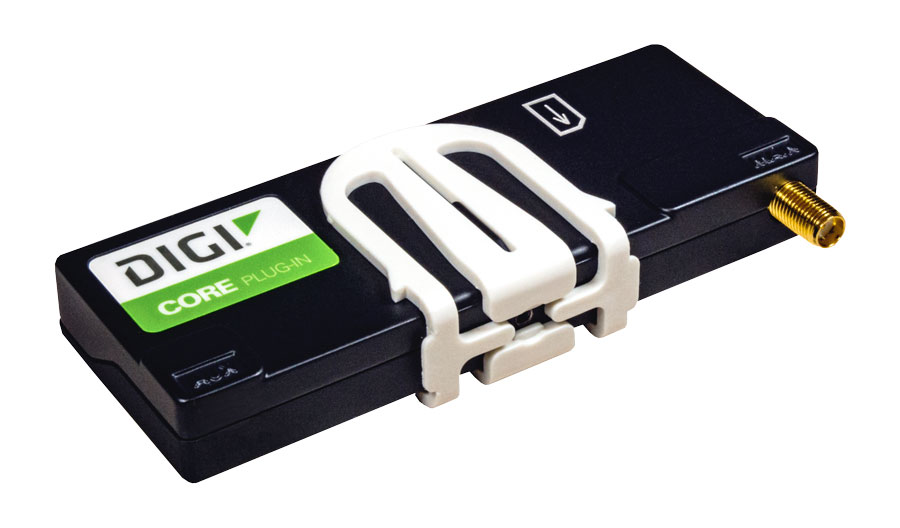

| LTE (M1) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMM1-GLB** |
LTE Cat M1 / NB1 (North America): B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20,B26, B28;
2G: 850 / 900 / 1800 / 1900 MHz
Transfer rate (max): M1: 300 kbps down, 375 kbps up; NB1: 21 kbps down, 62.5 kbps up; 2G: 296 kbps down, 236 kbps up;
Industrial temperature |
| CONNECTORS |
(2) 50 Ω SMA (center pin: female) |
| SIM SLOTS |
(2) Mini-SIM (2FF) |
| SIM SECURITY |
Secured in cellular module |
| GNSS (1003-CM07 / 1002-CMG4-G) |
GPS, GLONASS, BeiDou, Galileo, QZSS; Connector: 50 Ω SMA (center pin: female); Protocol NMEA 0183 V3.0; Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s; Accuracy Horizontal: < 2 m (50%), < 5 m (90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s |

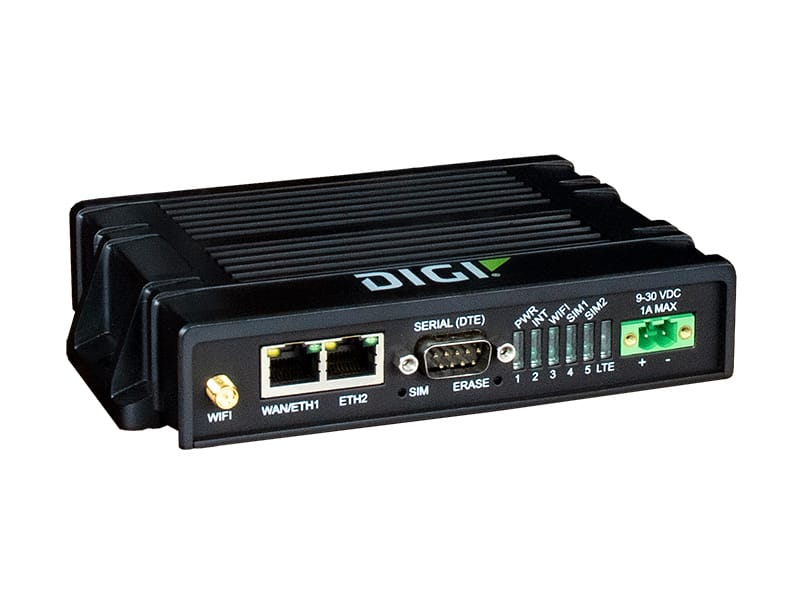

| WI-FI |
| MODULE |
1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) |
| AUTHENTICATION |
TACACS+, Enterprise RADIUS |
| MODES |
Client mode and access point mode simultaneously |
| CLIENTS |
Maximum 10 clients (access point mode: regardless of combination of clients and access points) |
| ACCESS POINTS |
Maximum 2 access points (access point mode: regardless of combination of clients and access points) |
| SECURITY |
WPA/WPA-2 personal, WPA/WPA-2 enterprise |
| CONNECTORS |
(1) 50 Ω SMA (center pin: male) |
| SOFTWARE AND MANAGEMENT* |
| REMOTE MANAGEMENT |
Digi Remote Manager®; SNMP v2/v3 (user installed/managed) |
| LOCAL MANAGEMENT |
Web UI (HTTP/HTTPS); CLI (Telnet, SSH) |
| MANAGEMENT / TROUBLESHOOTING TOOLS |
FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, IPerf, dynamic DNS, ping, traceroute |
| MEMORY |
256 MB RAM, 256 MB flash |

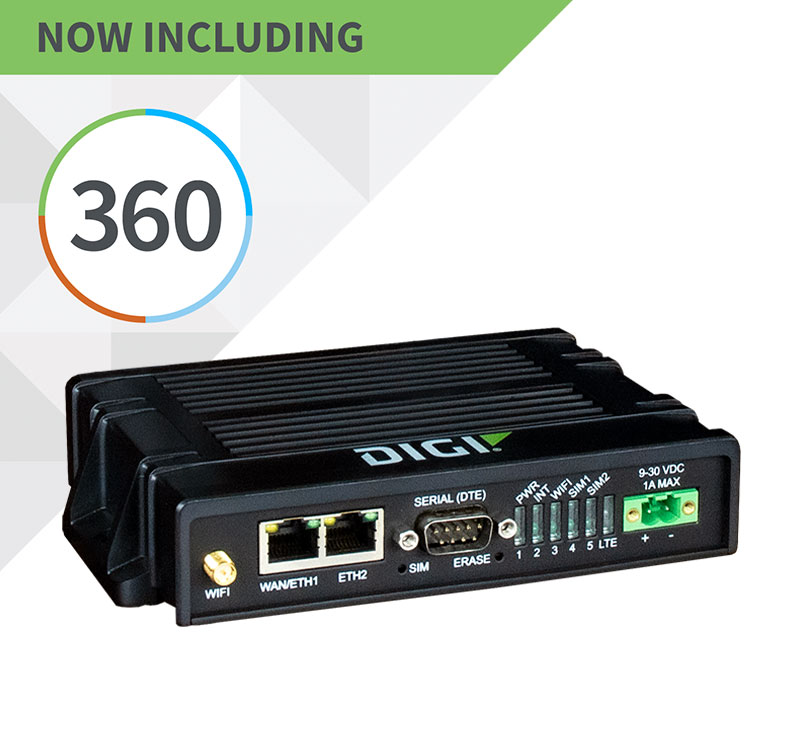

| ETHERNET |
| PORTS |
(2) RJ-45; 10/100 Mbps (auto-sensing) |
| SERIAL |
| PORTS |
(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS) |
| PHYSICAL |
| DIMENSIONS (L x W x H) |
107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in) |
| WEIGHT |
0.65 kg (1.4 lb) |
| STATUS LEDs |
Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE |
| ENCLOSURE |
Glass-filled polyphenylene sulphide (PPS) / IP30 |
| POWER REQUIREMENTS |
| POWER INPUT |
9 - 30 VDC, reverse polarity protection, 1.0 A maximum; connector: 2-position rewireable plug with securing screws included |
| POWER CONSUMPTION |
1.5 W (light traffic flow), 3.5 W (peak data transmission); 1.4 W (low power mode, idle traffic, no Ethernet WAN) |
| ENVIRONMENTAL |
| OPERATING TEMPERATURE |
Models with Wi-Fi: −20 °C to 70 °C (−4 °F to 158 °F)
Models without Wi-Fi: −40 °C to 70 °C (−40 °F to 158 °F) |
| STORAGE TEMPERATURE |
−40 °C to 85 °C (−40 °F to 185 °F) |
| RELATIVE HUMIDITY |
5% to 95% (non-condensing) |
| ACCESSORIES |
| AVAILABLE ACCESSORIES |
Accessories not included. Available accessories: industrial extended temperature or commercial power supply (required); Wi-Fi, cellular and GPS antennas, Ethernet cable, DIN rail clip kit and DIN rail mounting bracket kit (recommended / optional) |
| APPROVALS** |
| CELLULAR |
Visit product certifications for latest approvals and updates |
| SAFETY |
IEC62368-1, CB, EN62311 |
| ENVIRONMENTAL |
ROHS3 |
| EMISSIONS / IMMUNITY |
CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32 |
| WARRANTY*** |
| PRODUCT WARRANTY |
1-year |
