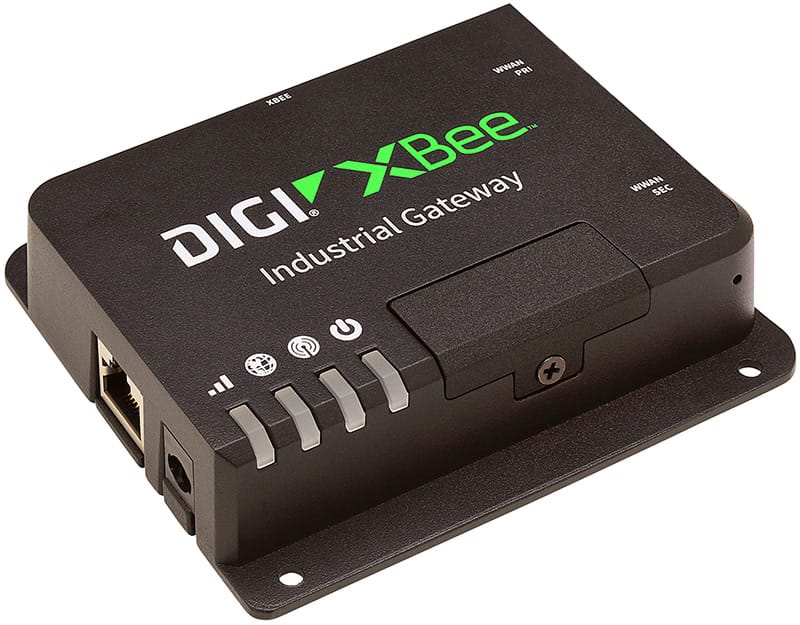

Digi XBee Industrial Gateway

New

Programmable gateway connects Digi XBee enabled devices to remote applications over cellular or Ethernet


  • Open-source Python environment for custom application development on the gateway
  • Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee networks
  • Zigbee enabled for connection to local wireless devices
  • Cellular and Ethernet WAN options for flexible broadband connectivity
  • Can be deployed in any environment due to industrial temp range and rugged enclosure
How to Buy

Digi XBee® Industrial Gateway is a rugged Digi XBee to IP solution. Ideal for any environment, the gateway has an extended temperature range and rugged enclosure.

Digi XBee Industrial Gateway features scalable remote configuration and management of Digi XBee networks. By default, all Digi XBee data sent to the gateway is automatically available to online applications via Digi Remote Manager®. With a simple, open-source Python development environment, this gateway also enables custom applications to run locally while interfacing across existing Ethernet or cellular networks for WAN connectivity to cloud-based applications.

Digi XBee Gateway products can be managed remotely via Digi Remote Manager, supporting features like remote firmware upgrades, configuration changes and event alarms. With Digi Remote Manager, users can scale their network from a single device to hundreds of thousands of remote devices.

Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track – edit configurations, update firmware, monitor, schedule and automate tasks – all from your desktop or tablet.

30 Day Trial

Specifications Digi XBee® Industrial Gateway Digi XBee® Industrial Cellular Gateway
GENERAL
MANAGEMENT Secure enterprise management via Digi Remote Manager®
PROTOCOLS UDP/TCP, DHCP
LEDS Cellular signal strength, network (LAN/WAN), ZigBee (wireless LAN), power
SECURITY TLS 1.2, cellular network security
WWAN
3G HSPA+, BANDS N/A B5(850), B8(900), B2(1900), B1(2100), B4(AWS)
LTE CATEGORY 1 N/A Verizon: bands 2, 4, 13
AT&T, T-Mobile: B2(1900), B4(AWS1700), B5(850), B12/B12(700)
ANTENNA CONNECTORS N/A HSPA+ version: 1 x 50 Ω SMA (center pin: female);
LTE version: 2 x 50 Ω SMA (center pin: female)
SIM SLOTS N/A 2 x 2FF SIM slots; second SIM slot reserved for future use
SIM SECURITY N/A Screw-down SIM cover
SOFTWARE & MANAGEMENT
PYTHON 2.7.1
MEMORY FREE SPACE 20MB RAM and 20MB Flash for Python applications
XBEE GATEWAY APPLICATION Wireless LAN data sent to the gateway is automatically available to online applications via Digi Remote Manager
ZIGBEE
ZIGBEE STACK ZigBee Standard and ZigBee PRO versions available
ZIGBEE MODULE Standard: Digi XBee ZB SMT (S2C); PRO: Digi XBee Pro ZB SMT (S2C)
ZIGBEE Standard: Transmit power 6.3 mW (+8 dBm); Receiver sensitivity: -102 dBm
PRO: Transmit Power 63mW (18dBm): Receiver sensitivity: -102dBm
ZIGBEE ANTENNA 1 x 50 Ω SMA (center pin: female)
ETHERNET
PORTS 1 RJ-45 port
PHYSICAL LAYER 10/100 Base-T
DATA RATE 10/100 Mbps (auto-sensing)
MODE Full or half duplex (auto-sensing)
INTERFACE Auto MDI/MDIX
ROUTING Ethernet port designed for configuration and WAN backhaul
PHYSICAL
DIMENSIONS (L X W X H) 7.62 cm x 10.16 cm x 2.54 cm (3 in x 4 in x 1 in)
WEIGHT .22 kg (0.5 lb)
ENCLOSURE MATERIAL/RATING Industrial (metal) / IP30
POWER REQUIREMENTS
POWER INPUT 5 VDC +/- 5%; Digi approved power supply must be used
POWER SUPPLY See accessory options
POWER CONSUMPTION Typical 1.2 W, Max 2.5 W Typical 3.5 W; Max 11 W
ENVIRONMENTAL
OPERATING TEMPERATURE -30° C to 70° C (-22° F to 158° F) -30° C to 70° C (-22° F to 158° F)
Reduced performance above 60° C (140° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
GSM/UMTS PTCRB
CELLULAR CARRIERS Verizon, AT&T, certified by most major international carriers
SAFETY IEC 60950-1:2005; EN 60950-1:2006; CSA C22.22 No. 60950-1
EMISSIONS/IMMUNITY FCC Part 15b, Industry Canada (IC), CE Mark
WARRANTY
PRODUCT WARRANTY 3-year
