Digi ConnectCore® 9P 9215


Highly Integrated, Network-Enabled Core Module

  • Compact, cost-efficient 150 MHz ARM9 module
  • Secure high-performance Ethernet networking
  • Common family footprint for wired and wireless modules
  • Programmable on-chip interfaces, dynamic power management

The Digi ConnectCore 9P 9215 module delivers a powerful, secure and compact network-enabled 150 MHz NS9215 processor solution with ARM9 core, a rich set of peripherals and unique interface flexibility.

With leading features like an on-chip AES encryption engine, two independent and fully programmable flexible interface modules and Digi's patented dynamic power management options, it is the ideal solution for today's networked embedded applications. Digi’s own NET+ARM processor technology also delivers the true long-term availability that is a key requirement for embedded applications.

Digi ConnectCore 9P 9215 modules feature the design, development and administrative advantages offered by Digi Remote Manager®. This secure, highly-scalable platform seamlessly ties enterprise applications and remote devices together.

In order for us to offer preventative service or conditioned-based monitoring technology, we needed a way to connect our controllers to the Internet.

Richard Gobee, OEM Technology Solutions managing director

Read the full story

Specifications Digi ConnectCore 9P 9215
Processor Type 32-bit NS9215 processor
Cache 4k I-Cache / 4k D-Cache
Processor Speed 150 MHz
Memory Base Population Up to 16 MB NOR flash
Up to 32 MB SDRAM
Additional Population Options RJ-45 Ethernet connector
2 / 4 / 8 / 16 MB NOR flash
8 / 16 / 32 MB SDRAM
Flexible Interface Modules (FIMs) 2x 300 MHz DRPIC165X CPUs with 2k program/192 bytes data RAM
On-chip 256-bit AES Accelerator
Power Management Modes On-the-fly clock scaling; Low-power sleep modes; Configurable scaling/wake-up events (RTC, ADC, EIRQ, UART, etc.)
Pins/Form Factor Small-footprint module with 2x 80-pin board-to-board connectors
UART Up to 4 high-speed UARTs; Maximum data rate 1.8432 Mbps
GPIO Up to 64 GPIOs; 2 external IRQs
SPI Master data rate 33.3 Mbps; Slave data rate 7.5 Mbps
I2C v1.0 bus interface; 7-bit and 10-bit address modes
External Memory Bus 17-bit address and 16-bit data bus with 2 external chip select
ADC 12-bit/8-channel; External reference
Timers/PWM Up to ten 16-/32-bit timers/counters
Modes: internal timer with external terminal count option, external gated timer, event counter
Up to 5 PWM functions
LEDs 2 (general purpose)
POR controller
Watchdog Timer (16-bit)
Real-Time Clock With 64 bytes of NVRAM and external battery backup
JTAG interface
Quadrature Decoder/Counter
5V Tolerant General Purpose and Memory Inputs
Dimensions (L x W x H) 50 mm x 50 mm x 6.1 mm (1.97 in x 1.97 in 0.24 in); population option without RJ-45
Network Interface - Wired
Standard IEEE 802.3
Physical Layer 10/100 Base-T
Data Rate 10/100 Mbps (auto-sensing)
Mode Full or half duplex (auto-sensing)
Network Interface – Wireless LAN
Standard IEEE 802.11a/b/g
Security WEP/WPA/WPA2/802.11i
Frequency 2.4/5 GHz
Data Rate Up to 54 Mbps with automatic rate fallback
Modulation DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (11, 5.5 Mbps), BPSK (6, 9 Mbps),
QPSK (12,18 Mbps), 16-QAM (24, 36 Mbps), 64-QAM (48, 54 Mbps)
Typical Transmit Power 18 dBm at 1 Mbps (802.11b)
12 dBm at 54 Mbps (802.11g)
Receive Sensitivity −72 dBm at 54 Mbps (802.11a/g)
Connectors 2x U.FL
Operating Temperature −40 °C to 85 °C (−40 °F to 185 °F)
Storage Temperature −40 °C to 85 °C (−40 °F to 185 °F)
Relative Humidity 5% to 95% (non-condensing)
Power Requirements (3.3V)
Maximum 554 mA (1.83 W)
Typical 443 mA (1.46 W);
UART B/D and Ethernet on
Idle 208 mA (686 mW);
/16 clock scaling, Ethernet on
Sleep 46 mA (151 mW);
EIRQ wake-up, Ethernet PHY off
Regulatory Approvals
FCC Part 15 Class B, EN 55022 Class B
EN 61000-3-2 and EN 61000-3-3
ICES-003 Class B, VCCI Class II, AS 3548
FCC Part 15 Sub C Section 15.247
IC RSS-210 Issue 5 Section 6.2.2(o)
EN 300 328, EN 301 489-17
UL 60950-1, EN 60950 (EU)
CSA C22.2, No. 60950
EN 55024
Japan Regulatory approvals pending
Product Warranty 3-year

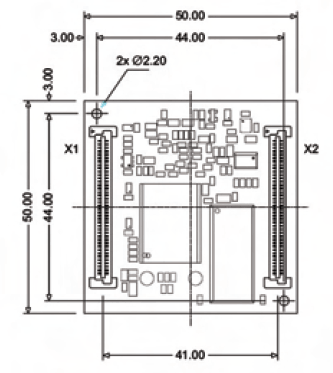

Digi ConnectCore 9P 9215 — bottom view

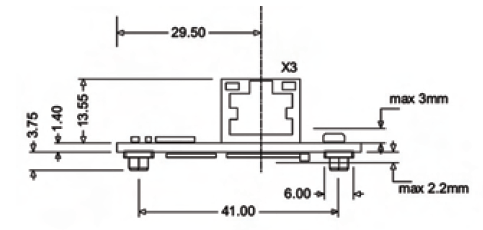

Digi ConnectCore 9P 9215 — side view
