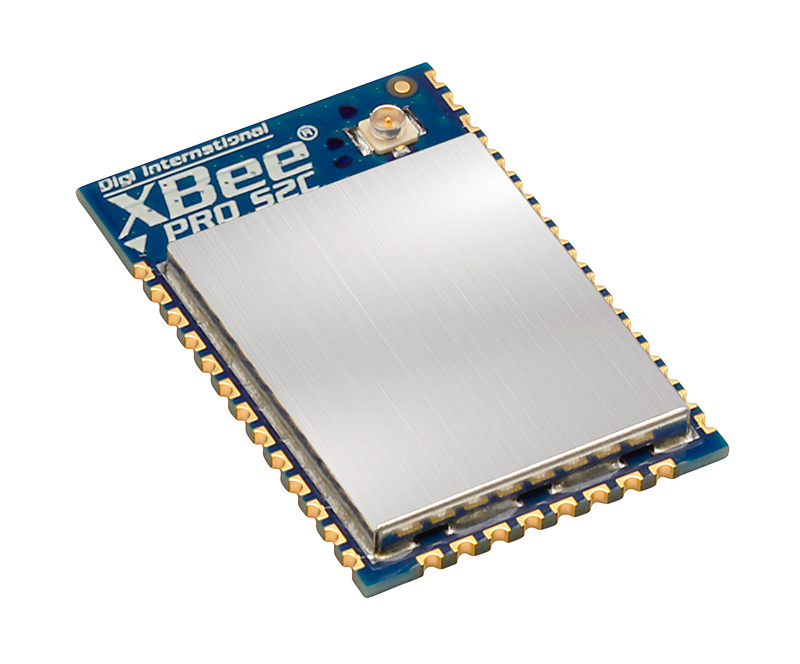

Digi XBee-PRO DigiMesh

Embedded DigiMesh modules provide OEMs with a simple way to integrate mesh technology into their application

Surface mount form factors enable flexible design options
Link budgets of 110 dB for Digi XBee® and 119 dB for Digi XBee-PRO®
Industry-leading sleep current
Firmware upgrades via UART, SPI or over the air (OTA)
Turnkey development available from Digi WDS

Overview Part Numbers & Accessories Specifications Resources

Digi XBee-PRO DigiMesh® RF modules provide cost-effective wireless connectivity to electronic devices. They are interoperable with other DigiMesh feature set devices, including devices from other vendors*.

Digi XBee-PRO DigiMesh modules are ideal for applications in the energy and controls markets where manufacturing efficiencies are critical.

The Serial Peripheral Interface (SPI) provides a high-speed interface and optimizes integration with embedded microcontrollers, lowering development costs and reducing time to market.

Digi’s DigiMesh compatible module is based on the Ember EM35x (EM357 and EM3587) system on chip (SoC) radio ICs from Silicon Labs, utilizing 32-bit ARM® Cortex M3 processor.

Download datasheet

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE

Related Resources

Digi XBee-PRO DigiMesh Datasheet Embedded DigiMesh modules provide OEMs with a simple way to integrate mesh technology into their application VIEW PDF

All related resources

Related Products

RF Module Development Kits

Digi Remote Manager

Wireless Design Services

XBee-PRO DigiMesh Modules
	Digi XBee-PRO DigiMesh SMT PCB ant, 250000 bps, New FEM	XBP24CDMPIS-005	HOW TO BUY Contact Us

SPECIFICATIONS	Digi XBee-PRO DigiMesh
PERFORMANCE
TRANSCEIVER CHIPSET	Silicon Labs EM357 SoC
DATA RATE	RF 250 Kbps, Serial up to 1 Mbps
INDOOR/URBAN RANGE*	Up to 90 m (300 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE*	Up to 3200 m (2 miles)
TRANSMIT POWER	63 mW (+18 dBm)
RECEIVER SENSITIVITY (1% PER)	-101 dBm
FEATURES
SERIAL DATA INTERFACE	UART, SPI
CONFIGURATION METHOD	API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND	ISM 2.4 GHz
FORM FACTOR	Surface mount
INTERFERENCE IMMUNITY	DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS	(4) 10-bit ADC inputs
DIGITAL I/O	15
ANTENNA OPTIONS	SMT: RF pad, PCB antenna, or U.FL connector
OPERATING TEMPERATURE	-40º C to 85º C (-40º F to 185º F)
DIMENSIONS (L X W X H) AND WEIGHT	SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in)
NETWORKING AND SECURITY
PROTOCOL	Digi XBee DigiMesh® 2.4 (proprietary 802.15.4 based mesh protocol)
ENCRYPTION	128-bit AES
RELIABLE PACKET DELIVERY	Retries/Acknowledgements
IDS	PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS	15 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE	2.7 to 3.6V
TRANSMIT CURRENT	115 mA @ 3.3 VDC
RECEIVE CURRENT	34 mA @ 3.3 VDC
POWER-DOWN CURRENT	<1 μA @ 25º C (77º F)
REGULATORY APPROVALS
FCC, IC (NORTH AMERICA)	Yes
ETSI (EUROPE)	No
RCM (AUSTRALIA AND NEW ZEALAND)	No

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
