Digi XBee XR 900 Development Kit with Digi XBee XR 900 MHz, U.FL, MMT

Related to: Digi XBee XR 900

Digi XBee XR 900 Development Kit Digi XBee XR 900 application example

Digi XBee XR 900 Development Kit

Complete Digi XBee XR 900 development platform operates in the 902-928 MHz range, delivering superior performance and interference immunity

The Digi XBee® XR 900 Development Kit features Digi XBee XR 900 MHz micro-mount (MMT) modules, dipole antennas with U.FL connectors and Digi XBIB-C Development Boards. The pre-certified modules are a compact and reliable solution supporting deployment of long-range connectivity applications in that operate between 902 and 928 MHz in compliance with standards.

Secure, robust and reliable

Digi XBee XR 900 modules can be configured using the easy-to-use Digi XCTU® software or via Digi’s simplified AT or API command sets. They are also pre-certified for use in multiple regions. This helps OEMs to accelerate RF development for fast time to market. The utilization of Frequency Hopping Spread Spectrum (FHSS) on the XBee XR module, along with an industrial temperature range of −40 °C to 85 °C (−40 °F to 185 °F), make it ideal for applications in noisy, challenging environments.

The module supports both point-to-point and mesh networking protocols (DigiMesh®), with a line-of-sight range up to 10.5 miles (17 kilometers). It is well suited for agriculture and energy applications where long-distance communication is required.

The Digi XBee XR 900 RF modules deliver a complete hardware and software solution that works directly out of the box. Development kits along with Digi XBee Tools support the complete IoT application lifecycle, from evaluation, testing and prototyping through manufacturing, deployment, and long-term network management and support.

Proven experience and expert support

With decades of experience enabling millions of globally connected products, Digi is a trusted embedded and IoT solutions provider, simplifying the way customers design, build and deploy connected applications. Digi Wireless Design Services (WDS) offers custom design and build services, configuration, certification assistance and additional services to support you wherever you are along your development path to get your products to market smarter and faster.

Key features, benefits and applications
  • Fully certified for use in unlicensed 900 MHz band
  • RF modules based on Silicon Labs EFR32 microcontrollers
  • Design includes SAW filter for optimal performance in noisy RF environments
  • 256-bit AES encryption for secure data communication
  • DigiMesh® networking topology for redundancy and reliability
  • Simple configuration using Digi XCTU, AT or API commands
  • Digi XBee Tools to simplify tasks and get to market faster
  • Custom development and gateway engineering services are available from Digi WDS

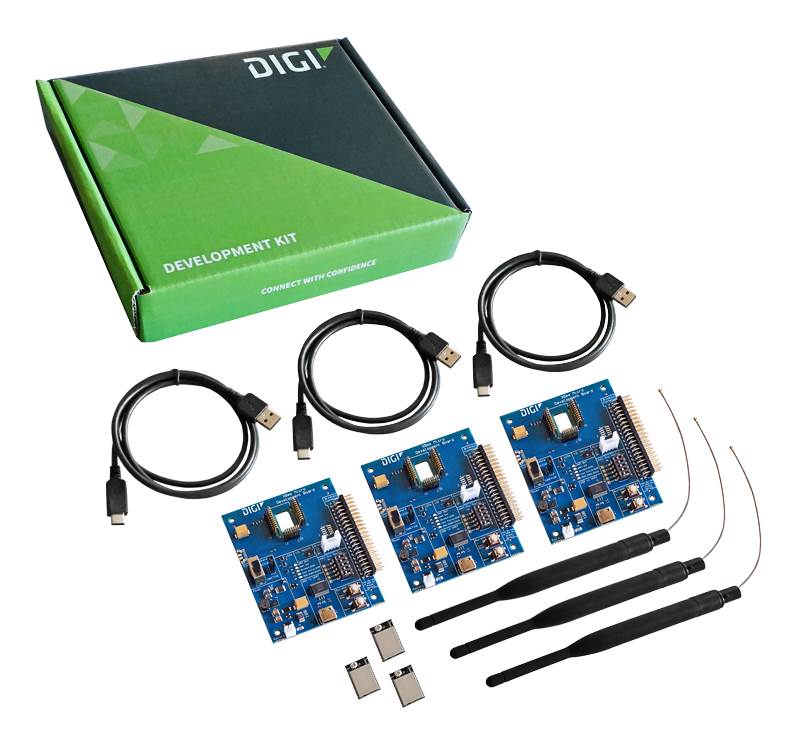

The kit includes:
  • Three Digi XBee XR 900 MHz RF modules
  • Three Digi XBIB-C DevelopmentBoards
  • Three dipole antennas with U.FL connectors
  • Digi XCTU and Digi XBee Tools
  • Free Level 1 schematic review from Digi WDS
  • Additional documentation and examples

Digi XBee XR 900 Development Kit with Digi XBee XR 900 MHz, U.FL, MMT

Specifications Digi XBee XR 900
HARDWARE
PROCESSOR EFR32FG13P231F512 transceiver at 40 MHz
FREQUENCY BAND 902 MHz – 928 MHz; Australia / New Zealand: 915 – 928 MHz
FORM FACTORS Micro-mount (MMT), surface-mount (SMT), through-hole (TH)
ANTENNA OPTIONS MMT: U.FL connector, RF pad; SMT: U.FL connector, RF pad, chip antenna; TH: SMA, U.FL connector
WEIGHT MMT: 1.2 g (0.042 oz); SMT: 3.0 g (0.106 oz); TH: 3.1 g (0.109 oz)
DIMENSIONS MMT: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in); SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in); TH: 2.438 x 2.761 cm (0.960 x 1.087 in)
PERFORMANCE
RF DATA RATE Low data rate: 10 Kbps; middle data rate: 110 kbps; high data rate: 250 kbps
UART DATA RATE Up to 921.6 kbps
SPI DATA RATE Up to 5 Mbps
LINE-OF-SIGHT RANGE* Up to 17 km (10.5 mi) rural, up to 3 km (1.8 mi) urban
INDOOR RANGE Up to 140 m (460 ft)
TRANSMIT POWER Up to 19 dBm ERP; New Zealand: up to 13 dBm
RECEIVER SENSITIVITY Low data rate: −113 dBm, middle data rate: −108 dBm, high data rate: −104 dBm
RECEIVER BLOCKING Below 900 MHz and above 930 MHz; >70 dB
FEATURES
DIGITAL I/O 15
AVAILABLE CHANNEL FREQUENCIES Low and middle data rate: 101**; high data rate: 50;  Australia: 49 (low/middle), 24 (high); New Zealand: 41 (low/middle), 11 (high)
ANALOG INPUTS (4) 10-bit ADC inputs
OPERATING TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F)
NETWORKING TOPOLOGIES     Point-to-point/point-to-multipoint, DigiMesh®; SX protocol compatible
SECURITY 256-bit AES Encryption
POWER
SUPPLY VOLTAGE 2.1 – 3.6 VDC, 3.3 VDC typical
TRANSMIT CURRENT 110 mA
RECEIVE CURRENT 28 mA
SLEEP CURRENT 1.2 uA
REGULATORY APPROVALS***
FCC (US) Yes
ISED (CANADA) Yes
ROHS Yes
AUSTRALIA / NEW ZEALAND Yes
SOUTH KOREA Yes
 *Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
**Visit product certifications for latest updates.
