Digi 6310-DX

NRND

Avoid network outages with primary or backup LTE connectivity; integrate seamlessly with existing infrastructure

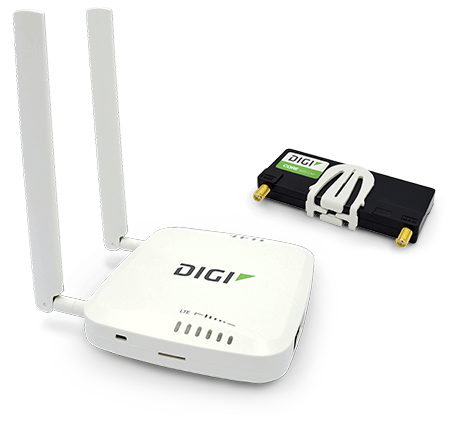

  • 4G LTE certified Digi CORE 1002-CM plug-in modem
  • LTE-Advanced, standard LTE, or LTE with EV-DO fallback
  • Upgrade to meet changing cellular standards
  • Ethernet WAN port for wireline network access
  • Optional remote mounting kit for site survey and PoE installation
  • Zero-touch provisioning and cloud management
  • Onboard signal strength and network status indicators

Digi® 6310-DX LTE cellular extender serves as an ideal failover solution by retrofitting your infrastructure for cellular network access. Powered by the Digi® CORE 1002-CM 4G LTE plug-in modem, dual SIM slots can further protect against downtime by automatically switching to a secondary cellular carrier should the primary SIM lose Internet access. A suite of Digi CORE 1002-CM plug-in modems let Digi enterprise routers leverage the category of LTE best suited for their use case — standard LTE, LTE with EV-DO fallback, or LTE-Advanced.

Couple the Digi 6310-DX with a dedicated wireline ISP connection to provide dual-WAN connectivity, maximize uptime and ensure business connectivity for connected devices that demand reliable network availability, such as POS systems, mobile kiosks and digital signage. Deployments are streamlined with installation accessories that include a disposable battery pack for site survey,(passive) PoE injector for optimizing placement for best cellular reception and a mounting bracket.

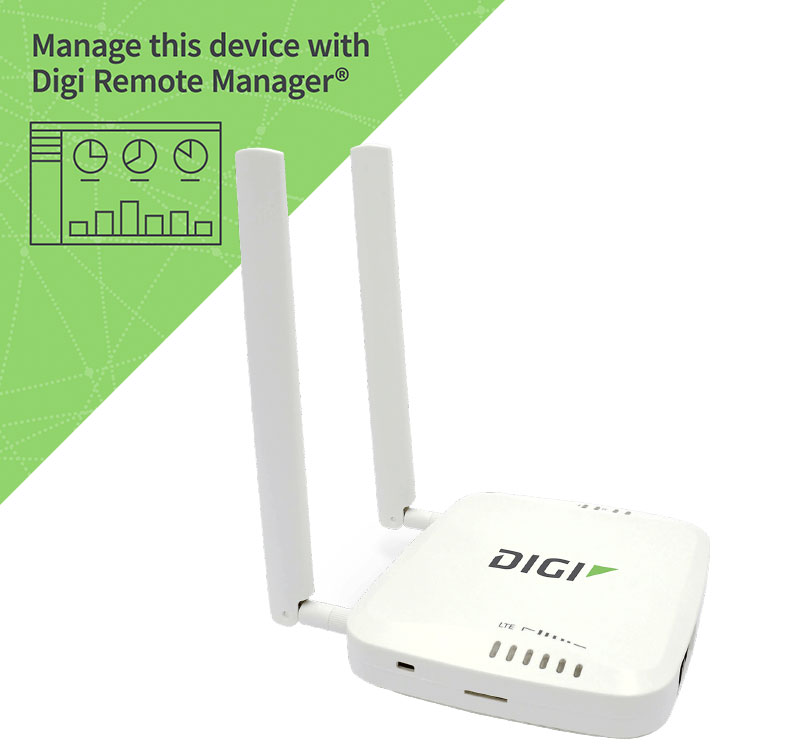

The Digi centralized management platform provides easy setup, configuration and support for installations of Digi and third-party devices. Digi Remote Manager® offers web-based device management solutions to securely monitor and control Digi enterprise routers and gateways -- and the health or your network -- after deployment.

Install in Minutes Where the Cellular Reception is Strongest

6310-DXDigi 6310-DX can be used as a primary 4G/LTE data connection or as a backup network solution to streamline business continuity. By adding Digi 6310-DX to your network, any Ethernet device can utilize fast and convenient cellular data, and Digi 6310-DX can be located or mounted where the cellular reception is the strongest.

The optional remote mounting kit includes a site survey battery pack, passive Power over Ethernet (PoE) adapter, and mounting supplies to increase placement flexibility and help locate the area where the signal is strongest. Digi 6310-DX ships in IP Pass-Through mode to simplify installations.

Flexible and Reliable Connectivity Options Certified by All Major U.S. Carriers

6310-DXAccelerate your networking solutions and eliminate downtime with Digi 6310-DX cellular extenders that feature multiple WAN connectivity options (Ethernet or cellular) with load balancing and failover. With a Digi CORE plug-in modem, Digi 6310-DX can connect to a cellular network using the 4G LTE standard that best suits its given use case.

Larger locations and data-intensive applications may turn to the LTE-Advanced (Category 6) version of the Digi CORE plug-in for fast cellular speeds while others may opt for the cost-saving deployment of a standard LTE (Category 4) connection. The Digi 6310-DX optional remote mounting kit includes a battery pack for site surveys (to determine signal availability), a PoE injector for remote powering options, and a variety of mounting accessories designed to ensure the DX is optimally placed for the strongest cellular reception. Additionally, it is certified across all major carriers, giving customers the ability to select the best carrier for their given location.

6310-DX

Upgrade with Swappable 4G LTE Plug-In Modems and Dual SIM Support

A suite of Digi CORE plug-in LTE modems allows customers to select the cellular connection that best meets their speed, budget, fallback-network and geographic requirements. The modular nature of the Digi CORE plug-in modem helps mitigate technological obsolescence by allowing customers to upgrade to newer LTE standards without replacing Digi 6310-DX. When there is a need for faster connectivity users can simply upgrade their LTE modem while protecting the investment in their Digi 6310-DX.

Ramping up Your Secure Work-from-Home Infrastructure

How are you and your IT team handling the trend toward a remote and mobile workforce? Digi can help ensure that all connectivity to your corporate network is reliable and secure.

Retail-Ready Wireless Connectivity

Digi cellular routers keep a multitude of kiosks, signage, POS and other critical network devices secure and connected. Explore an ecosystem of hardware-enabled, software-defined connectivity solutions.

Get Retail Ready

Compare Enterprise Cellular Extenders

Compare Enterprise Cellular Extenders

Related Products

Featured Models
ASB-6310-DXE4-GLB Digi 6310-DXE4 Cellular Extender; 2 Port 10/100; CAT 4; LTE / HSPA+; US, UK, EU and AU AC Plug Tips; Certified for EU Regions ASB-6310-DXE4-GLB How to Buy
ASB-631R-DX03-OUS Digi 6310-DX03 LTE Cellular Extender; 2 Port 10/100; Remote mounting kit; CAT 3; LTE / HSPA+ / EV-DO; Cellular certifications: Verizon, AT&T, Sprint, T-Mobile, PTCRB ASB-631R-DX03-OUS How to Buy
ASB-631R-DX04-OUS Digi 6310-DX04 LTE Cellular Extender; 2 Port 10/100; Remote mounting kit; CAT 4; LTE / HSPA+; Cellular certifications: Verizon, AT&T, T-Mobile, PTCRB ASB-631R-DX04-OUS How to Buy
ASB-631R-DX06-OUS Digi 6310-DX06 LTE Cellular Extender; 2 Port 10/100; Remote mounting kit; CAT 6; LTE-A / HSPA+; Cellular certifications: Verizon, AT&T, Sprint; T-Mobile, PTCRB ASB-631R-DX06-OUS How to Buy
ASB-631R-DX06-GLB Digi 6310-DX06 LTE Cellular Extender; 2 Port 10/100; Remote mounting kit; US, UK, EU and AU AC Plug Tips; CAT 6; LTE-A / HSPA+; Certified countries / regions: European Union, European Economic Area and Switzerland ASB-631R-DX06-GLB How to Buy
Accessories
SKU: 170011

(1) Antenna extender: 48 mm circle antenna magnetic base (base connector: SMA jack); cable: low loss CLF; 50 cm length with SMA plug (replacement for Wi-Fi enabled models)

170011 How to Buy

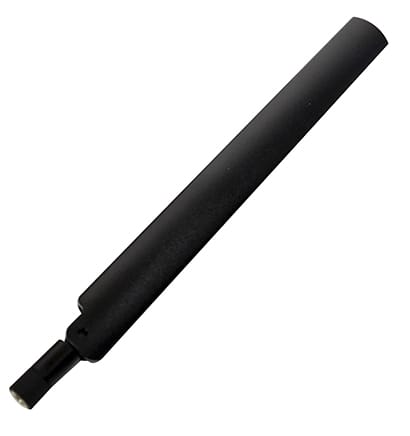

SKU: 170012 (1) Cellular antenna (black) for use with Digi products that have LTE modems - replacement 170012 How to Buy
440088 Cable assembly passive POE power injector for Digi 6310-DX, white 2.1mm barrel connector (replacement) 440088 How to Buy

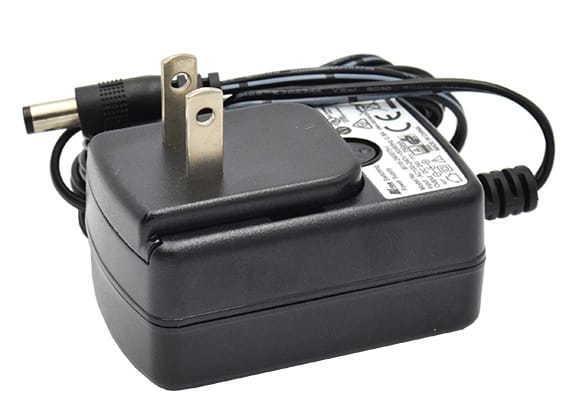

SKU: 76002112 18 V PSU power supply with barrel jack connector (replacement) 76002112 How to Buy
SKU: 560083

Temporary battery pack, 9 V with 152.4 mm power lead, 2.1 mm barrel connector (replacement)

560083 How to Buy

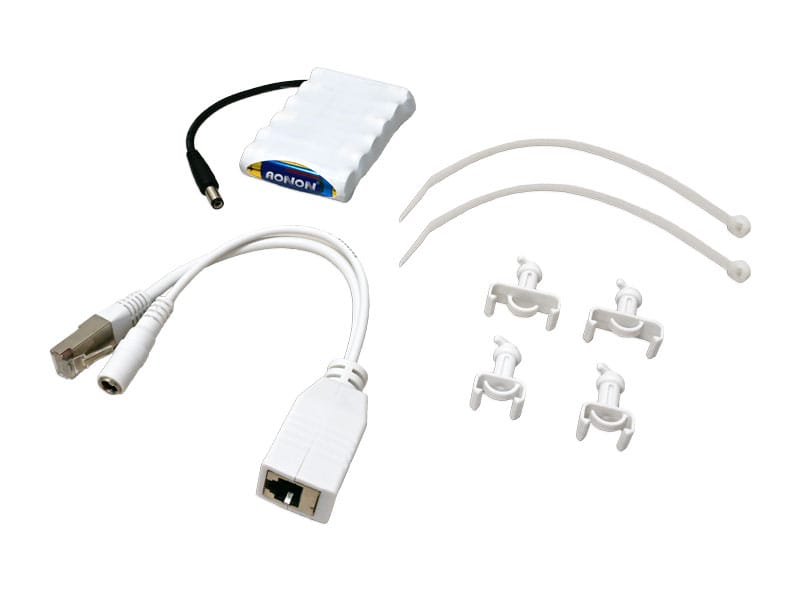

SKU: ASB-6310-DX00-RMK Remote Mounting Kit: 2 cable ties; 2 narrow ceiling rail snaps; 2 wide ceiling rail snaps; 1 POE cable assembly; 1 temporary site survey battery pack ASB-6310-DX00-RMK How to Buy
SPECIFICATIONS Digi 6310-DX
SOFTWARE
REMOTE MANAGEMENT SNMP v1/v2/v3 (support for Digi Remote Manager® 1Q2019)
PROTOCOLS RIP, RIPng, OSPFv2, OSPFv3, BGP, Babel, IS-IS
SECURITY AES, 3DES, IKEv1, OpenVPN, MODECFG, X509, SHA1, DES, MD5, RADIUS, TACACS+
PHYSICAL
DIMENSIONS (L x W x H) Digi 6310-DX: 5.6 in x 5.0 in x 1.0 in (142 mm x 128 mm x 25 mm); CORE 1002-CM: 4.0 in x 2.0 in x 0.6 in (102 mm x 51 mm x 15 mm)
WEIGHT Digi 6310-DX: 7.0 oz. (0.29 kg); CORE 1002-CM: 5.5 oz. (0.156 kg)
STATUS LEDs LTE status, (5) signal strength, (2) Ethernet link, (2) active SIM slot
POWER REQUIREMENTS
POWER SUPPLY 18V DC, 0.66A; 100-240 AC
OTHER Remote mounting kit: temporary battery, passive PoE injector, and mounting bracket/accessories
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 40° C (32° F to 104° F)
STORAGE TEMP AND HUMIDITY -13° F to 167° F (-25° C to 75° C); 5% to 95% non-condensing
APPROVALS
EMISSIONS / IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES-3(B)/NMB-3(B)
CELLULAR SPECIFICATIONS
CELL ANTENNA (2) Dipole; Frequency: 700-960/1575-2700 hz; Gain: 1-4 dBi
SIM (2) SIM card slot (size 2FF), software selectable and hardware switchable
CELLULAR CERTIFICATIONS AT&T, Sprint, T-Mobile, Verizon, PTCRB

Visit https://www.digi.com/resources/certifications for latest certifications
LTE PLUG-IN MODEMS Digi CORE 1002-CM03 CAT 3 LTE, EVDO, HSPA+, EDGE, GPRS and GSM
Digi CORE 1002-CM04* CAT 4 LTE, HSPA+
Digi CORE 1002-CM06 CAT 6 LTE-A, LTE, HSPA+
Digi CORE 1002-CM16 LTE-A, LTE, HSPA+
INTERFACES
ETHERNET PORTS (2) 10/100 Base-T Dynamic Ethernet ports
WARRANTY
PRODUCT WARRANTY 3 years

Global Certifications and Band Support
SKU Countries/Region LTE Category 3G UMTS Bands 4G LTE Bands 3G EVDO
ASB-631R-DX03-OUS US, MX 3 1, 2, 4, 5, 8 2, 4, 5, 13, 17, 25
ASB-631R-DX04-OUS US 4 2, 5 2, 4, 5, 12, 13
ASB-631R-DX06-OUS US 6 1, 2, 3, 4, 5, 8 1, 2, 3, 4, 5, 7, 12, 13, 20, 25, 26, 29, 30 ,41
ASB-631R-DX06-GLB US 6 1, 2, 3, 4, 5, 8 1, 2, 3, 4, 5, 7, 12, 13, 20, 25, 26, 29, 30 ,41

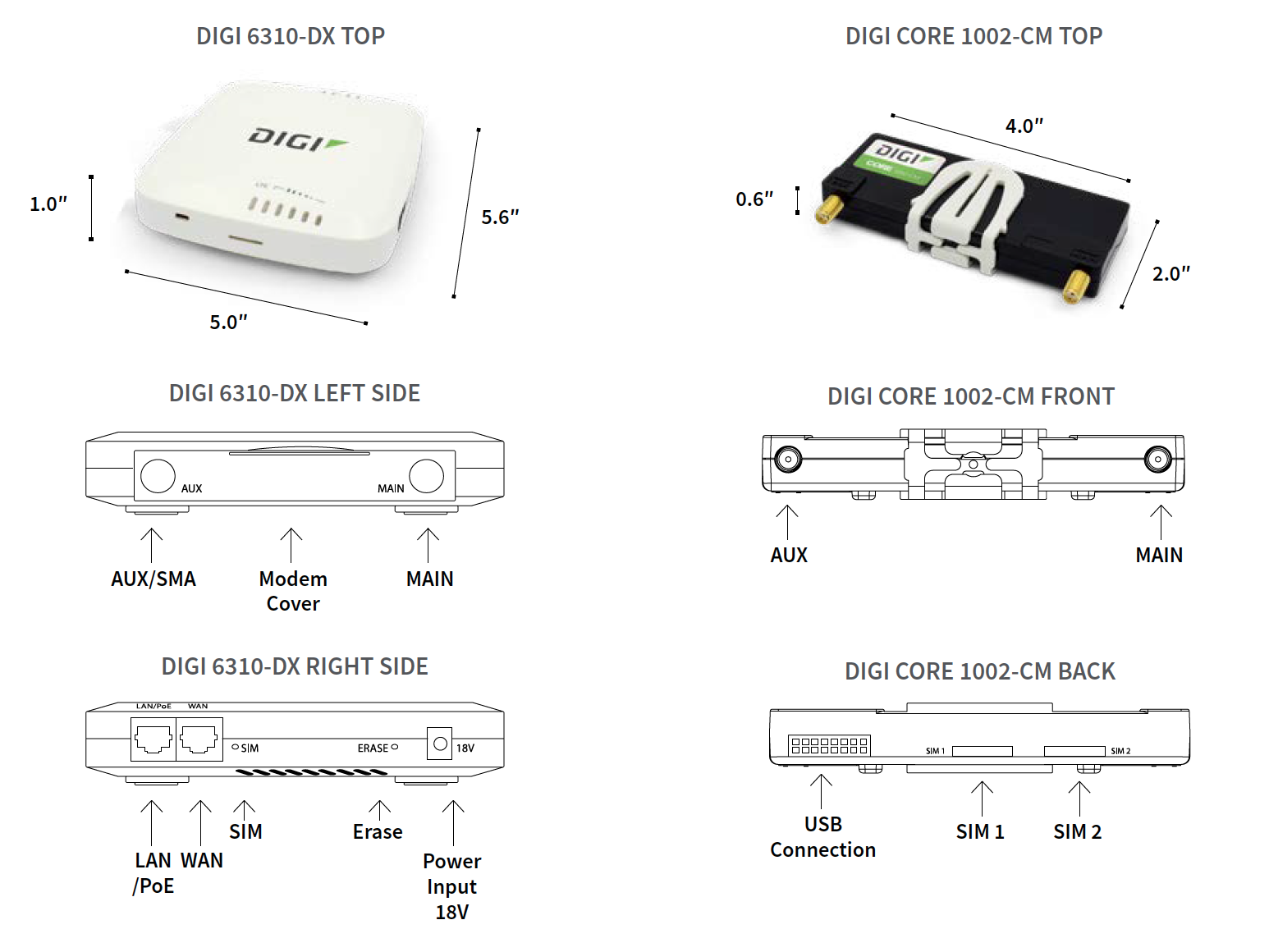

Line Art

*The Digi CORE 1002-CM04 is not supported on the Sprint Network
