Digi TX65 5G Cellular Vehicle Router

New

Rugged 5G vehicle router family delivering secure, high-performance connectivity and centralized management for fleet, transit and public safety applications

Digi Remote Manager multiscreen - light mode

5G eMBB vehicle router family based on Qualcomm SDX72
Built on a 3GPP Release 17 5G platform enabling higher uplink performance, improved spectral efficiency and enhanced support for public safety and mobility use cases
Each modem includes dual 4FF SIM slots; 5B modem add an embedded eSIM for zero-touch device setup
Wi-Fi 7 tri-band, dual-concurrent 2.4 and 5/6 GHz per radio, with single or dual-radio options
Multi-gigabit Ethernet: 2.5 GbE WAN and four 1 GbE LAN ports
Optional dual-modem configuration for multi-carrier resilience
GNSS support for fleet visibility and location-aware applications
Locking USB-C and RJ50 serial for secure peripheral connections
Ignition-aware power with 9 to 36 VDC vehicle integration input
Includes the Digi 360 solution with warranty, customer care and SOC 2 Type 2 Digi Remote Manager cloud management to mass configure, deploy and maintain in-vehicle devices

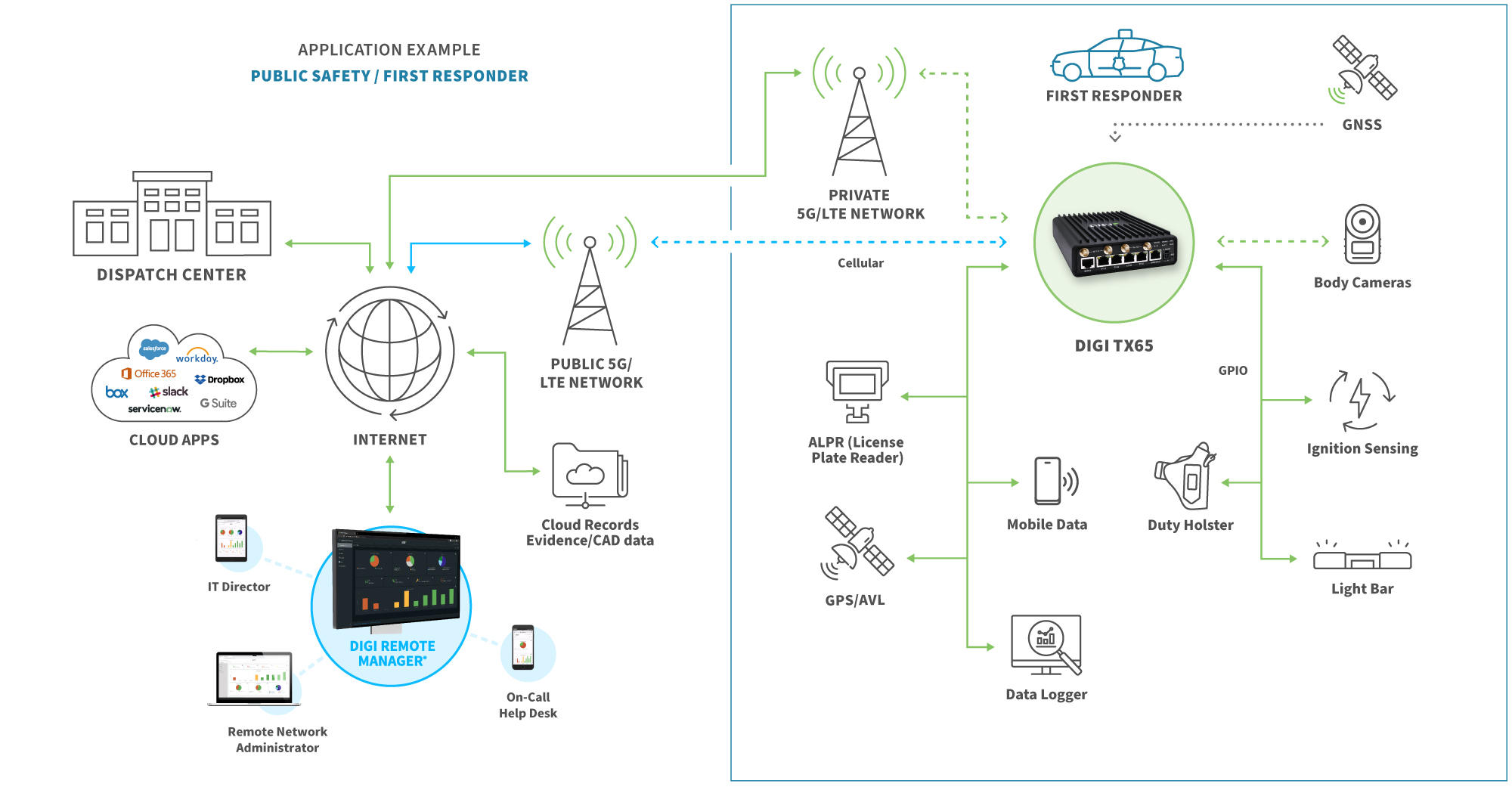

Digi SAFE complete solution for emergency vehicle connectivity
Digi Remote Reach support for secure peer-to-peer browser access to downstream IT and OT devices without VPNs or cloud proxies
Value-added services include Digi Containers, Digi WAN Bonding 5G/LTE WAN aggregation with immediate failover and Digi Mobile VPN for secure, persistent mobile connectivity

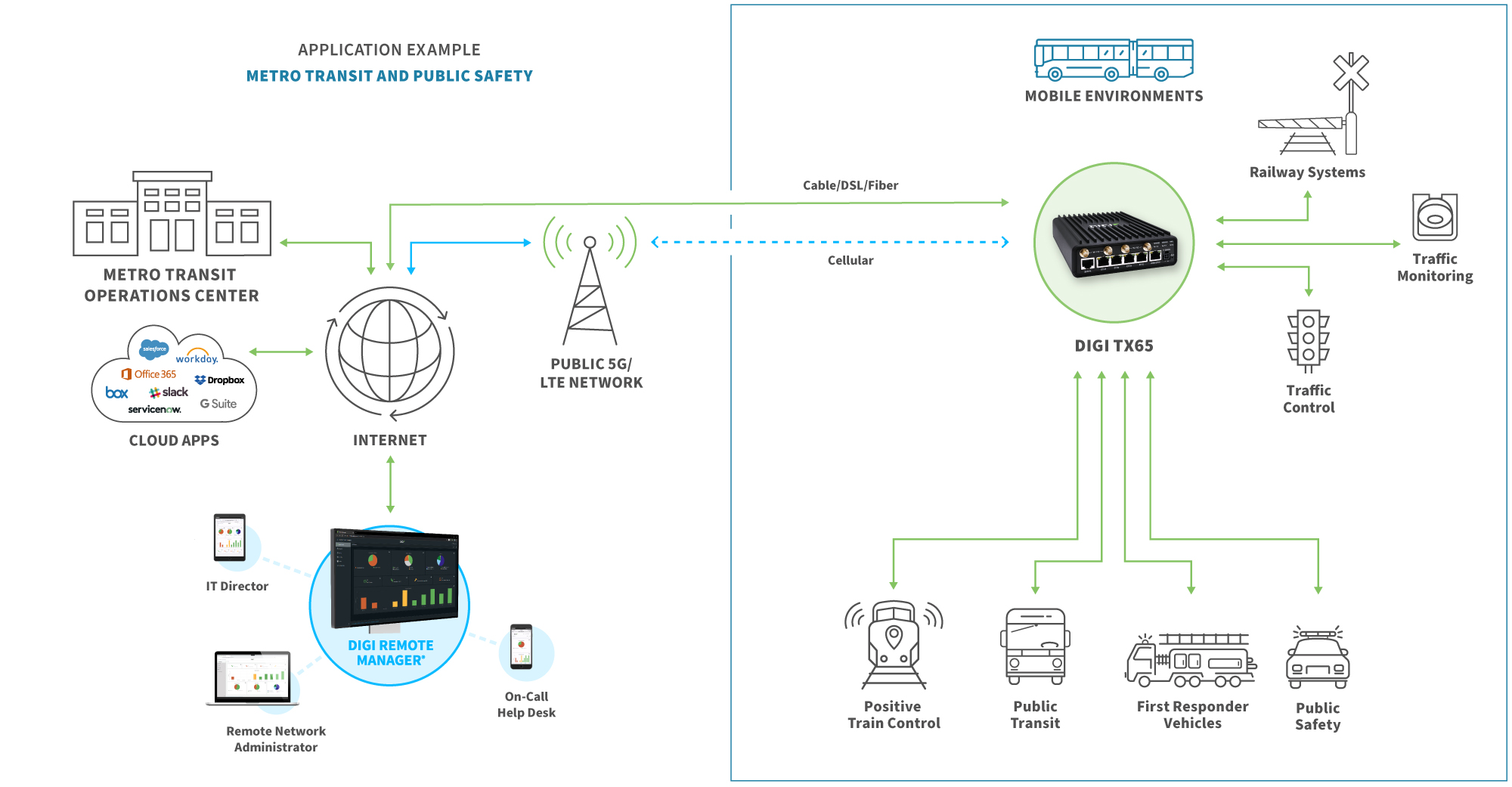

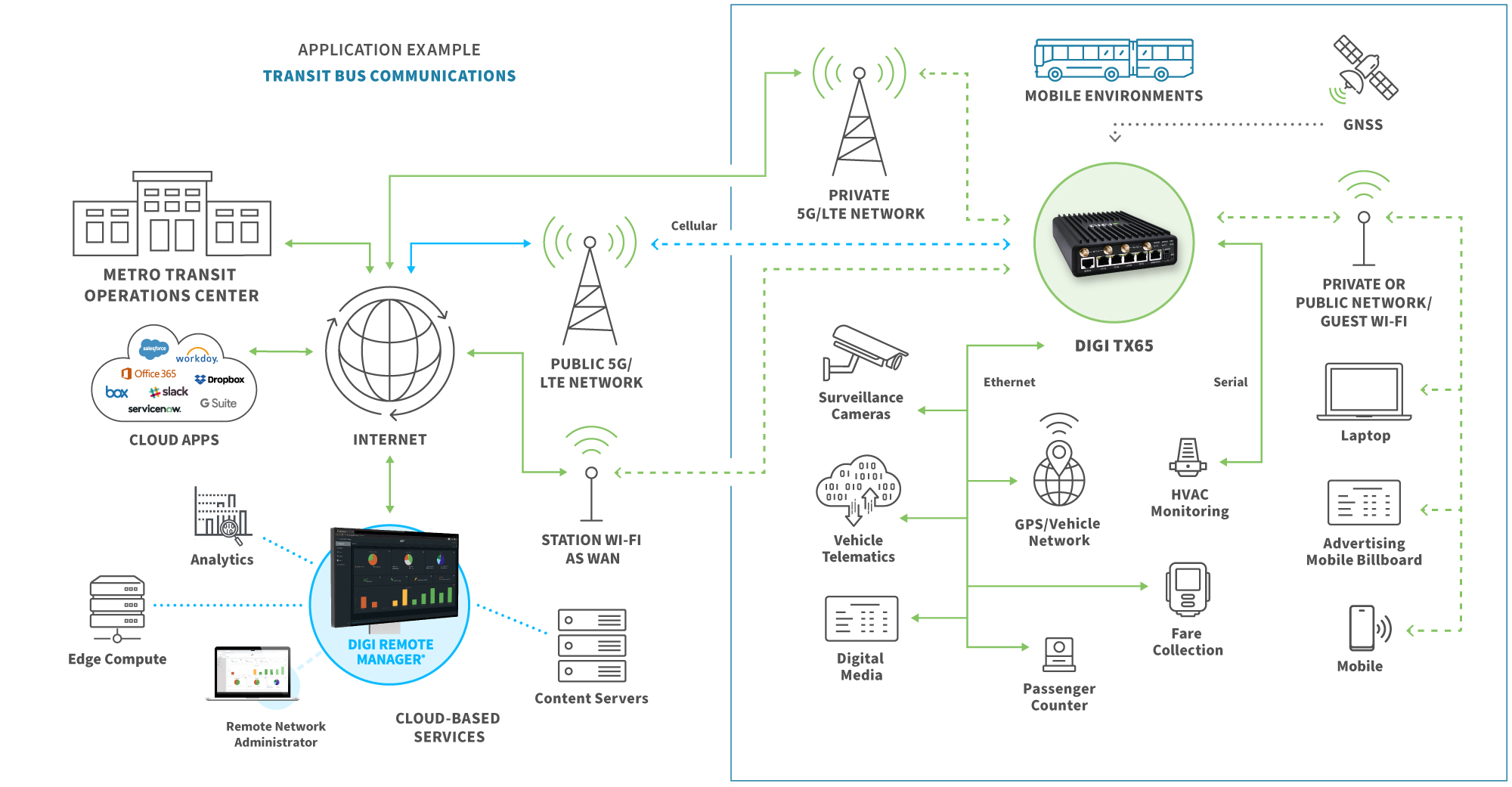

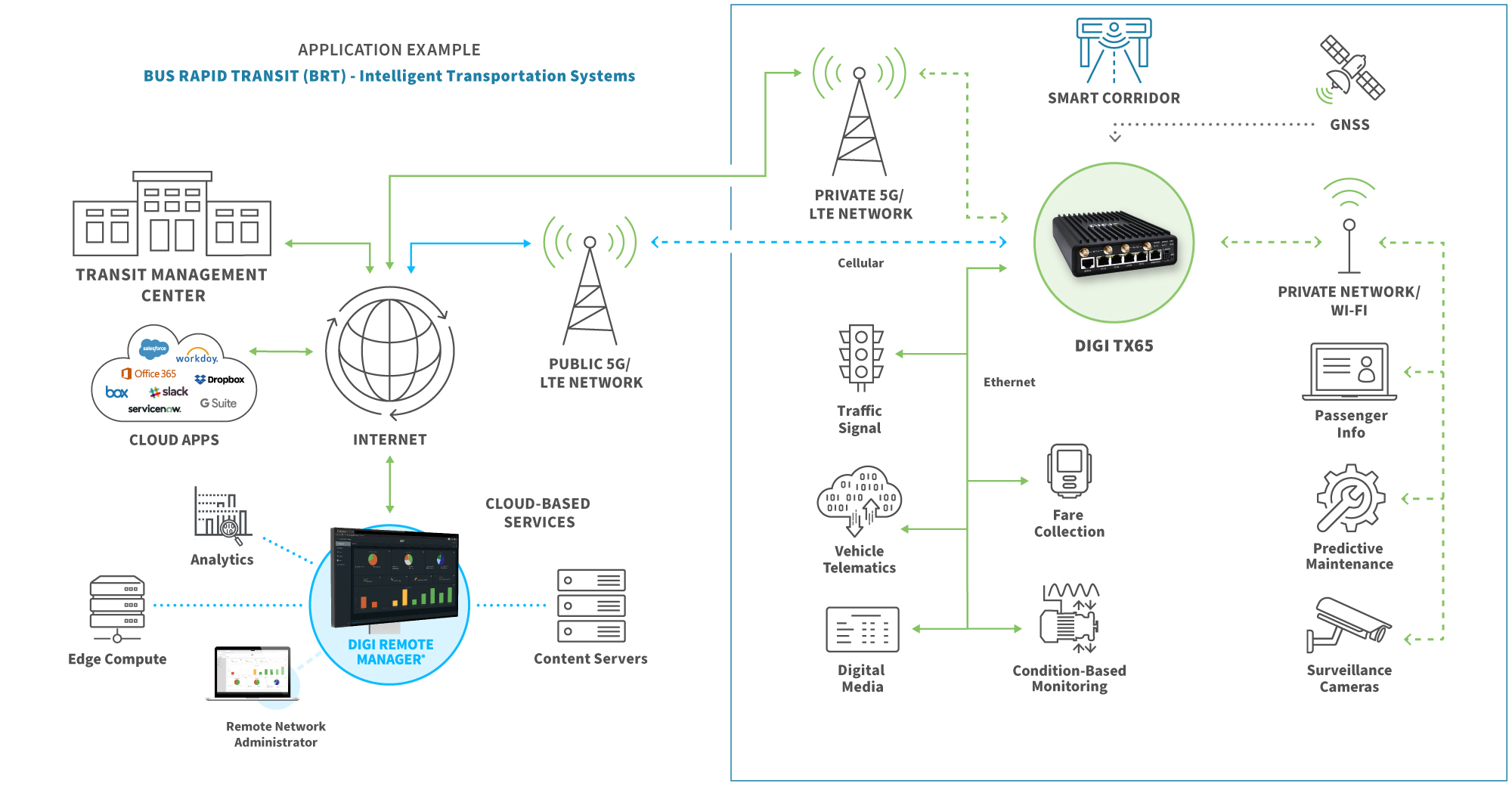

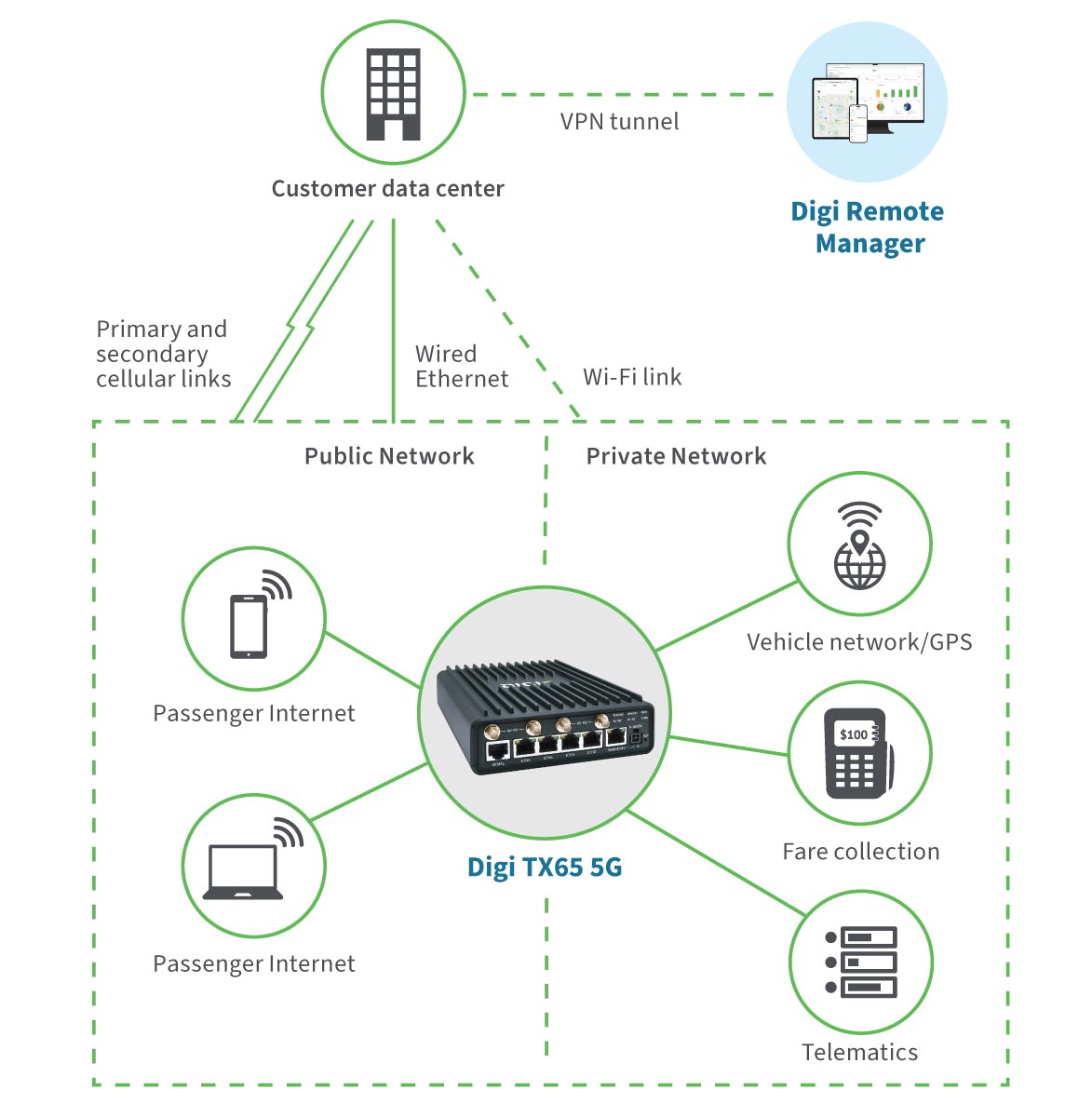

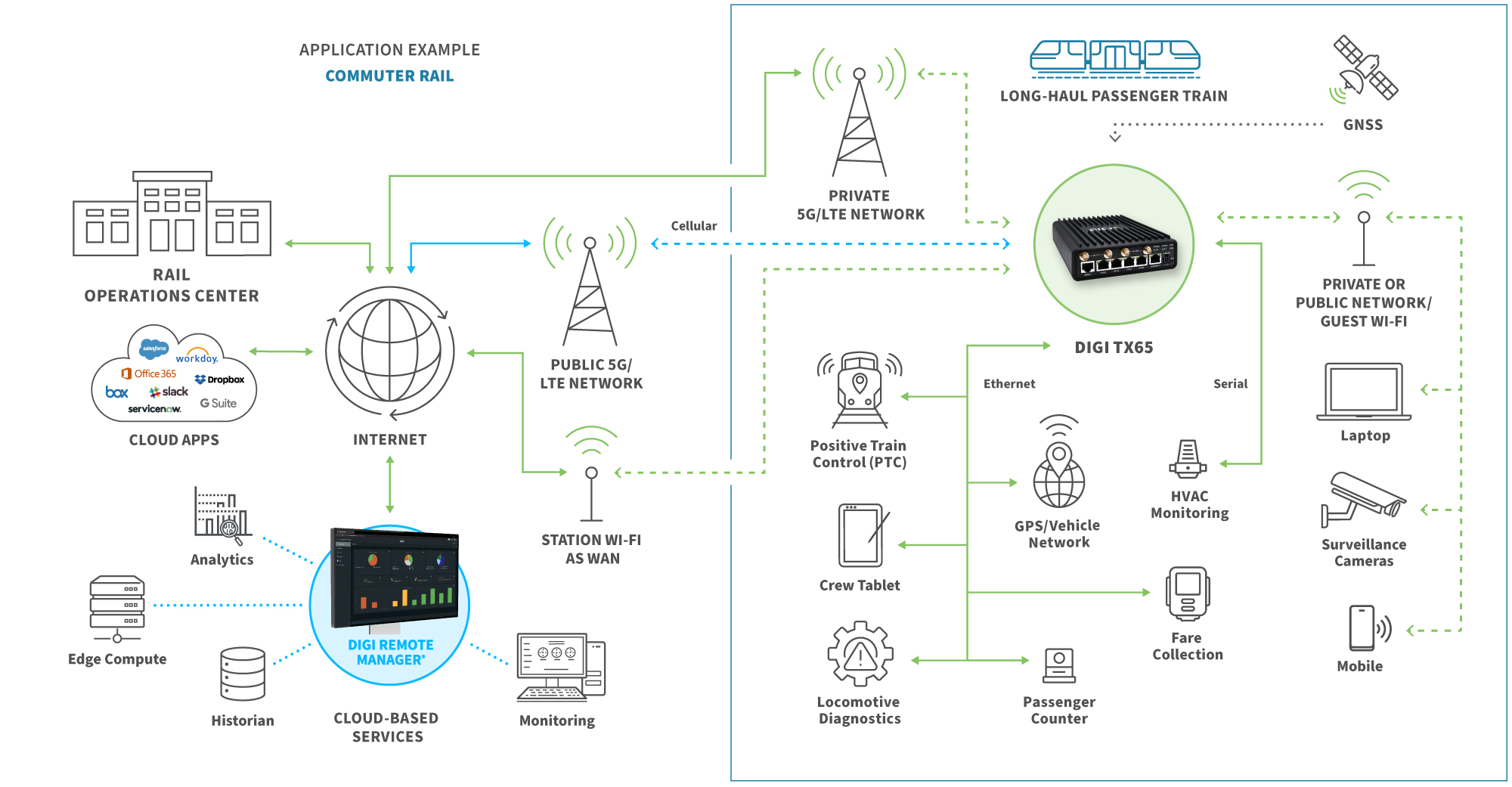

Designed for demanding transportation, public safety and mobile industrial environments, Digi TX65 delivers secure, high-performance connectivity for vehicles operating at speed and at scale. Whether enabling passenger Wi-Fi and fare collection on transit systems, supporting real-time video and CAD/AVL in emergency response vehicles, or connecting field technicians and mobile assets, Digi TX65 keeps critical systems online and prioritized. Its rugged design and advanced 5G capabilities ensure reliable performance across dense urban corridors, remote routes and rapidly changing network conditions.

Digi TX65 includes the Digi 360 solution, providing access to Digi Remote Manager (DRM) for centralized deployment, configuration and ongoing management. Organizations can rapidly provision devices, monitor health and performance, enforce security policies and receive real-time alerts across their entire fleet. Remote updates and out-of-band access reduce downtime and eliminate costly manual intervention, while built-in intelligence prioritizes operational traffic such as onboard systems, public safety data or telemetry, and allocates remaining bandwidth for passenger or auxiliary use.

Digi TX65 integrates easily into existing ecosystems with support for captive portals, branded user experiences and third-party security or filtering services. Flexible configurations — including single or dual Wi-Fi radios and optional dual-modem variants — enable resilient, multi-carrier connectivity for uninterrupted service. GNSS supports location-aware applications and fleet tracking, while ignition-aware power and secure connectors ensure dependable operation in harsh vehicle environments.

Security is built in at every layer. Digi TX65 is supported by Digi TrustFence and managed through SOC 2® Type 2–attested Digi Remote Manager, delivering secure access, continuous monitoring and lifecycle protection. Integrated Digi Remote Reach support enables secure peer-to-peer browser access to downstream IT and OT infrastructure without VPN complexity. With support for FirstNet Trusted™ and Verizon Frontline, along with FIPS 140-3–aligned security capabilities, Digi TX65 is ready to meet the demands of mission-critical communications for public safety and essential services.

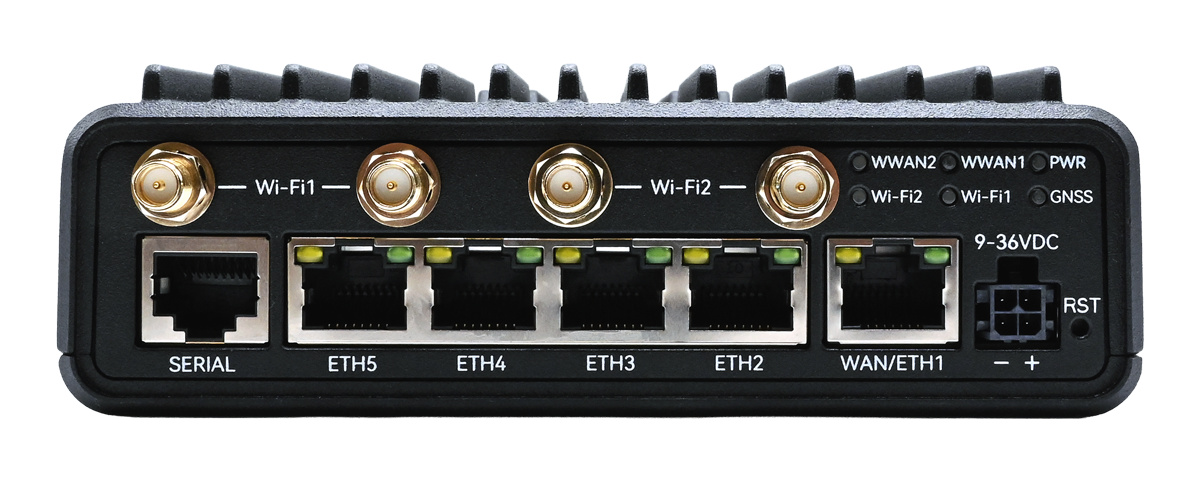

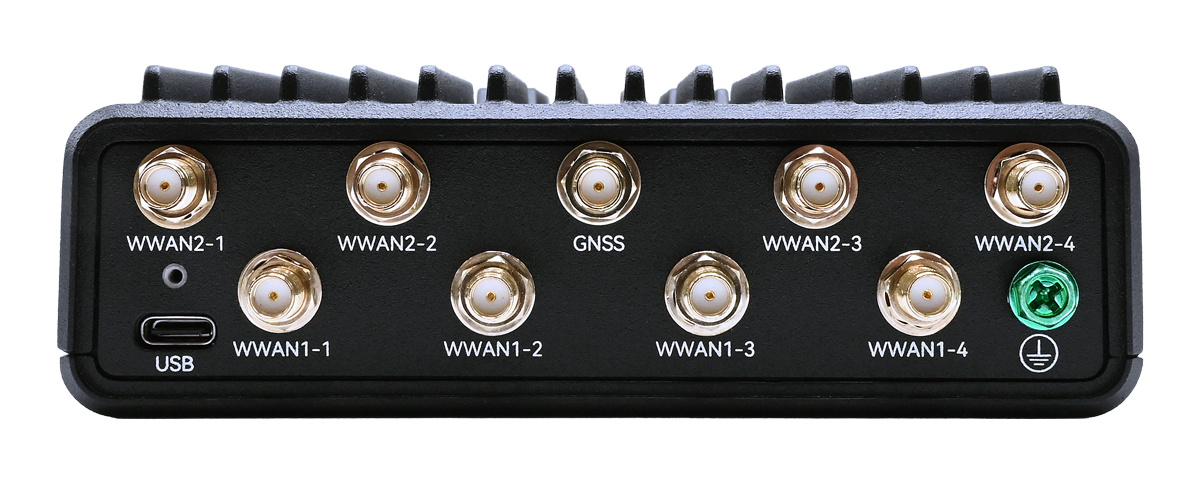

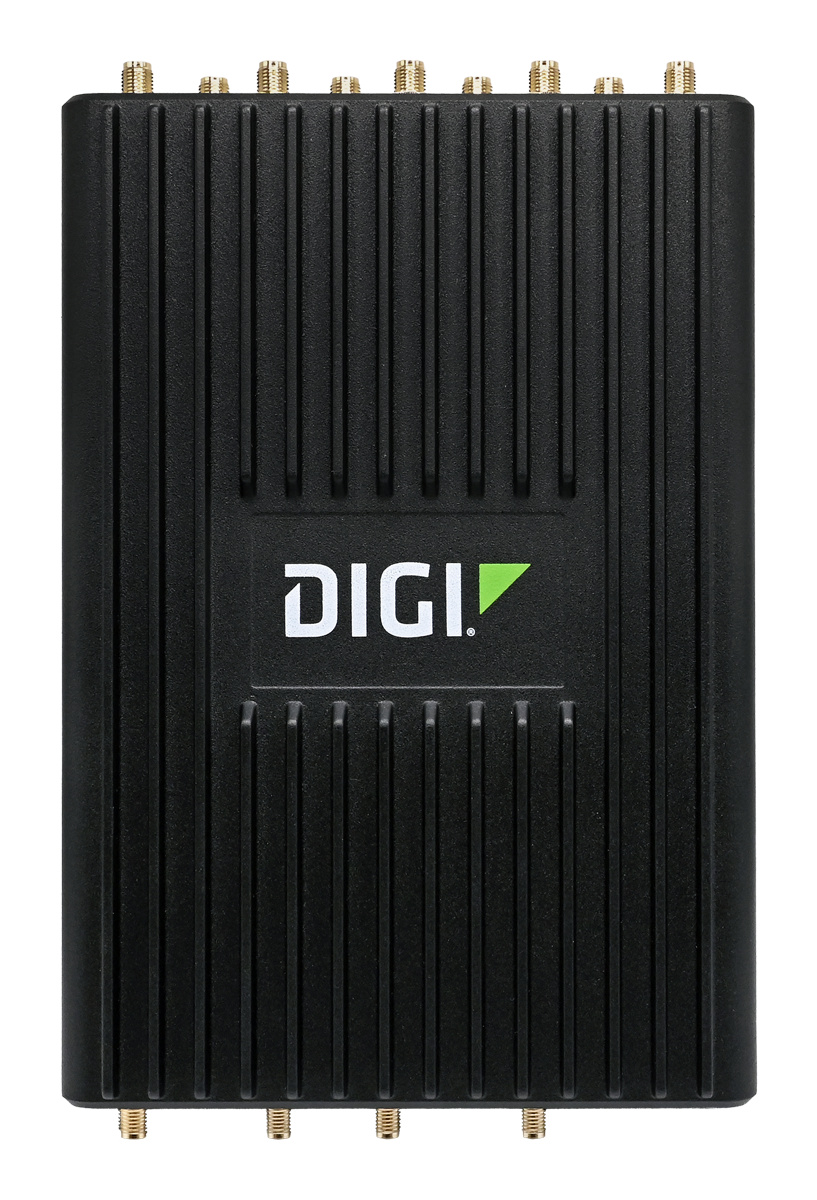

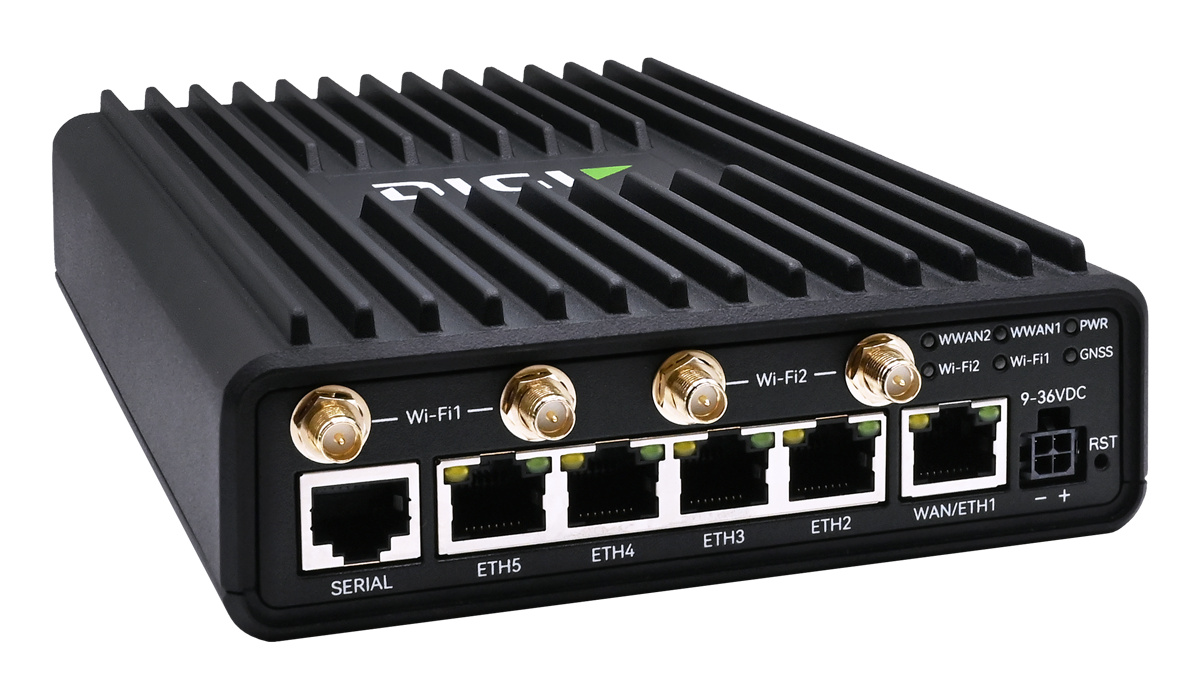

Digi TX65 5G 5B5A-2N

TX65-5B5A-2N

The highest-performance configuration in the Digi TX65 family, combining dual 5G cellular modems and dual Wi-Fi 7 radios for maximum resiliency, carrier diversity and wireless capacity.

Dual 5G cellular modems
Dual Wi-Fi 7 radios
Multi-carrier resiliency
Eight cellular antennas
GNSS location services
Digi 360 with Digi Remote Manager included

View model

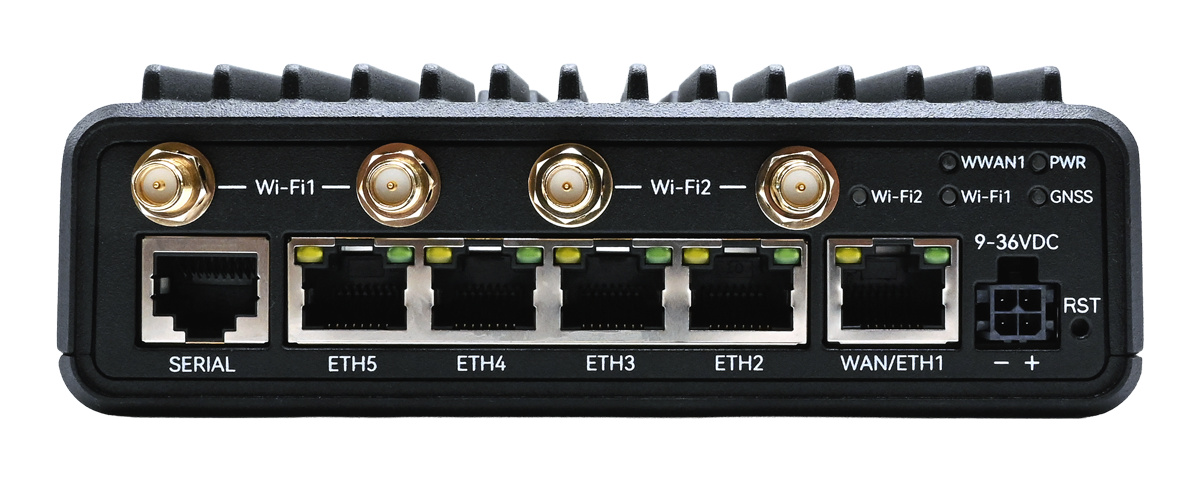

Digi TX65 5G 5B-2N

TX65-5B-2N

A high-capacity vehicle router configuration with a 5G Release 17 modem and dual Wi-Fi 7 radios, ideal for transit, fleet and mobile deployments requiring strong Wi-Fi performance.

Single 5G Release 17 modem
Dual Wi-Fi 7 radios
Passenger and operational traffic support
Four cellular antenna connectors
GNSS location services
Digi 360 with Digi Remote Manager included

View model

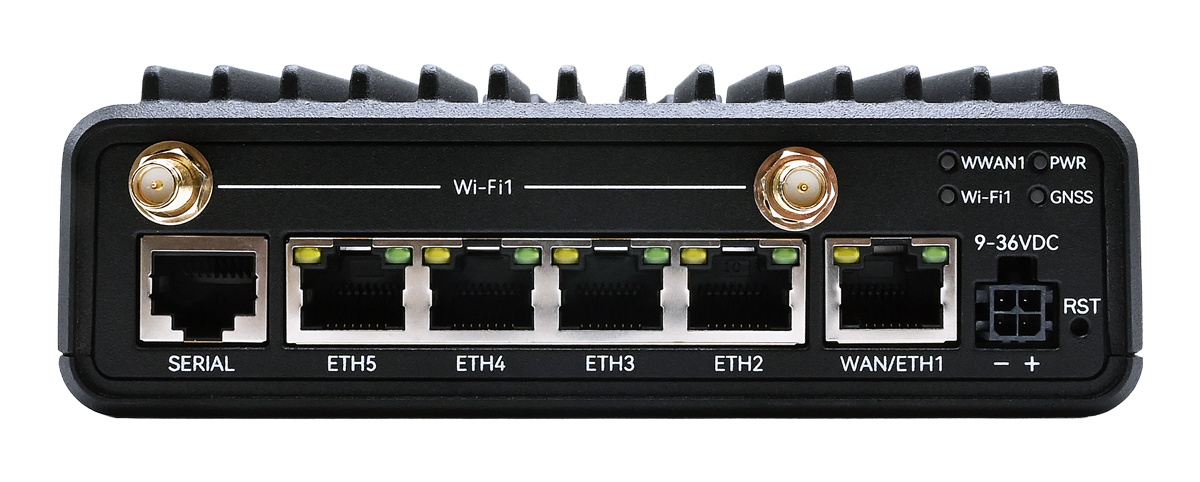

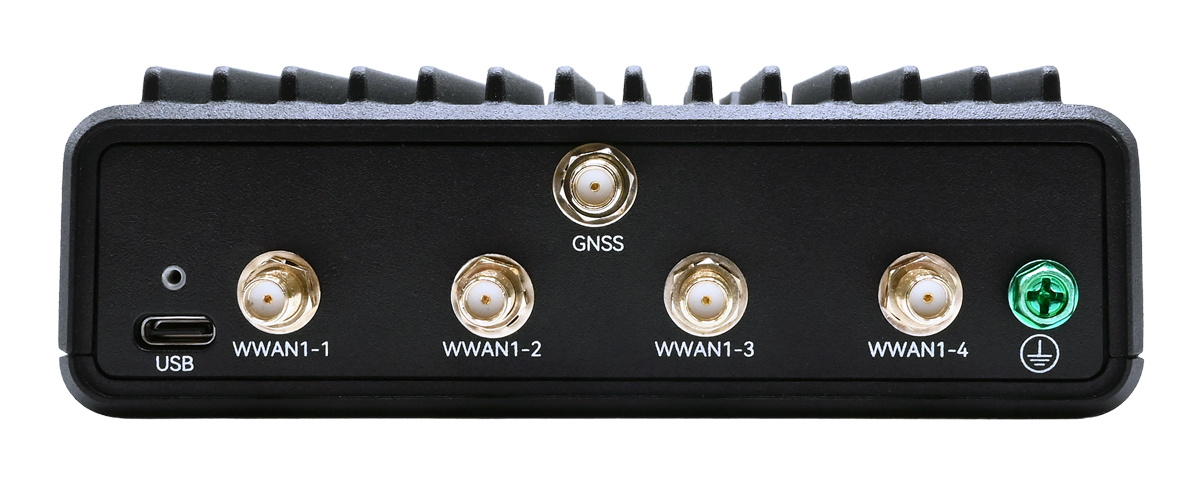

Digi TX65 5G 5B-1N

TX65-5B-1N

A streamlined TX65 configuration with secure 5G connectivity and single Wi-Fi 7 radio support, optimized for cost-effective vehicle, fleet and field service deployments.

Single 5G Release 17 modem
Single Wi-Fi 7 radio
Compact vehicle deployment option
Four cellular antenna connectors
GNSS location services
Digi 360 with Digi Remote Manager included

View model

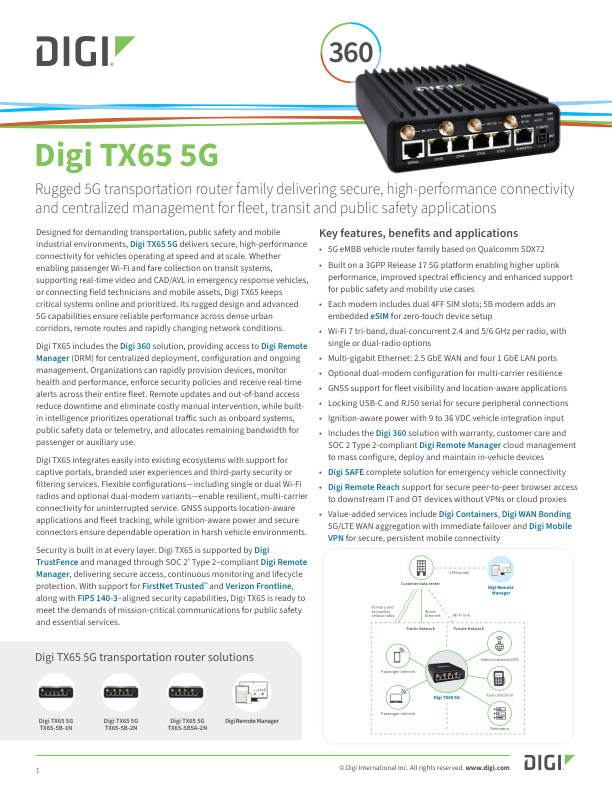

Download datasheet

User manuals & guides

Digi TrustFence

Digi TrustFence is the security framework for Digi networking and embedded solutions. The TrustFence framework requires security to be designed in at the ground floor, resulting in robust security for connected devices. The built-in security of Digi TrustFence gives you secure connections, authenticated boot, encrypted data storage, secure software updates, and excludes all insecure ingress protocols.

Learn More

Value-Added Services

Digi Remote Manager® has an ever-growing library of valuable add-on services
to keep your devices and processes running smoothly

Digi Containers Digi Containers empower companies to easily build, deploy and monitor custom applications on devices running DAL OS. With Digi Containers you can "containerize" applications, so they are lightweight, portable and secure. Learn more

Digi WAN Bonding Digi WAN Bonding is a WAN bonding technology enabled through Digi Remote Manager® to provide increased performance, WAN smoothing, packet redundancy and seamless failover. Learn more

Digi Mobile VPN Digi Mobile VPN creates a persistent, secure connection between agency data centers, a Digi router, and connected smart devices, and adds enhanced security and connection reliability to existing devices. Learn more

Digi Containers – Simpler, More Scalable Applications

Managing the increasing complexity of IoT applications is an enormous challenge. Digi Containers can help! This value-added service, available as an add-on to your Digi Remote Manager® license, lets you containerize applications to make them more portable, scalable and efficient.

Learn More

WAN bonding provides ultra-fast, ultra-reliable connectivity where it matters most

Watch Digi WAN Bonding Video

Related Products

Digi Remote Manager

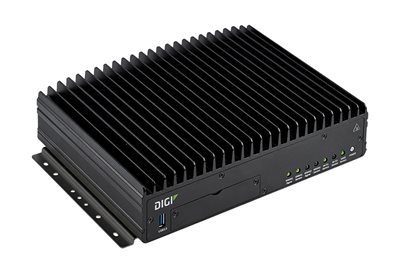

Digi TX64 5G / LTE-Advanced Pro Cellular Router

Digi TX40 5G Cellular Router

Digi Containers

Digi WAN Bonding

Digi Mobile VPN


Coming soon Digi TX65 5G with Wi-Fi 7 Single 5G Release 17 modem Single Wi-Fi 7 radio Compact vehicle deployment option Four cellular antenna connectors GNSS location services Digi 360 with Digi Remote Manager included	TX65-5B-1N	Contact Us
Coming soon Digi TX65 5G with dual Wi-Fi 7 Single 5G Release 17 modem Dual Wi-Fi 7 radios Passenger and operational traffic support Four cellular antenna connectors GNSS location services Digi 360 with Digi Remote Manager included	TX65-5B-2N	Contact Us
Coming soon Digi TX65 5G with dual Wi-Fi 7 and dual cellular Dual 5G cellular modems Dual Wi-Fi 7 radios Multi-carrier resiliency Eight cellular antennas GNSS location services Digi 360 with Digi Remote Manager included	TX65-5B5A-2N	Contact Us


RJ-45 to DB-9 Male Straight, 4' (Replacement for 76000239)	76000240	How to Buy
Ethernet cable - 2 m (6 ft)	76002106	How to Buy
DC power and GPIO cable	76002168	How to Buy
New Dynamic eSIM solution for flexible, secure and reliable cellular connectivity — 2FF triple-cut layout accessory	DG-ESIM-A	How to Buy
Digi AC/DC power supply	76002161	How to Buy
USB-C locking cable	76002171	How to Buy


Digi 360 extension for two additional years for Digi TX65	DIGI360-TX65-EXT-2YR	How to Buy
Digi 360 extension for four additional years for Digi TX65	DIGI360-TX65-EXT-4YR	How to Buy
Digi 360 renewal for one additional year for Digi TX65	DIGI360-TX65-REN-1YR	How to Buy
Digi 360 renewal for three additional years for Digi TX65	DIGI360-TX65-REN-3YR	How to Buy
Digi 360 renewal for five additional years for Digi TX65	DIGI360-TX65-REN-5YR	How to Buy

Digi Remote Manager
	Digi Remote Manager Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.		Get Started

Value-Added Services
	Digi Containers Digi Remote Manager enables deployment of custom applications via containers		Get Started
	Digi Mobile VPN Secure VPN service with persistent connectivity for critical communications		Get Started
	Digi WAN Bonding Resilient connectivity and maximum performance across multiple connections		Get Started

SPECIFICATIONS	Digi TX65 5G with Digi 360*
WIRELESS INTERFACES
CELLULAR / WWAN***
“5B” MODEM: 5G NR SUB-6 GHZ QUALCOMM SDX72, COMPLIANT WITH 3GPP RELEASE 17, WITH LTE FALLBACK AND DUAL SIM DUAL STANDBY (DSDS)	5G NR Sub-6: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48 CBRS, n66, n70, n71, n77, n78; 4G LTE-Advanced Pro: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B17, B25, B26, B29, B30, B38, B41, B42, B43, B48 CBRS, B66, B71 Power Class 1.5 (29 dBm): n38, n41, n77, n78
“5A” MODEM: SECONDARY 5G NR 3GPP RELEASE 16 SUB-6 GHZ WITH LTE FALLBACK	5G NR Sub-6: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48 CBRS, n66, n71, n75, n76, n77, n78, n79, C-band; 4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48 CBRS, B66, B71; WCDMA: B1, B2, B3, B4, B5, B6, B8, B19 Power Class 1.5 (29 dBm): n41, n77, n78, n79
CONNECTORS	Single cellular models: (4) 50 Ω SMA (center pin: female) Dual cellular models: (8) 50 Ω SMA (center pin: female)
SIM SLOTS	(2) Nano-SIM (4FF) slots; dual standby; soldered MFF2 Digi eSIM with eUICC (SGP.32) for remote provisioning and carrier switching (user selectable between one of the 4FF and eSIM slots)

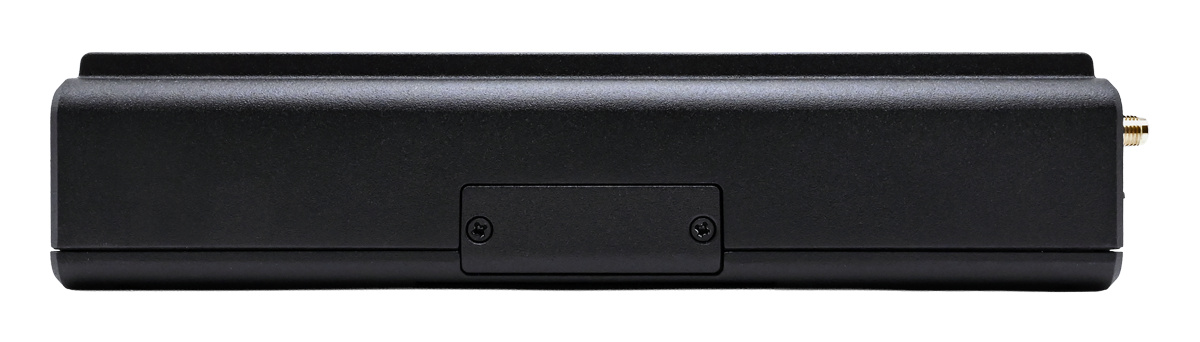

SIM SECURITY	SIM slot cover plate with security screws included
WI-FI
TECHNOLOGY	Single or dual Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) radios each supporting tri-band dual-concurrent 2.4 and 5/6 GHz operation
SECURITY	WPA2 and WPA3 Personal and Enterprise, Open and Open Enhanced security standards
HOTSPOT	Captive portal with customizable splash page, terms and conditions, shared password, user-specific password, RADIUS authentication
THIRD-PARTY SERVICES	Content filtering, embedded advertising
MODES	Up to 8 access points and up to 64 clients
CONNECTORS	Single Wi-Fi: (2) 50 Ω RP-SMA (center pin: male) Dual Wi-Fi: (4) 50 Ω RP-SMA (center pin: male)
GNSS
TECHNOLOGY	GPS, Galileo, BeiDou, GLONASS and QZSS with multiple geofence support
SENSITIVITY	Acquisition sensitivity: −147 dBm; Tracking sensitivity: −158 dBm; Accuracy (open sky): 1.5 m (4.92 ft)
PROTOCOL	NMEA 0183 4.0, TAIP
CONNECTOR	(1) 50 Ω SMA (center pin: female); +3.3 VDC active antenna drive
WIRED INTERFACES
ETHERNET
PORTS / CONNECTOR	(1) WAN 2.5 GbE, RJ-45; (4) LAN 1 GbE, RJ-45 All ports WAN/LAN switchable
SERIAL
PORTS / CONNECTOR	(1) EIA RS-232 DTE / RS-485, 10-pin RJ-50
USB
PORTS / CONNECTOR	(1) USB 3.1 with DRD (Dual-Role Data) / DRP (Dual-Role Power) support, Type-C
GPIO
PORTS / CONNECTOR	(1) Digital I/O and (1) ignition sense included with the 4-pin Molex power input connector
SOFTWARE AND MANAGEMENT*
REMOTE MANAGEMENT	Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed)
LOCAL MANAGEMENT	Web UI (HTTPS); CLI (SSH, serial)
MANAGEMENT TOOLS	SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
MEMORY
RAM / FLASH	2 GB / 8 GB
PHYSICAL
DIMENSIONS (L X W X H)	192 mm x 133 mm x 43 mm (7.56 in x 5.24 in x 1.69 in)
WEIGHT	1.1 kg (2.5 lbs)
STATUS LEDS	Power, WWAN 1, WWAN 2, Wi-Fi 1, Wi-Fi 2, GNSS
ENCLOSURE / RATING	Aluminum alloy / IP64
POWER
POWER INPUT	9–36 VDC; power source required (TX65-5B-1N: 22 W, TX65-5B-2N: 30 W, TX65-5B5A-2N: 36 W) Ignition sense, reverse polarity protection 4-pin Molex or locking USB-C power input (USB PD 3.0 source required; 12 V, 36 W recommended)
POWER CONSUMPTION	18 W typical (idle); 36 W (peak RF Tx/Rx —TX65-5B5A-2N)
ENVIRONMENTAL
OPERATING TEMPERATURE	−40 °C to 75 °C (−40 °F to 167 °F)
STORAGE TEMPERATURE	−40 °C to 85 °C (−40 °F to 185 °F)
RELATIVE HUMIDITY	5% to 95% (non-condensing) at 25 °C (77 °F)
APPROVALS**
CELLULAR	PTCRB, AT&T, AT&T FirstNet®, T-Mobile, Verizon, Verizon Frontline
SAFETY	IEC 62368
VEHICLE	SAE J1113, ISO 16750-2, EN 50155
EMISSIONS / IMMUNITY	FCC Part 15 Class B, ICES-003
PROCUREMENT COMPLIANCE	TAA compliant; can support FTA Buy America and BABA procurement requirements
ENVIRONMENTAL	MIL-STD-810H (temperature, humidity, vibration, shock, dust and salt fog)
WARRANTY***
PRODUCT WARRANTY	1-year

*Includes the Digi 360 solution for Digi TX65 (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Product warranty can be extended with Digi 360 extensions or renewals.

****For a comprehensive list of operating system features, please visit digi.com/solutions/by-technology/dal-operating-system/features.
