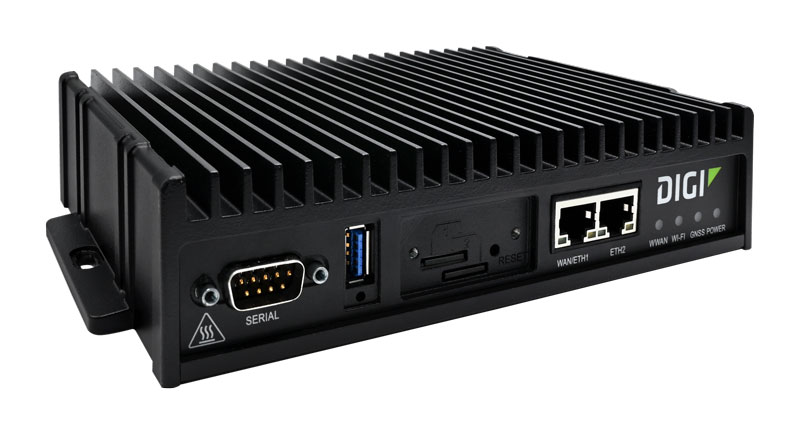

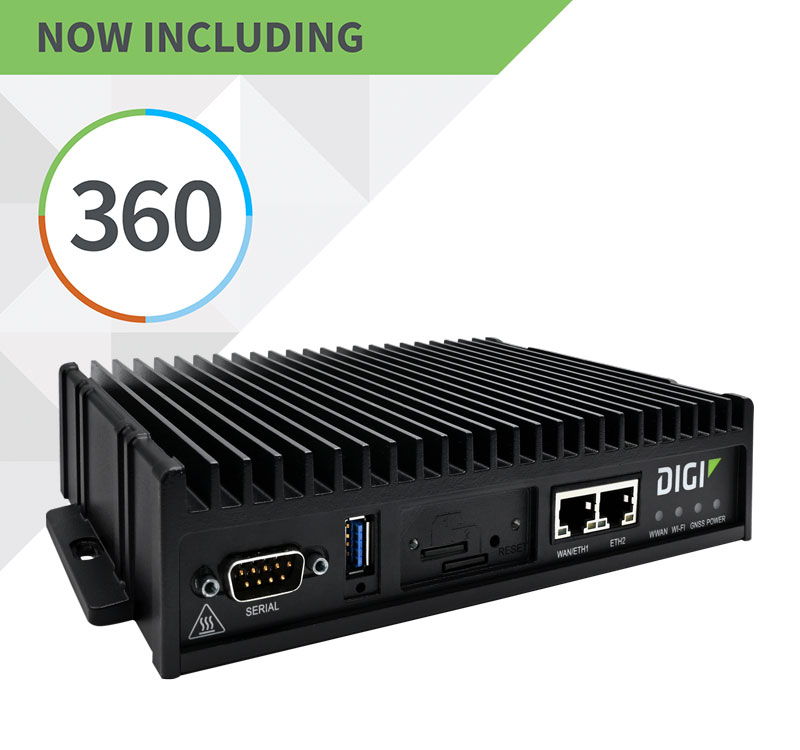

Digi TX40 5G Cellular Router

Now with Digi 360

Intelligent 5G wireless communications hub for public safety and fleet vehicles



An affordable and purpose-built solution for public safety and emergency vehicle fleets, Digi TX40 breaks down communication silos and seamlessly connects the growing list of equipment in a vehicle into a fast and reliable vehicle area network (VAN). It enables you to digitally transform your fleet with latest generation wireless technology — easy to deploy and centrally managed via Digi Remote Manager® (Digi RM), which is included in your Digi 360 solution.

Digi TX40 is available in 5G and 4G LTE-Advanced Pro with 3G fallback models that are FirstNet Capable™ and support Verizon Frontline and T-Mobile Connecting Heroes to meet the critical demands of first responders for emergency communications.

High-resolution, real-time video provides the critical element of situational awareness for dispatchers, command staff and officers on the scene of a public safety incident. Digi TX40 with 5G and Wi-Fi 6 transfers critical information faster, further and more reliably.

Advanced Connectivity for Security and Public Safety

Digi TX40 connects vehicle equipment such as dash cameras, body cameras, license-plate readers, eTicket systems, and mobile data computers over Gigabit Ethernet, Wi-Fi 6, USB 3.0, and serial interfaces. And the latest multi-constellation GNSS receiver with Untethered Dead Reckoning (UDR) ensures that Dispatch knows the exact vehicle location.

Digi TX40 is ITxPT-compliant to ensure interoperability and seamless integration with other vehicle systems for sharing connectivity, location and time, information and services — reducing complexity, points of failure and cost..

Cybersecurity is critical in today’s communication systems, and vehicle area networks are no different. Digi TX40 meets the U.S. government cybersecurity FIPS 140-2 standard and supports the Digi TrustFence® security framework to ensure it is secure on day one and stays secure throughout its life.

The complete Digi SAFE™ solution, with the optional Digi Mobile VPN value-added service, enables IT staff to securely traverse multiple, independent networks simultaneously within one mobile VPN connection, assuring secure uninterrupted sessions with deployed devices in the field. Highly resilient application and session persistence with mobile encryption ensures constant, secure connectivity, and keeps officers and citizens safer, while minimizing response times.

5G
FirstNet Ready
Verizon Frontline
T-Mobile Connecting Heroes
OnGo Alliance
Digi WAN Bonding Logo

Introducing Digi WAN Bonding

Digi WAN Bonding combines multiple connections into a seamless and resilient connectivity solution that ensures optimal performance and maximum uptime anywhere around the world.

Learn More

TrustFence

Protect Your Wireless Devices and Your Data

Digi TrustFence Security

Your most critical applications demand reliable security to prevent malicious attacks and keep your network protected at all times. Digi TrustFence® is a comprehensive security framework that simplifies the process of securing your connected devices.

See How TrustFence Works

Compare Transportation Routers

Compare Transportation Routers
Digi TX40 with Digi 360
SKU: TX40-A500 New
Digi TX40 A500
  • 5G and 4G LTE-Advanced Pro
  • Dual Ethernet
  • Wi-Fi 6
  • USB
  • RS-232
  • GNSS
TX40-A500 How to Buy
SKU: TX40-A400 New
Digi TX40 A400
  • 4G LTE-Advanced Pro Cat 12 with 3G fallback
  • Dual Ethernet
  • Wi-Fi 6
  • USB
  • RS-232
  • GNSS
TX40-A400 How to Buy
Accessories

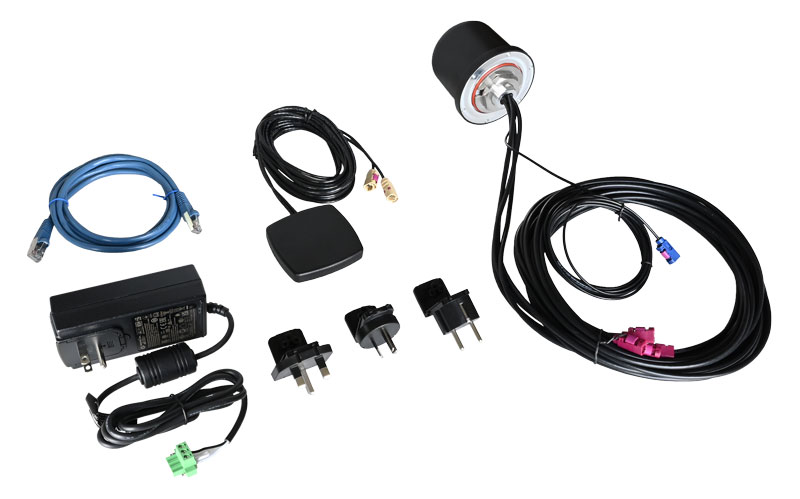

SKU: 76002136 Digi TX40 5G Accessory Kit — Extended temperature power supply, 5G/GNSS antenna, Wi-Fi antenna, Cat 5e Ethernet cable 76002136 How to Buy
SKU: 76002137 Digi TX40 4G Accessory Kit — Extended temperature power supply, 4G/GNSS antenna, Wi-Fi antenna, Cat 5e Ethernet cable 76002137 How to Buy

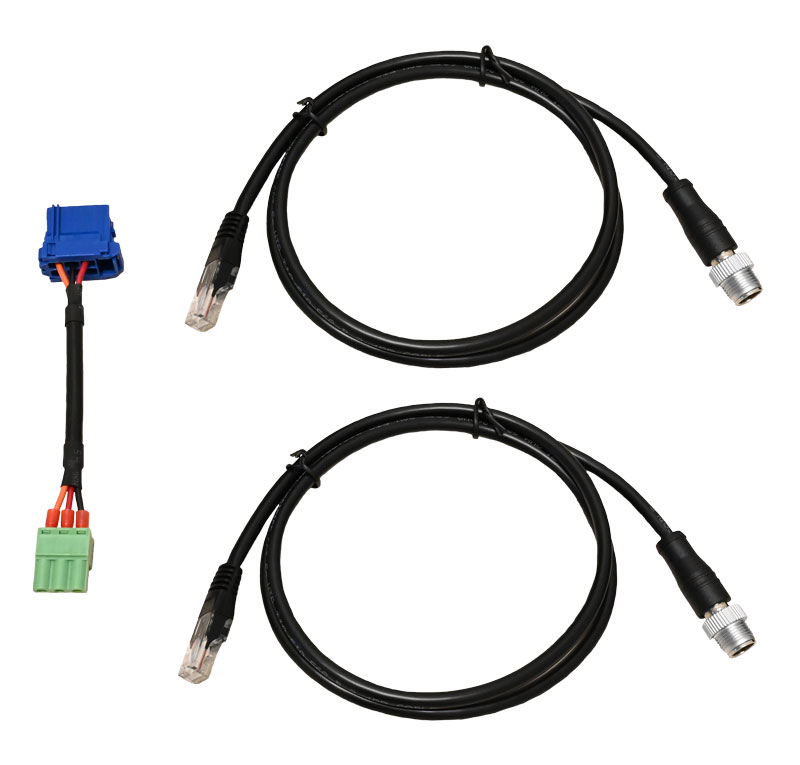

SKU: 76002138 Digi TX40 ITxPT Kit — Power connector adaptor, (2) M12/RJ-45 Cat 5e Ethernet cables 76002138 How to Buy

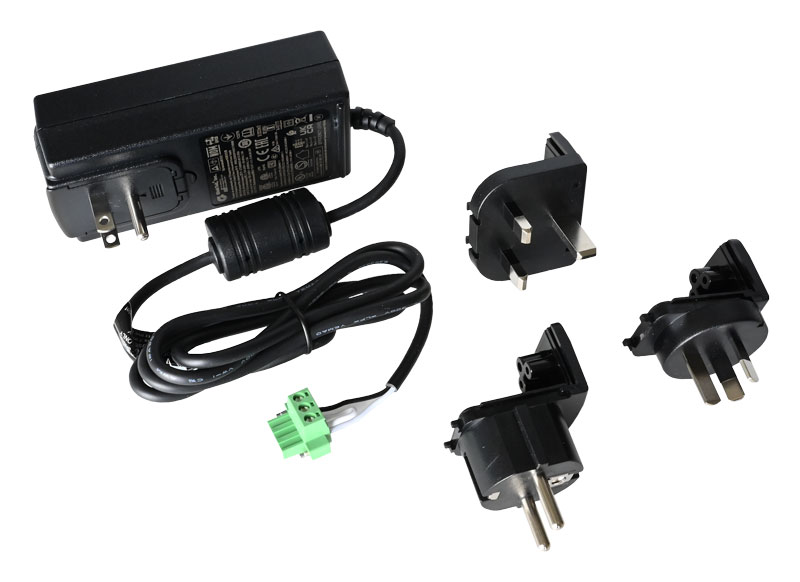

SKU: 76002121 Power supply — 100 - 240 VAC, 1.5 A input, 12 VDC, 5 A output, extended temperature range 76002121 How to Buy
Digi 360 Extensions and Renewals
SKU: DIGI360-TX40-EXT-2YR Digi 360 extension for two additional years for Digi TX40 DIGI360-TX40-EXT-2YR How to Buy
SKU: DIGI360-TX40-EXT-4YR Digi 360 extension for four additional years for Digi TX40 DIGI360-TX40-EXT-4YR How to Buy
SKU: DIGI360-TX40-REN-1YR Digi 360 renewal for one additional year for Digi TX40 DIGI360-TX40-REN-1YR How to Buy
SKU: DIGI360-TX40-REN-3YR Digi 360 renewal for three additional years for Digi TX40 DIGI360-TX40-REN-3YR How to Buy
SKU: DIGI360-TX40-REN-5YR Digi 360 renewal for five additional years for Digi TX40 DIGI360-TX40-REN-5YR How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers
  Get Started
Digi Mobile VPN
Secure VPN service with persistent connectivity for critical communications
  Get Started
Digi WAN Bonding
Resilient connectivity and maximum performance across multiple connections
  Get Started
SPECIFICATIONS Digi TX40 5G with Digi 360*
WIRELESS INTERFACES
CELLULAR / WWAN**
TX40-A500: 5G NSA, 5G SA*, 4G LTE-ADVANCED PRO 5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48 CBRS, n66, n71, n75, n76, n77, n78, n79, C-band;
4G LTE-Advanced bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46 LAA, B48 CBRS, B66, B71
3G bands: B1, B2, B3, B4, B5, B6, B8, B19
TX40 A-400: 4G LTE-ADVANCED PRO CAT 12, 3G HSPA+ 4G LTE-Advanced bands: B1, B2, B3, B4, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48 CBRS, B66, B71;
3G bands: B1, B2, B4, B5, B8, B9, B19
CONNECTORS (2) or (4) FAKRA Code D (burgundy)
SIM SLOTS (2) Nano-SIM (4FF)
SIM SECURITY SIM slot cover plate included
WI-FI
TECHNOLOGY Wi-Fi 6 (802.11ax) dual-band (2.4 GHz and 5 GHz) concurrent 2 x 2 MIMO operation; backward compatible with Wi-Fi 5 (802.11ac) and Wi-Fi 4 (802.11n)
SECURITY WPA, WPA2 and WPA3 Personal and Enterprise, Open and Open Enhanced security standards
HOTSPOT Captive portal with customizable splash page, terms and conditions, shared password, user-specific password, RADIUS authentication
THIRD-PARTY SERVICES Content filtering, embedded advertising
MODES Simultaneous client and access point support
CONNECTORS (2) FAKRA Code I (beige)
BLUETOOTH®
TECHNOLOGY Bluetooth 5.2
GNSS
TECHNOLOGY GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support
SENSITIVITY Tracking and navigation: −160 dBm
PROTOCOL NMEA 4.11 and TAIP
CONNECTOR (1) FAKRA Code C (blue)
WIRED INTERFACES
ETHERNET
PORTS / CONNECTOR (2) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
SERIAL
PORTS / CONNECTOR (1) RS-232; DB-9 male (DTE)
USB
PORTS / CONNECTOR (1) USB 3.0 Type A; 5 VDC 1 A max
SOFTWARE & MANAGEMENT*
REMOTE MANAGEMENT Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed), SMS
LOCAL MANAGEMENT WebUI (HTTPS); CLI (SSH, Serial)
MANAGEMENT TOOLS SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
MEMORY
RAM / FLASH 1 GB / 8 GB
PHYSICAL
DIMENSIONS (L X W X H) 198 mm x 138 mm x 44 mm (7.78 in x 5.54 in x 1.73 in)
WEIGHT 1 kg (2.2 lb)
STATUS LEDS Power, GNSS, Wi-Fi, WWAN, Ethernet (link, activity)
ENCLOSURE/RATING Aluminum / IP64
POWER REQUIREMENTS
POWER INPUT 7 – 36 VDC, reverse polarity protection, ignition sense
POWER CONNECTOR Screw down removable terminal block
POWER CONSUMPTION 8W typical (idle); 15 W (peak RF Tx/Rx)
ENVIRONMENTAL
OPERATING TEMPERATURE −34 °C to 74 °C (−29 °F to 165 °F)
STORAGE TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F)
RELATIVE HUMIDITY 0% to 95% (non-condensing) at 25 °C (77 °F)
APPROVALS**
CELLULAR PTCRB, AT&T, FirstNet Capable™, T-Mobile, T-Mobile Connected Heroes, Verizon, Verizon Frontline
SAFETY IEC 62368-1, CB scheme
SECURITY FIPS 140-2 cybersecurity standard
INTEROPERABILITY ITxPT
VEHICLE E-Mark (UNECE Reg. 10)
EMISSIONS/IMMUNITY CE, FCC Part 15 Subpart B with IC, UKCA
ENVIRONMENTAL MIL-STD-810H (high and low temperature, vibration, shock)
WARRANTY****
PRODUCT WARRANTY 3-year
*Includes the Digi 360 solution for Digi TX40 (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Contact your network operator regarding 5G SA support on their network. Digi TX40-A500 supports up to 2xCC (2x 5G SA Carrier Components).
****Product warranty can be extended with Digi 360 extensions or renewals.


ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTPS, TLS, SCP (client and server), SFTP, SNMP (v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with No-IP/DynDNS; Captive portal, Intelliflow; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf
SECURITY / VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSLv3, FIPS 197, Open VPN client and server; L2TP; VPN tunnels; cryptology: SHA-1, MD5, RSA; encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); authentication: RADIUS, TACACS+, SCEP for X.509; certificates; content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, BGP, iGMP routing (multicast); IP failover: VRRP, VRRP+TM; automatic failover/failback to second GSM network/standby APN; Digi SureLink®
EMISSIONS / IMMUNITY DHCP; Dynamic DNS client compatible with No-IP/DynDNS; QoS via TOS/DSCP; Modbus UDP/TCP to serial; Modbus bridging for connecting diverse field assets
*For a comprehensive list of operating system features, please visit digi.com/solutions/by-technology/dal-operating-system/features.
