Communicate with Therapist Bot Using Digi XBee Cellular and XCTU
Communicate with Therapist Bot Using Digi XBee Cellular and XCTU
Table of Contents
Introduction
Assemble the Parts
Communicate with ELIZA
Your First Counselling Session
Accessing Other Servers
1) Introduction
XCTU
is a free multi-platform application designed to enable developers to interact with Digi RF modules through a simple-to-use graphical interface. By using XCTU and the Digi XBee cellular, you can connect to many servers such as the ELIZA Therapist Bot, Echo, and Daytime. In XCTU you can directly communicate with radio modules using the AT console. All the data you send through the serial interface is queued for transmission by the module, and all the data received by the module is sent through the serial interface. To communicate between devices in the console, you can use the AT Console Log which displays all sent (blue) and received (red) data characters. Using the Digi Xbee Cellular Modem and XCTU, you can chat with the ELIZA Therapist Bot. ELIZA is an artificial intelligence (AI) bot that emulates a therapist and can perform simple conversations. Every conversation with ELIZA can be viewed through the XCTU Console Log. In this example, we will provide step by step instructions on how to connect to the ELIZA server.
2) Assemble the Parts

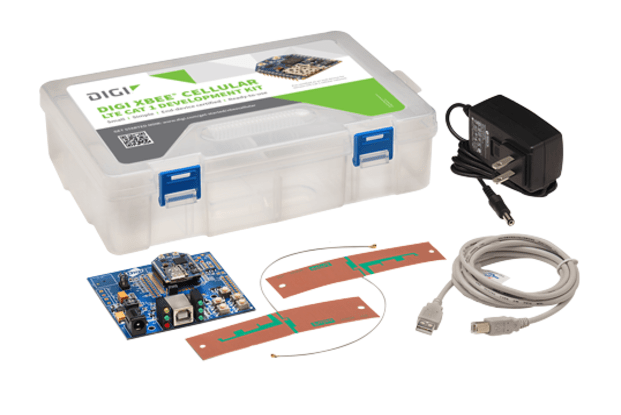

Digi XBee Cellular LTE Cat1 Development Kit
XCTU
3) Communicate with ELIZA
Follow the instructions below to connect your XBee Cellular module with the ELIZA server.
Note:
The following instructions assume that you have downloaded XCTU and your XBee Cellular device is setup correctly. To download XCTU click
here
. For instructions on setting up your XBee Cellular device click
here
.
Open XCTU and click the
Configuration Working Mode

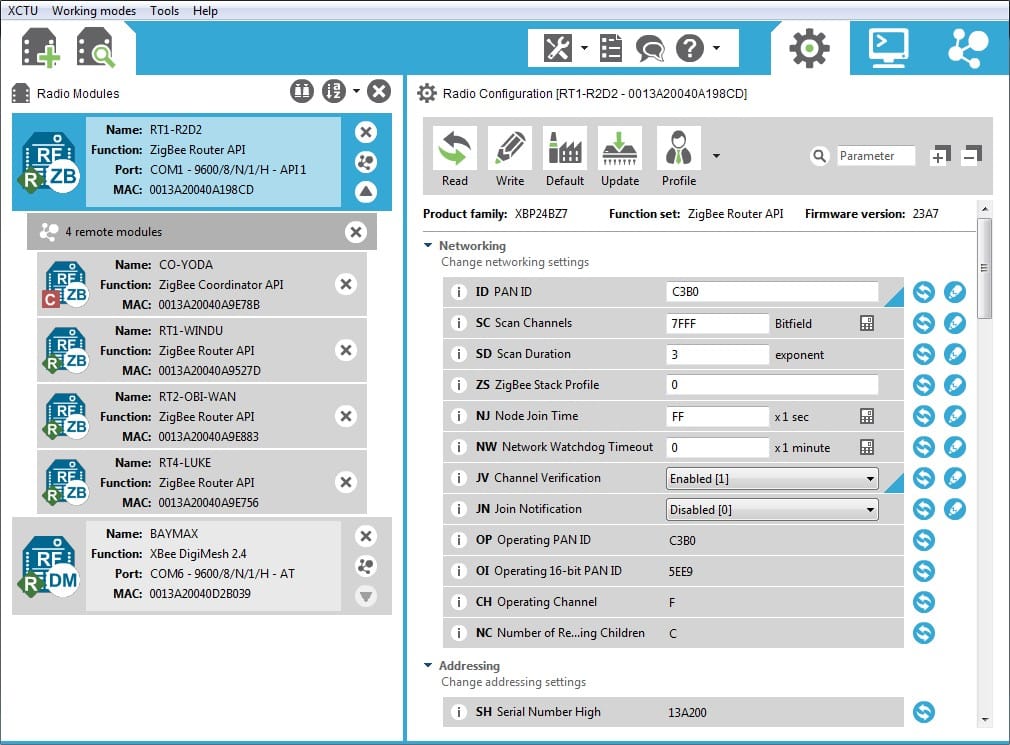

Select a device from the
Radio Modules
list. XCTU displays the current firmware settings for that device.
On the configuration toolbar, click the
Default
button to load the default values established by the firmware, and click
Yes
to confirm.
Factory settings are loaded but not written to the device. To write them, click the
Write
button on the toolbar.
To switch to TCP communication, in the
IP
field, select 1 and click the
Write
button.
To enter the destination address of the ELIZA Therapist Bot, in the
DL
field, type
52.43.121.77
and click the
Write
button.
To enter the destination
IP
port number, in the
DE
field, type
2328
and click the
Write
button.
Click the
Consoles Working Mode
button on the toolbar to open a serial console to the device. For instructions on using the console click
here
.
Click the
Open
button to open a serial connection to the device.
4) Your First Counselling Session
You’re all ready to talk to Eliza! Type in the left pane of the
Console Log

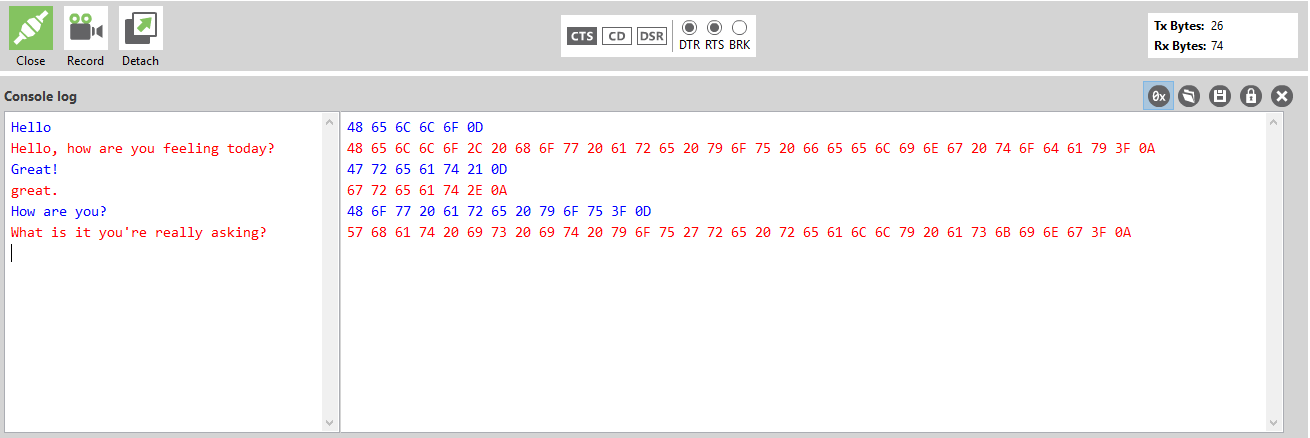

and Eliza will quickly send a response. See the example conversation below.
The right-hand side of the window shows the corresponding hexadecimal values for all sent and received messages. To hide this pane, click the
Hide Hexadecimal View
button.
5) Accessing Other Servers
To learn more about connecting to servers using XCTU and Digi XBee Cellular click
here
.
