Digi XBee XR 868 Development Kit
Complete Digi XBee XR 868 development platform operates in the 863-870 MHz range, delivering superior performance and interference immunity
The Digi XBee® XR 868 Development Kit features Digi XBee XR 868 MHz micro-mount (MMT) modules, dipole antennas with U.FL connectors and Digi XBIB-C Development Boards. The precertified Digi XBee XR 868 module is a compact and reliable solution supporting deployment of long-range connectivity applications in the European region, and operates between 863 and 870 MHz in compliance with European standards.

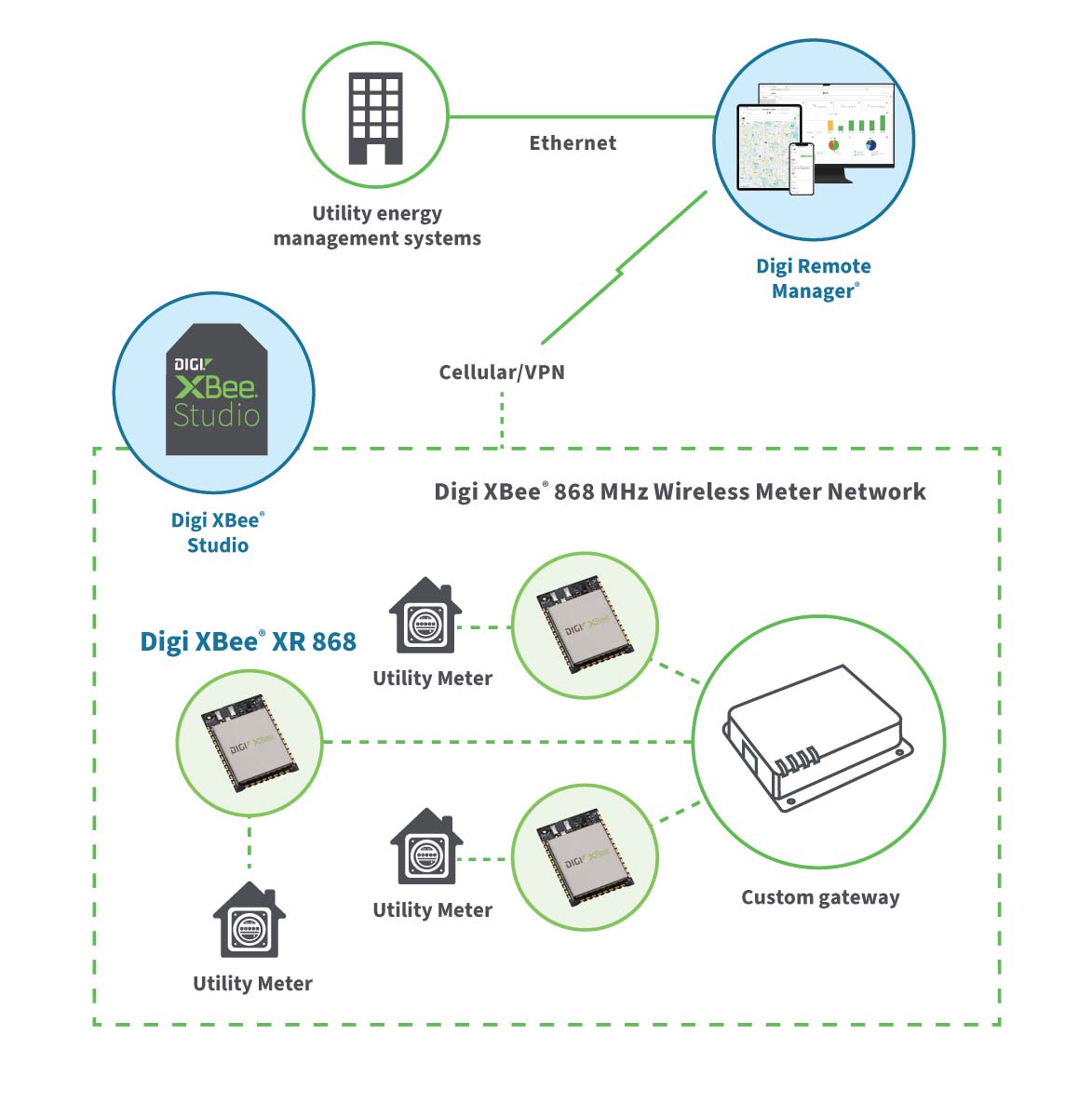

The module enables both point-to-point and mesh networking protocols, with a line-of-sight range of over 14 kilometers. It is well suited for agriculture and energy applications where long-distance communication is required.
Intelligent interference management
Digi XBee XR 868 also leverages 868 MHz and surrounding frequencies for LBT + AFA (Listen Before Talk and Adaptive Frequency Agility). This significantly reduces interference by listening to the radio environment before any transmission starts, and automatically shifts to a new channel when interference is detected. This patented frequency scan occurs automatically and in a matter of microseconds so as not to impact performance.
Accelerate development with Digi XCTU®
The Digi XBee XR 868 RF module is a complete hardware and software solution that works directly out of the box. Digi XCTU, Digi’s easy-to-use RF configuration tool, reduces development time from months to weeks, ensuring your product gets to market fast.
Proven experience and expert support
With decades of experience enabling millions of globally connected products, Digi is a trusted embedded and IoT solutions provider, simplifying the way OEMs design, build and deploy connected applications. Digi Wireless Design Services (WDS) offers custom design and build services, configuration, certification assistance and additional services to support you wherever you are along your development path to get your products to market smarter and faster.
Key features, benefits and applications
- Low-power CE/RED certified 868 MHz RF module based on Silicon Labs EFR32 microcontroller
- Design includes SAW filter for optimal performance in noisy RF environments
- Listen-Before-Talk and Frequency Agility for optimal interference immunity
- DigiMesh® networking topology for redundancy and reliability
- Simple configuration using Digi XCTU accelerates time to market
- Turnkey development and custom gateway engineering services available from Digi WDS

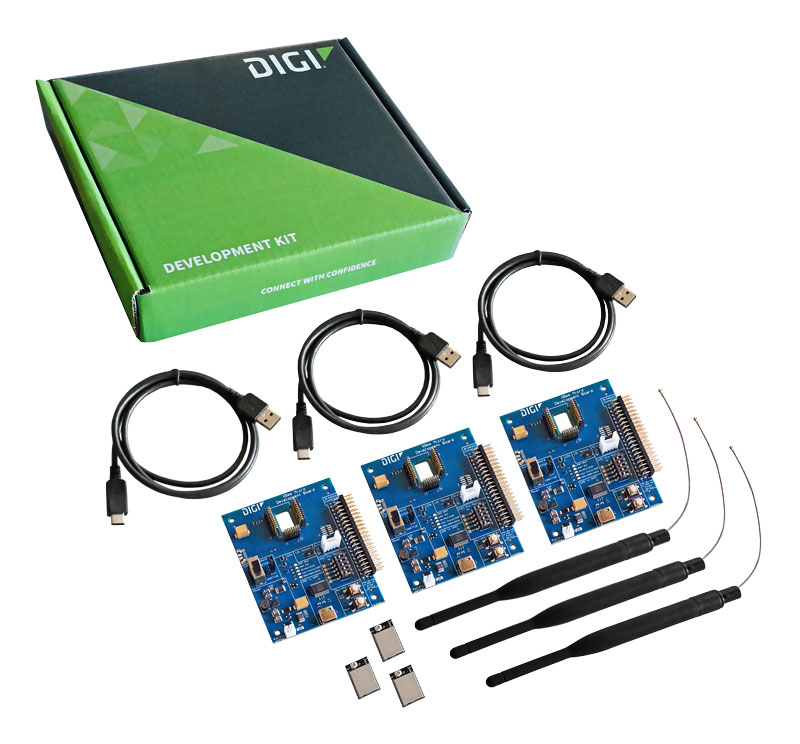

The kit includes:
- Three Digi XBee XR 868 MHz RF modules
- Three Digi XBIB-C Development Boards
- Three dipole antennas with U.FL connectors
- Digi XCTU and Digi XBee Tools
- Free Level 1 schematic review from Digi WDS
- Additional documentation and example
Digi XBee XR 868 Development Kit with Digi XBee XR 868 MHz, U.FL, MMT
| Specifications |
Digi XBee XR 868 |
| HARDWARE |
| PROCESSOR |
EFR32FG13P231F512 transceiver at 40 MHz |
| FREQUENCY BAND |
863 MHz – 870 MHz |
| FORM FACTORS |
Micro-mount (MMT), surface-mount (SMT), through-hole (TH) |
| ANTENNA OPTIONS |
MMT: U.FL connector, RF pad; SMT: U.FL connector, RF pad, chip; TH: U.FL connector, SMA |
| DIMENSIONS |
MMT: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in); SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in); TH: 2.438 x 2.761 cm (0.960 x 1.087 in) |
| WEIGHT |
MMT: 1.2 g (0.042 oz); SMT: 3.0 g (0.106 oz); TH: 3.1 g (0.109 oz) |
| PERFORMANCE |
| RF DATA RATE |
10 Kbps or 80 Kbps, software selectable |
| UART DATA RATE |
Up to 921.6 kbps |
| SPI DATA RATE |
Up to 5 Mbps |
| LINE-OF-SIGHT RANGE** |
Up to 14.5 km with 2.1 dBi antenna |
| TRANSMIT POWER |
Up to 13 dBm ERP |
| RECEIVER SENSITIVITY |
−107 dBm at 80 Kbps, −112 dBm at 10 Kbps |
| FEATURES |
| I/O |
13 Digital I/O |
| ANALOG INPUTS |
4 channels 10-bit |
| OPERATING TEMPERATURE |
−40 °C to 85 °C (−40 °F to 185 °F), temperature compensated crystal oscillator |
| NETWORKING TOPOLOGIES |
DigiMesh®, repeater; SX protocol compatible |
| SECURITY |
256-bit AES encryption |
| POWER |
| SUPPLY VOLTAGE |
1.8 – 3.6 VDC |
| TRANSMIT CURRENT |
76 mA |
| RECEIVE CURRENT |
26 mA |
| SLEEP CURRENT |
1.5 uA |
| REGULATORY APPROVALS** |
| ETSI (EUROPE) |
CE/RED |
| ROHS |
Yes |
*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
**Visit
product certifications for latest updates.
