Digi IX40 5G Edge Computing Industrial IoT Solution

New

5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0


  • Global 5G and LTE support and certification on major carrier networks around the world
  • Digi Containers to enable powerful, cost-efficient applications
  • Integrated edge computing capabilities for hosting containerized applications and custom solutions
  • Ethernet, SFP, serial, I/O and Modbus bridging
  • Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
  • GNSS receiver supporting GPS, GLONASS, BeiDou and Galileo
  • License-free enterprise software: VPN, firewall, logging and authentication
  • Digi Remote Manager® platform for easy setup, mass configuration and management
  • Rugged enclosure with options for DIN rail or shelf mounting
  • Digi WAN Bonding for 5G/LTE WAN aggregation and immediate failover

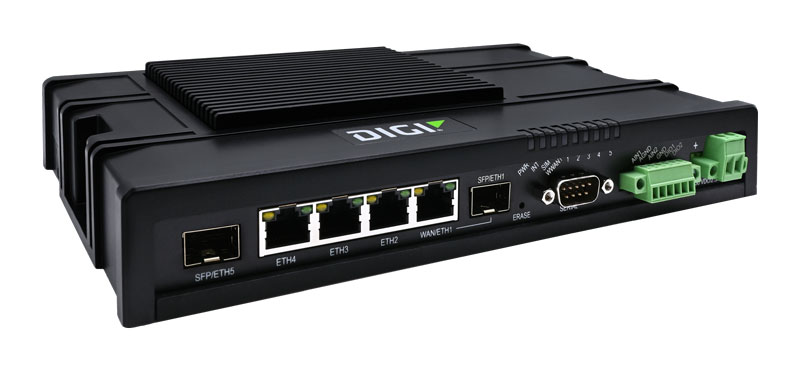

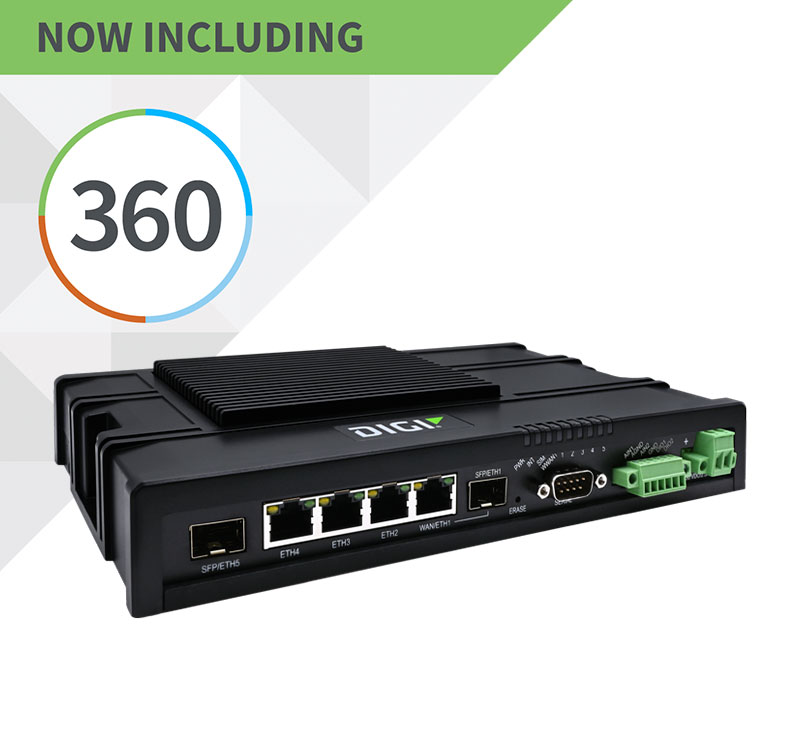

Digi IX40 is a 5G edge computing industrial IoT router solution, integrated with Digi Remote Manager (Digi RM) to empower rapid processing, analysis, and integration of industrial asset data.

Purpose-built for Industry 4.0, Digi IX40 supports the 5G connectivity and edge intelligence needed to enable numerous use cases ranging from predictive maintenance and asset monitoring to machine learning and advanced robotics. It seamlessly connects multiple machines, whether wired or wireless, in the most demanding environments, optimizing integration of cloud-delivered operational technology (OT) services with information technology (IT) to streamline complex operations and scale IT infrastructure.

With its all-in-one design, strong computing power and integrated memory, Digi IX40 offers substantial capabilities for real-time data processing, edge computing and advanced precision while reducing complexity and total cost of ownership. Digi Containers facilitate potent and cost-effective applications, providing additional flexibility and scalability for Industry 4.0, energy, smart cities and other uses.

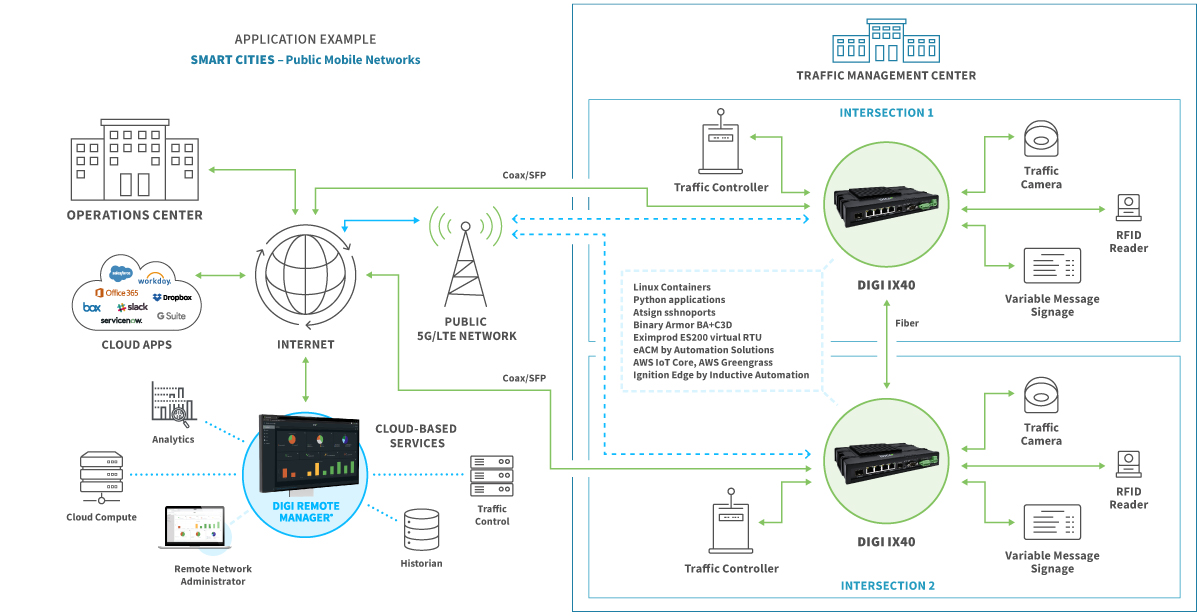

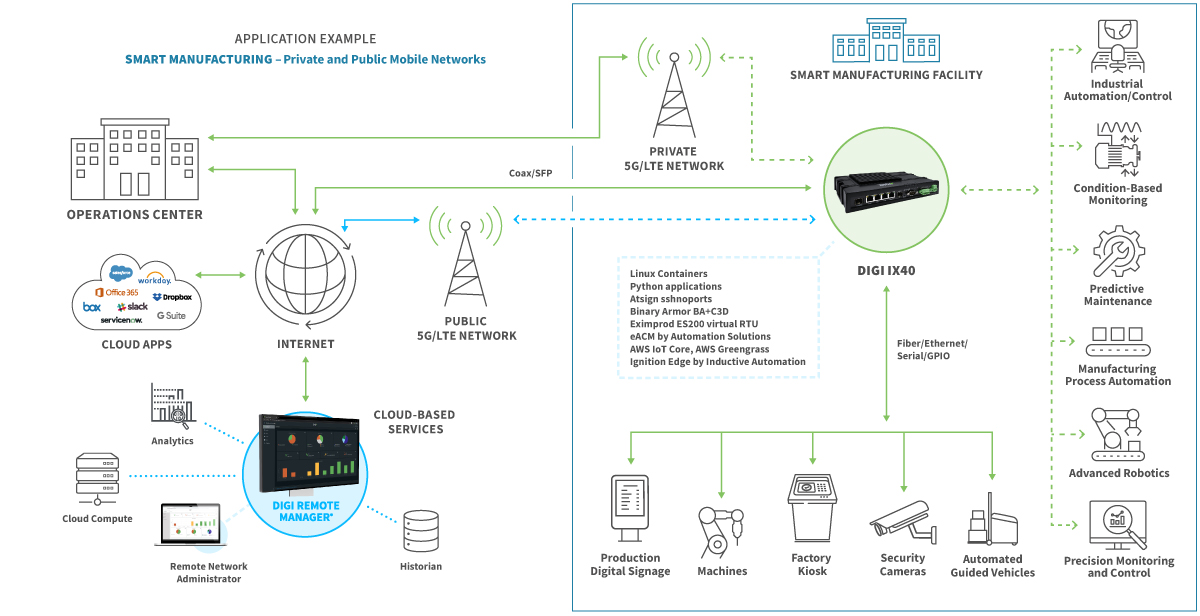

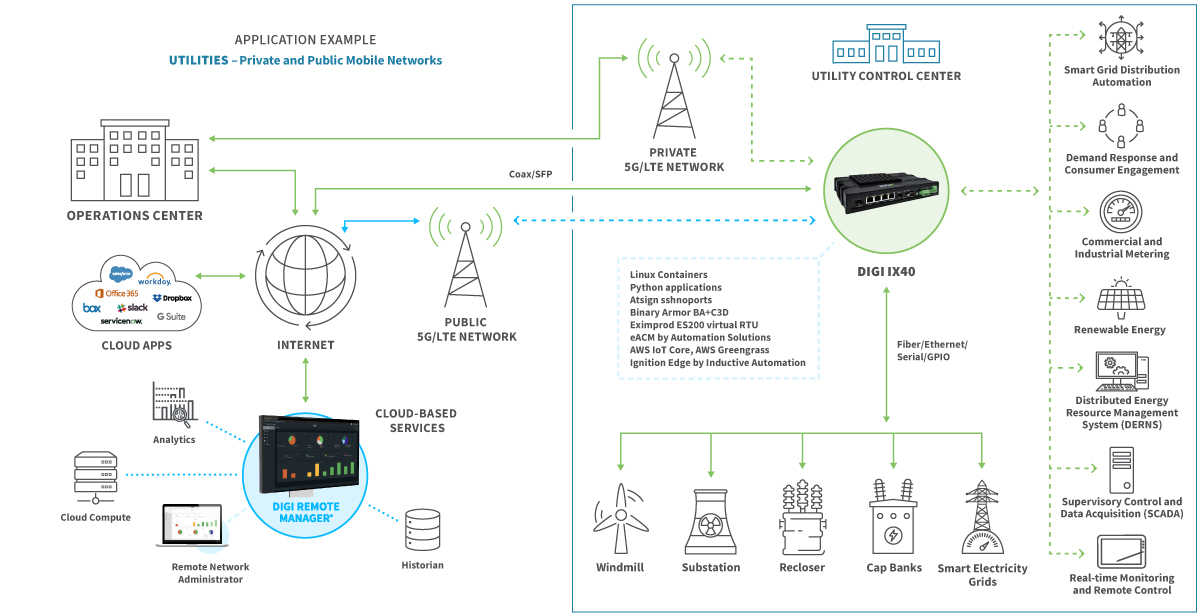

The Digi IX40 solution offers FirstNet Capable™ models designed to meet the demands of critical applications where reliability is essential for industrial use cases and emergency response. Additional use cases for Digi IX40 include manufacturing process automation, precision monitoring and control, industrial automation, utilities and traffic management.

Gain critical insights and manage your network with Digi RM — the cloud-based command center for your deployment. Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

5G
Digi TrustFence
FirstNet Ready
OnGo Alliance
Digi WAN Bonding Logo

Introducing Digi WAN Bonding

Digi WAN Bonding combines multiple connections into a seamless and resilient connectivity solution that ensures optimal performance and maximum uptime anywhere around the world.

Learn More


Introducing Digi Containers

Managing the increasing complexity of IoT applications just got easier. Meet Digi Containers, a value-added service available as an add-on to a Digi Remote Manager® license. The Digi Containers service puts you in control, and helps you simplify your operations.

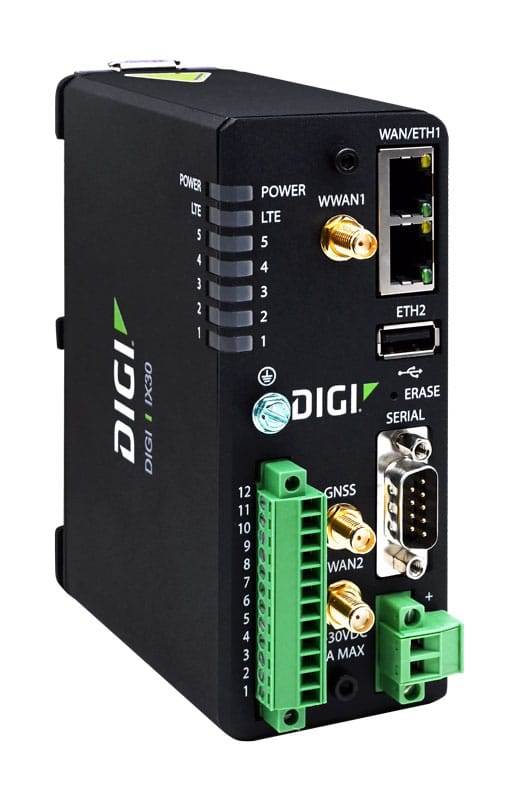

Compare Industrial Routers

Compare Industrial Routers

Take Command.

Your Network. Your Way.

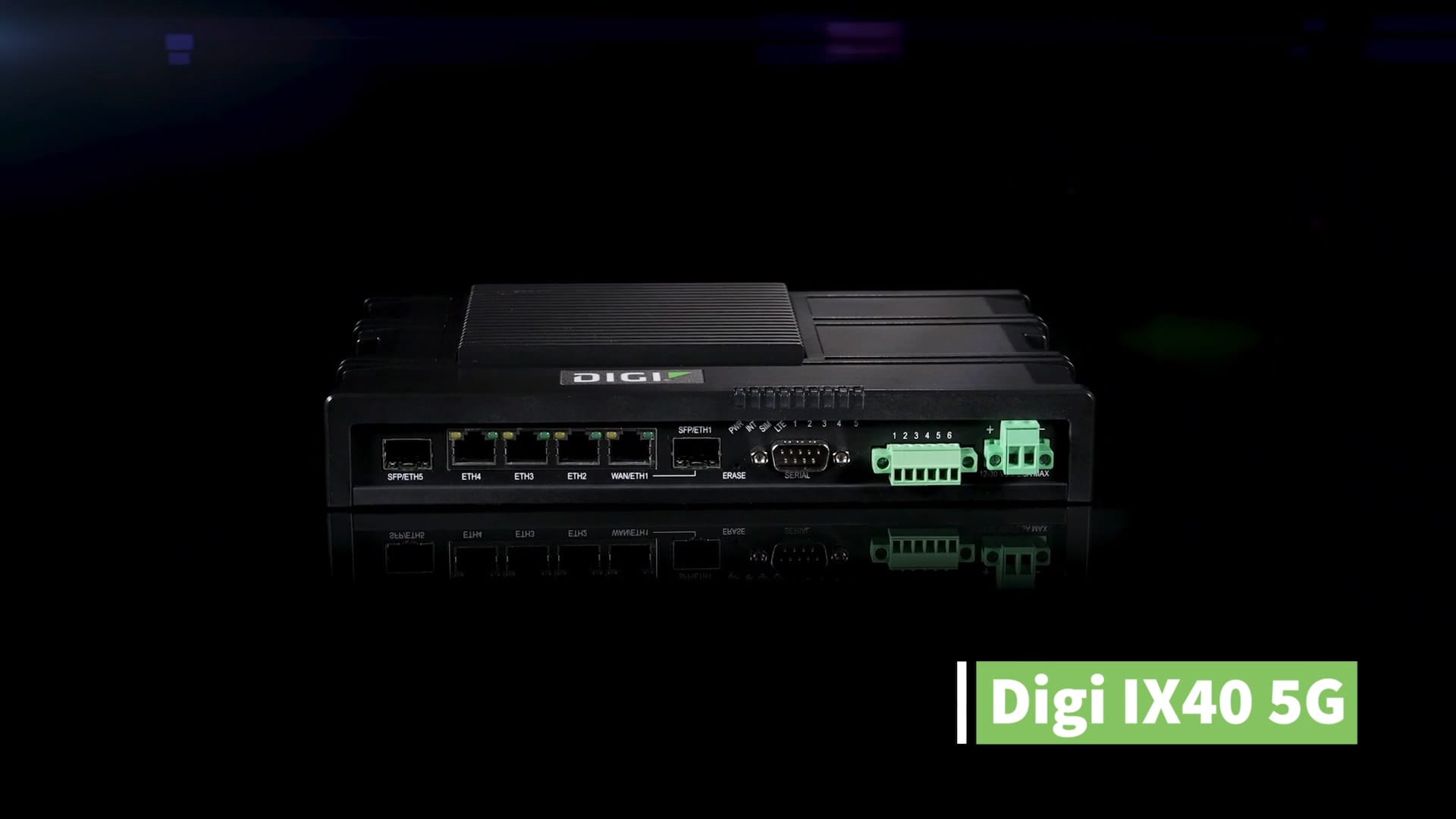

PlayWatch the Video
Take Command. Your Network. Your Way.

Manage Your Network Your Way

Remote device management: network-wide updates, data insights and control. Digi Remote Manager delivers centralized visibility and automates processes at your command, with actionable 24/7 remote monitoring.

Automated Network Monitoring
Automated Network Monitoring

To keep tabs on dozens, hundreds or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.

Configuration Management
Configuration Management

Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security.

Firmware Updates
Firmware Updates

Today's IoT devices are smarter, more feature rich, and have more tasks to perform at the edge. And they are not static. You may need to update firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.

Edge Computing
Detection and Troubleshooting

Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.

Digi IX40
SKU: IX40-05 New
Digi IX40 — 5G with LTE-Advanced Pro Cat 19 4x4 and 3G fallback, quad Ethernet, R-232/422/485, GNSS, FirstNet Capable™
IX40-05 How to Buy
SKU: IX40-04 Coming soon
Digi IX40 — 4G LTE-Advanced Pro Cat 12 with 3G fallback, quad Ethernet, RS-232/422/485, GNSS
IX40-04 Contact Us
Available Accessories
SKU: 76002147 New

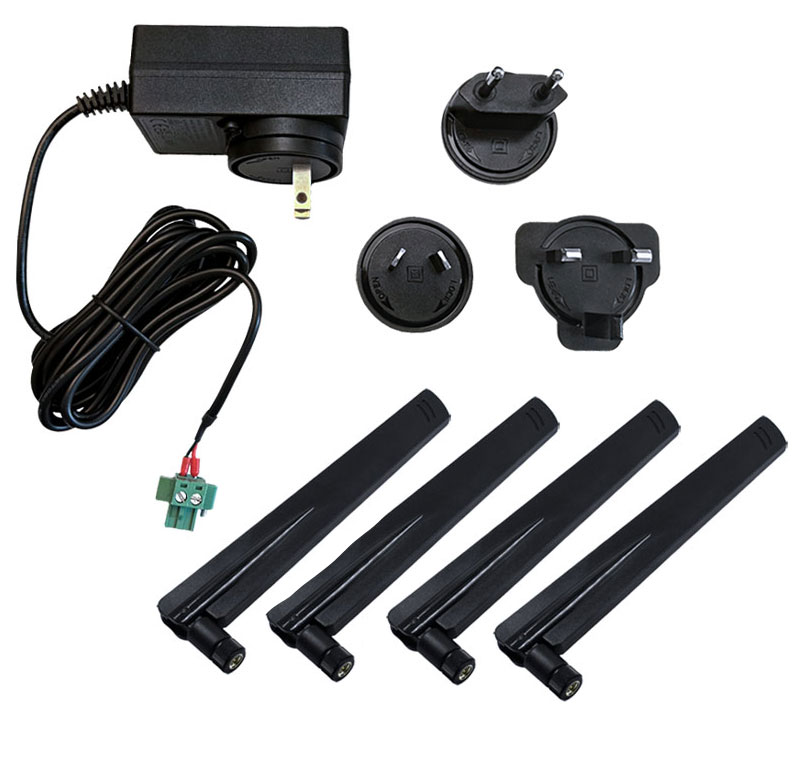

Digi IX40 5G Industrial Starter Kit — includes 30 W power supply and 4 wideband cellular antennas
76002147 How to Buy
SKU: 76002148 New
Digi LTE Industrial Starter Kit — includes 30 W power supply and 2 wideband cellular antennas
76002148 How to Buy
SKU: 76002093 DIN rail mounting bracket kit 76002093 How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers
  Get Started
Digi WAN Bonding
Resilient connectivity and maximum performance across multiple connections
  Get Started
SPECIFICATIONS Digi IX40
WIRELESS INTERFACES
CELLULAR / WWAN
IX40-05: 5G NSA, 5G SA, 4G LTE-ADVANCED PRO CAT 19 5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14 FirstNet®, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79;
4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48, B66, B71;
3G bands: B1, B2, B3, B4, B5, B6, B8, B19
IX40-04: 4G LTE-ADVANCED PRO CAT 12, 3G HSPA+ 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71;
3G bands: B1, B2, B4, B5, B6, B8, B9, B19

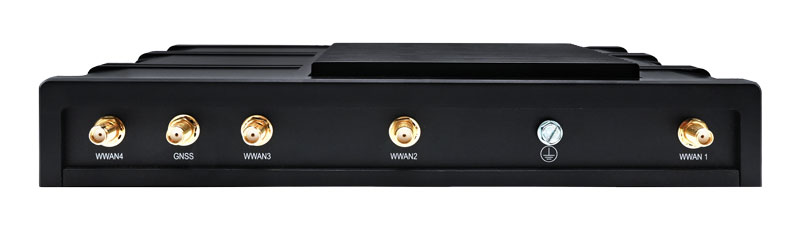

CONNECTORS (2) or (4) 50 Ω SMA;  center pin: female

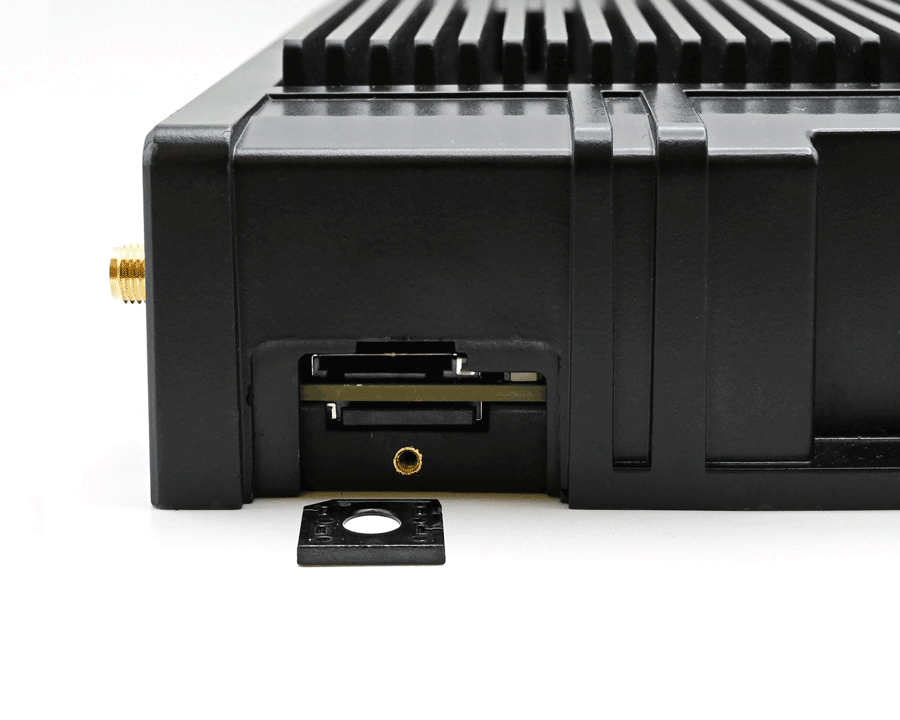

SIM SLOTS (2) Nano-SIM (4FF) holders
SIM SECURITY SIM slot cover plate included
GNSS
TECHNOLOGY GPS Gen 9 with band L1 LNA for passive antenna use
ANTENNA Upper L-band: GPS L1; Glonass G1; Beidou B1; Galileo E1
IX40-04: supports passive GNSS antennas rated at 1.5 to 3 dBi only
IX40-05: supports passive GNSS antennas rated at 1.5 to 3 dBi or active antennas with 7.5 to 26 dB gain
PROTOCOL NMEA 4.11 and TAIP
CONNECTOR (1) 50 Ω SMA;  center pin: female
WIRED INTERFACES
ETHERNET

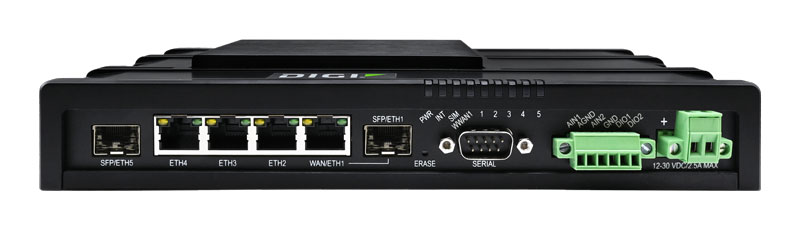

PORTS / CONNECTOR (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
I/O
PORTS / CONNECTOR (2) Digital input/outputs; (2) analog inputs (0 - 10 V; 4 - 20 mA; 12-bit resolution)
SFP
PORTS / CONNECTOR (2) 1 Gb capable SFP sockets
SERIAL
PORTS / CONNECTOR (1) RS-232/422/485; DB-9 male (DTE)
SOFTWARE & MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS
LOCAL MANAGEMENT Web UI (HTTPS); CLI (SSH, serial)
MANAGEMENT TOOLS SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
PROCESSOR
APPLICATION PROCESSOR 1.6 GHz quad-core i.MX 8M Plus ARM® Cortex®-A53 processor
MEMORY
RAM / FLASH 1 GB / 8 GB
PHYSICAL
DIMENSIONS (L X W X H) 234 mm x 154 mm x 41 mm (9.21 in x 6.06 in x 1.61 in)
WEIGHT 1.14 kg (2.51 lb)
STATUS LEDS Power, WWAN, Ethernet (link, activity)
ENCLOSURE/RATING Glass-filled polyphenylene sulphide / IP30 −40 °C to 85 °C (−40 °F to 185 °F)
POWER REQUIREMENTS
POWER INPUT 12 to 30 VDC
POWER CONNECTOR Screw down removable terminal block
POWER CONSUMPTION 4.5 W (light traffic), 8 W (peak data), 3.5 W (idle traffic)
ENVIRONMENTAL
OPERATING TEMPERATURE −30 °C to 70 °C (−22 °F to 158 °F)
STORAGE TEMPERATURE −45 °C to 85 °C (−49 °F to 185 °F)
RELATIVE HUMIDITY 0% to 95% (non-condensing) at 25 °C (77 °F)
APPROVALS*
CELLULAR PTCRB, AT&T, FirstNet Capable™, T-Mobile, Verizon;
visit product certifications for latest updates
SAFETY IEC 62368-1, CB scheme
EMISSIONS / IMMUNITY FCC Part 15 Subpart B, ISED, CE, RED, UKCA
WARRANTY
PRODUCT WARRANTY 3-year*
*Visit product certifications for latest updates.
**Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.

ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTPS, TLS, SCP (client and server), SFTP, SNMP (v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with No-IP/DynDNS; Captive portal, Intelliflow; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf
SECURITY / VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSLv3, FIPS 197, Open VPN client and server; L2TP; VPN tunnels; cryptology: SHA-1, MD5, RSA; encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); authentication: RADIUS, TACACS+, SCEP for X.509; certificates; content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, BGP, iGMP routing (multicast); IP failover: VRRP, VRRP+TM; automatic failover/failback to second GSM network/standby APN; Digi SureLink®
EMISSIONS / IMMUNITY DHCP; Dynamic DNS client compatible with No-IP/DynDNS; QoS via TOS/DSCP; Modbus UDP/TCP to serial; Modbus bridging for connecting diverse field assets
